1.8" Micro SATA to 2.5" 22-Pin SATA Adapter | HDD & SSD
1.8" Micro SATA to 2.5" 22-Pin SATA Adapter | HDD & SSD

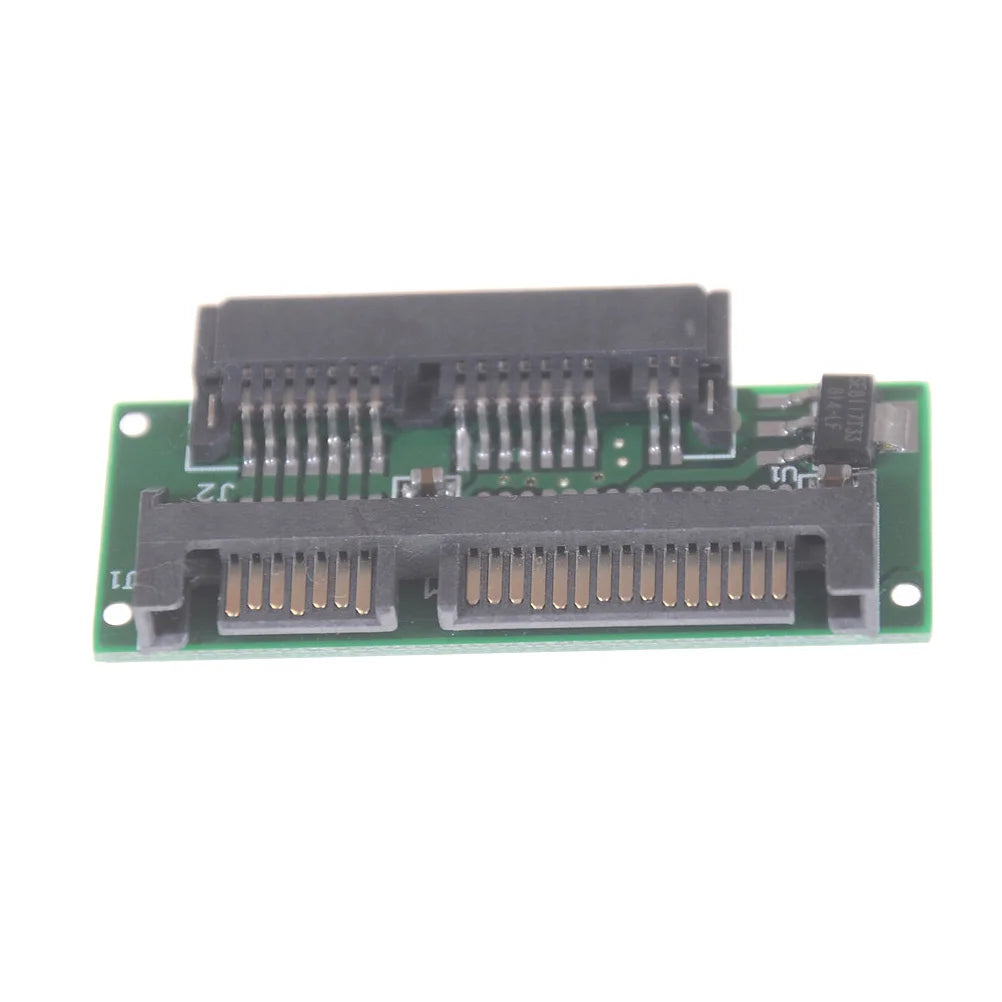

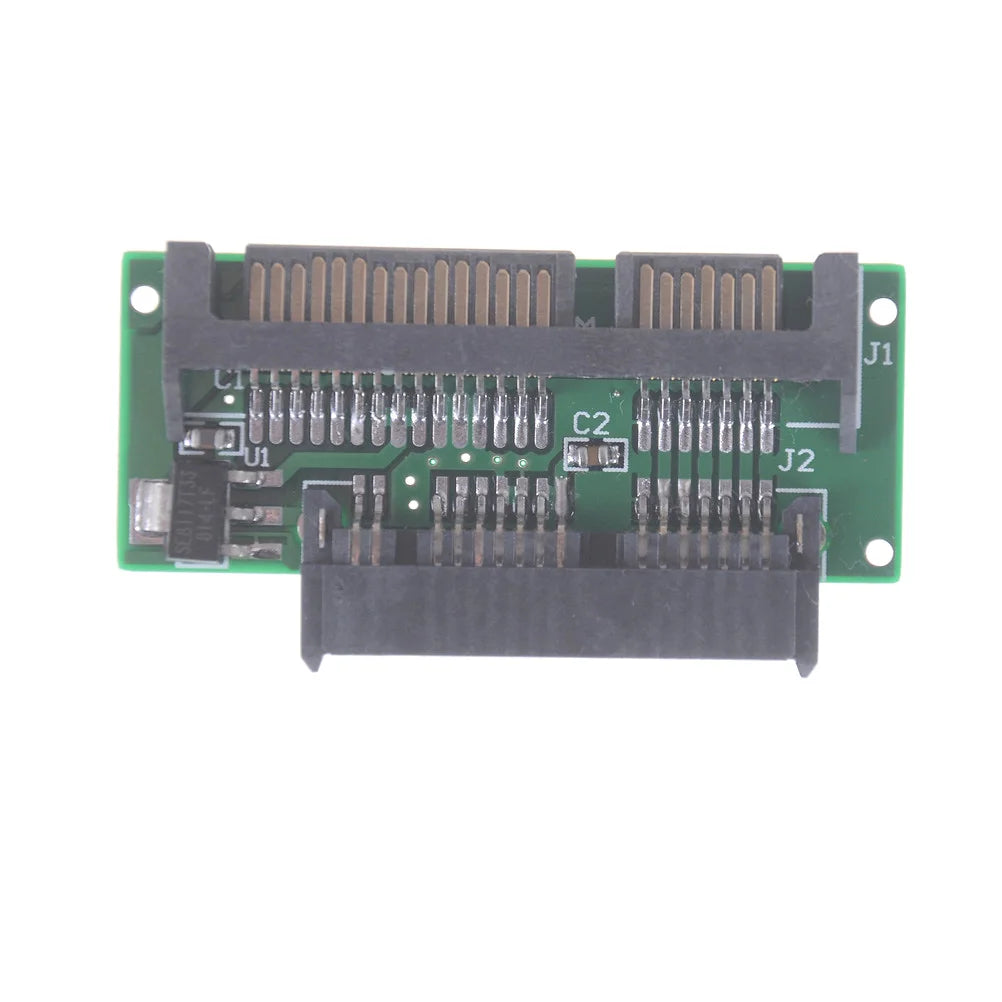

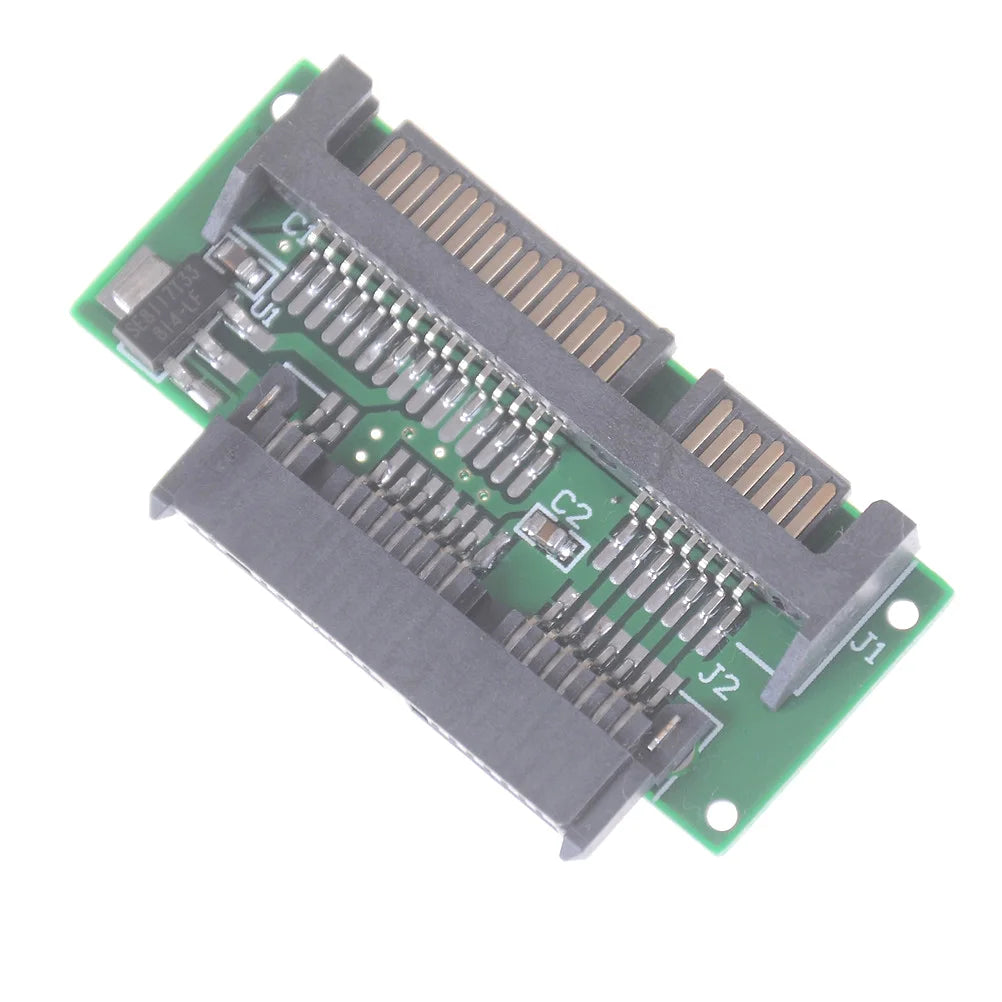

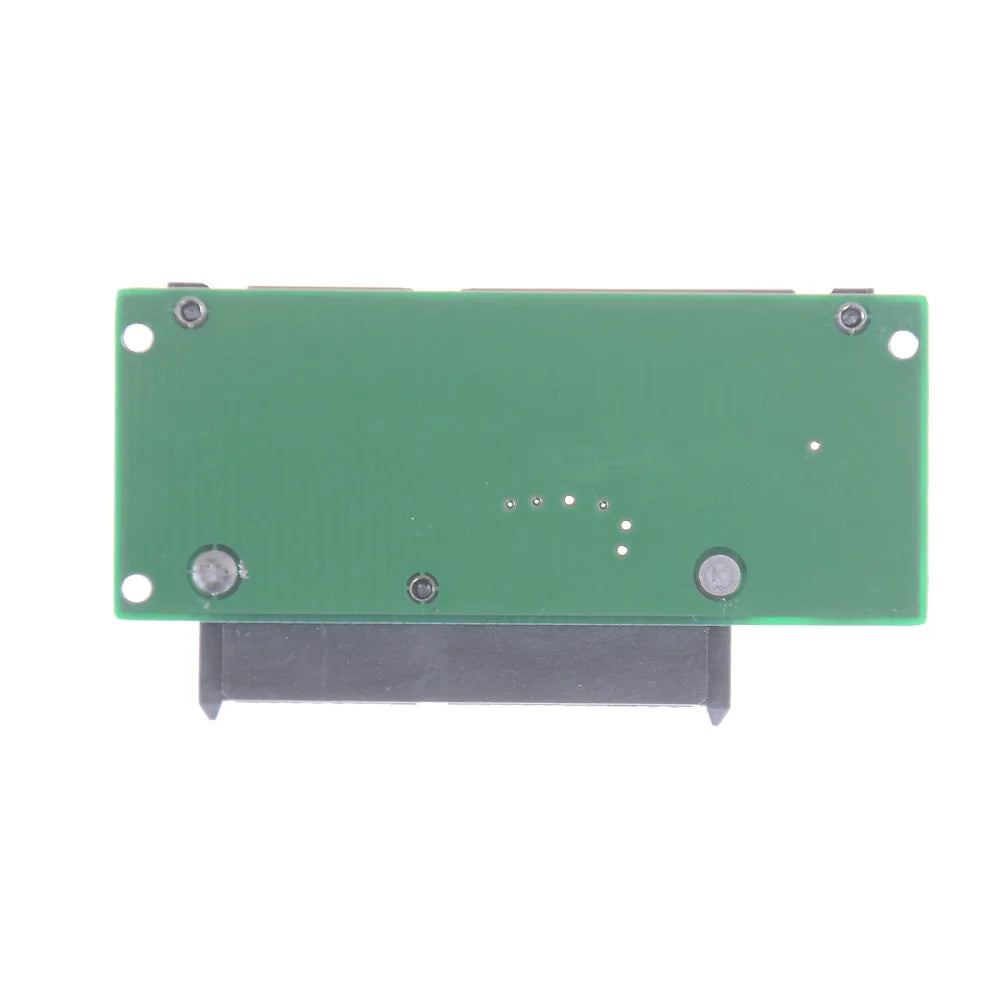

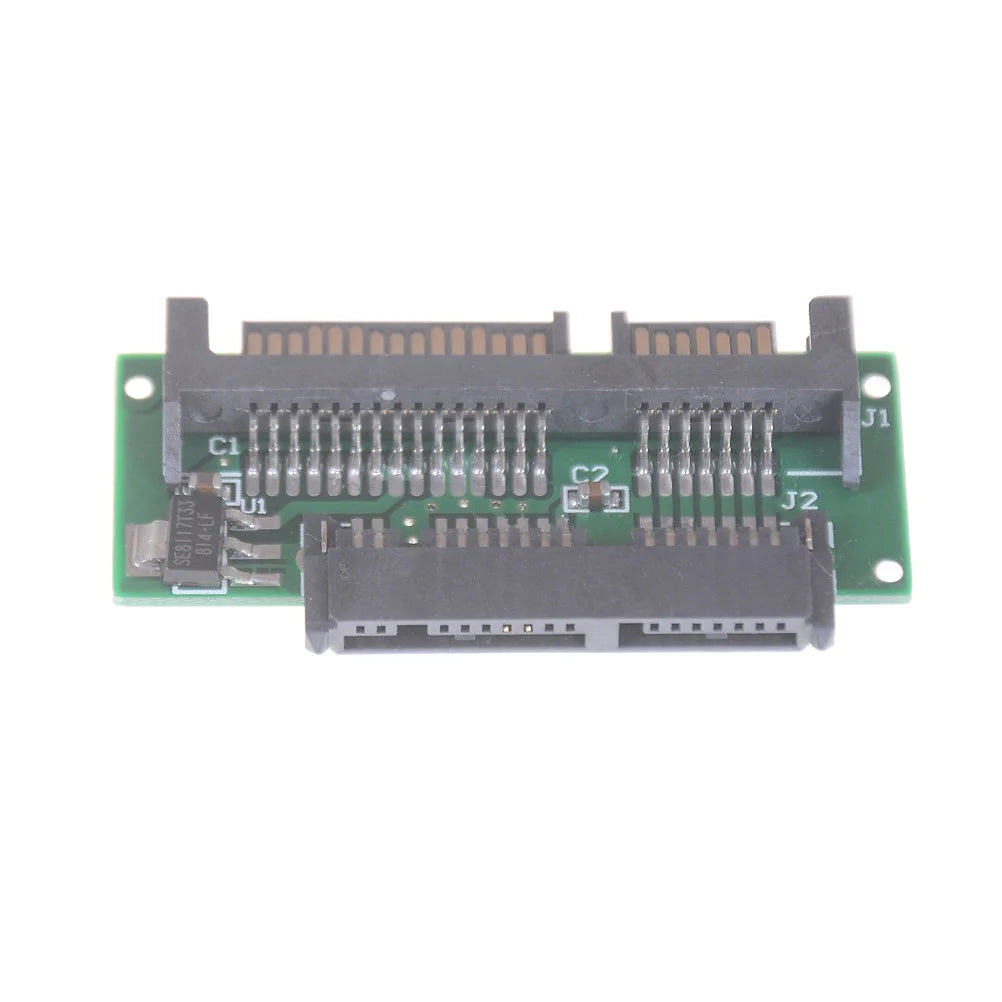

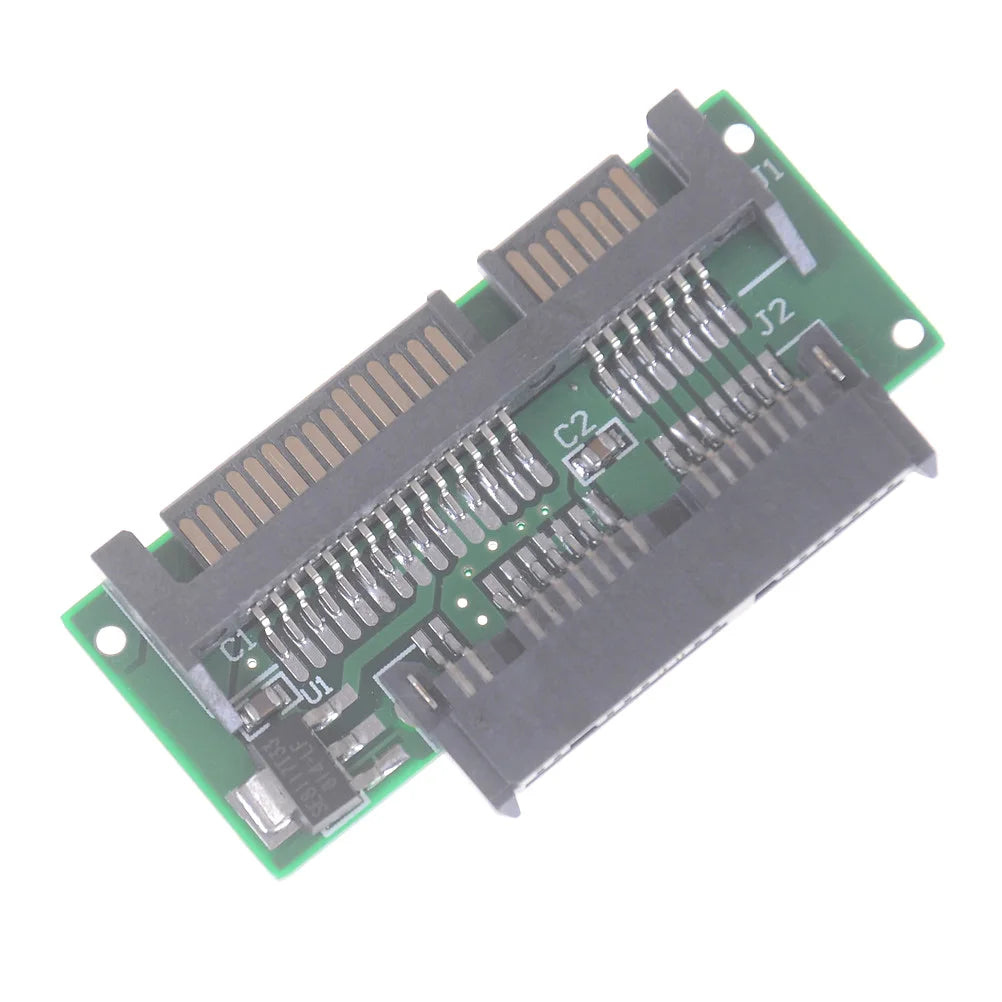

1.8" Micro SATA to 2.5" 22-Pin SATA Adapter for HDD & SSD
Upgrade or repurpose your 1.8-inch Micro SATA hard drive or solid-state drive effortlessly with this compact adapter. Convert your 1.8" Micro SATA HDD or SSD to a standard 2.5-inch 22-pin SATA interface — no extra power supply or driver installation required. It's the simplest, most cost-effective way to make your smaller drive compatible with modern laptop bays, enclosures, and SATA ports.
Key Features
- Universal Compatibility: Works with Toshiba 1.8" Micro SATA drives including MK1216GSG, MK1235GSL, MK1629GSG, and most 1.8" Micro SATA SSDs.
- No Extra Power Needed: Draws power directly through the SATA interface — simply plug in and go.
- Plug-and-Play: No drivers required. Works straight out of the box.
- Broad OS Support: Compatible with DOS, Windows 98SE / 2000 / Server 2003 / XP / Vista / 7 / Server 2008, Mac OS, and Linux.
- Compact & Lightweight: Dimensions: 4.9 cm × 2.5 cm × 0.5 cm (1.93" × 0.98" × 0.19") — barely adds any bulk to your setup.
- High Quality Construction: Brand new, precision-engineered contacts for reliable signal and power transfer.
Specifications
| Input Interface | 1.8" Micro SATA (3.3V) |
| Output Interface | 2.5" SATA 22-Pin (5V) |
| Model Number | DC3V1A |
| Dimensions | 4.9 × 2.5 × 0.5 cm |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × 1.8" Micro SATA to 2.5" SATA 22-Pin Adapter
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which 1.8" Micro SATA drives are compatible with this adapter?
A: This adapter is compatible with Toshiba 1.8" Micro SATA drives such as the MK1216GSG, MK1235GSL, and MK1629GSG, as well as most other 1.8" Micro SATA SSDs. It converts the 3.3V Micro SATA connection to a standard 2.5" 22-pin SATA 5V interface.
Q: Do I need to install drivers or a separate power adapter to use this?
A: No — this is a true plug-and-play adapter. It requires no additional drivers and draws its power directly from the SATA interface, so no external power adapter is needed.
Q: What operating systems does this adapter support?
A: The adapter supports a wide range of operating systems including DOS, Windows 98SE, 2000, Server 2003, XP, Vista, 7, Server 2008, as well as Mac OS and Linux distributions.
