10-Pack DC Power Jack Female Panel Mount Connectors – 5.5mm x 2.1mm
Keep your electronics projects powered up and properly wired with this 10-pack of DC power supply jack sockets. These sturdy female panel mount connectors feature the universally popular 5.5mm x 2.1mm barrel size, making them compatible with a wide range of DC power adapters, LED drivers, CCTV cameras, Arduino projects, and more. Each connector comes with a rear locking nut for a secure, rattle-free panel installation.
Key Features

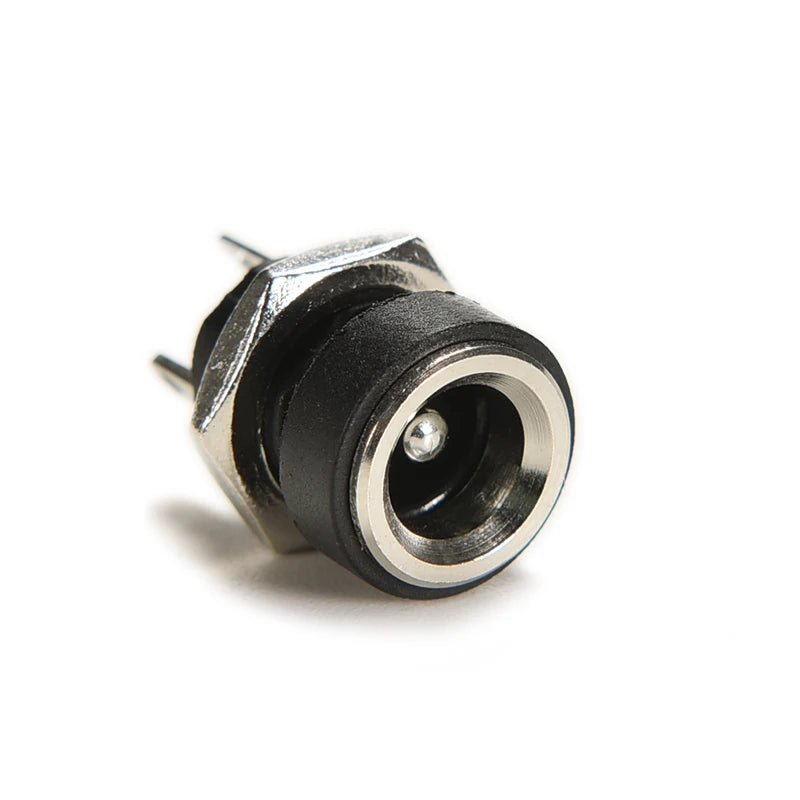

- Standard barrel size: 5.5mm outer / 2.1mm inner – fits the most common DC power plugs

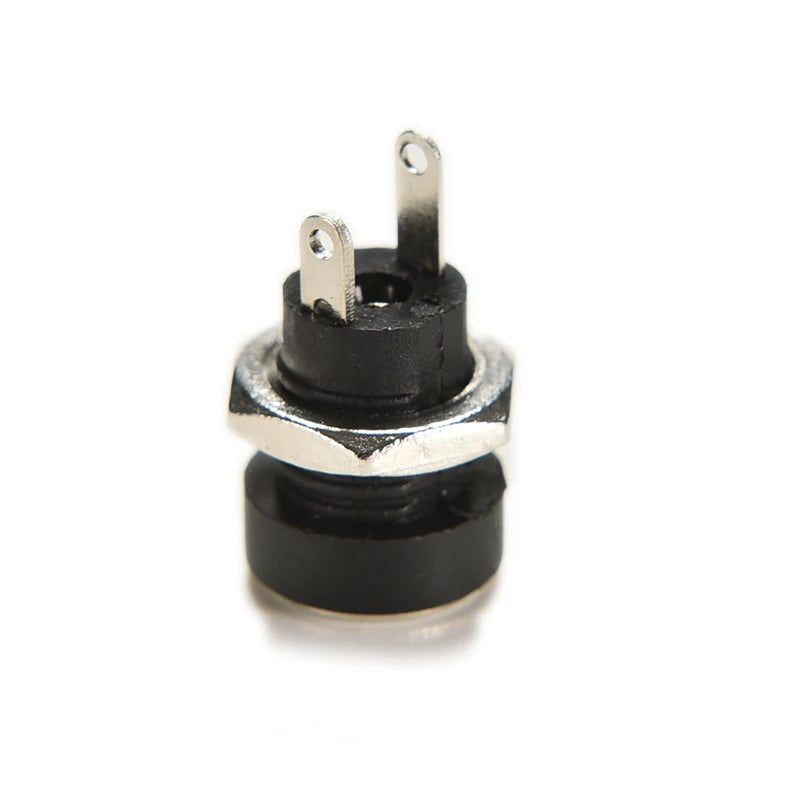

- 2-terminal design: Positive & negative terminals for straightforward wiring
- Flexible termination: Accepts 3.2mm push-on connectors or solder connections

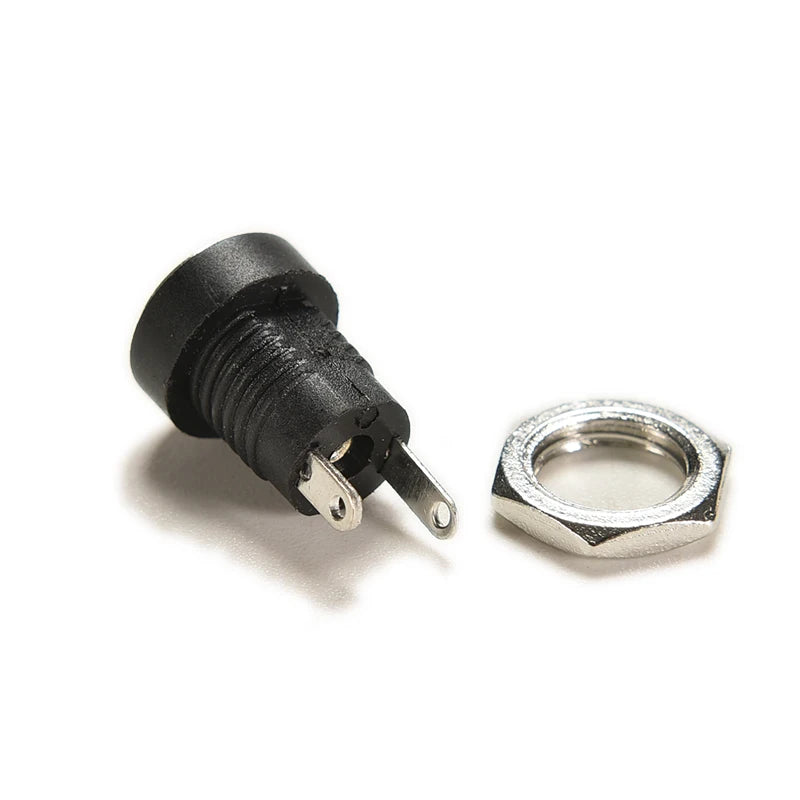

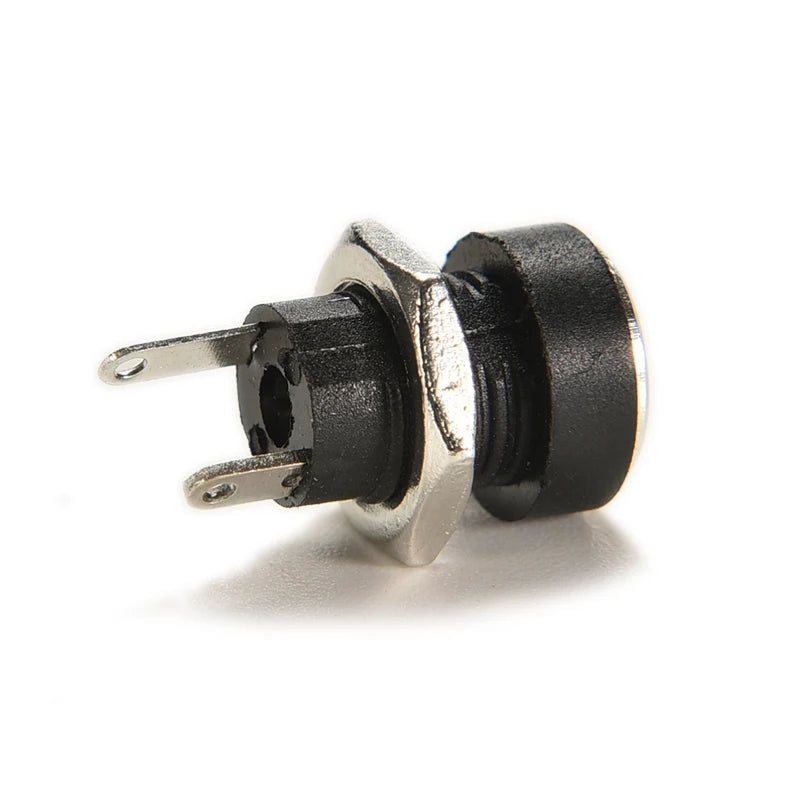

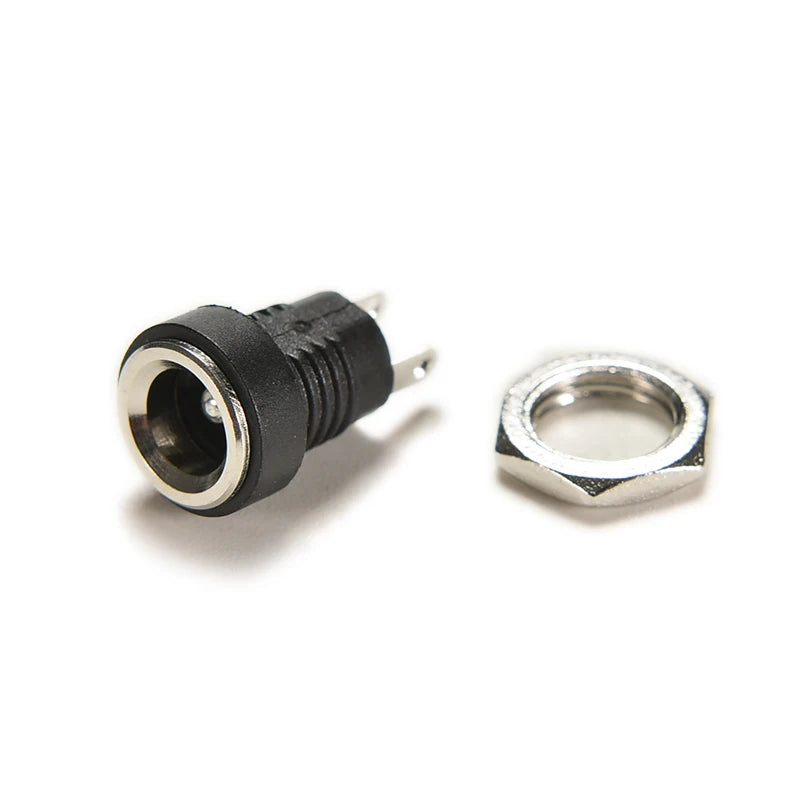

- Rear locking nut included: Ensures a solid, vibration-resistant panel fit
- Compact form factor: Only 13mm total clearance needed behind the panel
- Pack of 10: Great value for DIY projects, repairs, or professional installations
Specifications
| Connector Size | 2.1mm x 5.5mm x 9mm |
| Product Size | 10mm x 10mm x 18mm |
| Contact Rating | MAX 3A / 12V DC |
| Required Panel Hole | 7.8mm diameter |
| Max Panel Depth | 3mm |
| Rear Clearance Required | 13mm |
| EU LVD Voltage | Low voltage: Below 50V AC or 75V DC |
| Country of Origin | Made in China |
What's in the Box

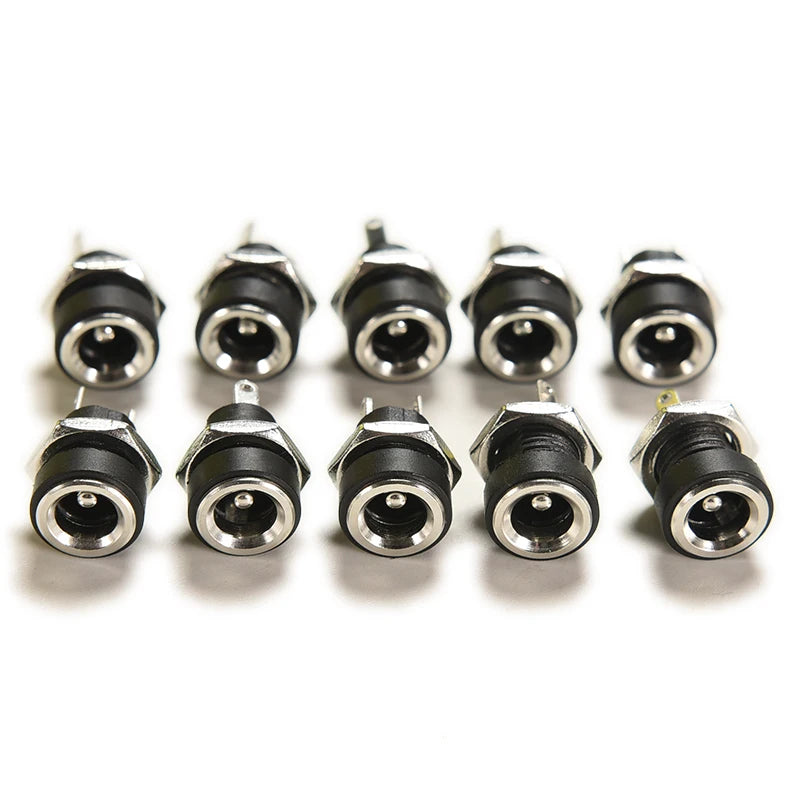

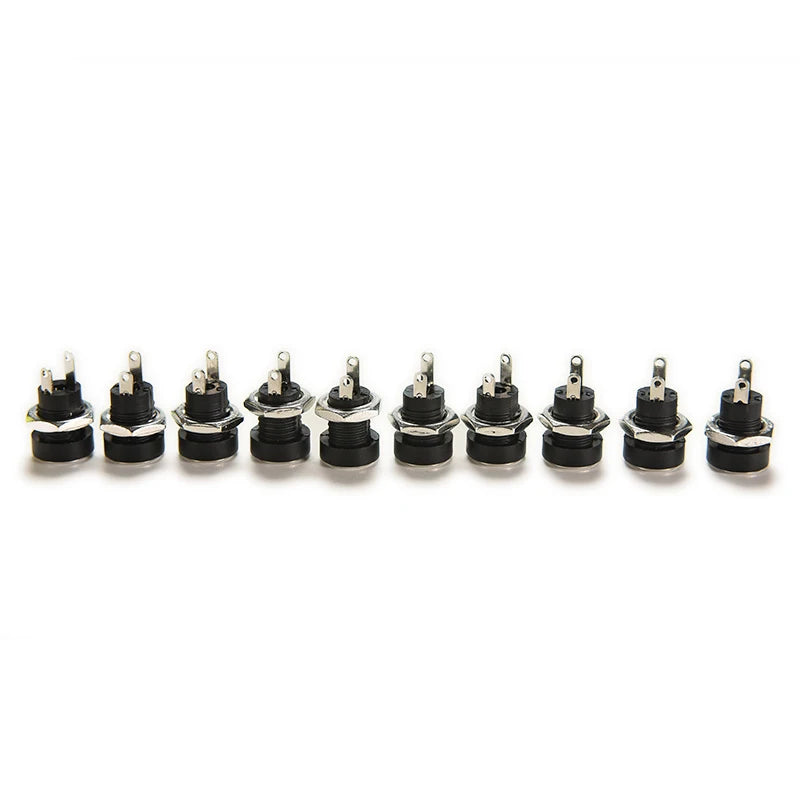

- 10 × DC Power Supply Female Panel Mount Connector (5.5mm x 2.1mm)
Related Products You May Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What size panel hole do I need for these DC jack connectors?
A: Each DC power jack socket requires a 7.8mm diameter panel hole and a maximum panel depth of 3mm. Total rear clearance behind the panel must be at least 13mm to accommodate the connector body and locking nut.
Q: Can I solder wires directly to these DC panel mount connectors?
A: Yes! These 5.5mm x 2.1mm female panel mount connectors support both solder connections and 3.2mm push-on connectors, giving you flexibility depending on your wiring preference and project requirements.
Q: What is the maximum current and voltage rating for these connectors?
A: The DC power jack sockets are rated at a maximum of 3A and 12V DC, suitable for low-voltage electronics projects such as LED strips, CCTV systems, Arduino boards, and similar DC-powered devices.
