10-Pack Radial Encoder Magnets | AS5600 AS5047 AS5048 Compatible
10-Pack Radial Encoder Magnets | AS5600 AS5047 AS5048 Compatible
Get precise, high-performance magnetic sensing with this 10-pack of radial-magnetized encoder magnets. Engineered to be fully compatible with popular magnetic angle sensor ICs including AS5600, AS5040, AS5045, AS5047, AS5048, AS5145, AS5147, and TLE5012BE1000, these compact disc magnets are the go-to choice for robotics, motor control, and precision positioning systems.
Made in Mainland China.
Why Choose These Encoder Magnets?
- Strong, Uniform Magnetic Field: High-quality magnetic material delivers consistent, evenly distributed magnetic flux — ideal for accurate angle sensing without interference or component damage.
- Wide Compatibility: Works seamlessly with AS5600, AS5040, AS5045, AS5047, AS5048, AS5145, AS5147, and TLE5012BE1000 magnetic encoder ICs, making them versatile across a broad range of control systems and projects.
- Durable & Stable: Built to maintain magnetic strength over long-term use, even in demanding or harsh operating environments — ensuring reliable performance in every application.
- High-Precision Control: Radial magnetization pattern provides maximum adsorption force with precise field uniformity, supporting high-accuracy rotary position measurement.
- Compact & Easy to Install: The slim round disc design (6mm × 2mm) fits effortlessly into small motors, robotics joints, encoders, and other compact assemblies without taking up valuable space.
Specifications
- Material: Magnet

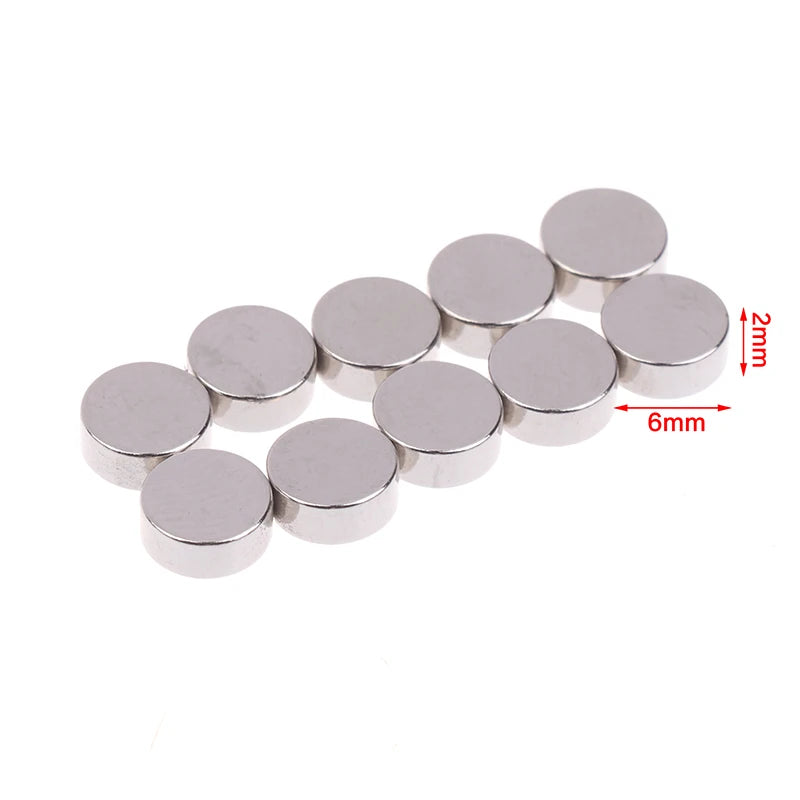

- Size: 6mm × 2mm (0.6 × 0.2 cm)
- Color: Silver
- Magnetization: Radial / Diametrically Magnetized
- Compatible ICs: AS5600, AS5040, AS5045, AS5047, AS5048, AS5145, AS5147, TLE5012BE1000
- Quantity: 10 pieces per pack
Package Contents
- 10 × Radial Magnetic Encoder Magnets
Notes
- Photos are for reference only; please refer to specifications for exact dimensions.
- Allow slight variations due to manual measurement.
- Actual color may vary slightly from monitor to monitor.
Related Products
You may also be interested in these useful components and tools from our store:
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 34-Compartment Double-Sided Hardware Storage Box & Dividers
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which magnetic encoder ICs are these encoder magnets compatible with?
A: These radial magnetized encoder magnets are designed to be compatible with a wide range of magnetic angle sensor ICs, including AS5600, AS5040, AS5045, AS5047, AS5048, AS5145, AS5147, and TLE5012BE1000. They are widely used in robotics, brushless motor control, and precision rotary position sensing projects.
Q: What size are these magnetic encoder magnets?
A: Each magnet measures 6mm in diameter and 2mm in thickness (0.6 × 0.2 cm). Their compact disc shape makes them easy to mount on motor shafts and into small assemblies requiring precise magnetic angle detection.
Q: What does "radial magnetization" mean and why does it matter?
A: Radial (diametric) magnetization means the magnet's poles are oriented across its diameter rather than through its thickness. This orientation is specifically required by magnetic angle sensor ICs like the AS5600 to accurately detect the rotational position of a shaft, making it essential for encoder and position-sensing applications.
