10S 36V 60A Li-Ion BMS PCB Protection Board for E-Bikes

$28.30 $34.30

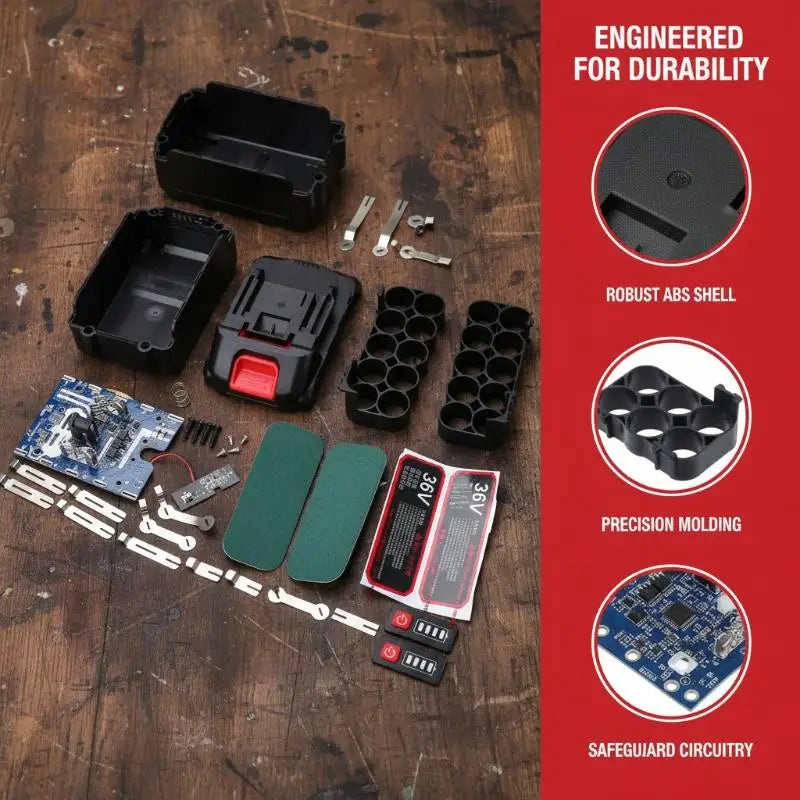

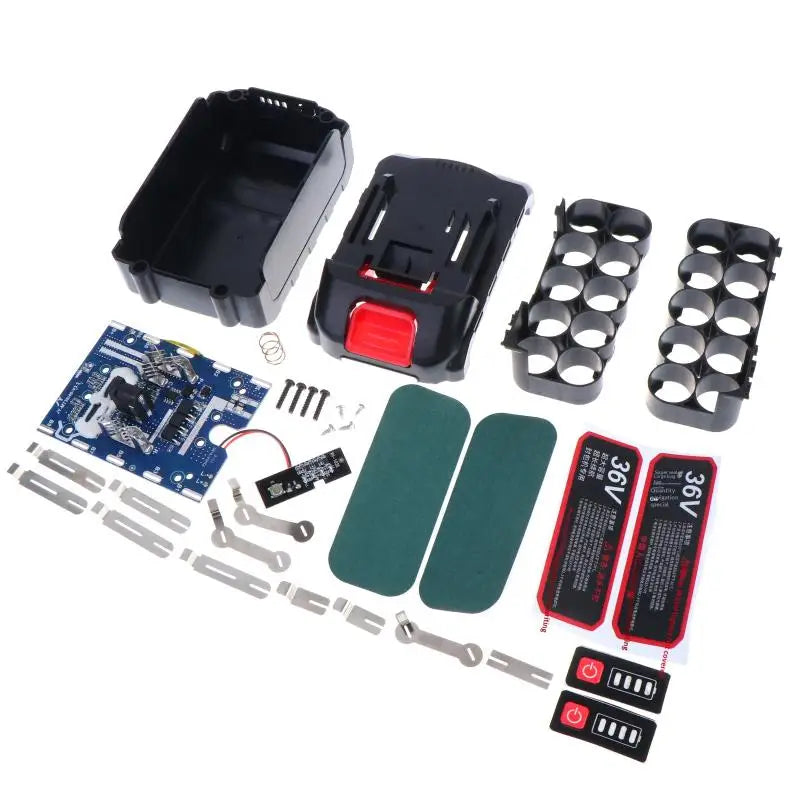

10S 36V 60A Li-Ion Battery Management System (BMS) Protection Board

This 10S 36V 60A BMS PCB Charging Protection Board is designed for experienced battery assemblers and repair technicians working with 18650 lithium-ion battery packs. Whether you're building or rebuilding packs for electric bikes, power tools, or other high-demand applications, this board delivers comprehensive multi-layer protection in a compact plastic and metal housing. Note: This product does not include battery cells — it is a protection circuit board component only. Intended for use by individuals familiar with battery performance and experienced in battery assembly.

Made in Mainland China.

Key Protection Features

High & Low Temperature Protection: Safeguards during both charging and discharging; low-temperature charging protection included.
Externally Adjustable Temperature Parameters: Fine-tune temperature control settings to match your specific application.
Overcharge Detection & Protection: Monitors cell voltage to prevent overcharging damage.
Overdischarge Detection & Protection: Cuts off discharge before cells drop to unsafe voltage levels.
Three-Stage Overcurrent Protection: Layered overcurrent detection for robust circuit safety.
Adjustable Overcurrent Delay: First and second stage overcurrent delay timings are externally adjustable.
Battery Disconnection Protection: Detects and responds to unexpected battery disconnection events.
NTC Resistor Disconnection Protection: Protects against faults caused by NTC thermistor disconnection.
Short Circuit Protection: Instantly responds to short circuit conditions to protect both the board and cells.
Compatible with Mak Chargers.

Specifications

Configuration: 10S (10-cell series)
Voltage: 36V
Max Continuous Current: 60A
Cell Compatibility: 18650 Li-ion

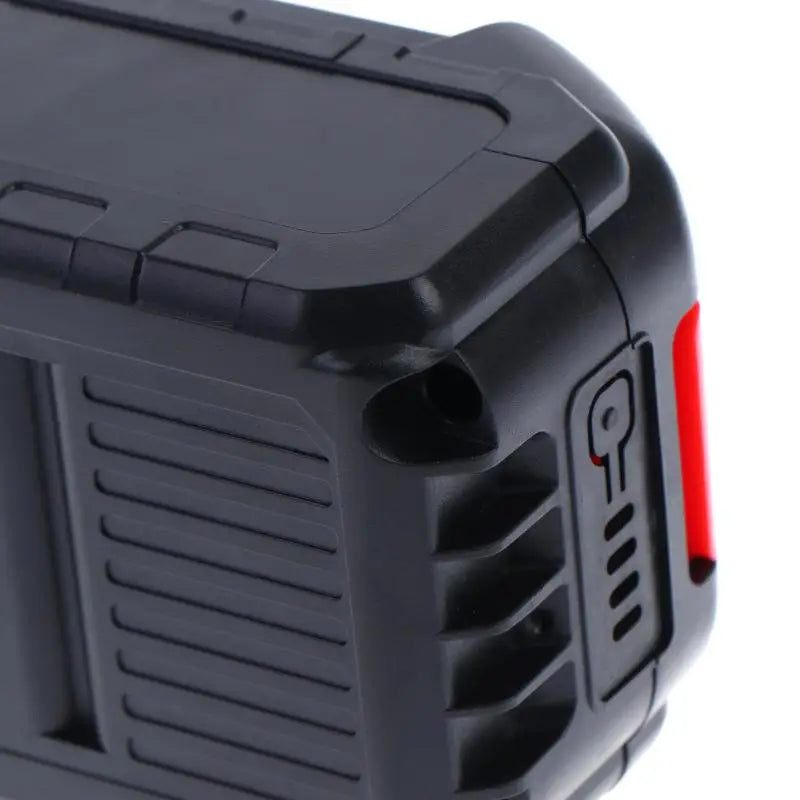

Material: Plastic + Metal
Dimensions: 11 × 7.5 × 7 cm
Color: Black
Package Includes: 1 × BMS Protection Board Set

Assembly & Safety Guidelines

Ensure battery leads and sampling points are connected correctly — reversed connections may damage the board.
The BMS board must not directly contact the surface of battery cells during assembly.
All soldering equipment must be reliably grounded; observe anti-static precautions throughout assembly.
Avoid contact between lead wires or soldering irons and board components to prevent circuit burnout.
During storage and use, protect the board from static electricity, moisture, and water exposure.
If there is no voltage output on initial power-on after assembly, activate with a dedicated charger before troubleshooting.

Important Notes

Product images are for illustrative purposes only and may not reflect the exact size or color due to display calibration differences. Please refer to the listed specifications for accurate dimensions. Minor variations from manual measurement are normal.

Related Products You May Like

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: Does this 10S 36V BMS board include battery cells?

A: No — this is a protection circuit board (PCB/BMS) component only. Battery cells (18650 Li-ion) are not included. It is designed for use by technicians who are assembling or repairing 18650 battery packs and are familiar with battery performance.

Q: What types of applications is this BMS protection board compatible with?

A: This 10S 36V 60A BMS board is suitable for electric bike (e-bike) battery packs, power tools, and other high-current lithium-ion battery pack builds or repairs that use a 10-series 36V 18650 cell configuration.

Q: Can I adjust the temperature protection settings on this board?

A: Yes. The temperature control parameters are externally adjustable, allowing you to customize protection thresholds to suit your specific battery pack and application requirements. Overcurrent delay for the first and second stages is also externally adjustable.

Q: What should I do if there is no voltage output when I first power on the assembled pack?

A: If the battery pack shows no voltage output on initial power-on, try activating it with a dedicated compatible charger. If the issue persists after activation, please contact the seller for support.
