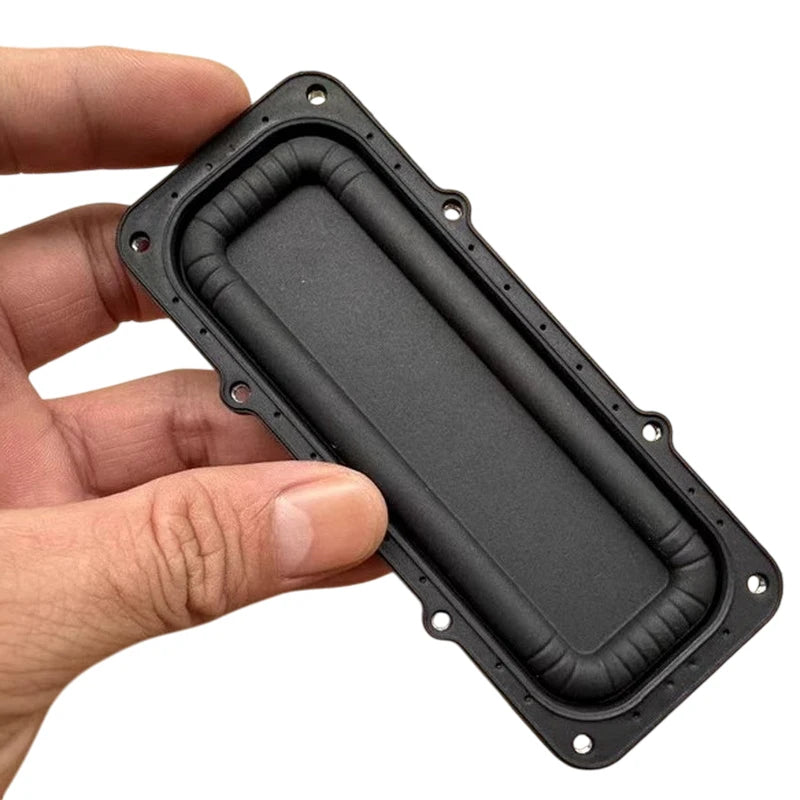

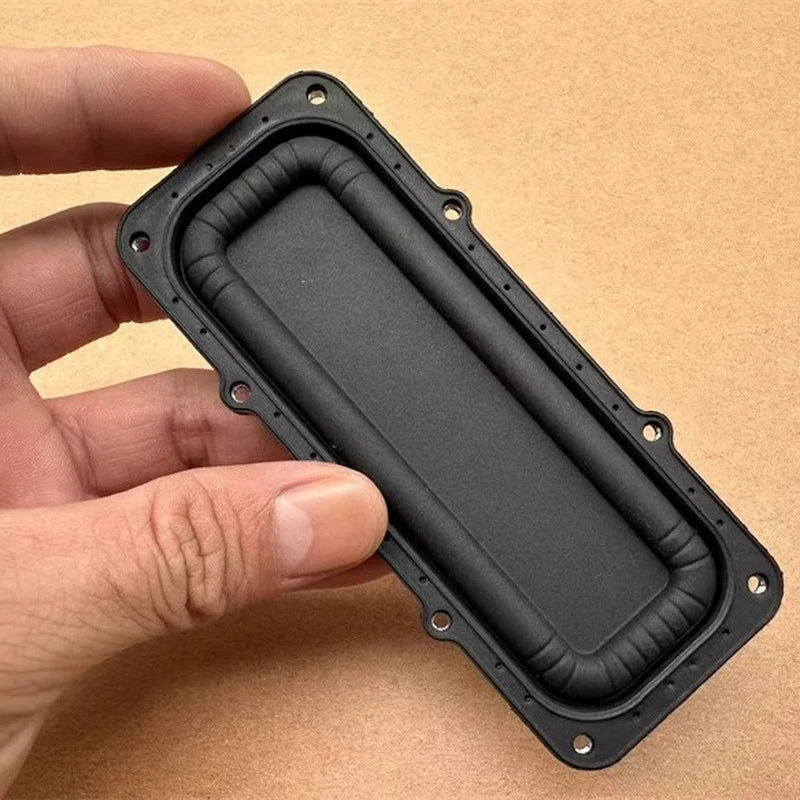

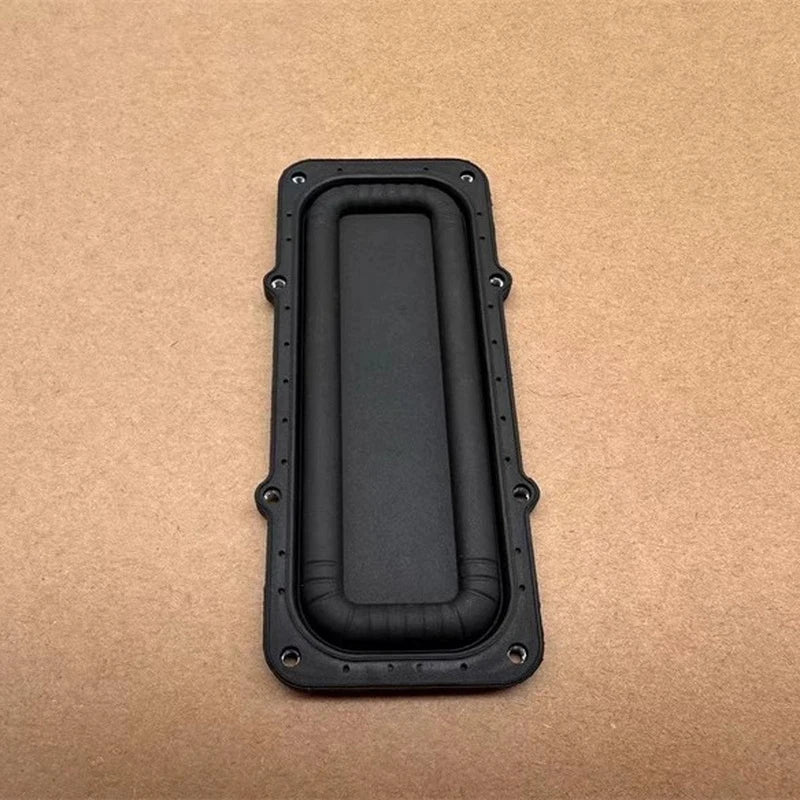

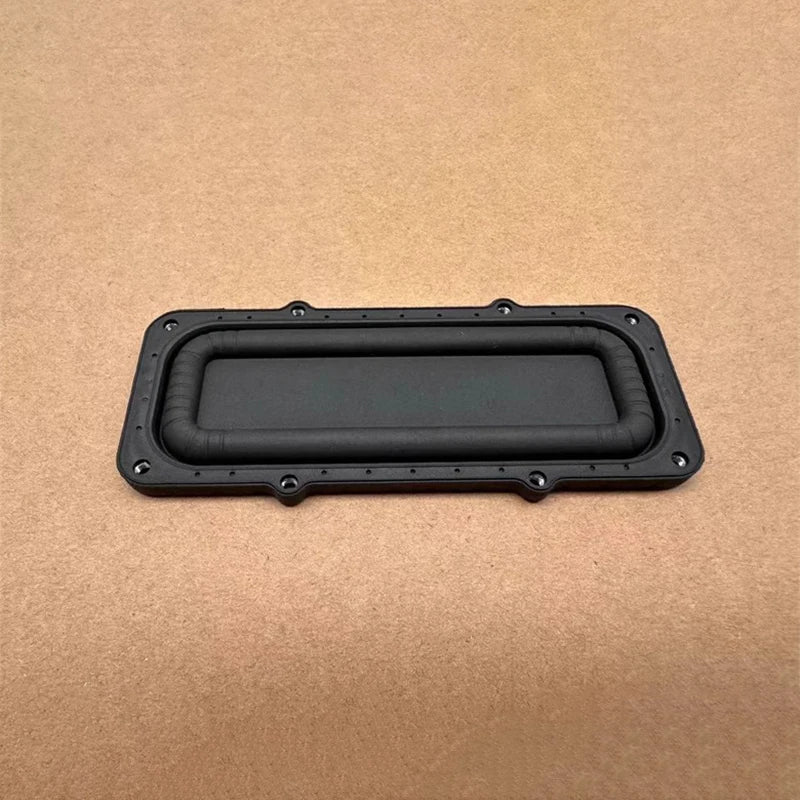

120×49mm Rectangular Subwoofer Passive Radiator Diaphragm with Iron Frame
Upgrade your DIY Bluetooth speaker build with this precision-engineered rectangular passive radiator diaphragm. Designed as a low-frequency bass radiator, it works alongside active drivers to enhance bass response in compact enclosures — no additional amplifier channel needed. Compatible with 3–4 inch speaker builds and a perfect fit for Harman Kardon Racetrack-style Bluetooth speaker enclosures.
Key Specifications
- Overall Dimensions: 121 × 48 mm
- Speaker Opening: 107 × 46 mm
- Corner Design: Rounded (R-corner) at all four corners for a clean, flush fit
- Mounting: Includes iron bracket — screw-mount installation, no glue required
- Compatible With: 3–4 inch DIY Bluetooth speaker enclosures
- Package Contents: 1 × Passive Radiator Diaphragm with Frame
Why Choose This Passive Radiator?
- Long-Stroke Design: Specially engineered for deep, accurate low-frequency reproduction
- Custom Rubber Surround: High-elasticity rubber edge for smooth, controlled excursion

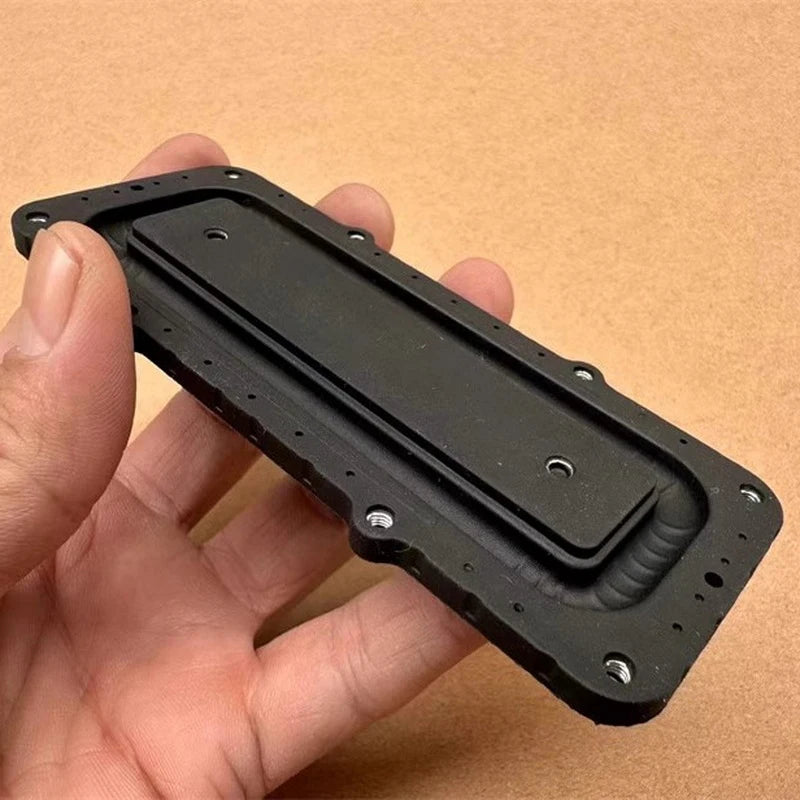

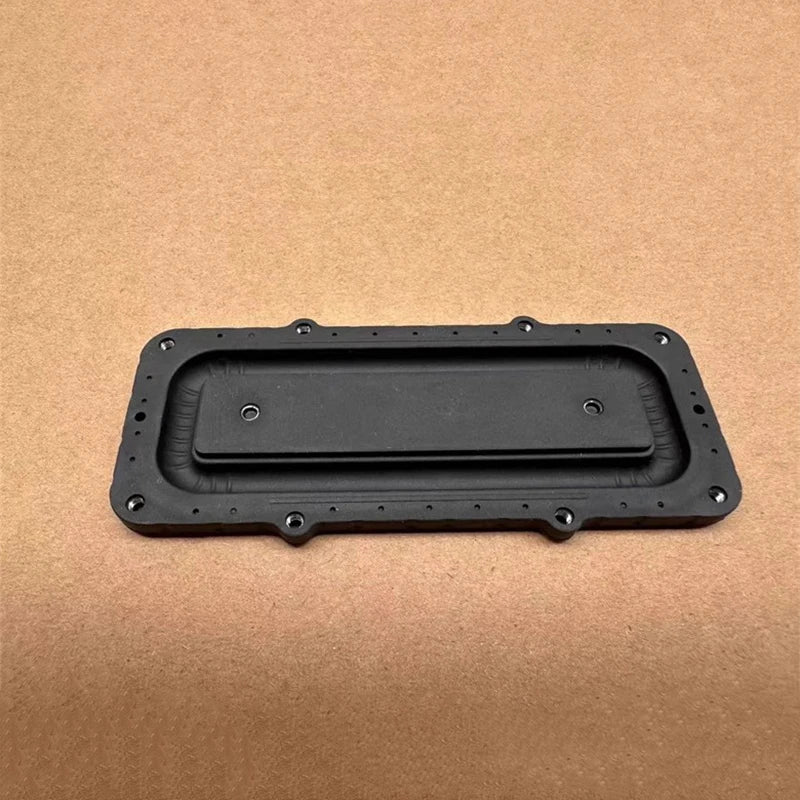

- Iron Plate Weight: Centrally positioned mass weight fine-tunes the resonant frequency for optimal bass output
- Premium Craftsmanship: Tightly manufactured tolerances ensure consistent performance and a professional finish
- Easy Installation: Rigid iron bracket allows secure screw-in mounting without messy adhesives
Ideal For
DIY audio enthusiasts, speaker repair technicians, and hobbyists building or restoring compact Bluetooth speakers who want powerful, clear bass from a small enclosure.
Note: This is a passive radiator diaphragm assembly — it is not an active driver or horn. It must be used in conjunction with an active speaker driver.
Made in Mainland China.
