15KV High Frequency DC High Voltage Arc Ignition Generator – Boost Step-Up Inverter DIY Kit

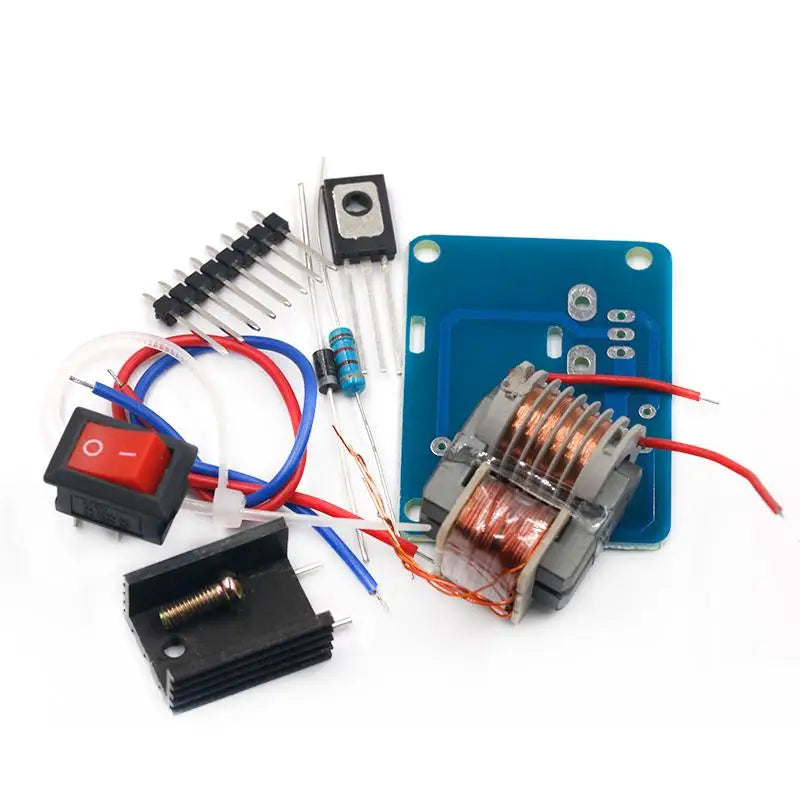

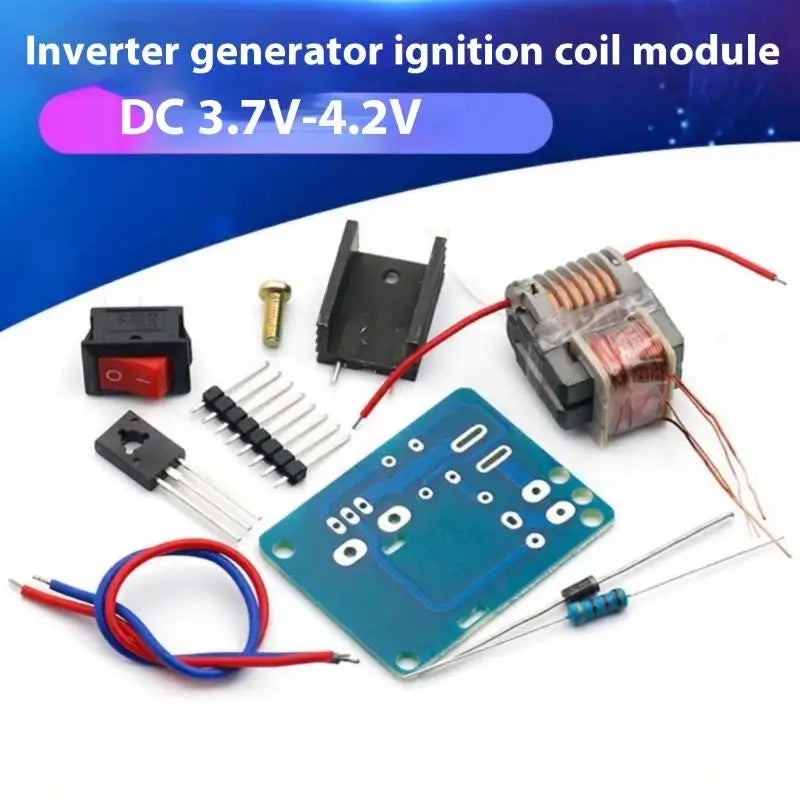

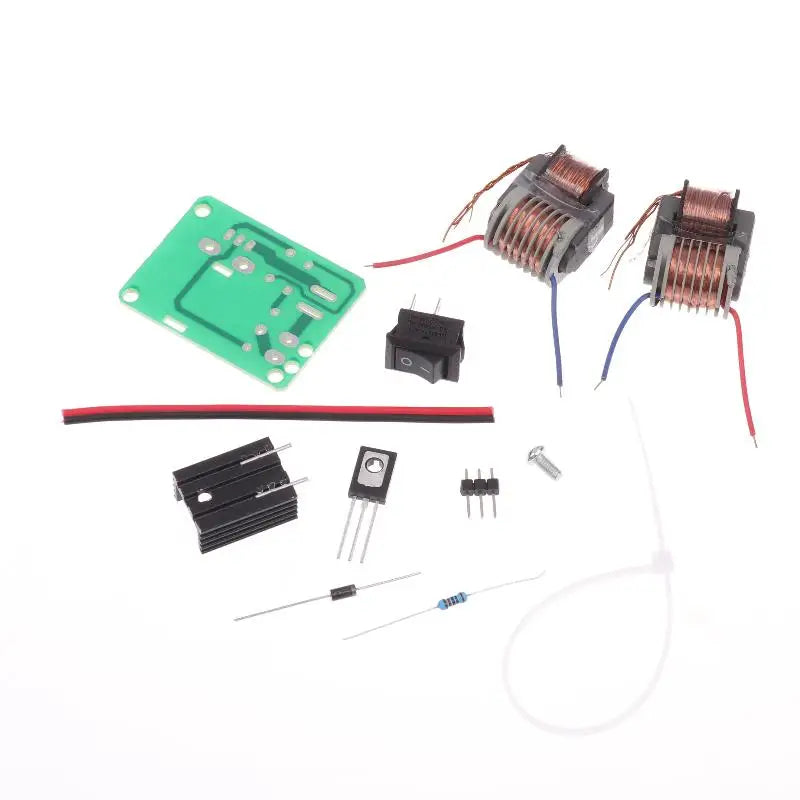

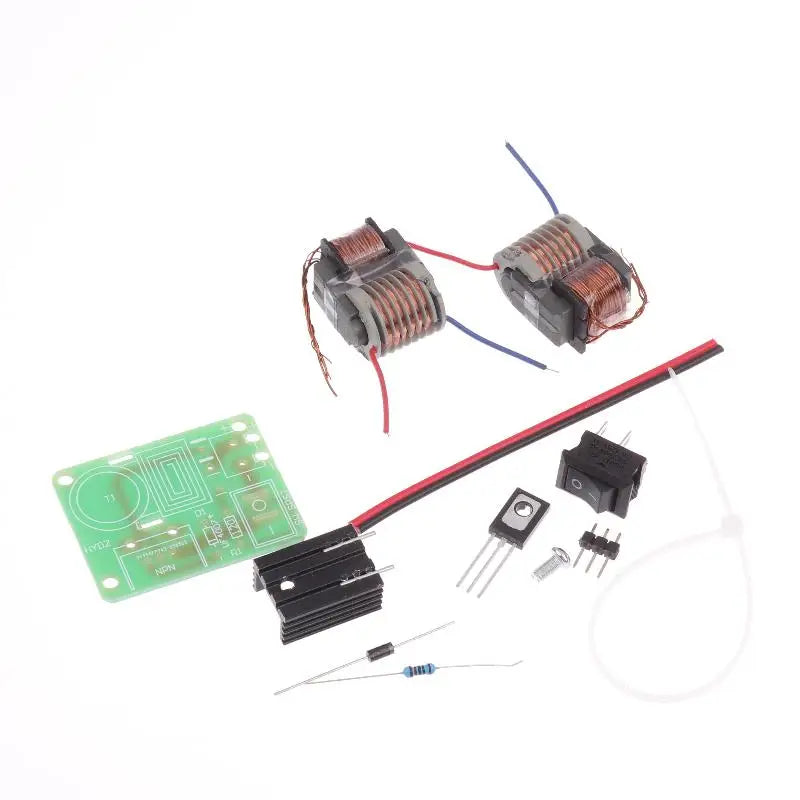

Build your own high-voltage arc generator with this complete U-Core Transformer DIY Kit. Designed for electronics enthusiasts, hobbyists, and students, this compact booster coil suite features a simple, reliable circuit that steps up a standard 18650 lithium battery input (3.7V–4.2V DC) to approximately 15KV output — producing a vivid, high-temperature purple arc. Perfect for science experiments, electronics research projects, negative ion generator builds, and educational demonstrations.
Made in Mainland China.
Key Features
- High-Voltage Output: Steps up DC 3.7V–4.2V input to ~15KV, generating a stable, high-frequency arc of up to 1.5cm in length

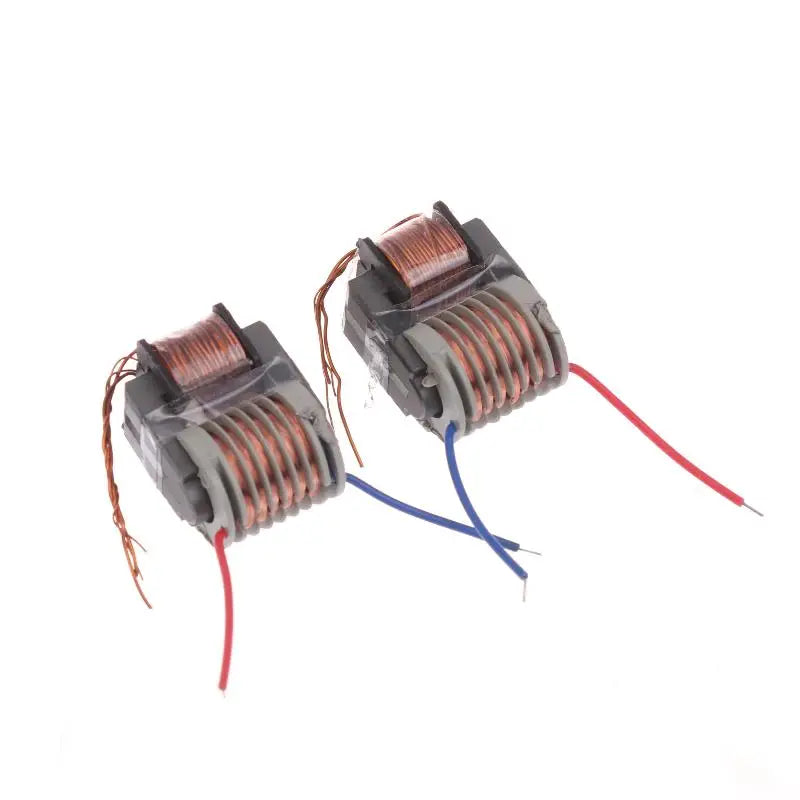

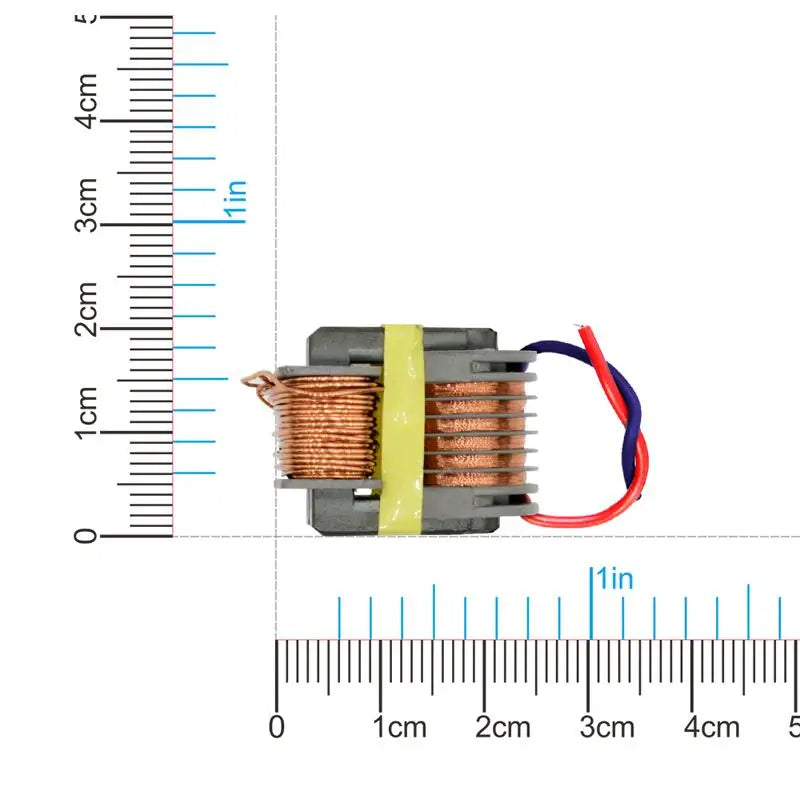

- Compact Transformer: U-Core transformer dimensions approximately 27 × 16 × 21mm — small footprint, big output
- Simple, Reliable Circuit: PCB board size 4.2 × 3.2 × 0.16cm; easy to assemble for intermediate electronics hobbyists
- Dual Primary Windings: Features a primary winding, a feedback winding, and a secondary high-voltage output for stable arc performance
- 18650 Compatible: Works directly with standard 18650 lithium cells (3.7V–4.2V); supports up to 12V input with component adjustment
- DIY & Educational Use: Ideal for science fair projects, electronic research, negative ion generators, and hobbyist builds
- Metal Construction: Core components made from durable metal for longevity and reliable performance
Specifications
| Transformer Dimensions | ~27 × 16 × 21mm |
| PCB Board Size | 4.2 × 3.2 × 0.16cm |
| Input Voltage | DC 3.7V–4.2V (max 12V with resistor adjustment) |
| Input Current | <2A |
| Output Voltage | ~15KV |
| Arc Distance | ≤1.5cm (at 3.7V–4.2V input) |
| Material | Metal |

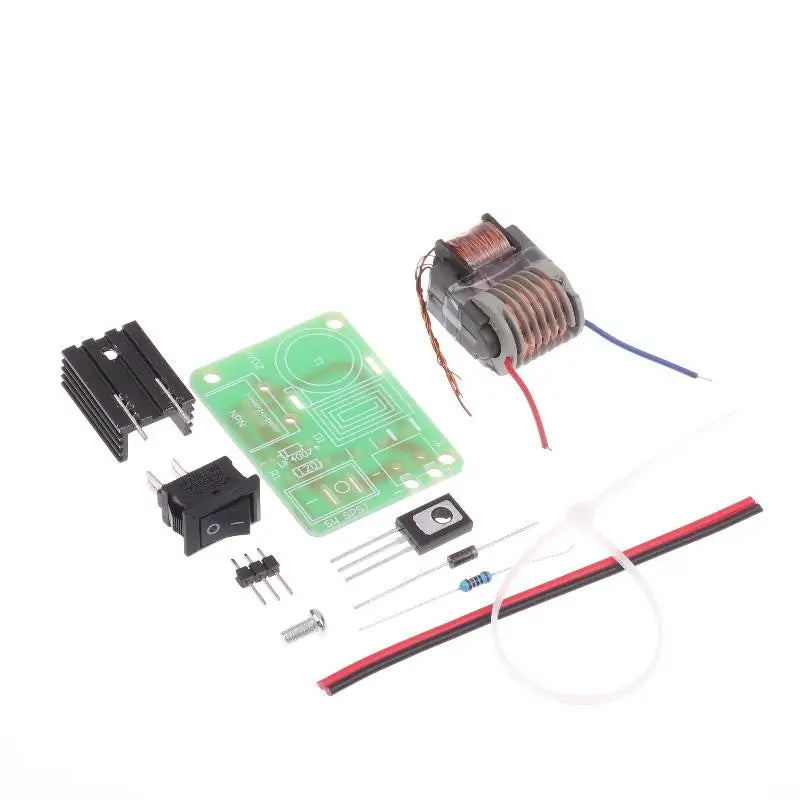

| Package Contents | 1 × Complete DIY Kit Set |
| Country of Origin | Mainland China |
⚠️ Safety Notice
This kit produces extremely high voltages (up to 15KV). Always exercise caution when operating. Keep away from children. Do not touch output terminals while powered. Use only in appropriate experimental settings with proper safety precautions. The high-temperature arc can ignite combustible materials — handle responsibly.
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What battery does the 15KV high voltage arc ignition generator DIY kit use?
A: This kit is designed to run on a standard 18650 lithium battery with an input voltage of DC 3.7V to 4.2V. It can also accept up to 12V input, but doing so requires increasing the base feedback resistor to approximately 1.5KΩ — failure to adjust the resistor may damage the transistor or transformer.
Q: Is this kit suitable for beginners in electronics?
A: This kit is best suited for intermediate-level electronics hobbyists or students with some prior experience in circuit assembly. The circuit is straightforward and well-documented, but the extremely high output voltage demands a solid understanding of electrical safety. It is commonly used for high school science experiments, negative ion generator projects, and electronic research builds.
Q: What is the maximum arc distance produced by this boost step-up inverter?
A: When powered by a 3.7V–4.2V input, the secondary high-voltage output (without additional rectifier diodes or capacitors connected) can produce a high-temperature purple arc of up to approximately 1.5cm in length. The maximum rated output voltage is 15KV, which equates to roughly 1cm of arc distance — exceeding this limit may damage the transformer.
