16mm Waterproof Momentary Push Button Switch
A compact, heavy-duty momentary push button switch designed for reliable circuit control in a wide range of electrical applications. Built from alloy with a silver-plated contact and rated IP65 and IK08, this switch handles moisture, dust, and mechanical impact with ease — making it equally at home in industrial panels, DIY electronics, and automotive projects. Made in China.
Key Features
- Momentary / Reset Action: Automatically rebounds to the off position the moment you release — ideal for pulse-trigger circuits.
- IP65 & IK08 Rated: Fully sealed against dust ingress and low-pressure water jets; resistant to mechanical impact.
- Alloy Construction: Corrosion-resistant alloy body ensures long service life even in demanding environments.
- Silver-Plated Contacts: Low-resistance silver-plated contact (1NO) delivers consistent, reliable switching every time.

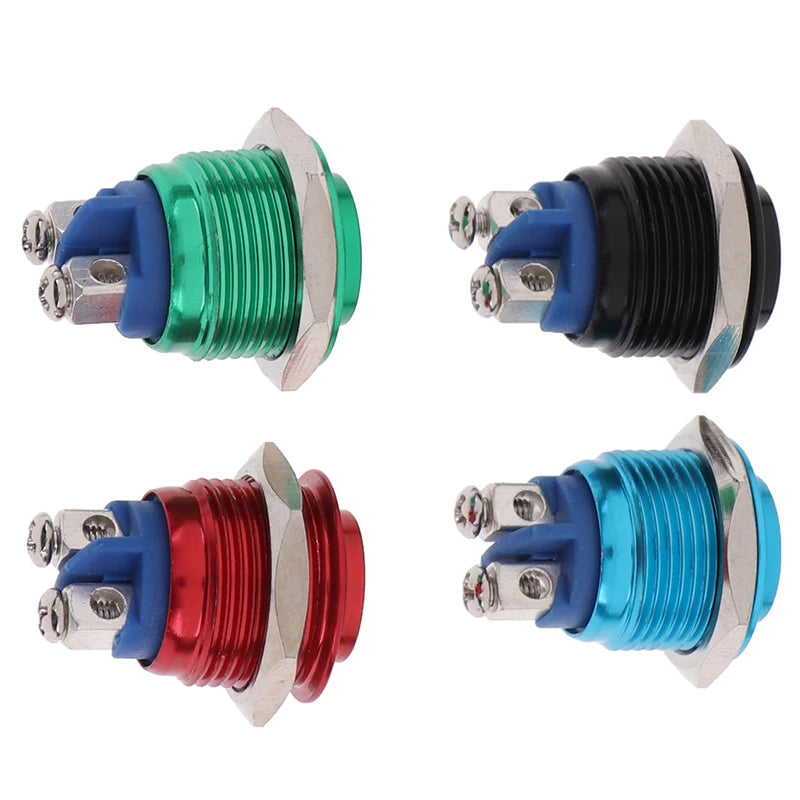

- Screw Terminal Connection: Tool-friendly screw terminals make wiring fast and secure — no soldering required.

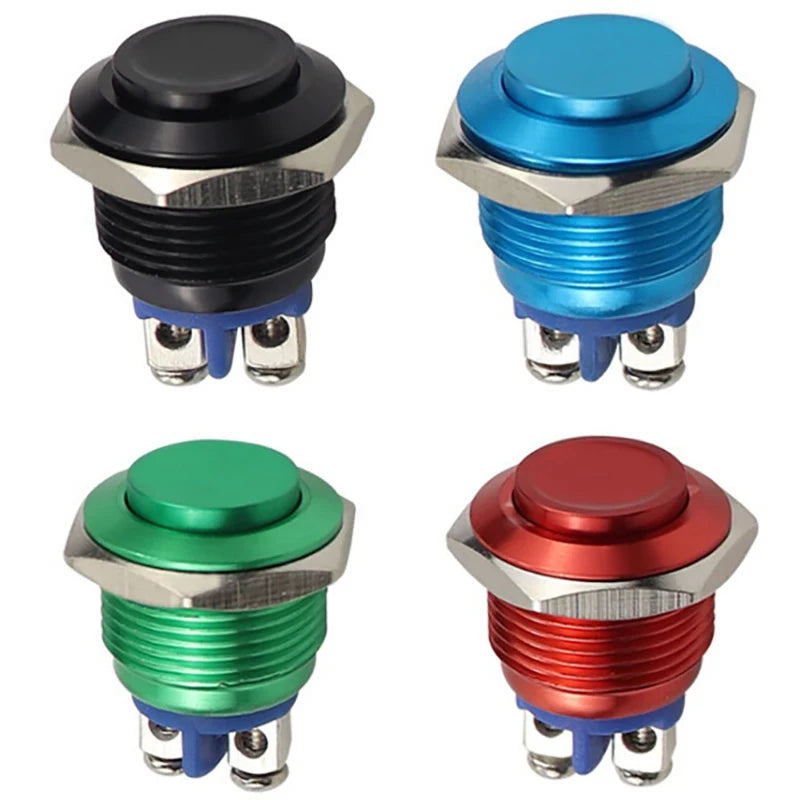

- Wide Color Choice: Available in Black, Green, Blue, and Red to match panel conventions or personal preference.
- Versatile Applications: Suitable for electromagnetic starters, contactors, relays, control panels, DIY projects, and more.
Specifications

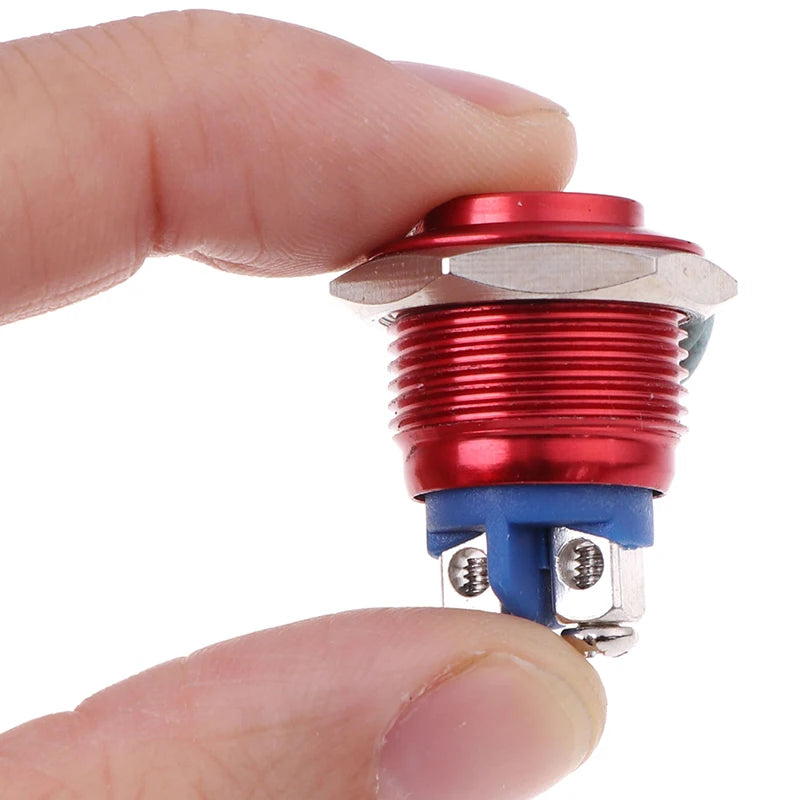

| Mounting Cut-Out Diameter | Approx. 16 mm / 0.63" |
| Head Diameter | Approx. 18 mm / 0.70" |
| Total Length | Approx. 25 mm (2.5 cm) |
| Function | Momentary / Reset |
| Contact Type | 1NO (Normally Open) |
| Contact Material | Silver Plated |
| Terminal Style | Screw Terminal |
| Installation | Bushing Mount |
| Protection Rating | IP65, IK08 |
| Voltage | Below 50V AC or 75V DC |
| Material | Alloy |
| Available Colors | Black, Green, Blue, Red |
| Package Contents | 1 × 16mm Push Button Switch |
Related Products You May Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Note: Due to screen calibration differences, the actual color may vary slightly from product images. Please allow ±0.1–0.5 cm tolerance due to manual measurement.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What does "momentary" mean for this 16mm push button switch?
A: A momentary push button switch only completes the circuit while the button is physically held down. The moment you release it, it automatically springs back (resets) to its original open position. This makes it perfect for applications where you need a brief pulse signal — such as triggering a relay, resetting a counter, or activating a contactor momentarily.
Q: Is this push button switch suitable for outdoor or wet environments?
A: Yes. This switch carries an IP65 protection rating, meaning it is fully protected against dust ingress and resistant to water jets from any direction. The IK08 rating also confirms solid resistance to mechanical impacts. It is well suited for outdoor control panels, automotive applications, and any environment where moisture or dust is a concern.
Q: What panel cut-out size do I need to install this switch?
A: You will need a panel cut-out (hole) of approximately 16 mm (0.63 inches) in diameter. The switch uses a standard bushing-mount installation with a screw terminal connection, making it straightforward to fit into most enclosures, control panels, or DIY project boxes.
