16mm Waterproof Momentary Push Button Switch
A compact, heavy-duty momentary push button switch designed for reliable circuit control in a wide range of electrical and electronic applications. Featuring IP65 waterproof and IK08 impact-resistant ratings, this switch is built to perform in demanding environments — indoors or out.
Key Features
- Momentary / Reset Action: Press to activate, automatically rebounds when released — ideal for momentary switching in control panels and circuits.
- IP65 & IK08 Rated: Waterproof and shockproof construction ensures lasting durability in challenging conditions.
- Silver-Plated Contacts: Excellent conductivity and corrosion resistance for dependable electrical performance.
- Screw Terminal Connection: Fast and secure wiring with standard bushing mount installation.
- Versatile Compatibility: Suitable for electromagnetic starters, contactors, relays, and general electric control circuits.

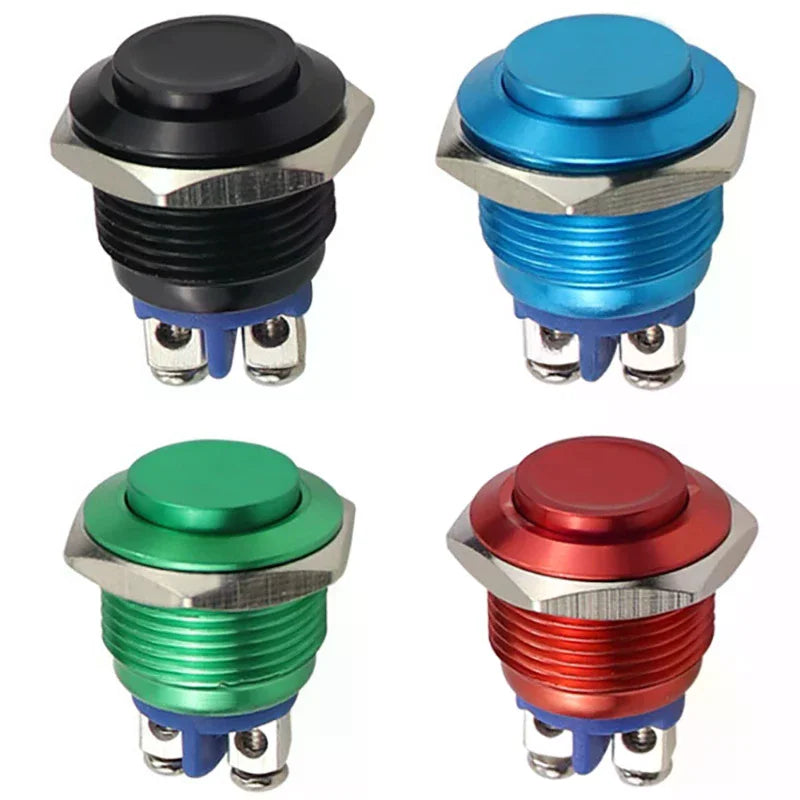

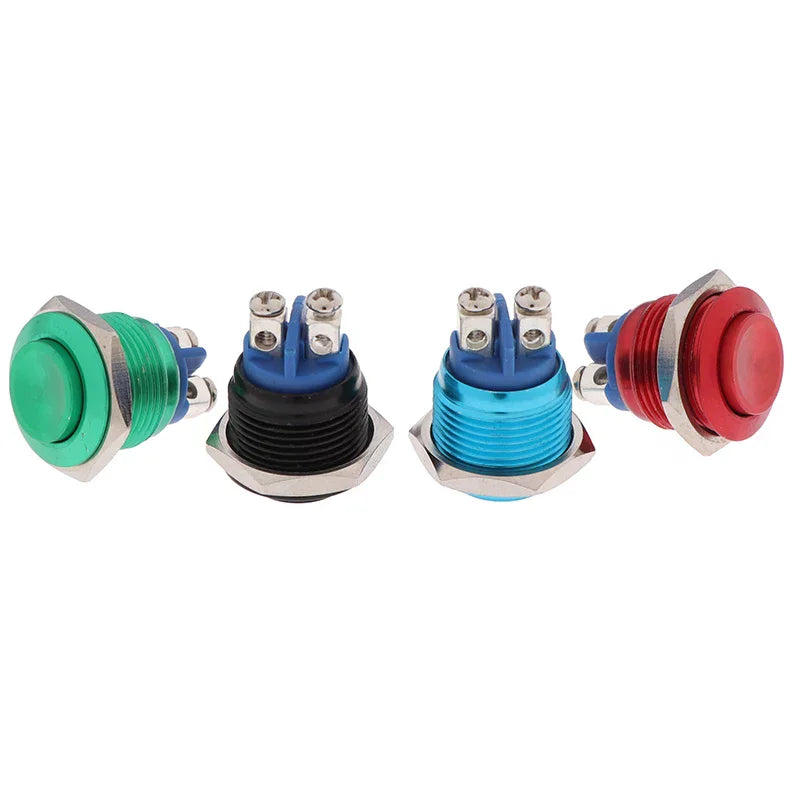

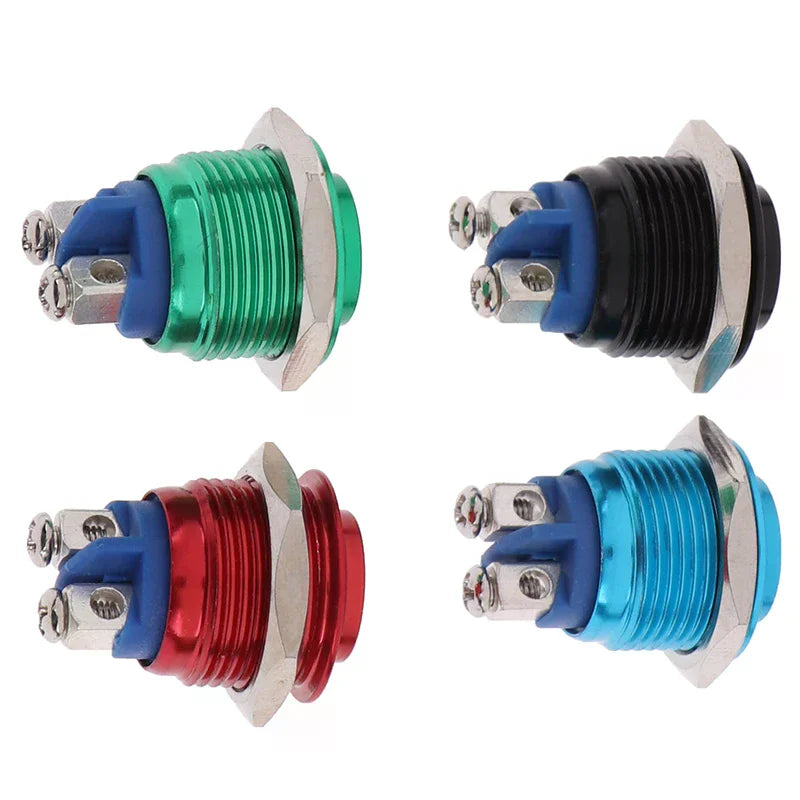

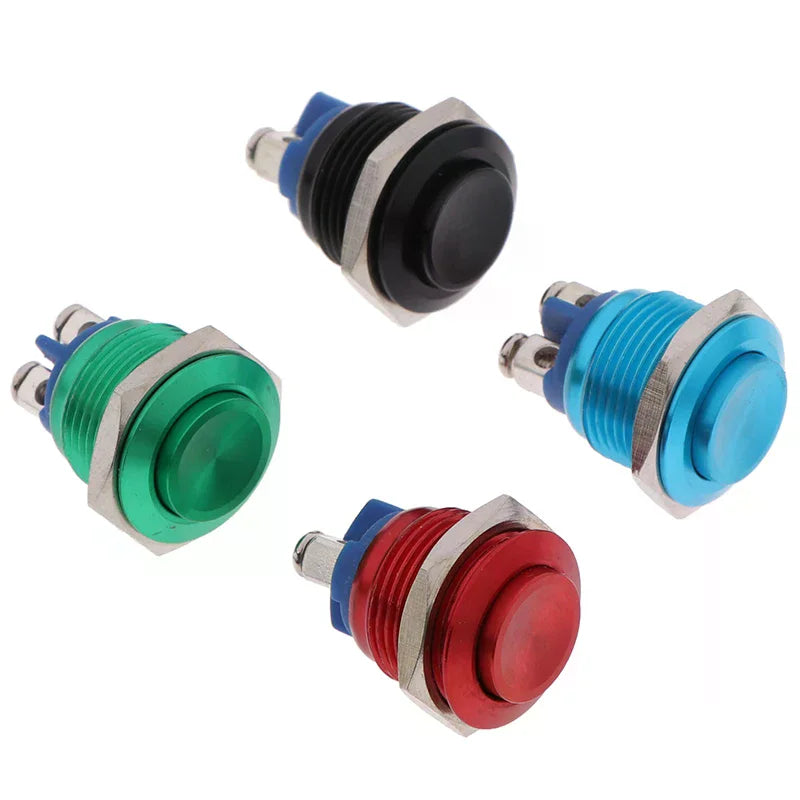

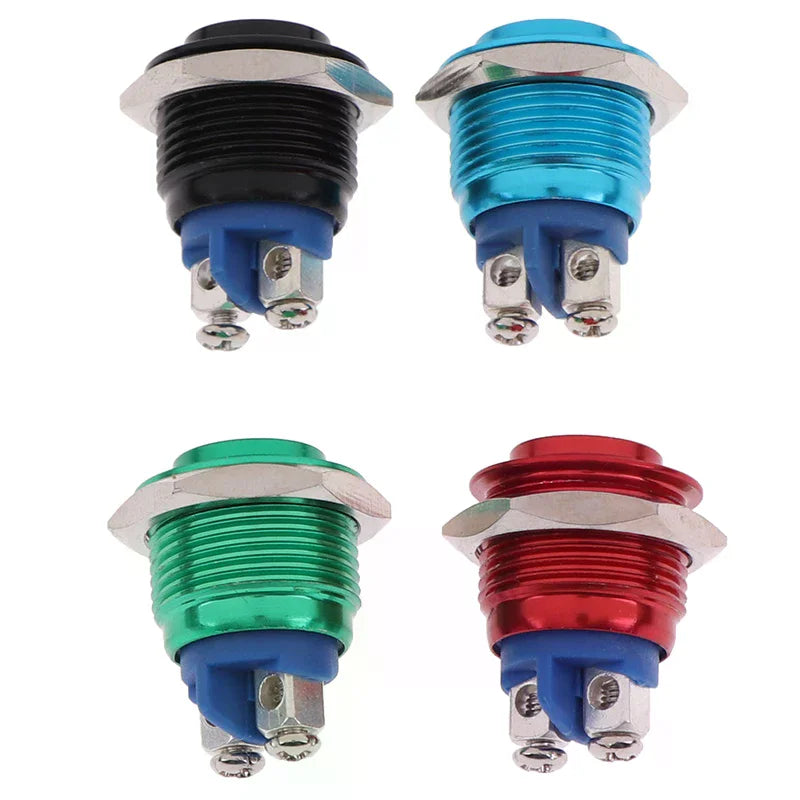

- Multiple Colors Available: Choose from Black, Green, Blue, or Red to match your panel layout or coding requirements.
Specifications
| Mounting Cut Hole | Approx. 16mm / 0.63" |
| Head Diameter | Approx. 18mm / 0.70" |
| Total Length | Approx. 2.5cm |
| Function | Momentary / Reset |
| Contact Type | 1NO (Normally Open) |
| Contact Material | Silver Plated |
| Terminal Style | Screw Terminal |
| Installation | Bushing Mount |
| Degree of Protection | IP65, IK08 |
| Material | PVC |
| Colors | Black, Green, Blue, Red |
Package Includes
- 1 × 16mm Momentary Push Button Switch
Made in Mainland China.
Looking for other electrical components and wiring accessories? Check out our 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors and our 10-Pack Rubber Strain Relief Cord Boot Protectors for complete panel builds and wiring projects.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does "momentary" mean for this push button switch?
A: A momentary push button switch only completes the circuit while the button is physically pressed. As soon as you release it, the switch automatically springs back (resets) to the open position. This makes it ideal for applications like doorbells, control panels, and machine start buttons where a brief, intentional trigger is needed.
Q: Is this push button switch truly waterproof for outdoor use?
A: Yes. This switch carries an IP65 ingress protection rating, which means it is fully protected against dust and low-pressure water jets from any direction. Combined with IK08 impact resistance, it is well suited for outdoor enclosures, industrial control panels, and other environments where moisture or physical contact is a concern.
Q: What panel thickness and hole size is required to install this switch?
A: The switch requires a round mounting cutout of approximately 16mm (0.63") in diameter. It installs via a standard bushing mount, making it compatible with most commercial electrical enclosures and custom DIY control panels. Please allow ±0.5mm tolerance due to manual measurement.
