1806 Brushless Motor 1700KV | RC Drone FPV Quadcopter
1806 Brushless Motor 1700KV | RC Drone FPV Quadcopter

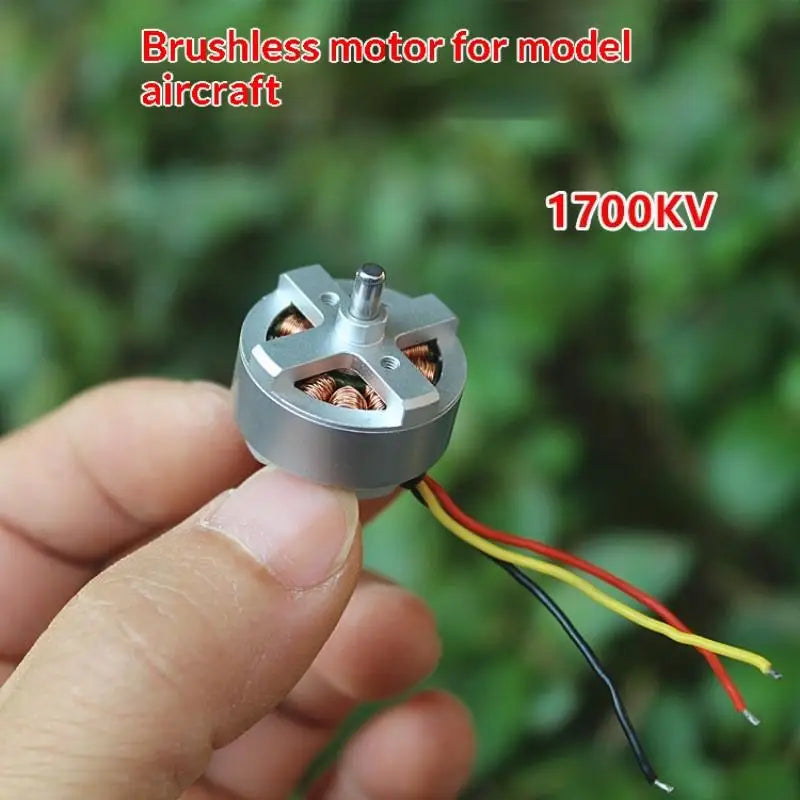

1806 Micro Brushless Motor 1700KV – High-Speed RC Drone & FPV Quadcopter Engine
Power up your RC builds with this compact and capable 1806 size micro brushless motor at 1700KV. Designed for mini FPV racing drones, quadcopters, circle machines, and micro fixed-wing aircraft models, this 3-phase brushless motor delivers impressive high-speed performance in a lightweight 23.5mm package.
Sourced from new machines, these motors may carry minor surface scratches but are fully operational and tested. Ideal for builders looking to upgrade or modify their micro RC aircraft at an accessible price point.
Made in Mainland China.
Key Features

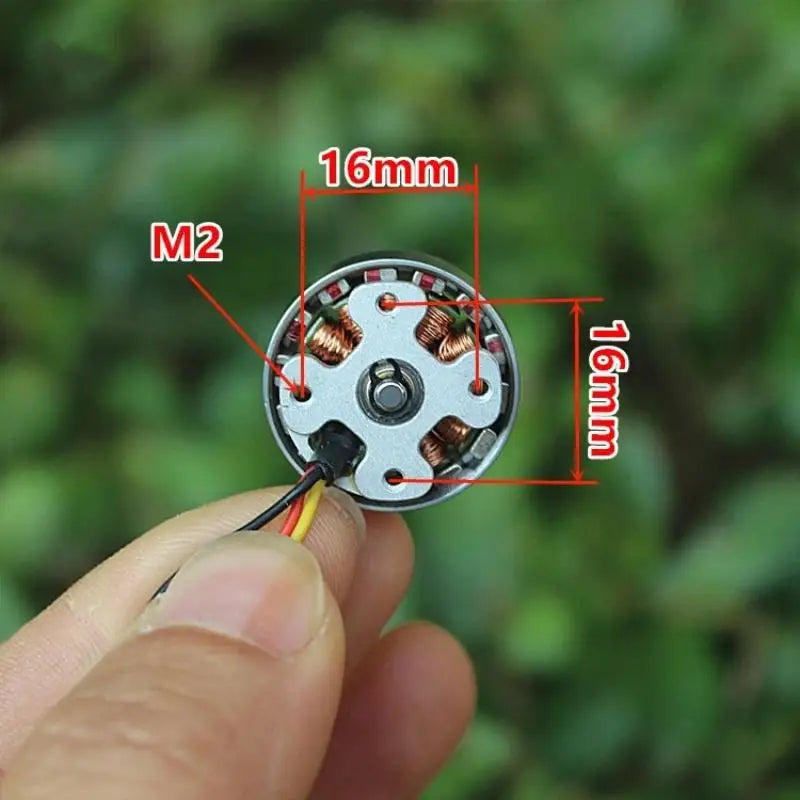

- Motor Size: 1806 (23.5mm diameter)
- KV Rating: 1700KV – optimized for high-speed micro applications
- Phase: 3-phase brushless design for smooth, efficient power delivery
- Compatible Voltage: 2S–3S lithium battery packs (battery not included)
- Material: Durable metal construction
- Prop Compatibility: Blade size selection depends on voltage and build configuration
- Recommended Age: 14 years and above
- Package Contents: 1 × 1806 Brushless Motor
Ideal Applications
- FPV racing mini quadcopters and drones
- High-speed micro crossing aircraft builds
- Circle/loop RC aircraft models
- Micro fixed-wing aircraft modifications
- Custom RC drone DIY projects
Specifications
| Model | 1806 |
| KV Value | 1700KV |

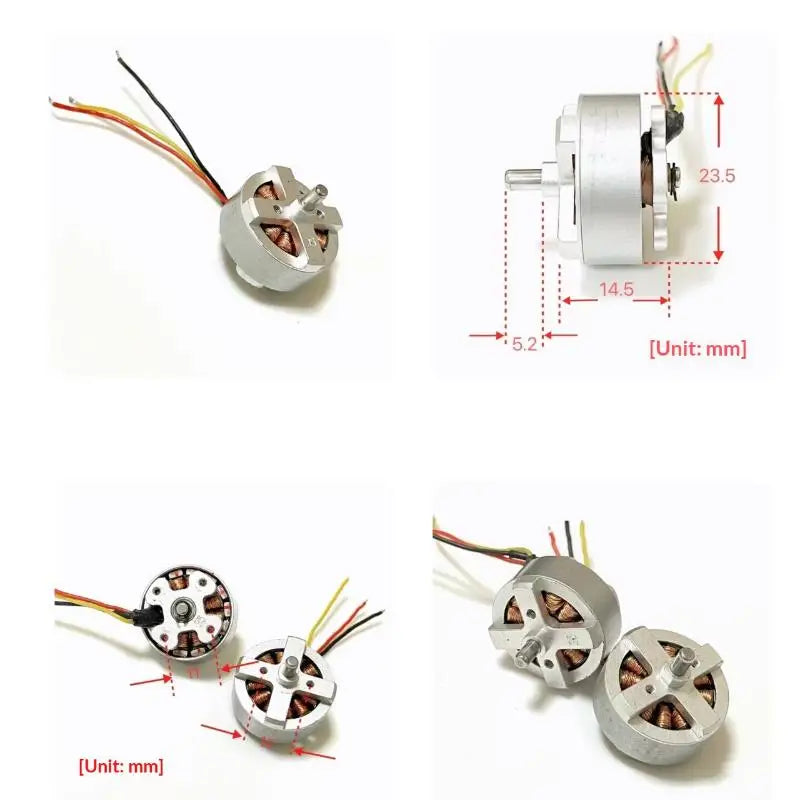

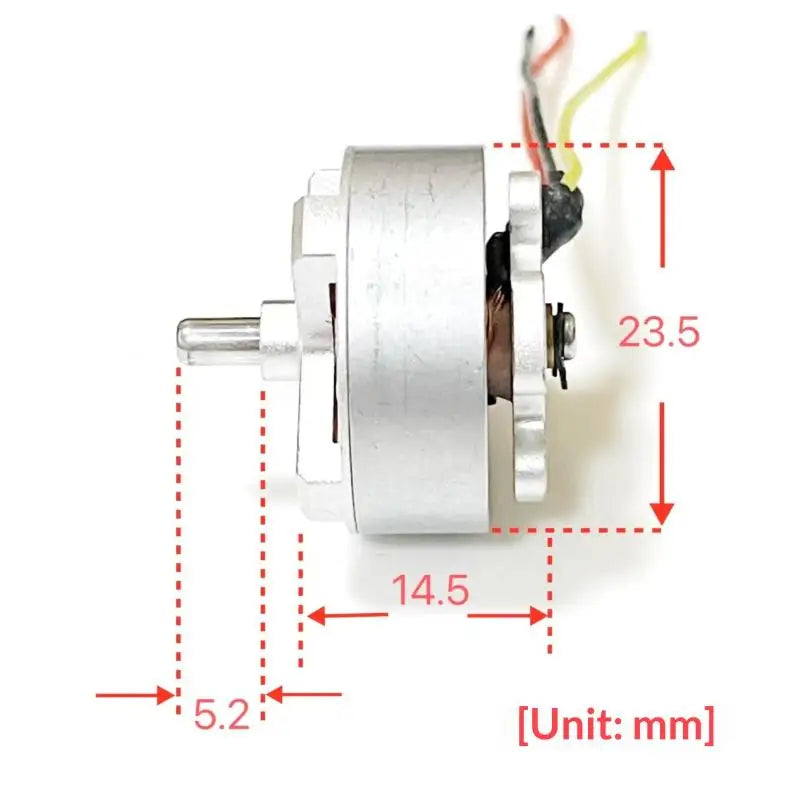

| Motor Diameter | 23.5mm |
| Phase | 3-Phase Brushless |
| Battery Compatibility | 2S–3S LiPo (not included) |
| Material | Metal |
| Condition | Used/pulled from new machine; minor surface marks possible |
| Origin | Mainland China |
Please Note
- Slight color variation may occur due to monitor brightness and lighting conditions. Please refer to the actual product received.
- Allow slight manual measurement deviation for listed dimensions.
- Batteries are not included.
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 34-Compartment Double-Sided Hardware Storage Box & Dividers
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What battery type is compatible with the 1806 1700KV brushless motor?
A: This 1806 brushless motor is designed to operate with 2S to 3S lithium polymer (LiPo) battery packs. The appropriate blade/propeller size should be matched to your chosen voltage configuration for best performance. Batteries are not included with purchase.
Q: Is the 1806 1700KV motor suitable for FPV racing drones?
A: Yes! The 1806 size with a 1700KV rating is a popular choice for mini FPV quadcopters and high-speed crossing aircraft. Its compact 23.5mm diameter keeps overall build weight low while delivering strong, reliable thrust for racing and freestyle flight.
Q: What condition is this brushless motor in?
A: These motors are pulled from new machines and are in fully functional working condition. Minor cosmetic surface scratches may be present, but motor performance and operation are not affected. Each unit is verified to work correctly before shipping.
