2-Pack 1004 Ceramic U & V-Groove Wire Guide Wheels | Winding

2-Pack 1004 Ceramic U & V-Groove Wire Guide Wheels | Winding

$12.90 $15.25

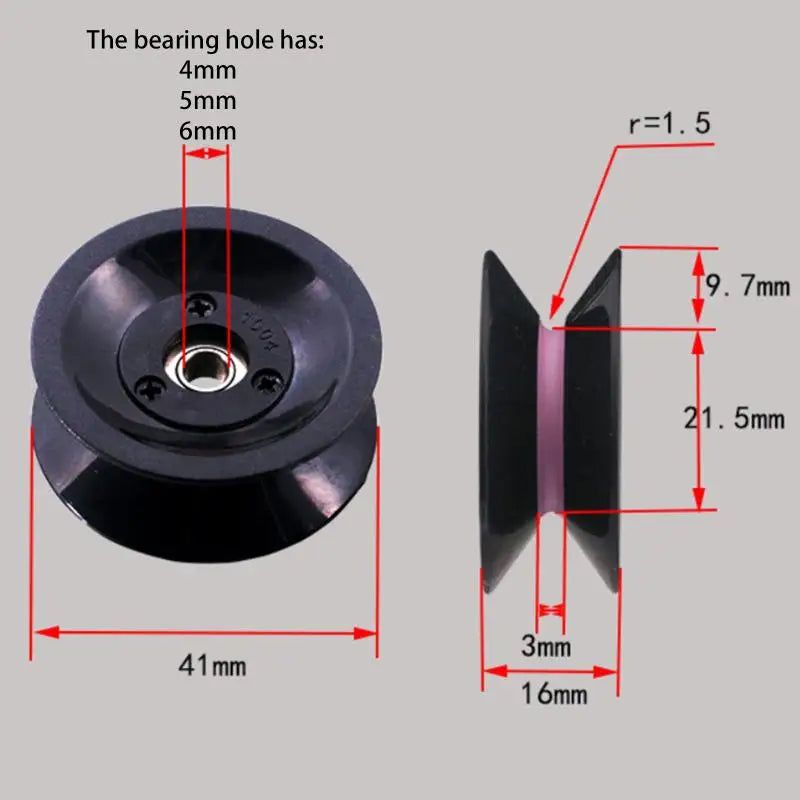

Bore Diameter

Keep your wire winding machine running smoothly with these precision-engineered 1004 U-Groove & V-Groove Ceramic Guide Wheels. Featuring a durable plastic frame with a ceramic groove surface, these guide wheels are designed to deliver consistent, low-friction wire guidance for winding machines, coil-winding setups, and pulley systems. The ceramic groove resists wear from repeated wire contact, helping to extend the service life of both the wheel and your wire.

Key Features

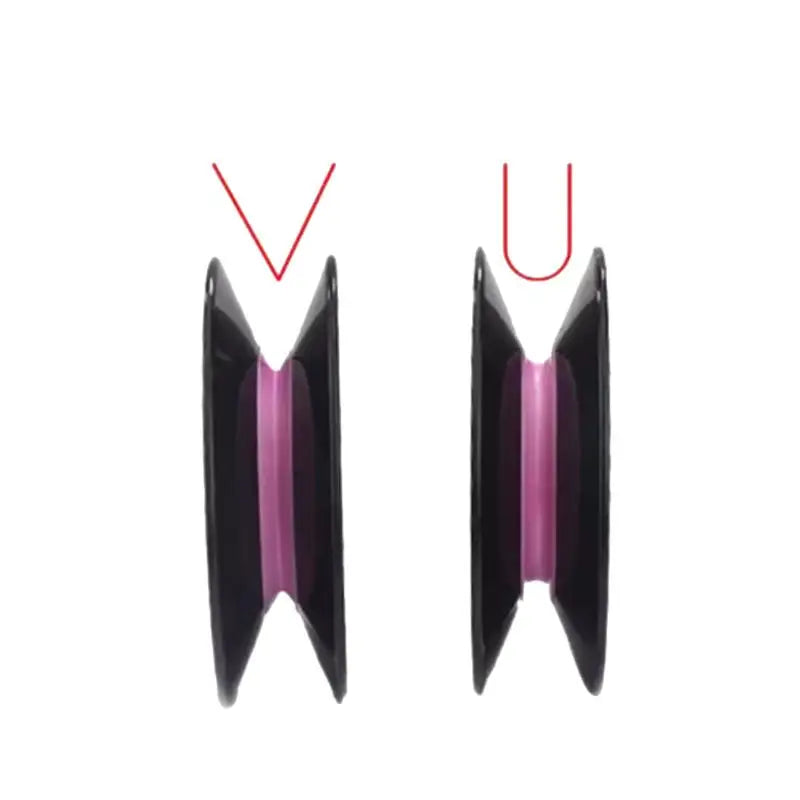

  • Dual Groove Design: Includes both U-groove and V-groove profiles to accommodate a variety of wire types and winding configurations.
  • Ceramic Groove Surface: Smooth, hard-wearing ceramic contact surface minimizes friction and prevents wire damage during winding operations.
  • Plastic + Ceramic Construction: Lightweight yet durable composite build for reliable performance in continuous-use applications.
  • Pulley Combination Ready: Designed to work as part of a wire guide pulley combination system on winding machines.
  • Pack of 2: Receive two guide wheels per order — ideal for setting up or replacing worn components.
  • Color: Black

Specifications

  • Model: 1004
  • Material: Plastic + Ceramic
  • Groove Types: U-Groove & V-Groove
  • Color: Black
  • Quantity: 2 pieces per pack
  • Country of Origin: Made in China

Note: Please allow 2–3% dimensional variance due to manual measurement. Colors may vary slightly between screens and actual product.

You May Also Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What wire types are compatible with these U-groove and V-groove ceramic guide wheels?

A: The 1004 ceramic guide wheels are suited for use with a range of wire types commonly used in wire winding machines, including copper magnet wire and similar fine to medium-gauge wires. The U-groove and V-groove profiles accommodate different wire cross-sections — choose the appropriate groove type based on your specific winding application and wire diameter.

Q: Why is a ceramic groove surface better for wire guide wheels?

A: Ceramic surfaces are extremely hard and smooth, which means they generate minimal friction as wire passes through the groove. This reduces heat build-up, helps prevent wire surface abrasion, and extends the lifespan of both the guide wheel and the wire itself compared to standard plastic or metal groove wheels.

Q: Are these guide wheels a direct replacement for worn 1004 pulley wheels on winding machines?

A: Yes — these are designed as replacement or supplementary guide wheels for wire winding machine pulley combination systems using the 1004 specification. Always verify your machine's groove type (U or V) and pulley mounting dimensions against the product images before ordering to ensure compatibility.
