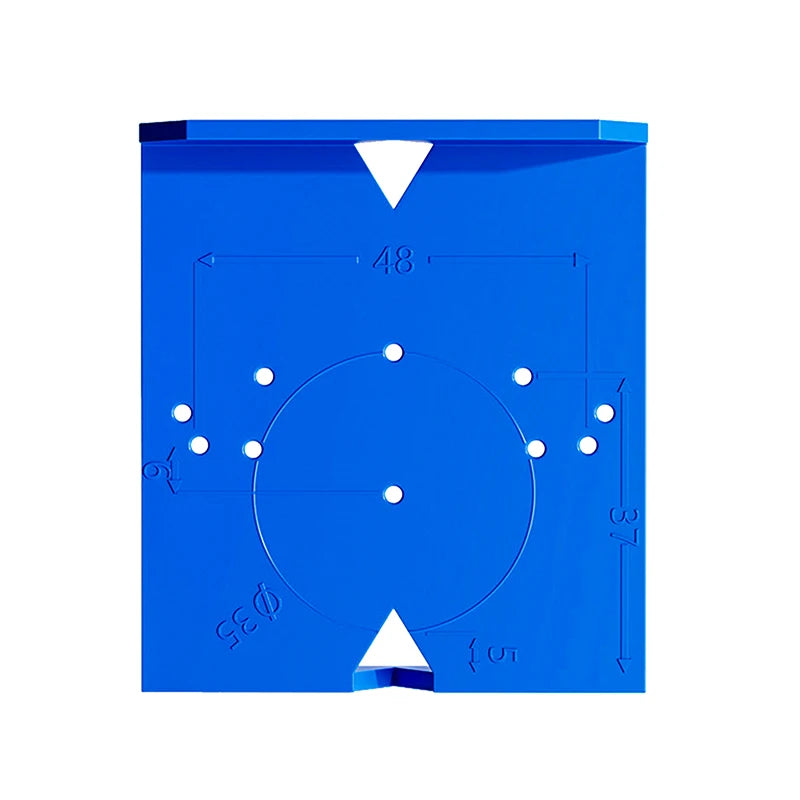

Get perfectly aligned cabinet hinges every time with this 2-Pack Hinge Hole Drilling Locator. Made from durable ABS plastic, this lightweight, portable jig takes the guesswork out of hinge installation — ideal for furniture doors, kitchen cabinets, wardrobes, and more.
Why You'll Love This Hinge Drilling Guide
- Precise Positioning Every Time — Built-in specification marks guide you to the exact screw hole placement, eliminating costly measurement errors.

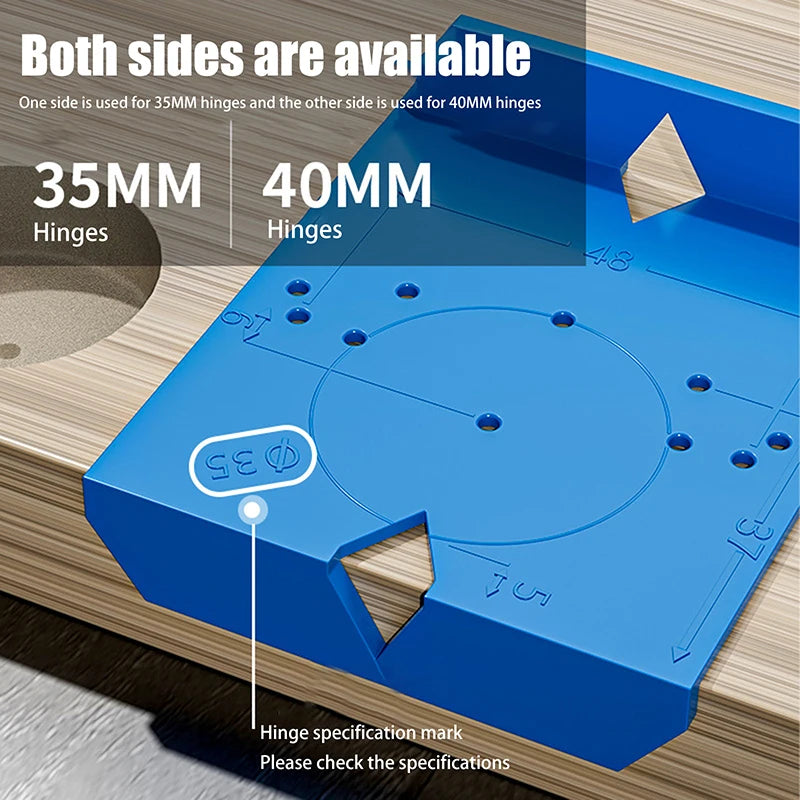

- Compatible with 35mm & 40mm Bits — Works with standard cemented carbide drill bits for both common European-style hinge cup sizes.
- Lightweight ABS Construction — Sturdy yet light at just 62 × 69mm (approx. 2.44 × 2.72 in), easy to carry to any job site or workshop.
- Easy Step-by-Step Use — No experience needed; the clear layout guides even beginners through perfect hinge hole drilling.
- Value 2-Pack — Two locators included so you can tackle multiple doors efficiently or have a spare on hand.
How to Use
- Determine the hinge position and draw the center connecting line between the two door panels.

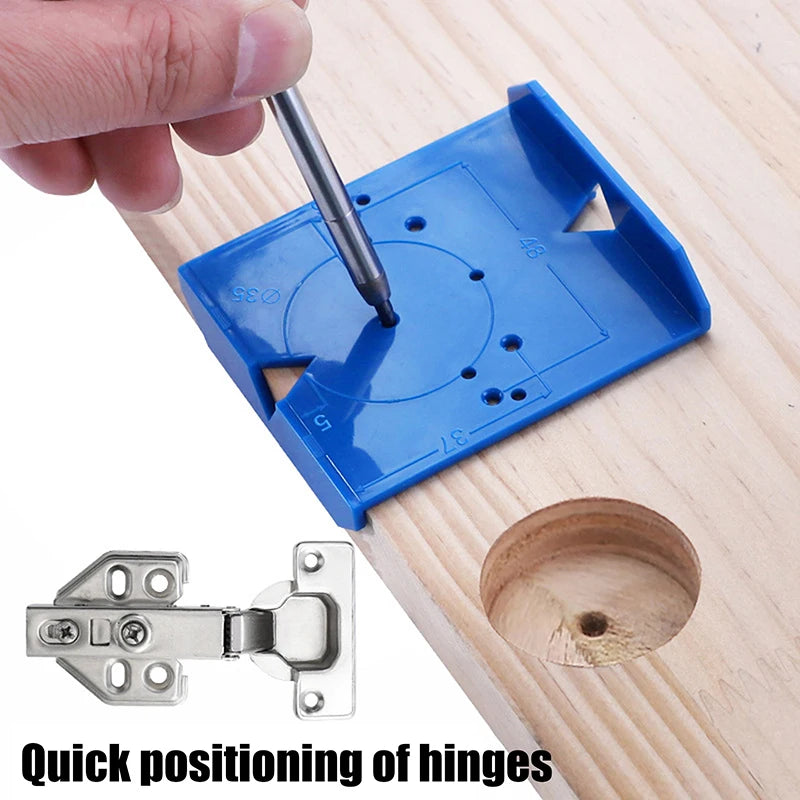

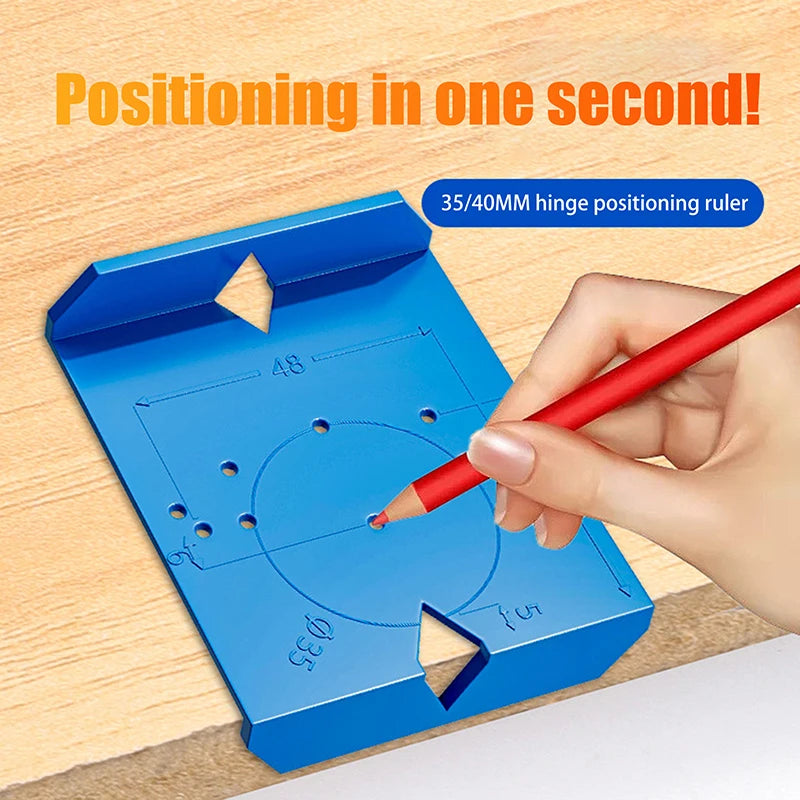

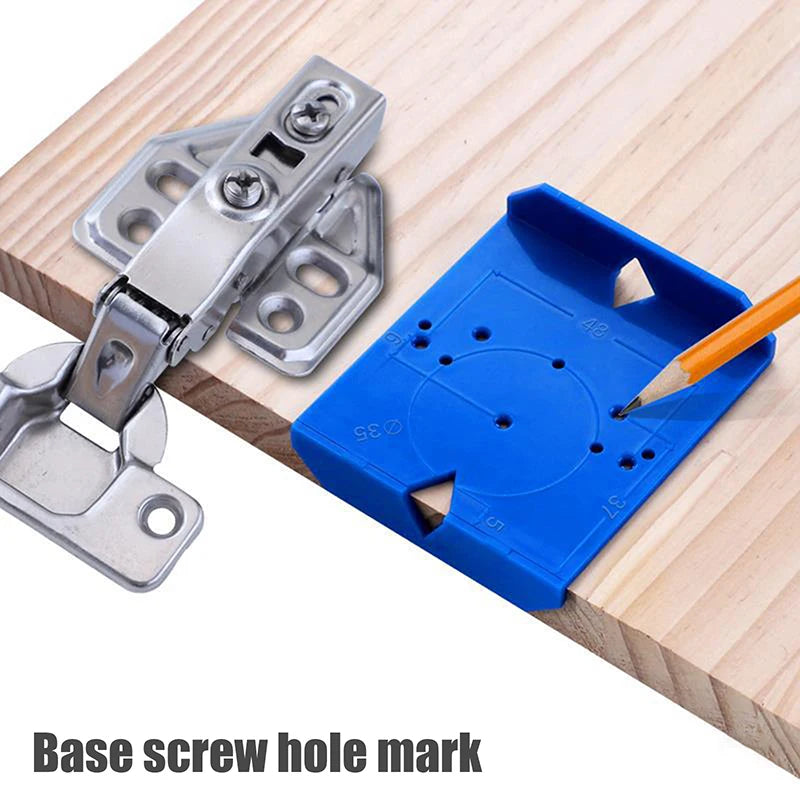

- Align the locator template with your mark and use the guide to mark all screw hole positions accurately.

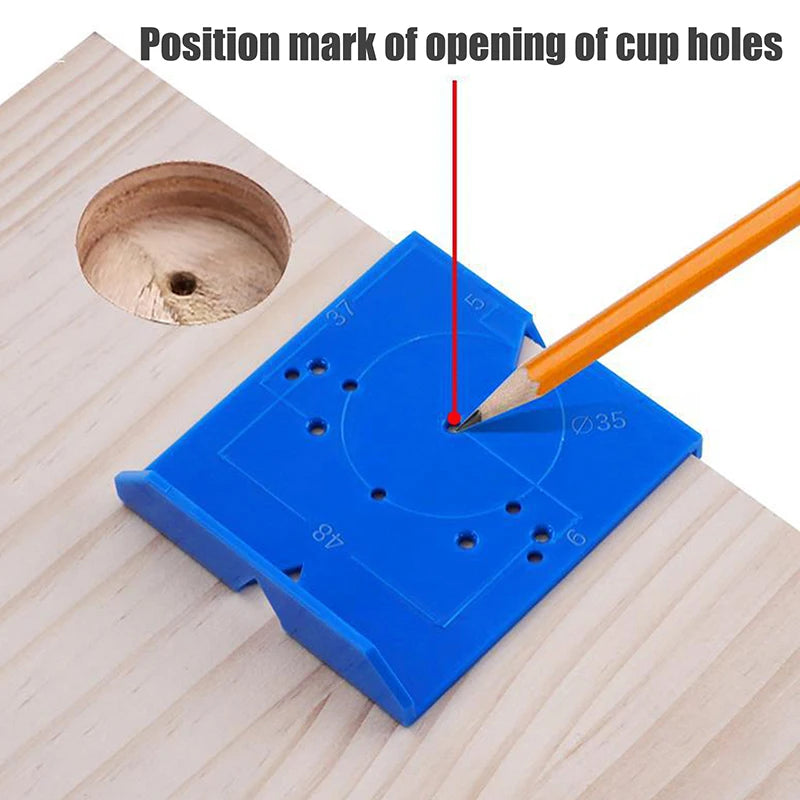

- Mark the corresponding hole positions on the cabinet frame.
- Drill all holes at the marked positions, then install your hinges for a perfect fit.
Specifications
| Material | ABS Plastic |
| Colour | Blue |
| Compatible Drill Bit Diameter | 35mm / 40mm |

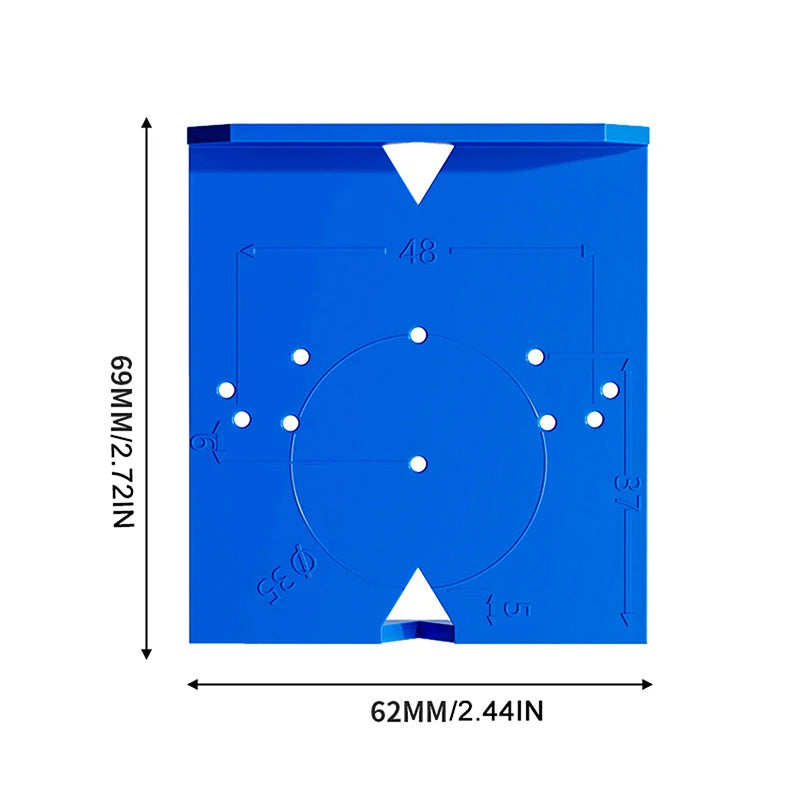

| Dimensions | 62 × 69mm (approx. 2.44 × 2.72 in) |
| Package Contents | 2 × Hinge Hole Drilling Locators |
| Country of Origin | Made in Mainland China |
Note: Photos may not reflect actual size — please refer to the specifications above. Minor variations due to manual measurement and monitor color differences are normal.
