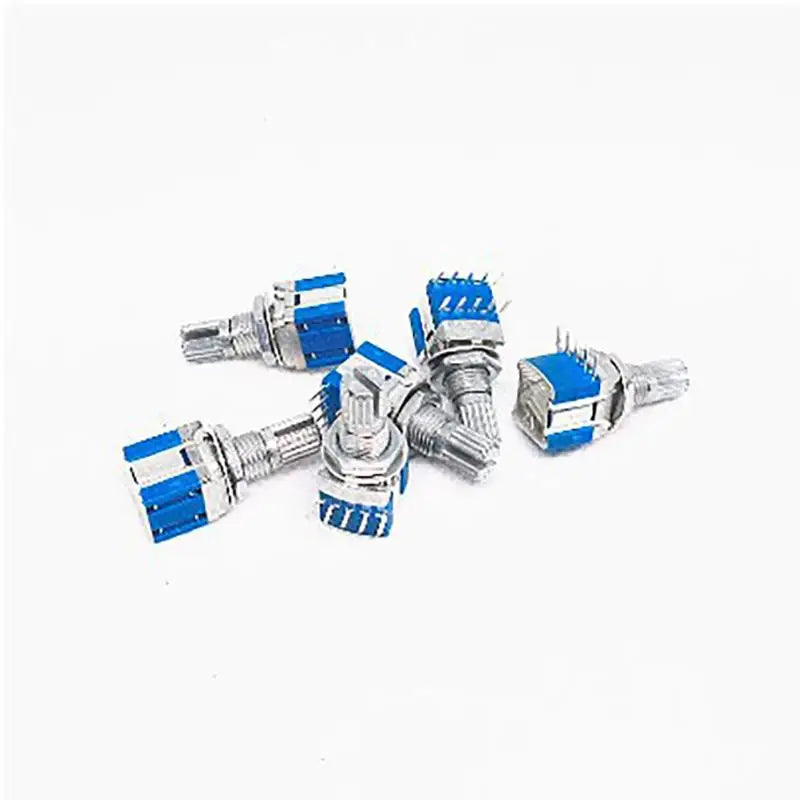

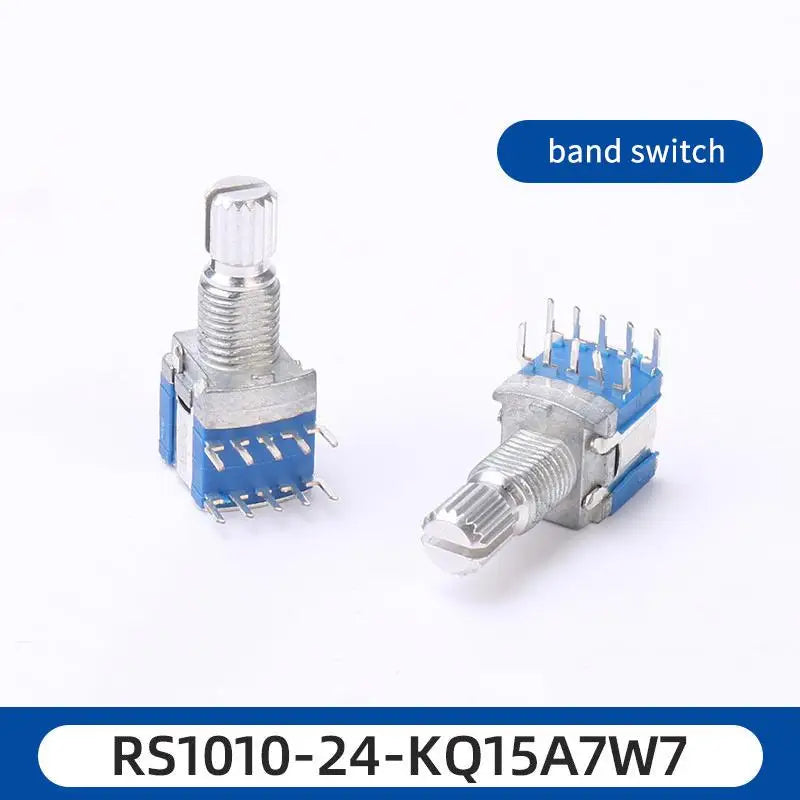

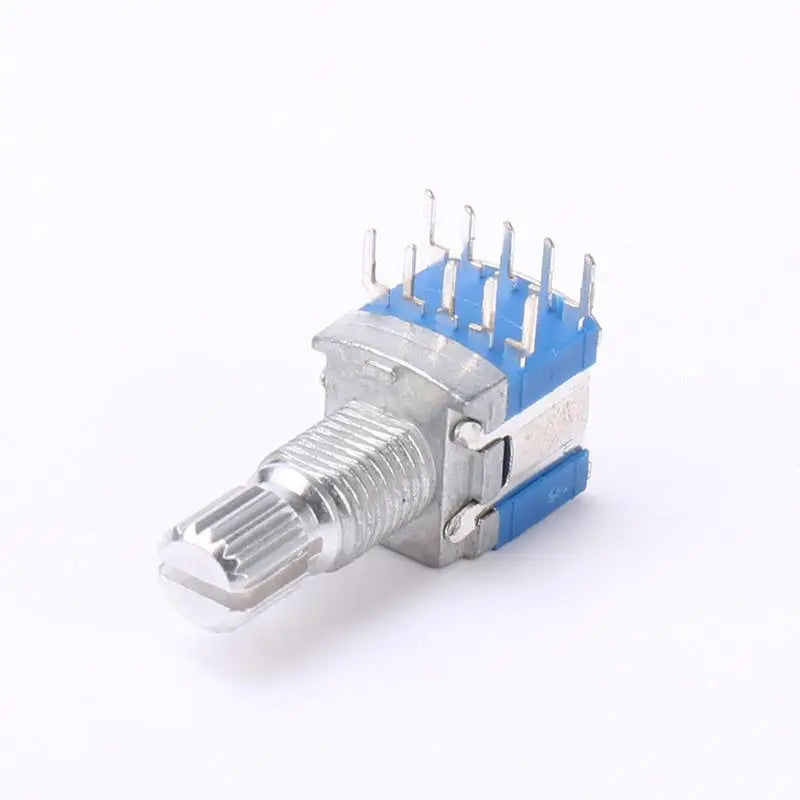

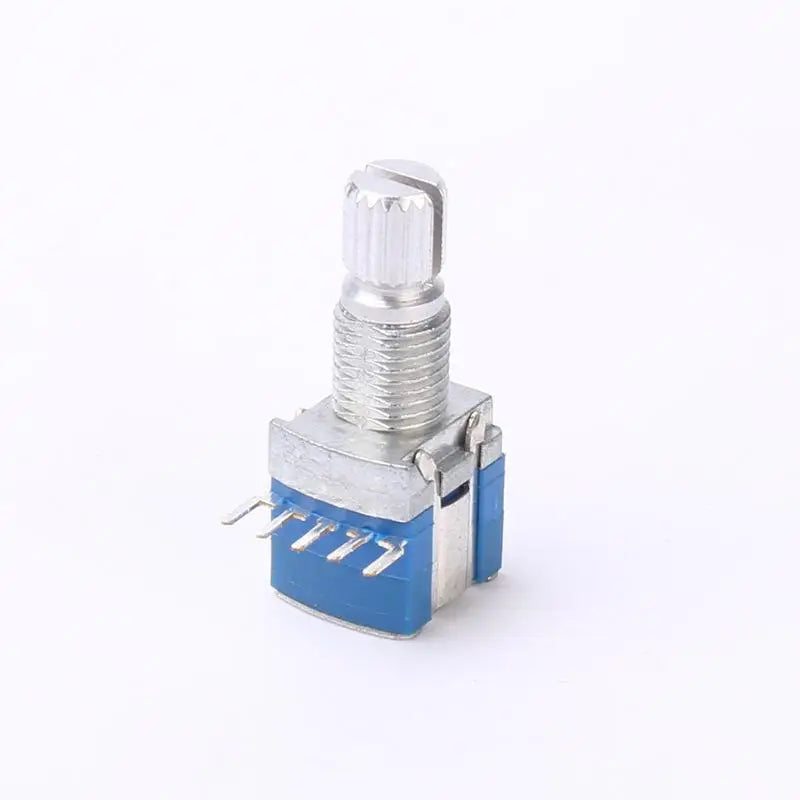

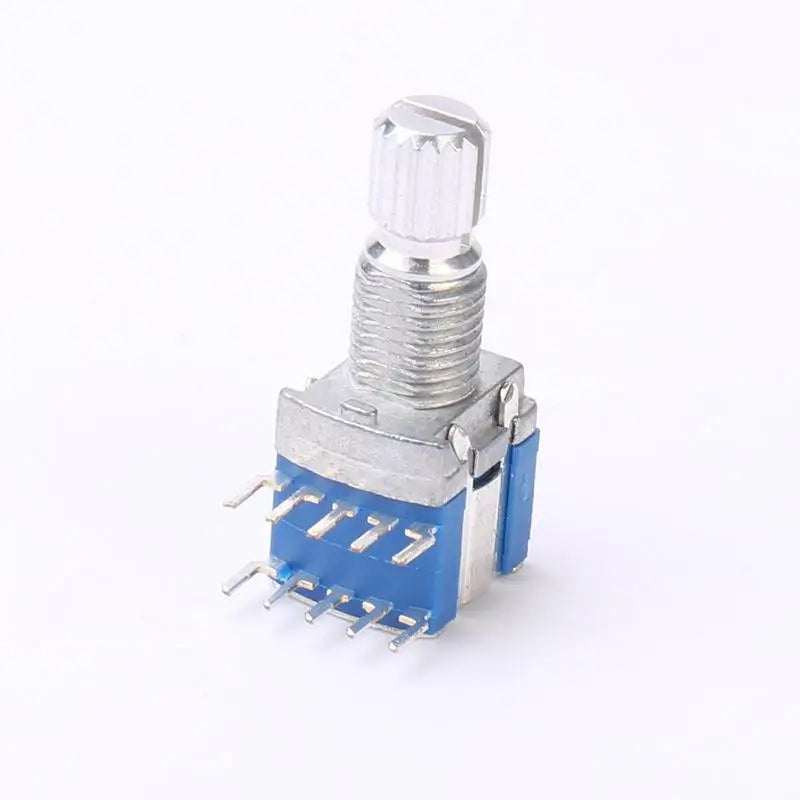

2-Pack RS1010 Rotary Band Switch – 1 Pole & 2 Pole Multi-Position
Upgrade your electronics projects with this versatile 2-Pack RS1010 Rotary Band Switch. Whether you need a 1 Pole (2/3/4/5/6 position) or 2 Pole (2/3/4 position) configuration, these compact gear-change rotary switches deliver reliable circuit selection for DIY builds, radio equipment, test instruments, amplifiers, and more. Each switch comes complete with mounting nuts and washers for a hassle-free install.
Key Features

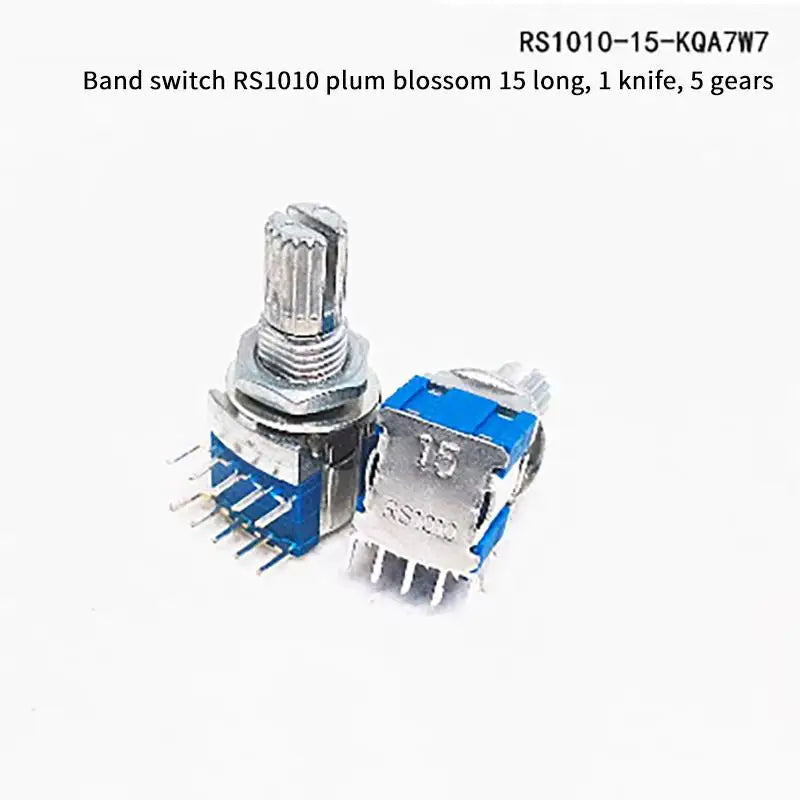

- Versatile Configuration: Available in 1 Pole 2/3/4/5/6 Position and 2 Pole 2/3/4 Position variants — choose the configuration that suits your circuit needs.
- RS1010 Standard: Meets the widely used RS1010 rotary band switch specification, ensuring broad compatibility with standard panel cutouts.
- Compact Design: 15mm shaft length fits neatly into control panels, enclosures, and PCB-mounted applications without taking up excess space.
- Durable Metal Construction: Built from sturdy metal for dependable long-term switching performance in both hobby and professional settings.
- Complete Mounting Hardware: Each switch includes nuts and washers so you can mount straight out of the box — no extra hardware needed.
- Low Voltage Rated: Suitable for circuits below 50V AC or 75V DC, ideal for low-voltage electronic projects.
- Pack of 2: Get two switches per order — perfect for building redundancy, dual-channel setups, or simply having a spare on hand.
Specifications
| Model | RS1010 |
| Type | Rotary Band Switch (Gear Change) |
| Pole/Position Options | 1 Pole: 2/3/4/5/6 Pos | 2 Pole: 2/3/4 Pos |
| Material | Metal |
| Shaft Length | 15mm |
| Voltage Rating | Below 50V AC or 75V DC |
| Package Contents | 2× Rotary Switch + Nuts & Washers |
| Country of Origin | Made in China |
What's in the Box?
- 2× RS1010 Rotary Band Switch
- Mounting nuts and washers (included)
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between the 1 Pole and 2 Pole RS1010 rotary band switch options?
A: The 1 Pole version routes one circuit path and is available in 2, 3, 4, 5, or 6 position configurations, making it ideal for selecting between multiple signal sources or functions on a single line. The 2 Pole version switches two circuit paths simultaneously and comes in 2, 3, or 4 position options — great for applications that require switching two channels at the same time, such as stereo audio or dual-rail circuits.
Q: Are these RS1010 rotary switches compatible with standard panel cutouts?
A: Yes. The RS1010 is a widely used standard rotary band switch format. The 15mm shaft and included mounting nut and washer are designed to fit standard panel cutouts commonly found in electronic enclosures, instrument panels, and DIY project boxes.
Q: What voltage rating do these rotary band switches support?
A: These switches are rated for low-voltage applications — specifically below 50V AC or 75V DC. They are well-suited for hobby electronics, audio equipment, radio circuits, and other low-voltage DC or AC control applications.
Q: Do these switches include all the hardware needed for mounting?
A: Yes. Each RS1010 rotary band switch in this 2-pack comes with the necessary nuts and washers for panel mounting. No additional hardware is required for a standard installation.
