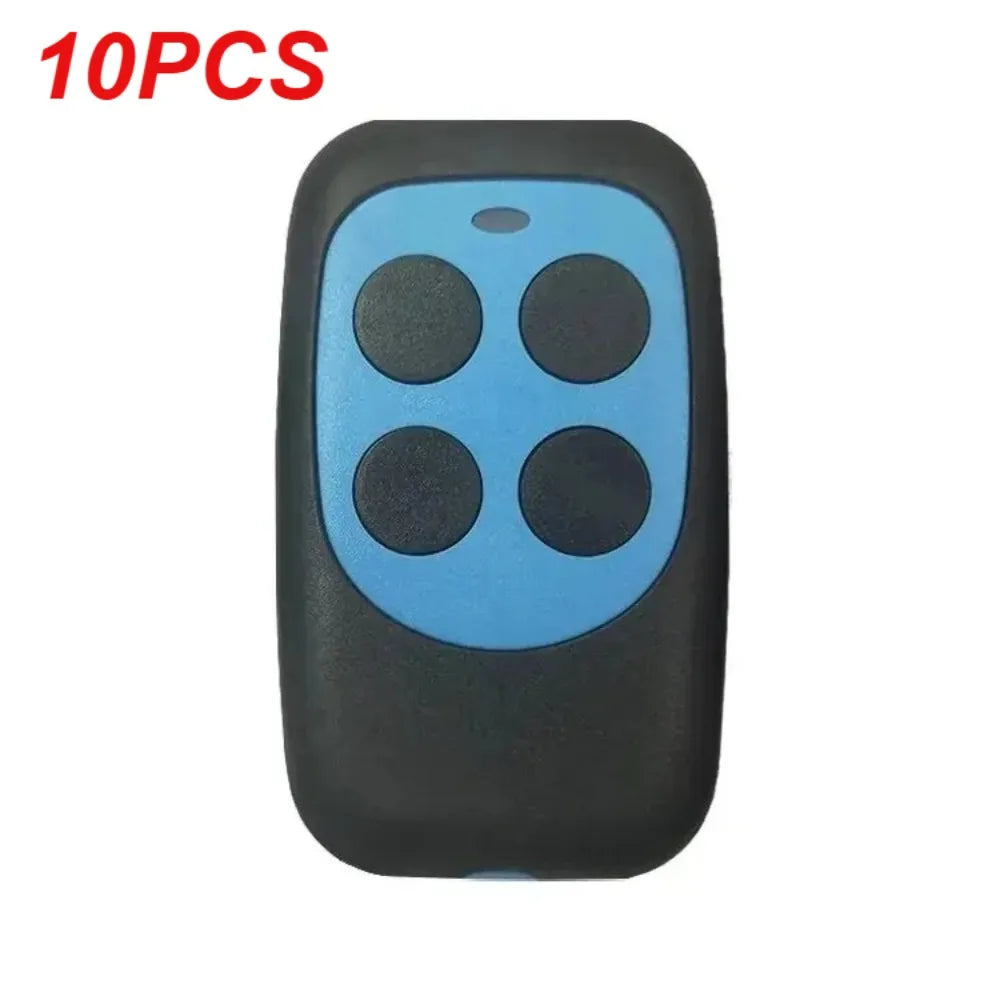

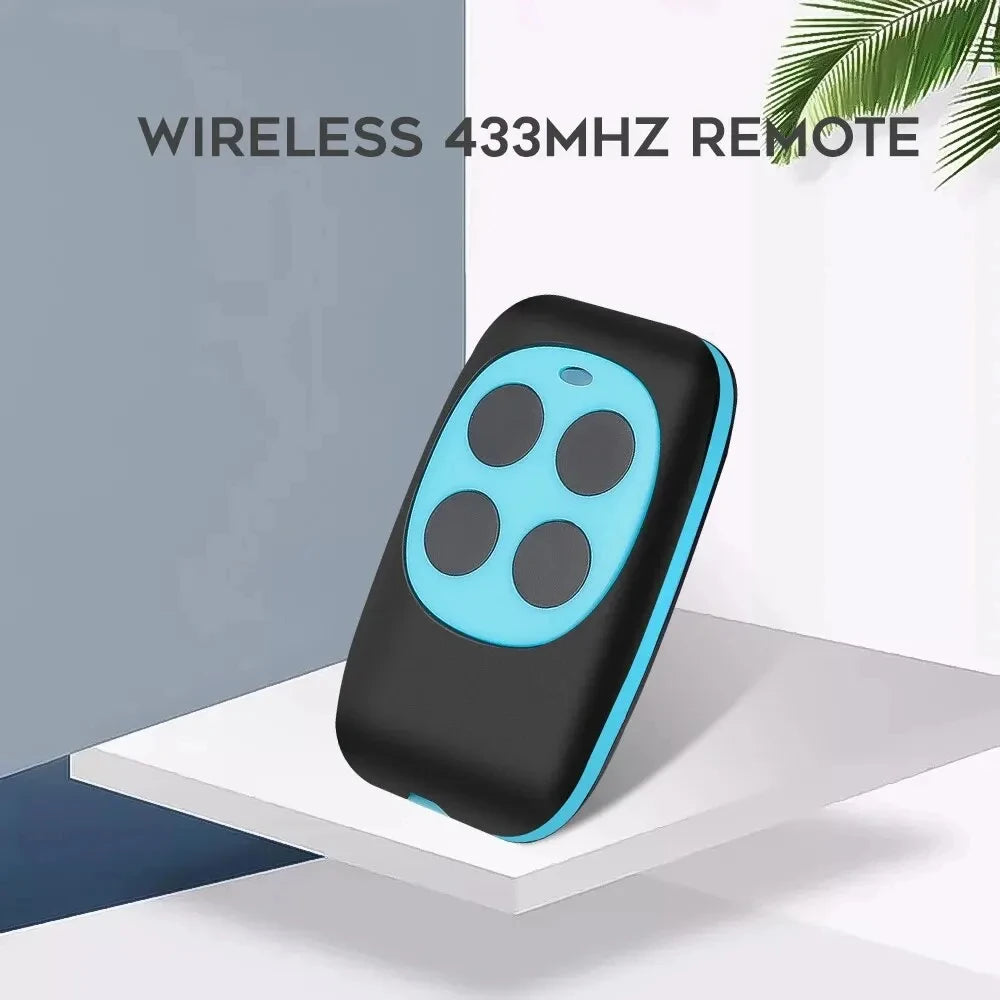

433MHz 4-Key Copy Clone Garage Door RF Remote Transmitter
433MHz 4-Key Copy Clone Garage Door RF Remote Transmitter
433MHz Copy Clone Wireless RF Remote Transmitter – 4-Key Garage & Gate Controller

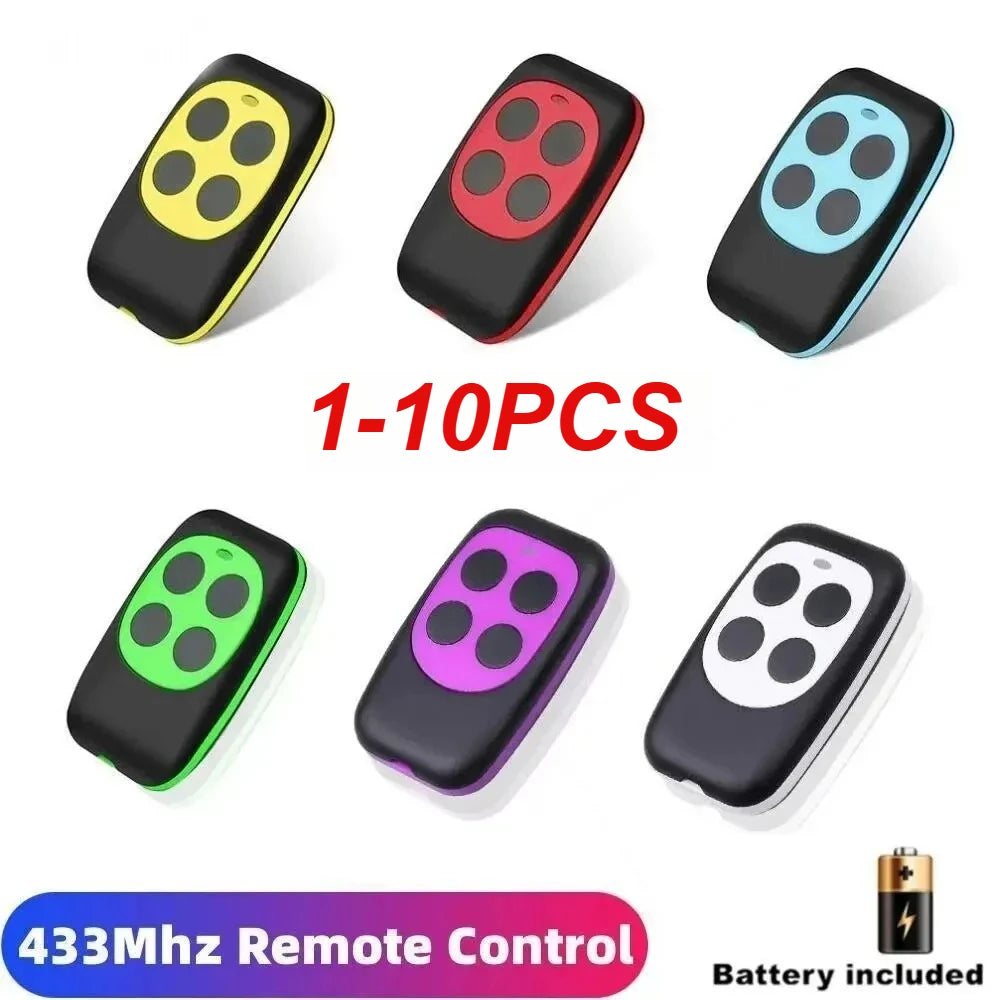

Upgrade or replace your existing garage door, gate, or alarm remote with this versatile 433MHz fixed-code copy remote transmitter. With a compact plastic body (60×36×12mm) and an intuitive 4-button layout, it clones your existing remote's signal in seconds — no specialist tools or programming knowledge required. Available in a range of colours and sold in packs of 1 to 10, so you can kit out the whole family or keep spares on hand.
Made in Mainland China.
Key Features
- One-touch cloning — hold the corresponding button on your old remote and this transmitter simultaneously; the LED indicator confirms copying with two quick flashes followed by three slow flashes and a steady light.
- 4 independent buttons — clone up to four separate commands (open, close, stop, gate, alarm, etc.) on a single compact remote.
- Wide chip compatibility — works with PT2262, PT2240, PT2264, PT2260, PT2242, SC2262, SC2260, EV1527, P527, HT600, HT640, HT12D, HT12F, HT12E, SC5262 and more.
- 150-metre wireless range — strong, reliable signal for large driveways and commercial gates.
- Fixed-code encoding — secure, stable transmission that resists interference.
- Easy clear/reset function — press the top two buttons simultaneously to wipe all stored codes and start fresh.
- Battery included — powered by 2 × CR2016 (3V) coin cells, included in the box.
- Multi-use compatibility — suitable for electric telescopic doors, road barrier gates, roller shutters, alarm systems, and more.
Specifications
| Frequency | 433 MHz |
| Encoding | Fixed code |
| Buttons | 4 keys |
| Material | Plastic |
| Dimensions | 60 × 36 × 12 mm |
| Power | 2 × CR2016 (3V) — included |
| Transmission Range | Up to 150 m |
| Compatible Chips | PT2262, PT2240, PT2264, PT2260, PT2242, SC2262, SC2260, EV1527, P527, HT600, HT640, HT12D, HT12F, HT12E, SC5262, and more |
| Origin | Mainland China |
How to Copy a Remote
- Hold the button on your existing remote and the corresponding button on this transmitter at the same time.
- The LED will flash quickly twice, then slowly three times, then stay solid — copying is complete.
- Repeat for each of the remaining buttons as needed.
How to Clear All Codes
- Press both top buttons simultaneously until the LED flashes 3 times.
- Release the right button only, then press it three times in quick succession.
- The indicator will flash to confirm the memory has been cleared.
What's in the Box
- 1 × 433MHz RF remote control duplicator (batteries included)
Need more accessories for your vehicle or home electronics? Check out these related products:
- 10-Pack Car Wrap Magnet Holders | Anti-Scratch Vinyl Film Tool
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Note: Colours may vary slightly from images due to screen resolution differences. Please allow minor measurement tolerances (±1–2 mm) due to manual measurement methods.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which garage door and gate systems is this 433MHz copy remote compatible with?
A: This remote transmitter is compatible with any fixed-code 433MHz RF system using chips such as PT2262, PT2240, PT2264, PT2260, PT2242, SC2262, SC2260, EV1527, P527, HT600, HT640, HT12D, HT12F, HT12E, or SC5262. It works with electric telescopic doors, road barrier gates, roller shutters, and alarm systems that operate on a 433MHz fixed-code frequency. Always verify your existing remote's frequency and encoding type before purchasing.
Q: How many codes can I store on this remote, and can I copy codes from different remotes onto the same unit?
A: Yes — this 4-button transmitter can store up to four independently copied commands. You can clone buttons from different remotes as long as they all operate on 433MHz fixed-code encoding. This makes it ideal for controlling a garage door, gate, alarm, and barrier all from one compact remote.
Q: Does the remote come with batteries, and how long do they last?
A: Yes, two CR2016 (3V) coin cell batteries are included so the remote is ready to use straight out of the box. Battery life varies depending on usage frequency, but CR2016 cells in a low-power RF transmitter typically provide many months of regular use.
Q: What is the maximum wireless range of this RF remote transmitter?
A: This transmitter has a wireless transmission range of up to 150 metres under open-air conditions. Walls, metal structures, and other RF interference sources may reduce the effective range in real-world environments.
