5-Pack SIP-1A05 4-Pin 5V Reed Switch Relay – DC Dry Relay

$13.61 $16.14

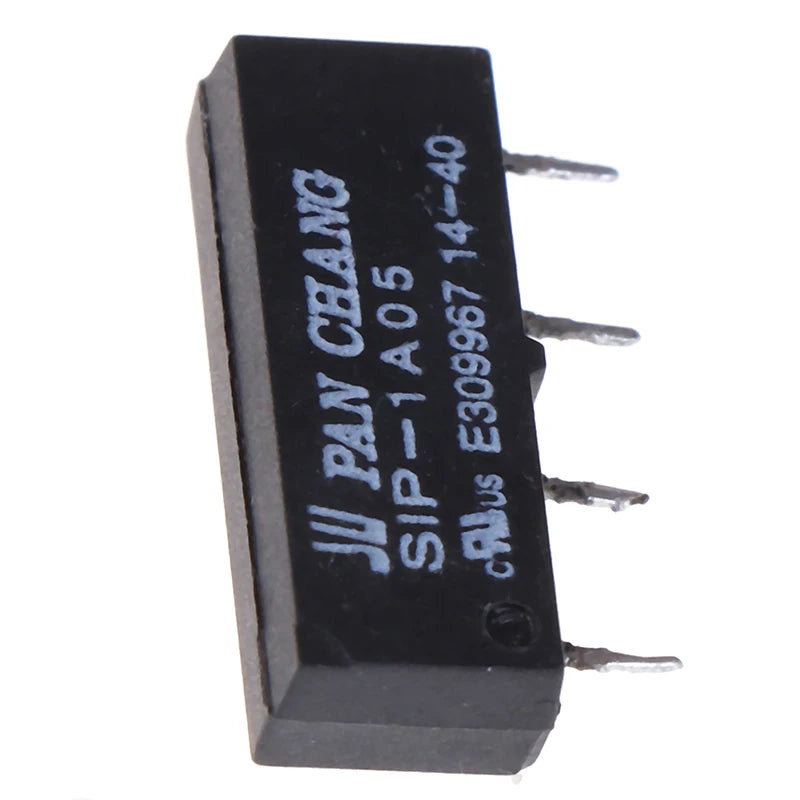

5-Pack SIP-1A05 4-Pin 5V Dry Reed Switch Relay

Keep your electronics projects running smoothly with this set of five SIP-1A05 Dry Reed Switch Relays. Designed as direct replacements for PAN CHANG relay applications, these compact 4-pin, 5V DC relays deliver consistent switching performance in a small, board-friendly footprint. Whether you're repairing existing circuits or building new ones, these relays are a reliable choice for hobbyists, technicians, and engineers alike.

Please Note: These are disassembled/pulled parts, not brand-new components. Please confirm this before placing your order.

Key Specifications

Model: SIP-1A05
Operating Voltage: DC 5V
Rated Current: 1A
DC Coil Resistance: 450–550 Ω
Contact Style: Normally Open (NO)
Pin Configuration: 4-Pin SIP (Single Inline Package)

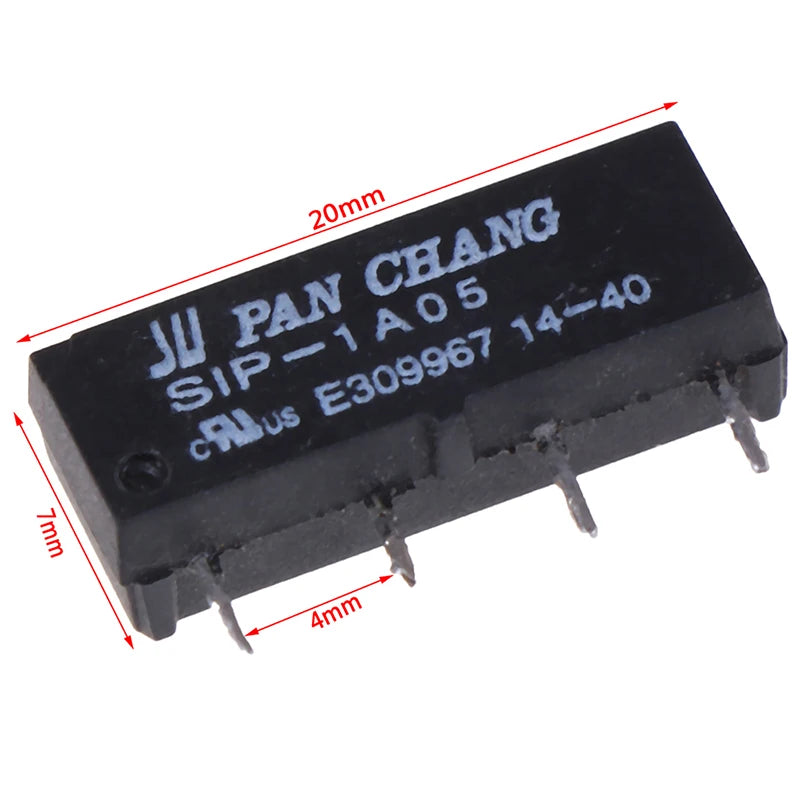

Body Dimensions: 1.9 × 0.7 × 0.5 cm (0.75" × 0.28" × 0.2") L×W×T
Net Weight: ~3g per relay
Quantity: 5 pieces per pack

Why Choose This Reed Relay?

✔ Compact SIP Form Factor – Fits directly into standard PCB sockets designed for PAN CHANG compatible relays
✔ Low Operating Voltage – 5V DC coil makes it ideal for microcontroller-driven circuits (Arduino, Raspberry Pi, etc.)
✔ Dry Reed Contact – Hermetically sealed contacts for clean, stable switching with minimal interference
✔ Reliable Performance – Consistent DC resistance of 450–550 Ω for predictable coil current draw
✔ Value Pack – Five relays per order ensures you always have spares on hand

What's in the Box?

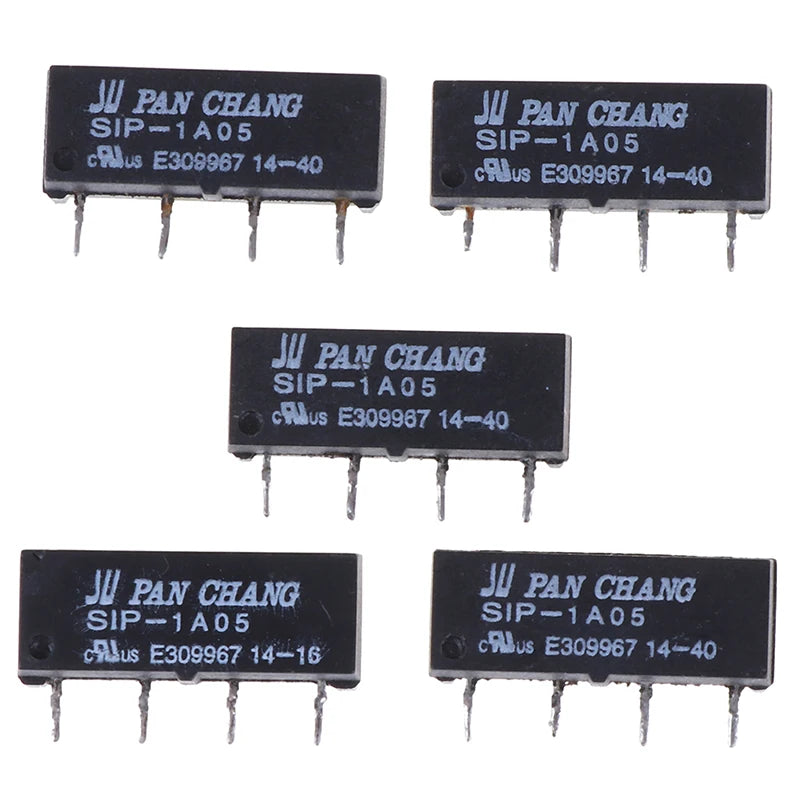

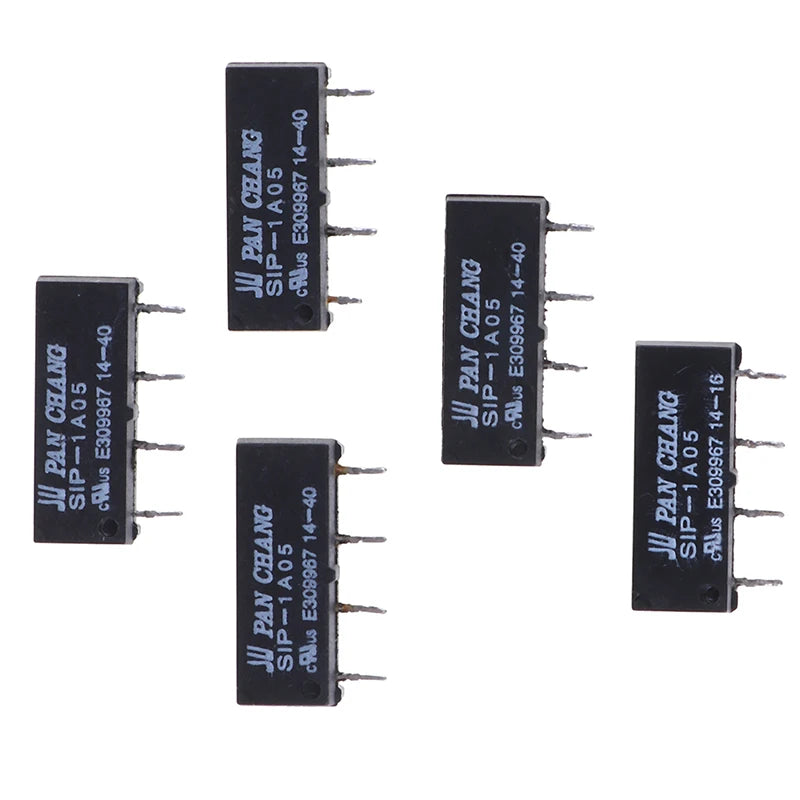

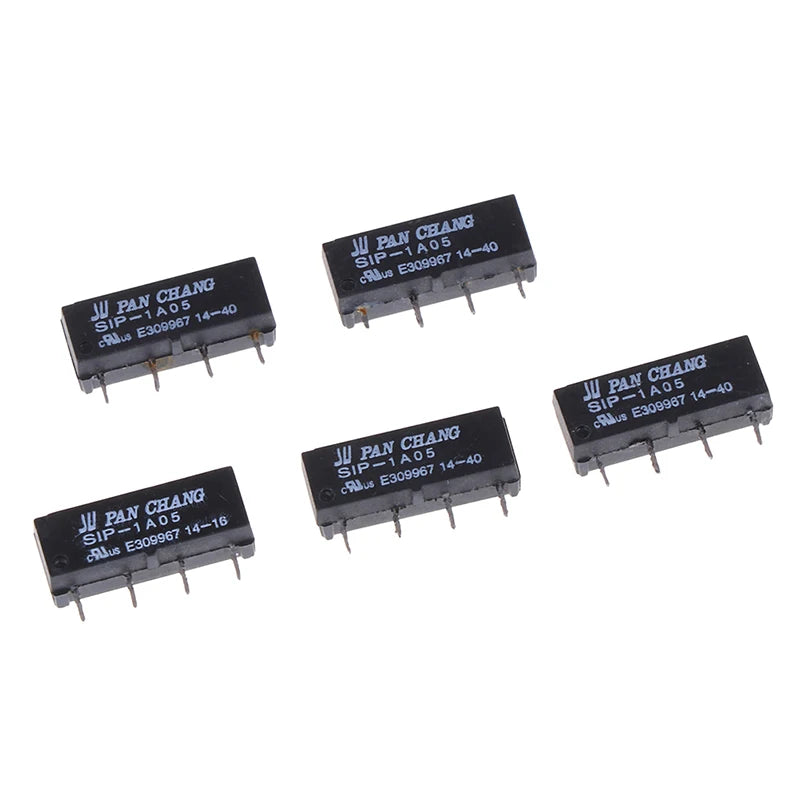

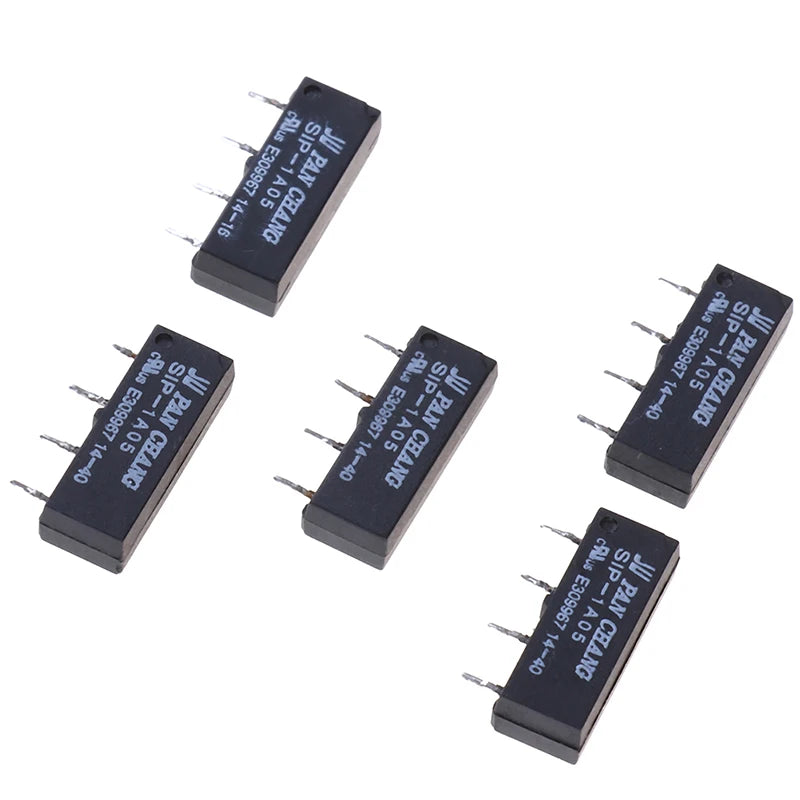

5 × SIP-1A05 4-Pin 5V DC Dry Reed Switch Relay

Made in Mainland China.

Related Products You May Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Are these SIP-1A05 reed relays compatible with PAN CHANG relay sockets?

A: Yes. The SIP-1A05 is designed as a direct replacement for PAN CHANG relay applications. The 4-pin SIP footprint matches standard PAN CHANG-compatible PCB sockets, making swapping or repairing boards straightforward.

Q: What does "disassembled part" mean for these relays?

A: These reed relays have been removed from previously assembled boards or equipment — they are pulled/salvaged components rather than factory-sealed new stock. They are tested-functional but may show minor cosmetic marks. Please confirm this is acceptable for your project before ordering.

Q: Can I use these relays with a 5V microcontroller such as an Arduino?

A: Absolutely. With a 5V DC operating coil and a normally open contact rated at 1A, these relays are well-suited for direct interfacing with 5V microcontroller platforms like Arduino when used with an appropriate transistor driver or relay module.
