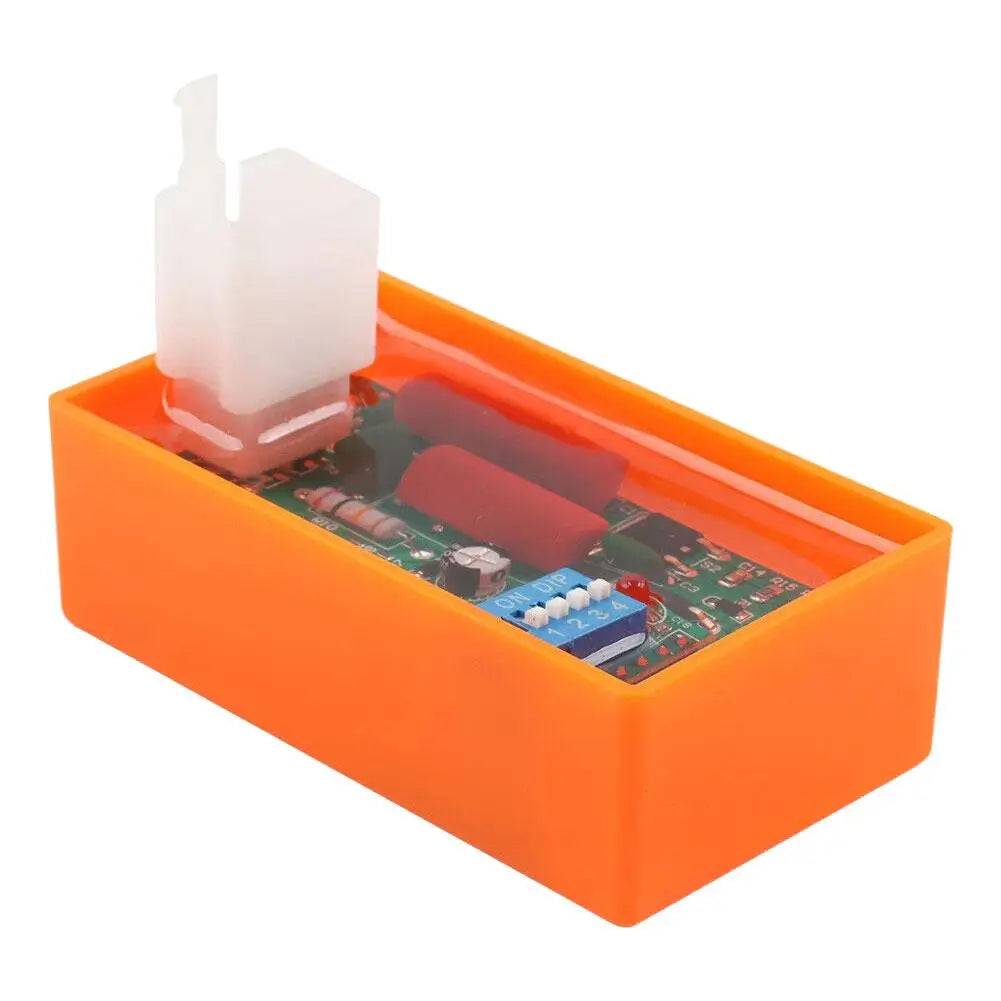

5-Pin AC CDI Box with DIP Switch – Adjustable RPM Limiter for Motorcycles & ATVs
Upgrade your ride's ignition system with this high-quality 5-Pin AC CDI Box featuring a built-in DIP switch for adjustable speed limiting between 4,000–12,000 RPM. Designed for racing and performance applications, this CDI unit is compatible with a wide range of 50cc–160cc engines found in motorcycles, ATVs, dirt bikes, pit bikes, go-karts, scooters, and mopeds.
Made in Mainland China.
Key Features

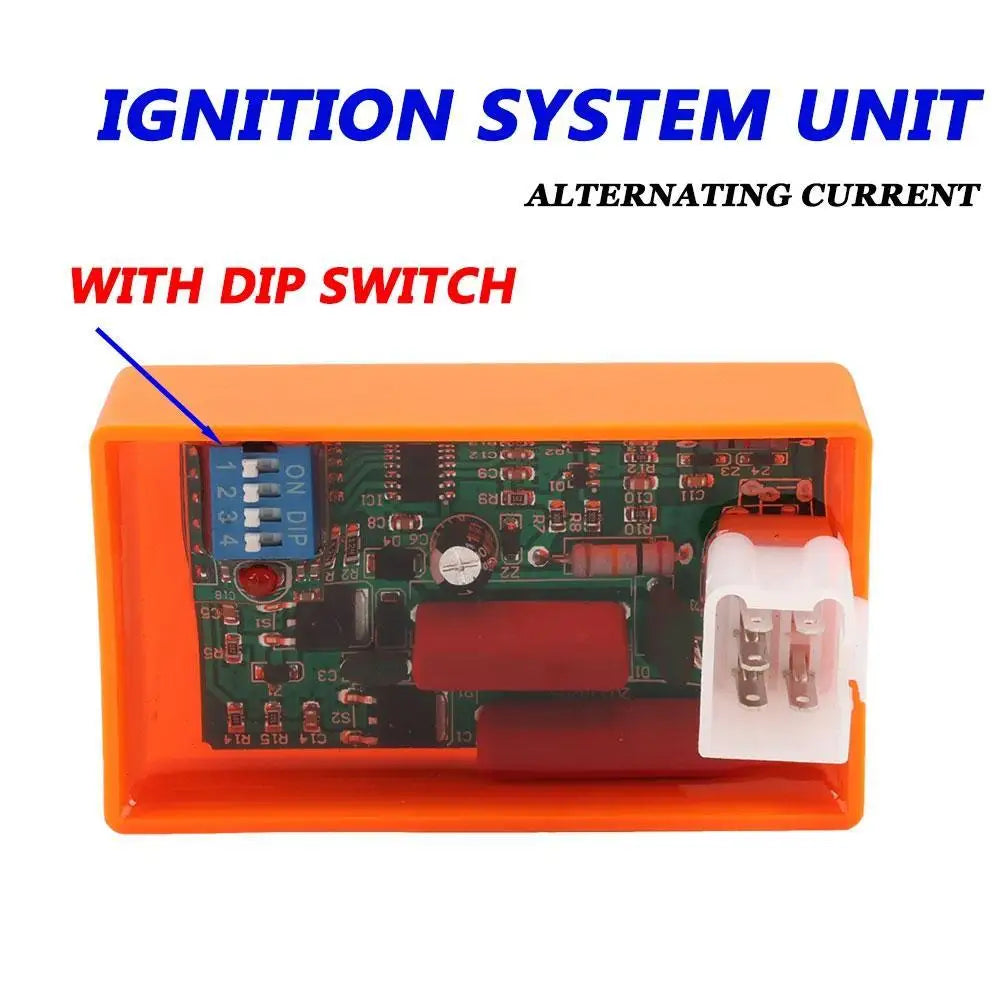

- DIP Switch RPM Control: Easily adjust the rev limiter between 4,000 and 12,000 RPM to suit street, trail, or track use.
- AC CDI Technology: Compatible with AC-powered ignition systems — ideal for most modern small-displacement engines.
- 5-Pin Dual Plug Design: Universal fitment across dozens of popular models and engine sizes (50cc, 70cc, 90cc, 110cc, 125cc, 140cc, 150cc, 160cc).
- Durable Build: High-quality construction for long-lasting performance, even under demanding racing conditions.
- Broad Compatibility: Fits WAVE100, BIZ100, CD100, DREAM, SUPER100, XY50-Q, Phoenix50, JET50, TR50F, TR100F, WEB100, V-Blade 250, LX100, BOXER100, BAOTIAN ATV100CC, and many more.
Compatible Models Include
- WAVE100, BIZ100, CD100, LX100, BOXER100, BAOTIAN ATV100CC
- SUPER100 (2008–2015), DREAM (1992–1998)
- XY50-Q (2011–2017), Phoenix50, JET50, TR50F, TR100F
- WEB100 (2002–2020), V-Blade 250 (2006–2008)
- 50cc to 160cc ATVs, Quad 4 Wheelers, Pit Bikes, Dirt Bikes, Scooters, Mopeds
- EX5, GN5, C100, AT110, C90 racing and competitive models
AC vs. DC – How to Tell
Most modern machines use AC CDI. A quick test: turn the ignition to the "ON" position with the engine off. If the headlight comes on, your machine uses a DC CDI. If it does not light up, it uses an AC CDI — and this unit is the right fit.
Package Contents
- 1 × 5-Pin AC CDI Box with DIP Switch
Related Products You May Like
- 4-Pack Deer Whistle Wildlife Alert Devices for Vehicles
- 2-Pack S-Hook Brake Caliper Hangers with Rubber Tips
- 10-Pack Car Wrap Magnet Holders | Anti-Scratch Vinyl Film Tool
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: What engines is this 5-Pin AC CDI box compatible with?
A: This CDI box is designed for 50cc, 70cc, 90cc, 110cc, 125cc, 140cc, 150cc, and 160cc engines commonly found in motorcycles, ATVs, dirt bikes, pit bikes, go-karts, scooters, and mopeds. Always verify your machine uses a 5-pin AC CDI connector before purchasing.
Q: How does the DIP switch RPM limiter work?

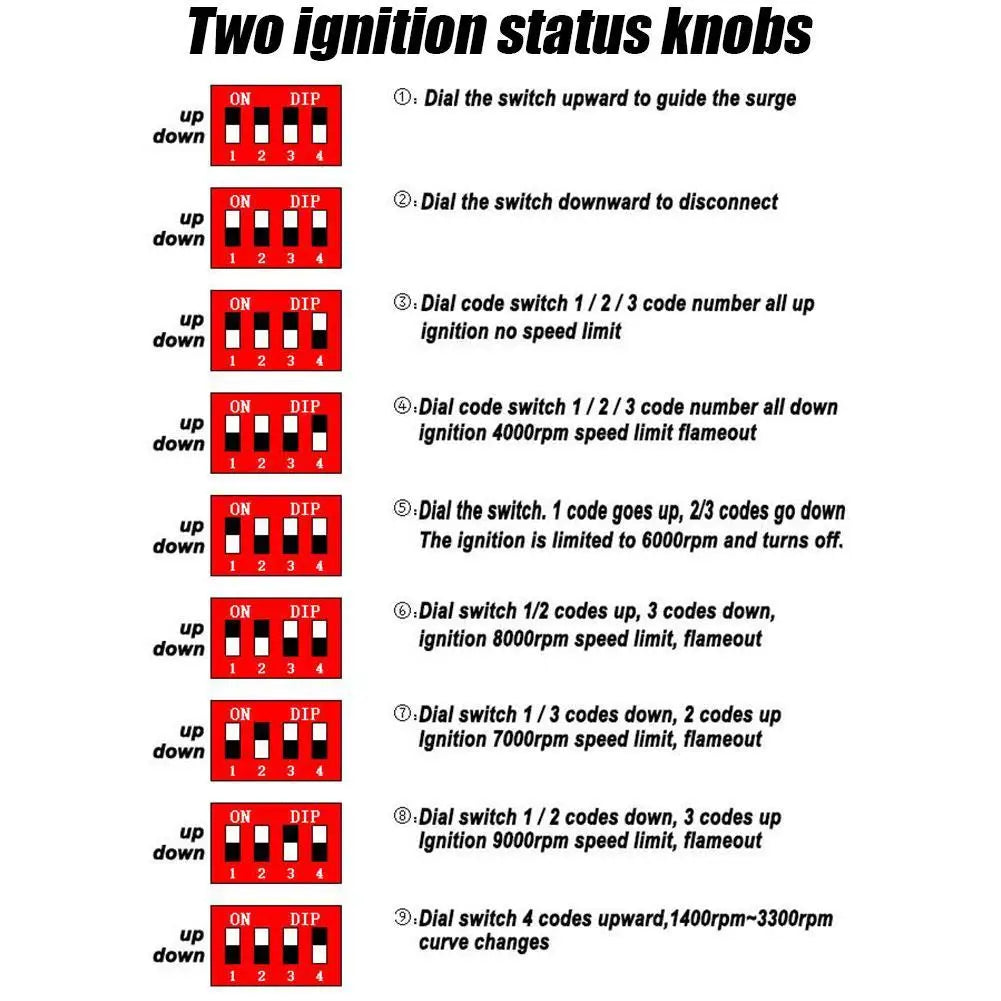

A: The built-in DIP switch allows you to manually select different RPM limit settings ranging from 4,000 to 12,000 RPM. This makes it easy to tune your ignition for different riding conditions — from casual street use to competitive track racing.
Q: How do I know if my motorcycle uses AC or DC CDI?
A: Turn the ignition key to the "ON" position without starting the engine. If the headlight illuminates, your bike uses a DC CDI system. If the headlight stays off, it is an AC system — and this CDI unit is compatible. DC CDI boxes are also physically larger than AC units.
Q: Is this CDI suitable for racing use?
A: Yes. This CDI unit is specifically designed for performance and racing applications, including competitive racing builds on models like WAVE100, YX140, and similar small-displacement performance engines.
