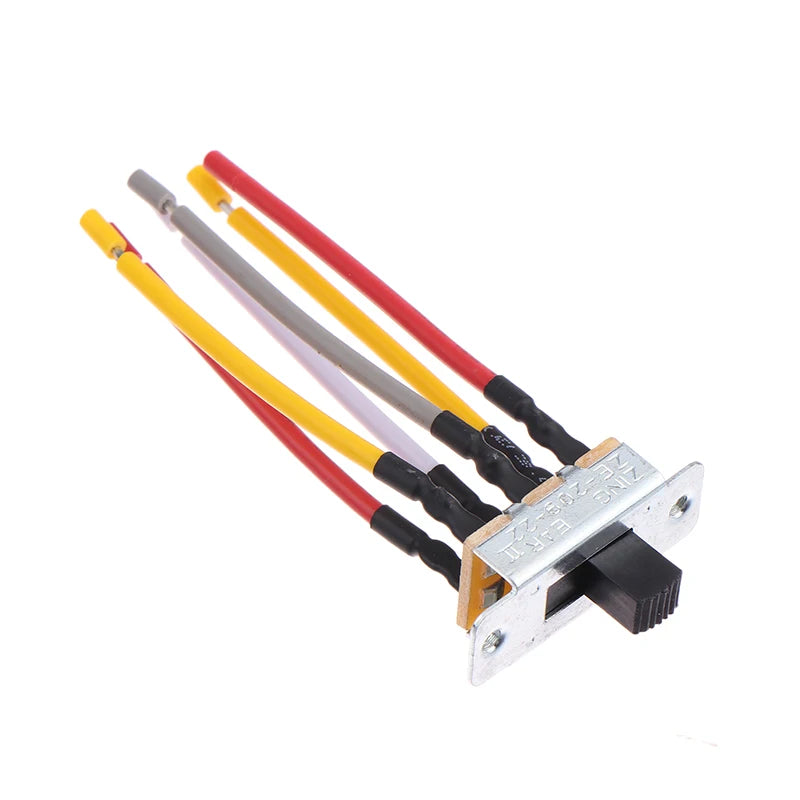

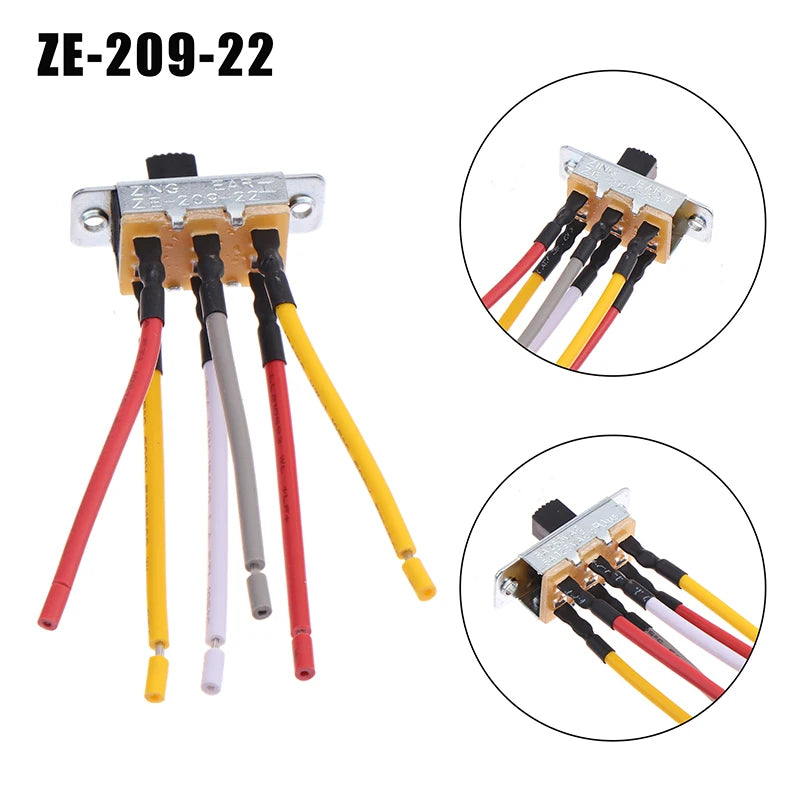

Universal 6-Pin 3-Speed Reverse Direction Ceiling Fan Switch (ZE-209-22)
Restore full control of your ceiling fan with this universal 3-speed, 6-pin reverse direction pull chain switch. Designed to replace the Zing Ear ZE-209-22 and compatible models, this Double Pole/Double Throw switch fits virtually any ceiling fan that uses a six-wire connection — making it the go-to replacement part for DIY repairs and professional installations alike.

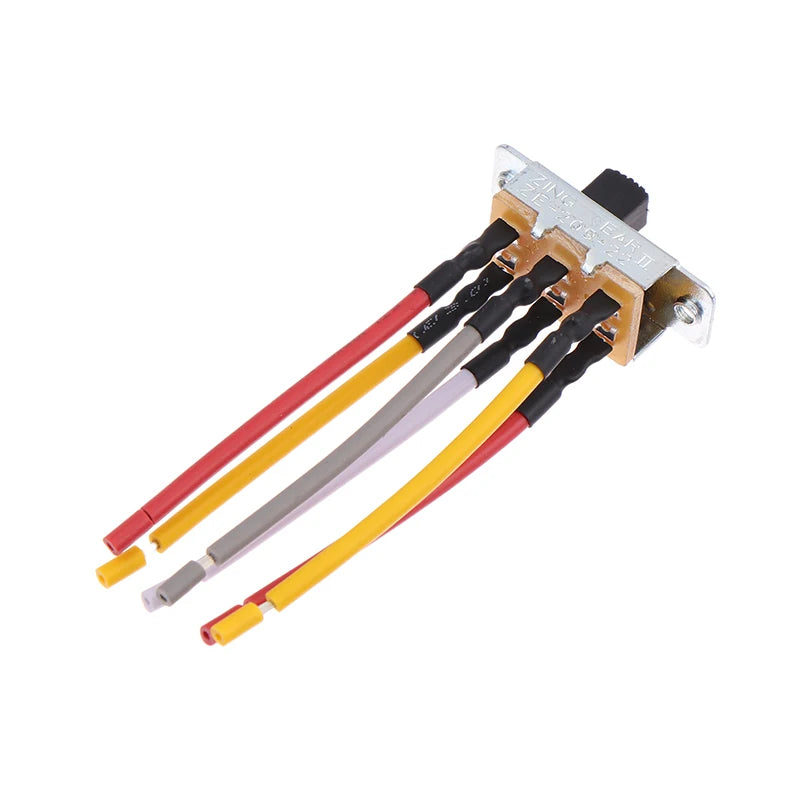

Wires come professionally pre-soldered to PCB terminals and protected with nylon heat-shrink tubing, so installation is clean, fast, and secure. No soldering required on your end — just connect and go.
Key Features
- Universal Fit: Compatible with all ceiling fans using six-wire connections
- 3-Gear / 3-Speed Control: Switch between Low, Medium, and High fan speeds
- Reverse Direction: Double Pole / Double Throw (DPDT) design enables forward and reverse fan operation
- Ready to Install: Wires are mechanically stripped and pre-soldered — no extra prep needed
- Mounting Holes: Approximately 29 mm centre-to-centre spacing for easy drop-in replacement

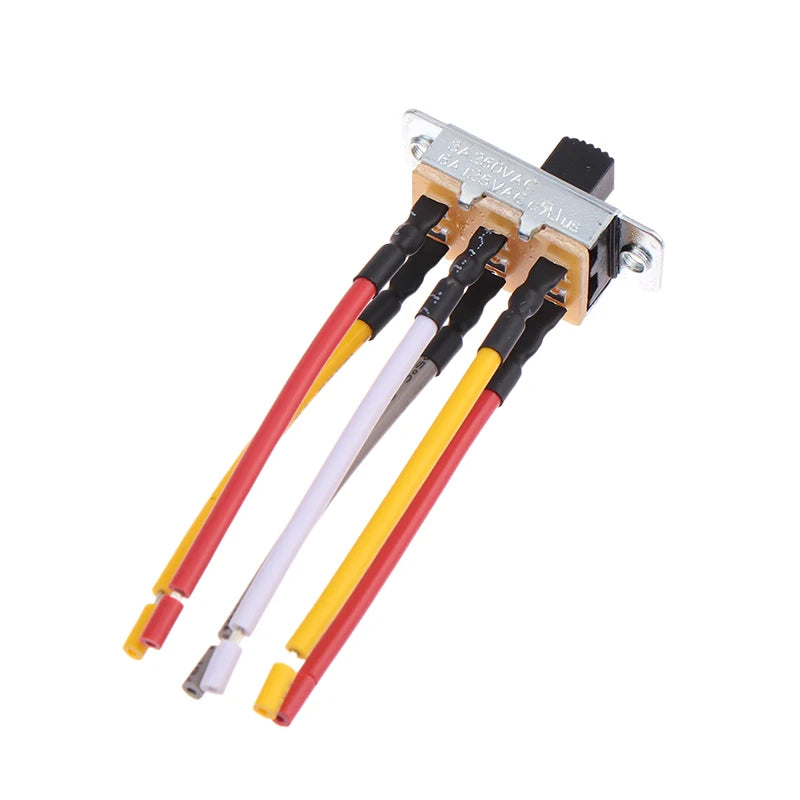

- Rated: 3A 250VAC / 6A 125VAC — suits standard household ceiling fan motors

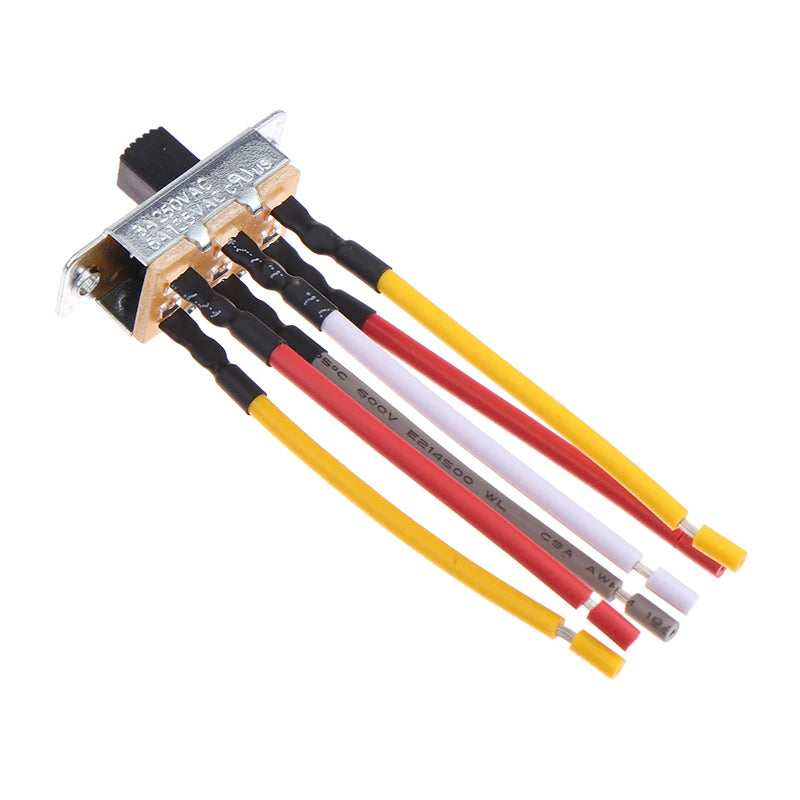

- Wire Gauge: 6-pin with 18 AWG wire leads
- Durable PVC Construction with nylon heat-shrink tubing on each connection
Compatible Replacement Models
Directly replaces: Zing Ear ZE-209-22, ShineTop LS 101H, Well Tec, Centen LST-101, Sunlite J 301, K.T.E. and other equivalent 6-pin ceiling fan switches.

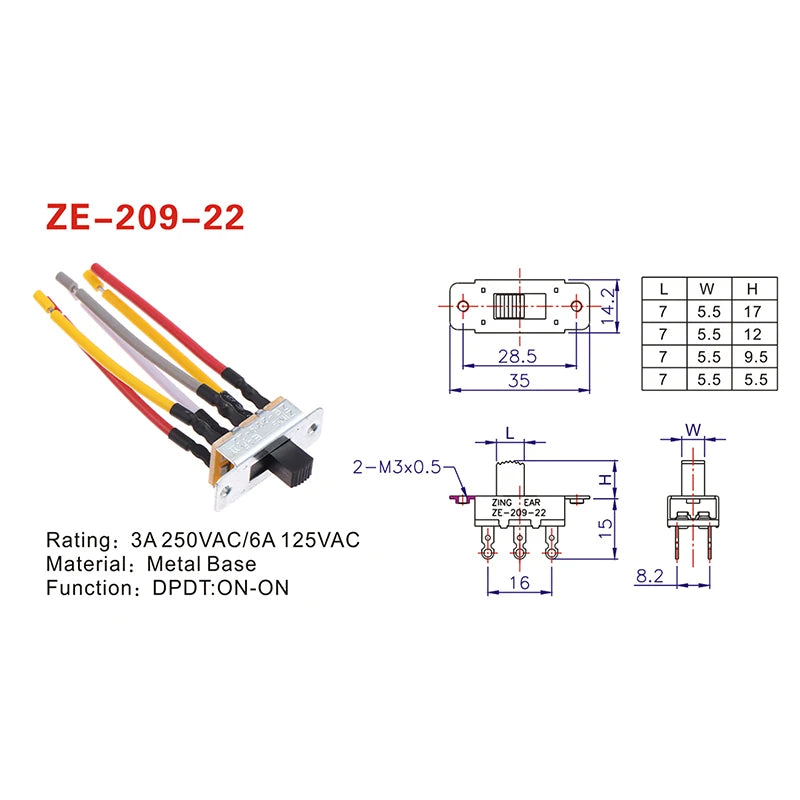

Specifications
- Model: ZE-209-22 (Universal)
- Pins: 6-pin
- Wiring: 18 AWG pre-stripped leads
- Switch Type: Double Pole / Double Throw (DPDT)
- Gears: 3 (Low / Medium / High)
- Voltage / Current: 3A 250VAC / 6A 125VAC
- Mounting Hole Distance: ~29 mm
- Material: PVC housing
- Package Contents: 1 × Ceiling Fan Speed & Reverse Switch
- Made in Mainland China
Note: Due to manual measurement, please allow a tolerance of 1–3 mm. Actual product colour may vary slightly from images due to monitor calibration differences.
Related Products You May Need
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Will this 6-pin ceiling fan switch work as a direct replacement for the Zing Ear ZE-209-22?
A: Yes. This switch is a direct drop-in replacement for the Zing Ear ZE-209-22 and other compatible models including ShineTop LS 101H, Centen LST-101, Sunlite J 301, Well Tec, and K.T.E. It features the same 6-pin configuration, ~29 mm mounting hole spacing, and DPDT design.
Q: Do I need to solder the wires when installing this switch?
A: No soldering is required on your end. The wires are pre-soldered to the PCB terminals at the factory and protected with nylon heat-shrink tubing. Simply connect the pre-stripped wire leads to your ceiling fan's existing wiring harness.
Q: What does the "reverse direction" feature mean on this ceiling fan switch?
A: The Double Pole / Double Throw (DPDT) design allows the switch to reverse the direction of the ceiling fan motor — spinning the blades clockwise in winter to push warm air down, and counter-clockwise in summer for a cooling breeze effect.
Q: What is the electrical rating of this ceiling fan switch?
A: This switch is rated at 3 Amps at 250VAC and 6 Amps at 125VAC, making it suitable for standard residential ceiling fan motors. Always verify your fan's motor specifications before installation.
