8-in-1 AC Energy Power Meter with Color Screen & Remote WiFi Control
Take full command of your electricity consumption with the KWS-302 8-in-1 AC Power Meter. Featuring a high-definition color display, this multi-function energy monitor simultaneously tracks voltage, current (amps), power (watts), energy consumption (kWh), timing, temperature, frequency, and power factor — all in one compact DIN rail-mounted unit. Whether you're managing a home, apartment, hotel, office, or commercial space, this meter brings complete visibility to your electricity usage.
Made in Mainland China.
Key Features

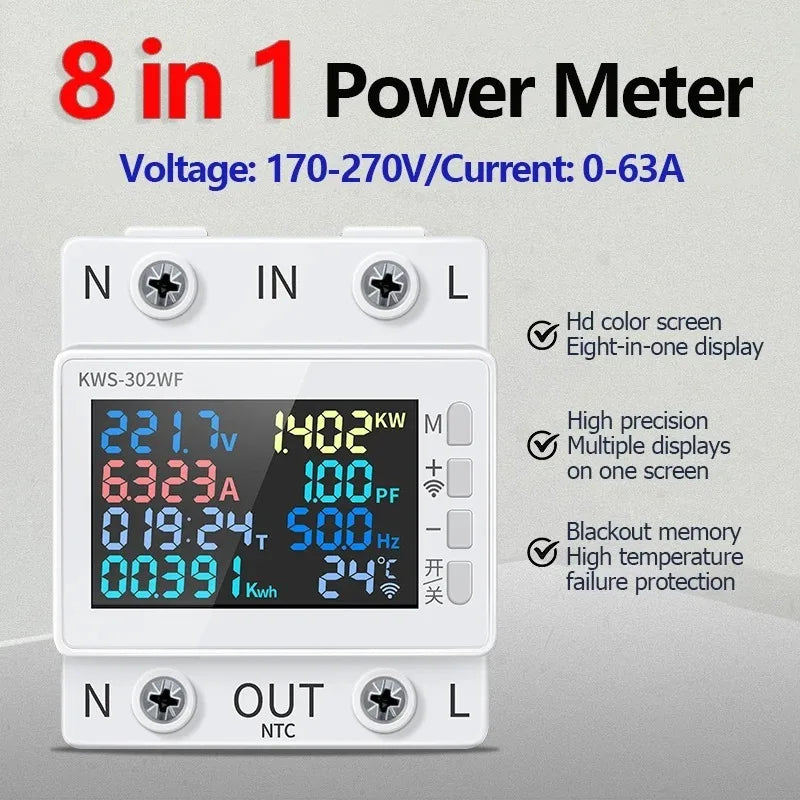

- 8-in-1 Monitoring: Voltage, current, power, kWh energy, timing, temperature, frequency, and power factor displayed simultaneously on a vivid color screen.

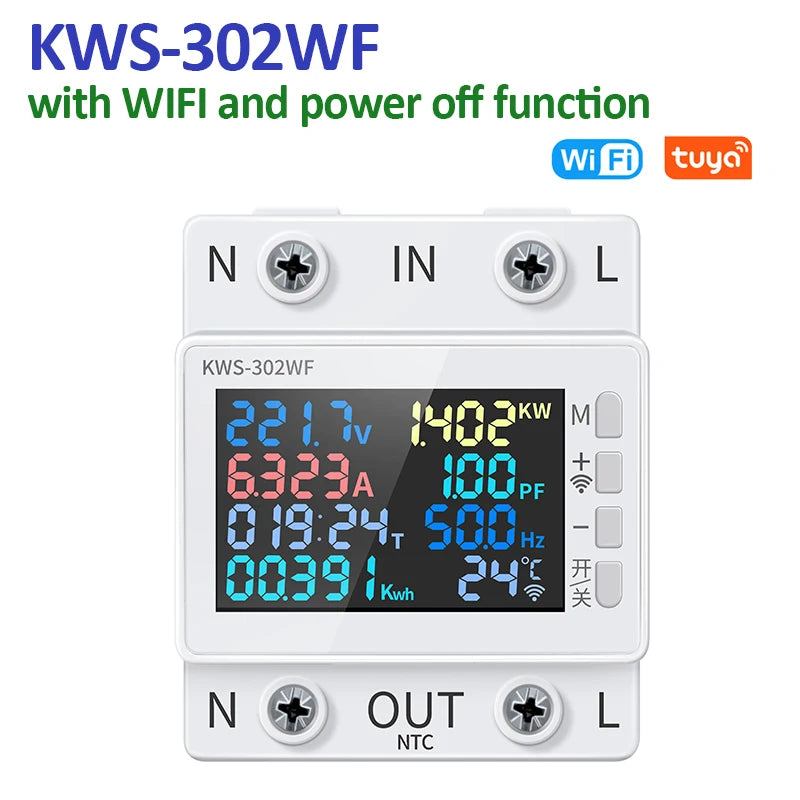

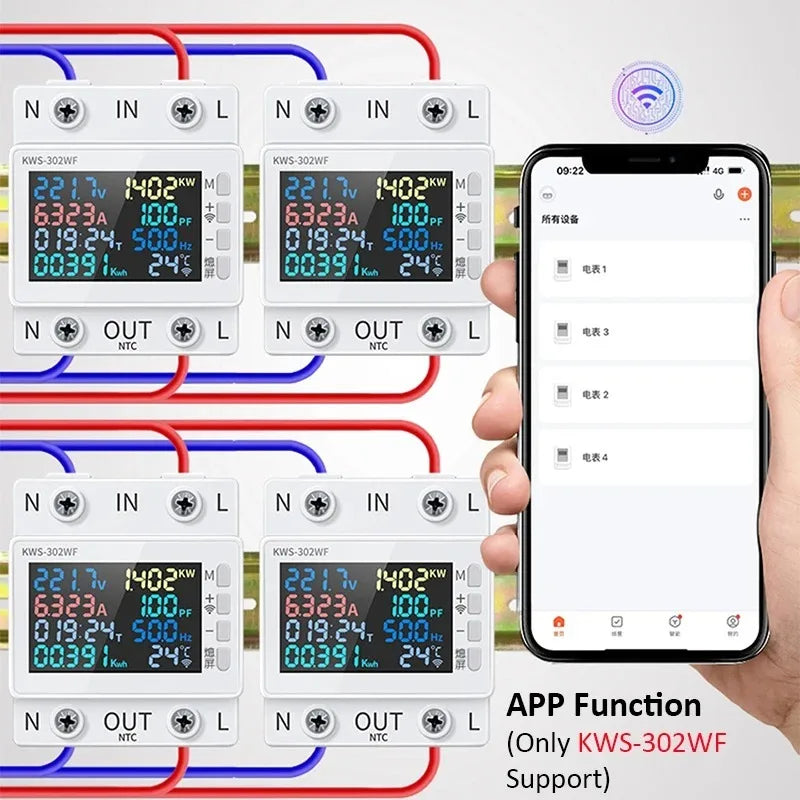

- WiFi Remote Control (KWS-302WF model): Monitor and control your energy meter from your smartphone at unlimited distance — no proximity required.
- Overcurrent Auto Cut-Off Protection: Built-in safety mechanism automatically disconnects power if current exceeds safe thresholds.
- Over & Under Voltage Protection (KWS-302WF & KWS-302L): Guards connected devices against potentially damaging voltage fluctuations.
- Standard DIN Rail Installation: Tool-free snap-on mounting — no screws needed, installs in seconds on a standard guide rail.
- Power-Off Memory (KWS-302WF & KWS-302L): Retains all data and settings even after a power interruption.
- Low Power Consumption: Efficient design minimizes the meter's own energy draw.
- Wide Application: Ideal for apartments, family homes, hotels, shopping malls, offices, and industrial facilities.
Available Models
| Feature | KWS-302WF | KWS-302L | KWS-302 |
|---|---|---|---|
| WiFi Remote Control | ✅ Yes | ❌ No | ❌ No |
| Power-Off Memory | ✅ Yes | ✅ Yes | ❌ No |
| Undervoltage Protection | ✅ Yes | ✅ Yes | ❌ No |
| Overvoltage Protection | ✅ Yes | ✅ Yes | ❌ No |
Technical Specifications
- Model: KWS-302 Series
- Input Voltage: AC 170–300 V
- Current Range: 0–63 A
- Power Range: 0–17 kW
- Energy Range: 0–9,999 kWh
- Timing Range: 0–999 hours
- Temperature Range: -20°C to 150°C
- Frequency: 50–60 Hz
- Power Factor: 0.00–1.00 PF
- Display: High-definition color digital screen
- Dimensions: 7.7 × 6.6 × 6.4 cm
- Power Source: AC (no battery required)
- Installation: Standard DIN rail (guide rail)
What's in the Box
- 1 × Energy Meter (KWS-302 / KWS-302L / KWS-302WF — per selection)
- 1 × User Manual (with wiring diagram)
⚠️ Important: Please follow the included wiring diagram carefully during installation to ensure safe and correct operation.
You May Also Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- Sliding Door Window Rotating Latch Handle | Metal & PVC Steel
- Dual-Compartment Remote Control Holder | Desktop Organizer
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does the 8-in-1 measurement feature mean on this AC power meter?
A: The 8-in-1 design means the KWS-302 power meter simultaneously measures and displays eight key electrical parameters: voltage (V), current (amps/A), power (watts/W), energy consumption (kWh), timing (hours), temperature (°C), frequency (Hz), and power factor (PF) — all on a single color screen, giving you a complete picture of your electricity usage at a glance.
Q: Can I control this energy meter remotely from my phone?
A: Yes — the KWS-302WF model features built-in WiFi connectivity, allowing you to monitor readings and control the meter remotely via your smartphone at unlimited distance. The KWS-302L and KWS-302 models do not include WiFi functionality.
Q: How is this power meter installed?
A: The meter uses a standard DIN rail (guide rail) snap-on mounting system. No screws are required — simply clip it onto a compatible guide rail and wire it according to the included wiring diagram. Always ensure the power is off before installation and follow the diagram carefully for safe setup.
Q: Does this meter protect against voltage fluctuations?
A: The KWS-302WF (WiFi) and KWS-302L models include both overvoltage and undervoltage protection, automatically cutting power to prevent damage to connected devices during voltage irregularities. The basic KWS-302 model does not include voltage protection or power-off memory.
