Guitar Wiring Harness Template Display Plate
Take the guesswork out of guitar wiring with this handy Acrylic Wiring Harness Template Display Plate. Designed for luthiers, guitar techs, and DIY builders working on ST, LP, TL, and Jazz-style electric guitars and basses, this clear template plate gives you a precise visual reference for laying out and organizing wiring harness components before installation. Whether you're building from scratch or rewiring an existing instrument, this display plate keeps your components neatly arranged and properly oriented — saving time and reducing mistakes.
Key Features

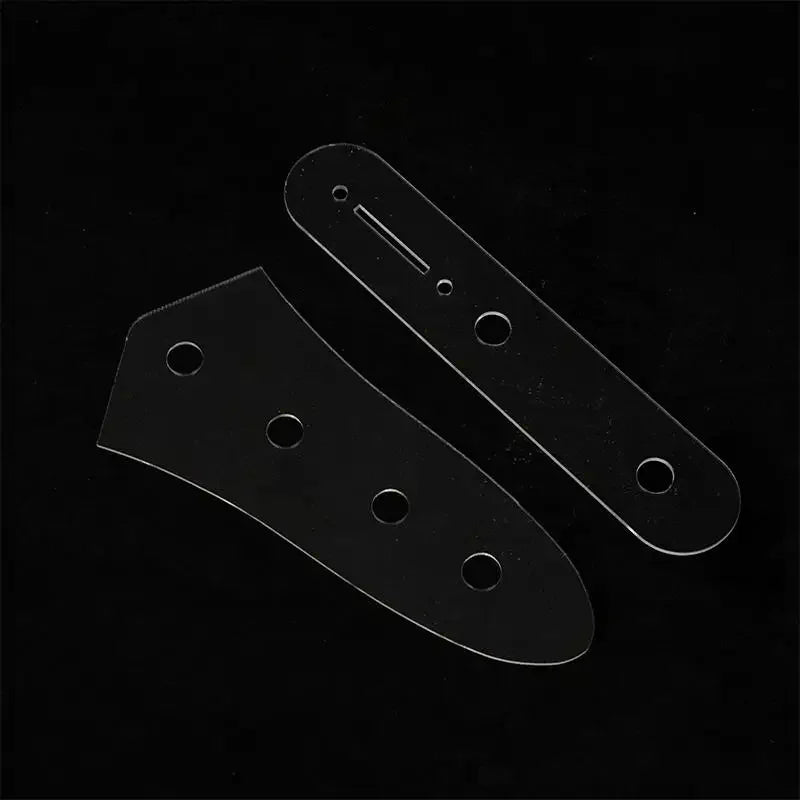

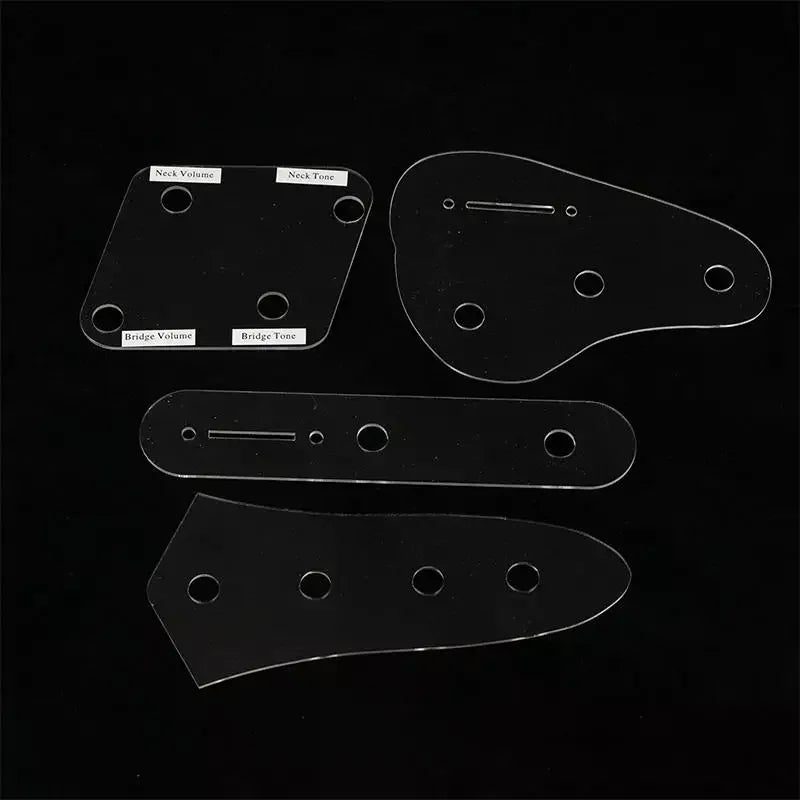

- Universal Compatibility: Suitable for ST (Stratocaster-style), LP (Les Paul-style), TL (Telecaster-style), and Jazz Bass-style electric guitar and bass wiring layouts.
- Clear Acrylic / Plastic Construction: Transparent material lets you see component placement at a glance, making it easy to follow wiring diagrams accurately.
- Sturdy & Lightweight: Made from durable plastic, weighing approximately 300g — solid enough for repeated workshop use without adding bulk to your setup.
- Great for Builders & Technicians: Ideal for professional guitar techs, luthiers, hobbyists, and students learning the fundamentals of guitar electronics.
- Clean, Organized Workflow: Lay out pots, switches, capacitors, and jacks in position before soldering, ensuring a tidy and professional wiring job every time.
Specifications
- Material: Plastic (Acrylic/PVC)
- Compatible Styles: ST, LP, TL, Jazz Electric Guitar & Bass
- Weight: ~300g
- Color: As shown in product images

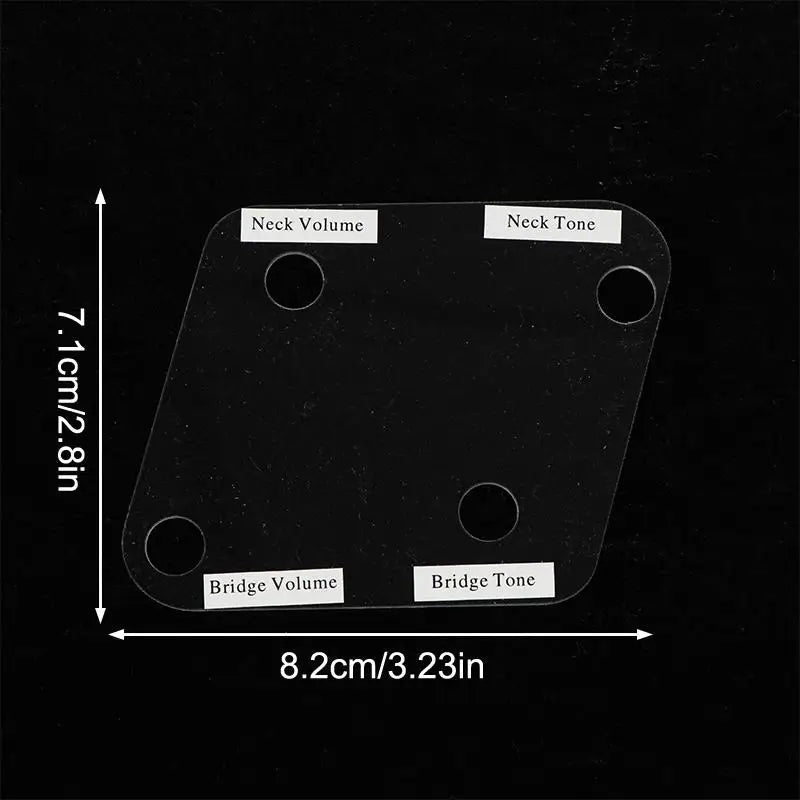

- Size: As shown in product images
Package Contents
- 1 × Wiring Harness Template Display Plate
Note: Due to lighting and display settings, slight color differences may occur. Minor size variations due to manual measurement are within normal tolerance.
Made in Mainland China.
