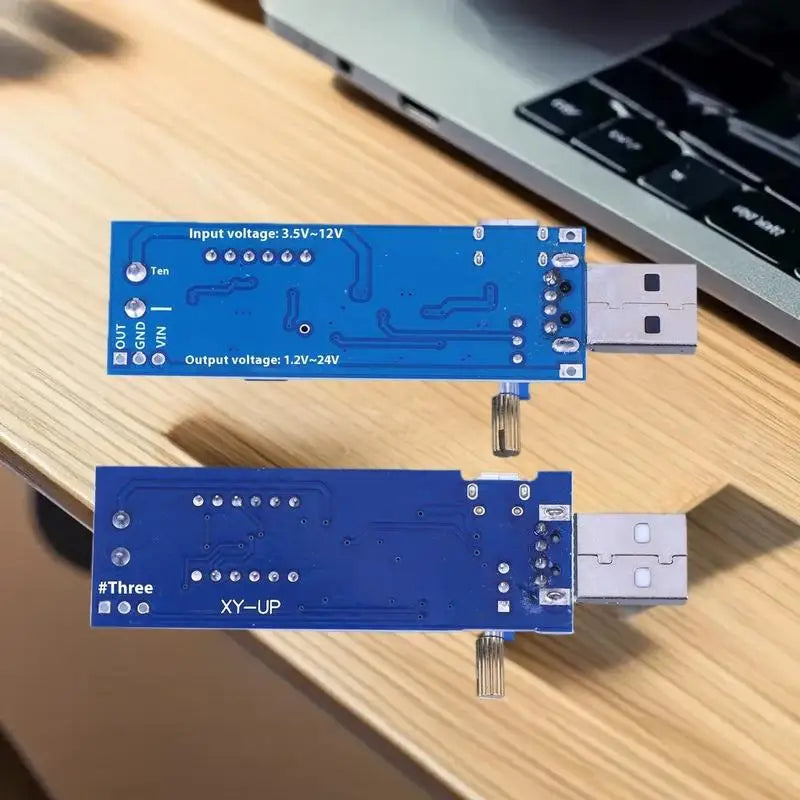

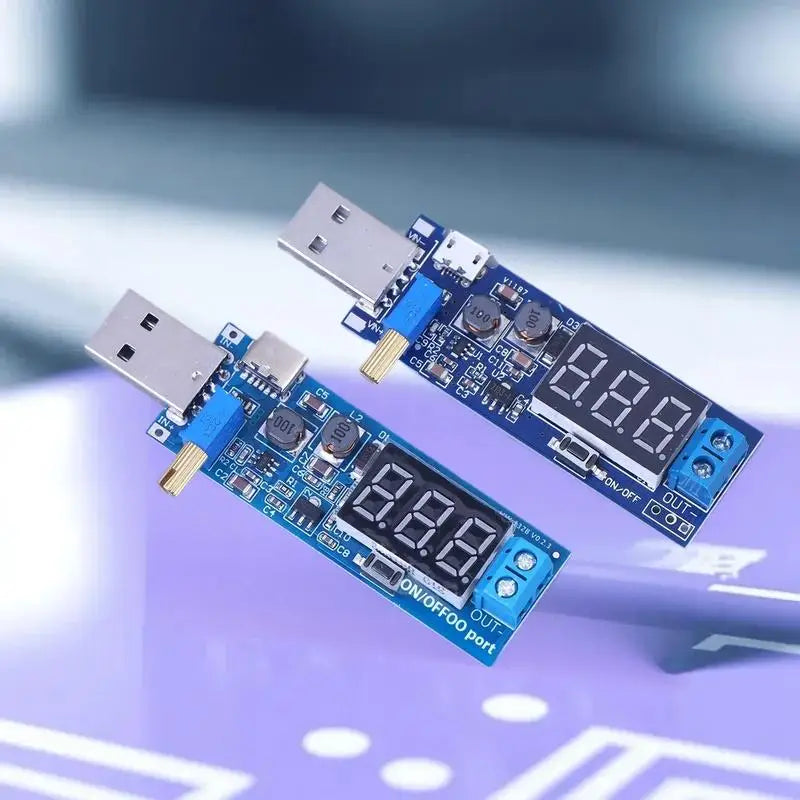

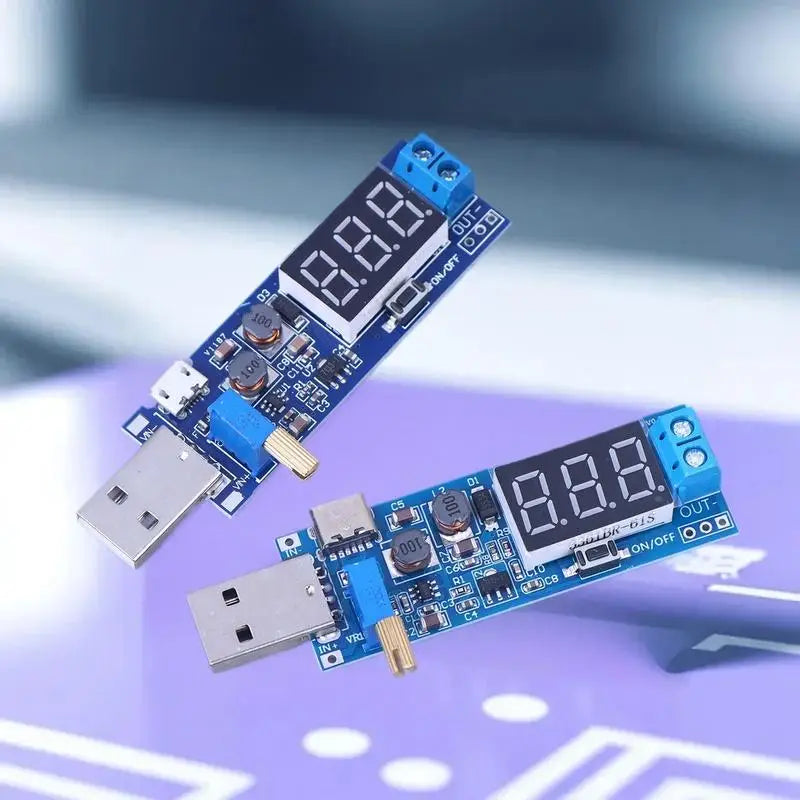

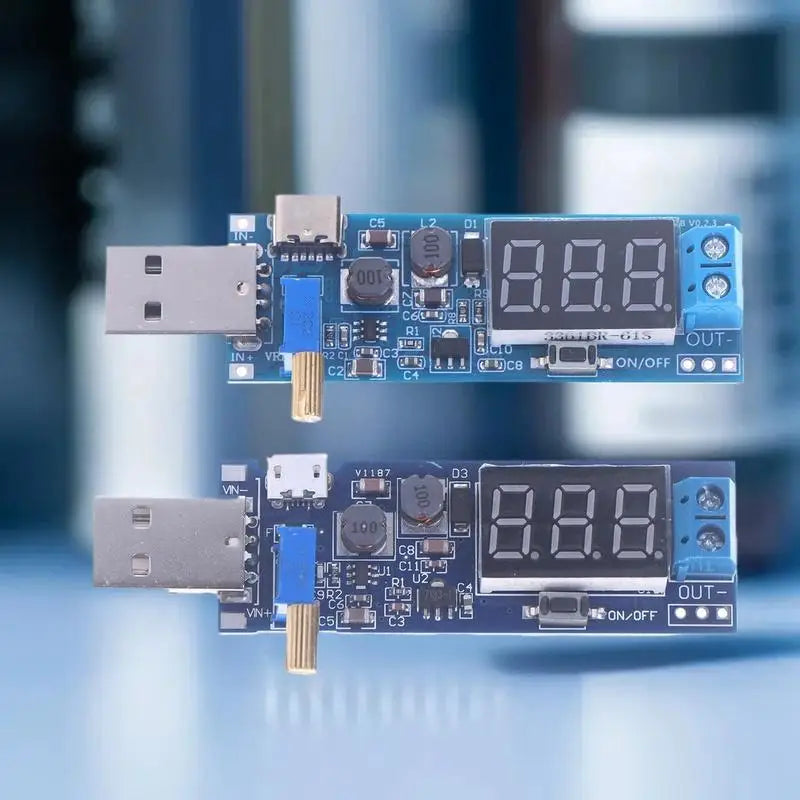

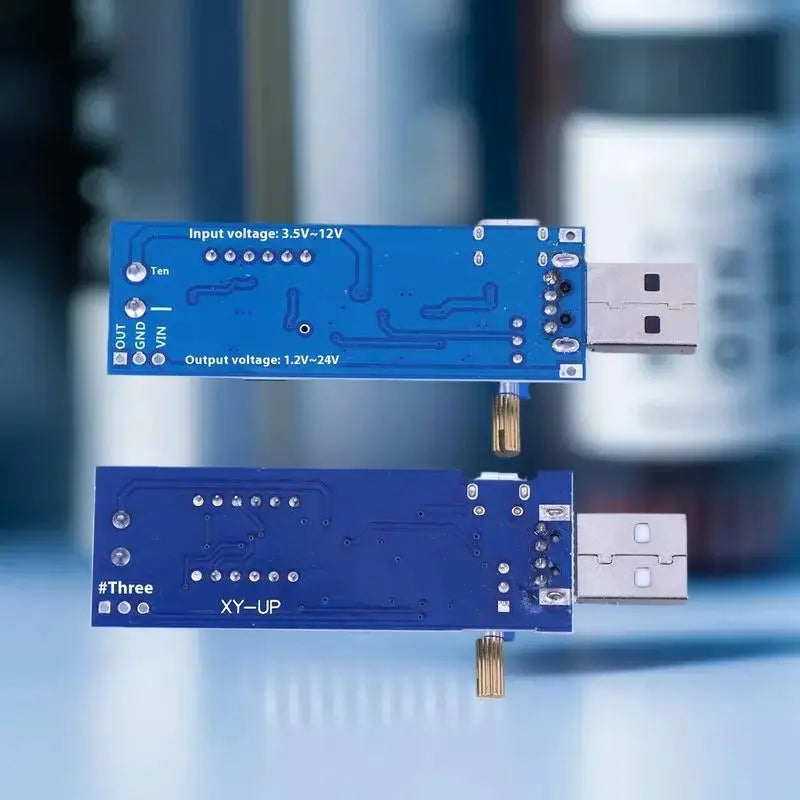

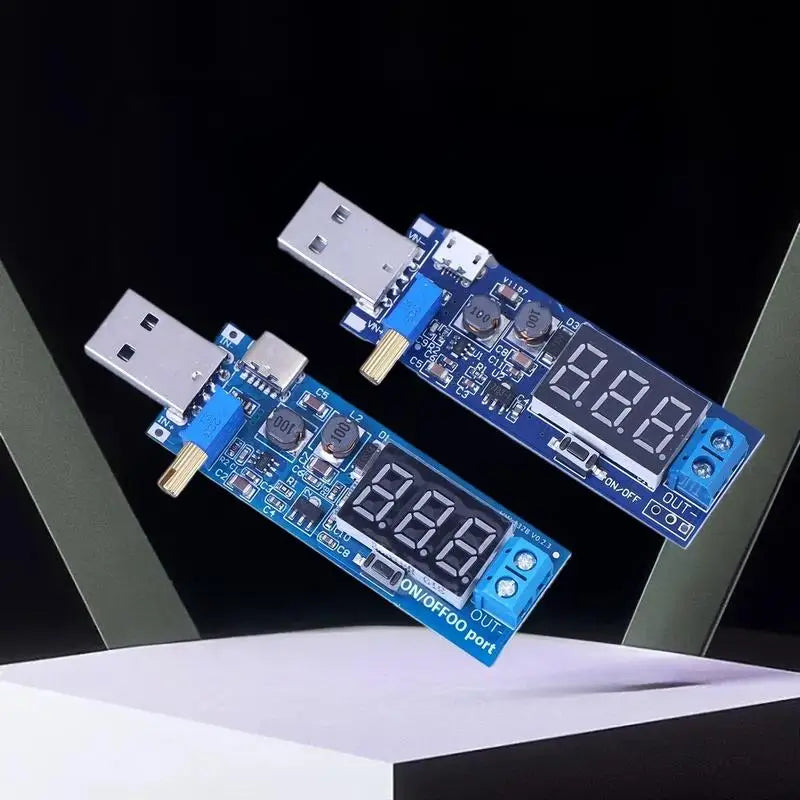

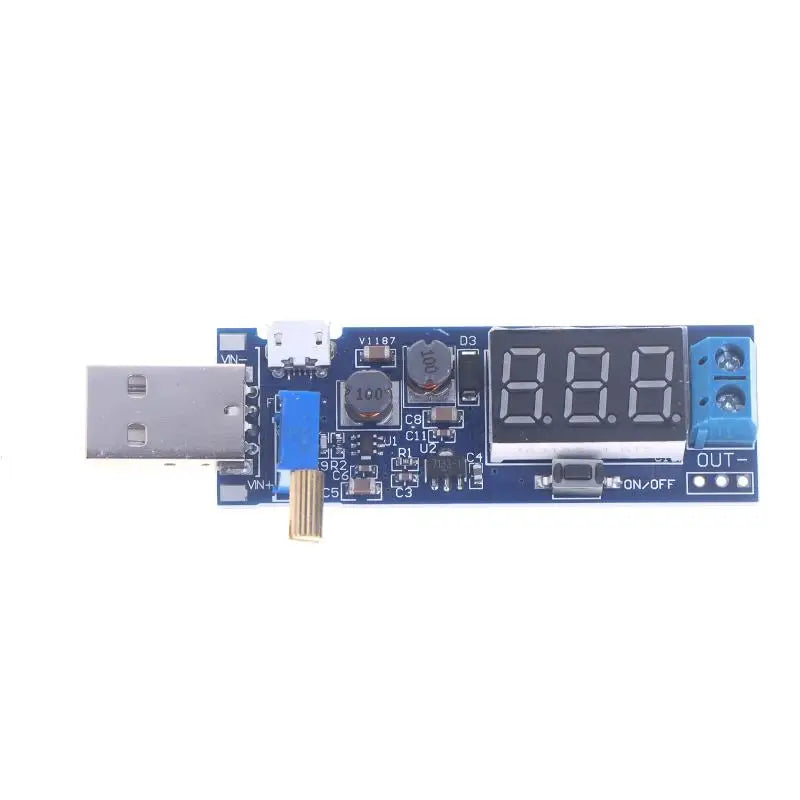

Adjustable USB Power Supply Module – DC-DC Step Up / Down Boost Converter
Take full control of your voltage requirements with this compact and versatile DC-DC Step Up / Step Down Boost Converter Module. Whether you're powering a DIY electronics project, testing circuits, or building a custom power supply, this adjustable module delivers a stable, regulated output voltage from 1.2V to 24V — all from a standard USB or low-voltage input source.
Designed for makers, hobbyists, and electronics engineers alike, this module supports both boost (step-up) and buck (step-down) conversion in a single compact board measuring just 64 × 22 mm. Simply dial in your desired output voltage and let the module handle the rest.
Key Features
- Wide adjustable output range: 1.2V – 24V DC
- Input voltage range: 3.5V – 12V (USB 5V compatible)
- Step-up AND step-down capability in one module
- Compact form factor: 64 × 22 mm (excluding protruding parts)
- No battery included — easy to integrate into existing setups
- Ideal for DIY electronics, prototyping, and bench testing
Output Power Specifications
| Output Voltage Range | Max Output Power |
|---|---|
| 1.2V – 2V | 2W |
| 2V – 20V | 3W |
| 20V – 24V | 2.5W |
Note: Output Power = Output Voltage × Output Current. This module is designed for low-power applications — please ensure usage stays within the rated power range.
Technical Specifications
- Input Voltage: 3.5V – 12V
- Output Voltage: 1.2V – 24V (adjustable)
- Module Size: 64 × 22 mm (excluding protruding parts)
- Package Contents: 1× DC-DC Boost Converter Module
- Country of Origin: Made in China
Perfect For
- DIY electronics and Arduino/Raspberry Pi projects
- Custom power supply builds
- Circuit prototyping and bench testing
- Low-power LED drivers and sensor modules
- Educational electronics experiments
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What input voltage does this DC-DC boost converter module accept?
A: This adjustable DC-DC converter module accepts an input voltage of 3.5V to 12V, making it fully compatible with standard USB 5V power sources as well as other common low-voltage DC supplies.
Q: Can this module both step up and step down voltage?
A: Yes! This is a combined step-up (boost) and step-down (buck) converter, meaning it can both increase and decrease the input voltage to deliver any output between 1.2V and 24V depending on your setting and input.
Q: Is this module suitable for high-power applications?
A: No — this module is designed for low-power applications only, with a maximum output power of 3W (depending on the output voltage range). It is best suited for prototyping, testing, and powering small electronic components. Always ensure your load stays within the rated power limits.
Q: What is the physical size of this boost converter module?
A: The module measures 64 × 22 mm (excluding any protruding connectors or components), making it a very compact and easy-to-integrate solution for most DIY builds and enclosures.
