40A Automotive Relay Socket — 4-Pin & 5-Pin SPDT PCB Mount
Keep your vehicle's electrical system running reliably with this heavy-duty 40A Automotive Relay Socket. Compatible with both 4-pin and 5-pin SPDT relay configurations, this PCB-mount connector adapter is an essential component for car, motorcycle, and motor electrical repair or custom wiring projects.
Key Features
- High Current Rating: 40-amp contact rating handles demanding automotive electrical loads with confidence.
- 4-Pin & 5-Pin Compatible: Single socket supports both 4-pin and 5-pin SPDT relay types — versatile for a wide range of applications.
- Heat-Stabilized Thermoplastic Housing: PC board mounting mold compound rated for continuous use up to 130°C, built to withstand under-hood temperatures.
- PCB Board Mount Design: Secure, stable mounting directly onto a PC board for a clean and permanent electrical installation.

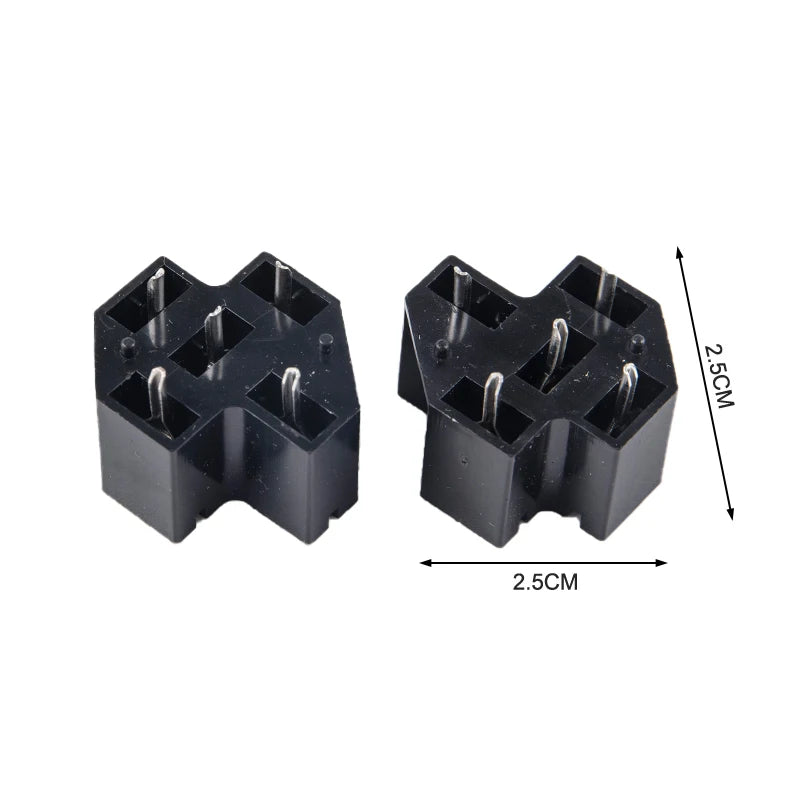

- Compact Dimensions: 27mm × 25mm × 20mm — fits neatly into tight spaces in your vehicle's electrical panel or custom relay board.
- Built-In Terminals: Comes with 4 or 5 integrated terminals (matching the pin count) for quick and secure wiring connections.
Specifications
| Connector Type | 4/5-Pin Automotive SPDT |
| Socket Type | Automotive Relay Socket |
| Terminal Type | PC Board Mount |
| Contact Rating | 40 Amps |
| Temperature Rating | 130°C Continuous Use |
| Material | Heat-Stabilized Thermoplastic |
| Dimensions | 27mm × 25mm × 20mm |
| Country of Origin | Made in China |
What's in the Box

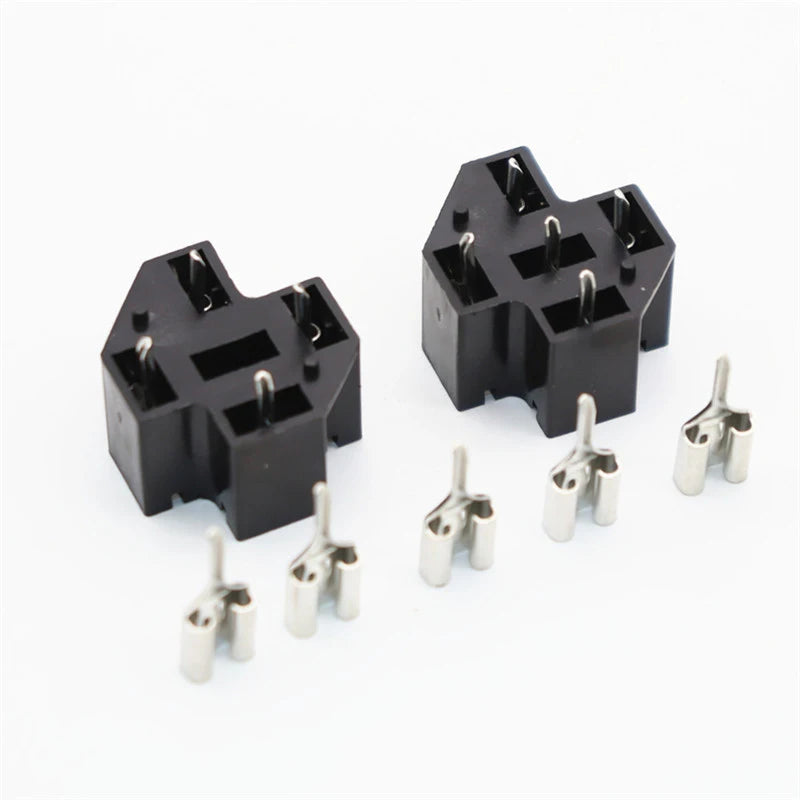

- 1× 4/5-Pin PCB Relay Socket
- 4 or 5× Matching Terminals (based on pin configuration)
Perfect For
Ideal for DIY automotive electricians, mechanics, and hobbyists working on car lighting systems, horn relays, cooling fans, fuel pumps, custom relay boards, and general motor electrical repair projects.
