Brass M8x1 Resistance Proportional Oil Distributor – DPC Series
Precision-engineered for reliable fluid flow control, this high-grade brass resistance proportional oil distributor is designed for industrial lubrication and fluid distribution systems. Compact, durable, and built to handle a wide range of operating pressures and oil viscosities, it's an essential component for any DIY or professional fluid control setup.
Key Specifications
- Model: DPC-0/1/2/3/4/5
- Material: High-grade brass
- Joint Diameter: Inlet M8×1 / Outlet M8×1
- Service Pressure: 1.5–20 kgf/cm²
- Oil Viscosity Range: 20–500 cst
- Flow Rate: Higher model number = greater flow; lower model number = reduced flow
- Package Includes: 1 pc
Product Highlights
- Durable Brass Construction: Corrosion-resistant and built for long-lasting performance in demanding environments.
- Proportional Flow Control: The DPC model range allows you to select the exact flow rate you need — simply choose a higher or lower model number to adjust output.
- Straight-Through vs. Flow Bar: Note that straight-through configurations deliver approximately 10× the unit flow compared to flow bar resistance distributor variants.
- Wide Pressure Compatibility: Operates reliably across a broad pressure range of 1.5–20 kgf/cm², making it suitable for diverse fluid systems.
- M8×1 Thread Connections: Standard metric thread on both inlet and outlet for easy integration into existing systems.
- Home DIY & Industrial Use: Ideal for lubrication systems, hydraulic setups, and fluid distribution applications.
Important Notes

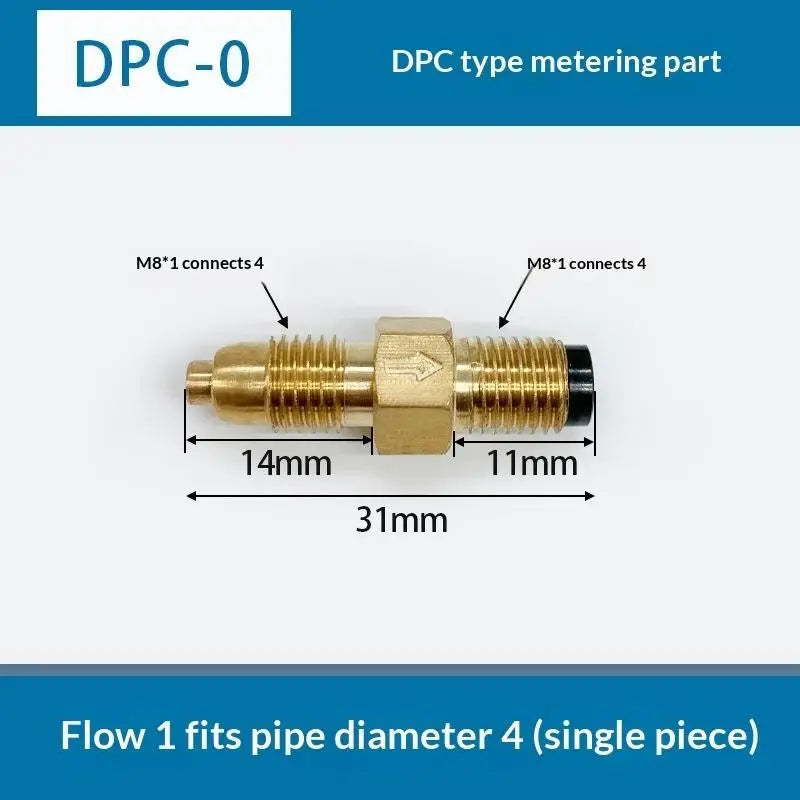

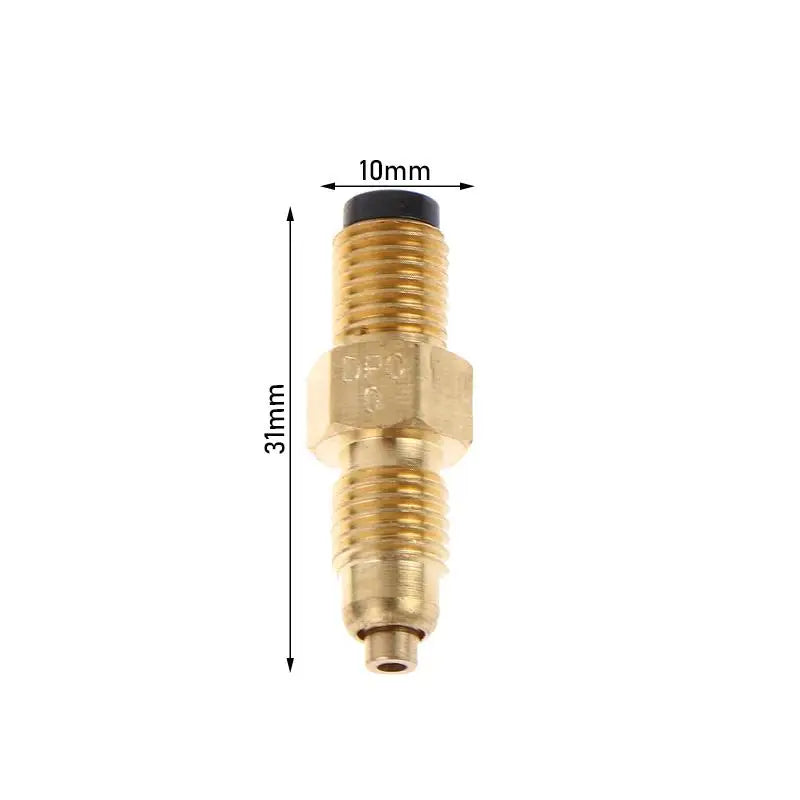

- Photos are for illustrative purposes; please refer to the written specifications for exact dimensions.
- Minor measurement variances may occur due to manual measurement — please allow a small tolerance.
- Actual color may vary slightly from images due to monitor display differences.
Made in Mainland China.
You May Also Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 34-Compartment Double-Sided Hardware Storage Box & Dividers
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is a resistance proportional oil distributor and how does it work?
A: A resistance proportional oil distributor (DPC series) meters and distributes fluid — typically lubrication oil — to multiple points in a system. The flow rate is proportional to the inlet pressure and the model's internal resistance rating. Higher model numbers (e.g. DPC-4, DPC-5) allow more flow, while lower numbers (e.g. DPC-0, DPC-1) restrict flow for more precise, small-volume distribution.
Q: What thread size is this distributor, and will it fit my system?
A: This distributor uses M8×1 metric threads on both the inlet and outlet connections. It is compatible with any system that accepts M8×1 threaded fittings. Always verify your existing fittings before ordering to ensure a secure, leak-free connection.
Q: What is the difference between the straight-through and flow bar resistance distributor versions?
A: The straight-through version provides approximately 10 times greater unit flow compared to the flow bar resistance distributor variant. Choose the straight-through type when higher volume throughput is needed, and the flow bar type when more restricted, precise metering is required.
Q: What oil viscosity range is this distributor compatible with?
A: This brass distributor is designed to work with oils in the viscosity range of 20–500 cst (centistokes), covering most standard lubrication and hydraulic oils used in DIY and light industrial applications.
