Compact WiFi Extender 300Mbps | AP & Repeater Mode Booster
Compact WiFi Extender 300Mbps | AP & Repeater Mode Booster
Eliminate frustrating dead zones and enjoy a stronger, more reliable wireless connection throughout your home. This compact WiFi extender from QXL plugs directly into any standard outlet and instantly boosts your existing router's signal — no complicated setup required. With support for both AP Mode and Repeater Mode, it adapts to your network needs with ease.
Why You'll Love It
- Up to 300Mbps wireless speed (802.11n) — smooth streaming, browsing, and video calls
- Dual operating modes: Repeater Mode extends your existing WiFi; AP Mode creates a new wireless access point via wired connection
- Broad compatibility — works with most standard home routers on the market
- 2 x 3dBi integrated antennas for up to 300m outdoor / 100m indoor coverage
- One-touch WPS setup — connect in seconds without accessing any settings menu
- Compact, low-profile design — fits discreetly into any wall outlet without blocking adjacent sockets
- Ultra-low power consumption — only 2.3W, saving energy while staying connected 24/7
- Universal voltage support — 100–240V AC, 50/60Hz for use worldwide
Technical Specifications
| Standards | IEEE 802.11b / 802.11g / 802.11n |
| Frequency Band | 2.4 GHz (2.412–2.484 GHz) |
| Max Speed | 300 Mbps (802.11n) |
| Antennas | 2 × 3dBi Integrated Internal Antennas |
| Modes | AP Mode / Repeater Mode |
| Ports | 1 × RJ45 (LAN) |
| Chipset | RTL8196E |
| Security | WPA / WPA2 / WPA-PSK / WPA2-PSK / WEP 64/128/152-bit / AES / TKIP / MAC Filtering / WDS |
| Coverage | Up to 300m outdoors / 100m indoors |
| Power Supply | DC 5V / 1A (100–240V AC, 50/60Hz) |
| Power Consumption | 2.3W |

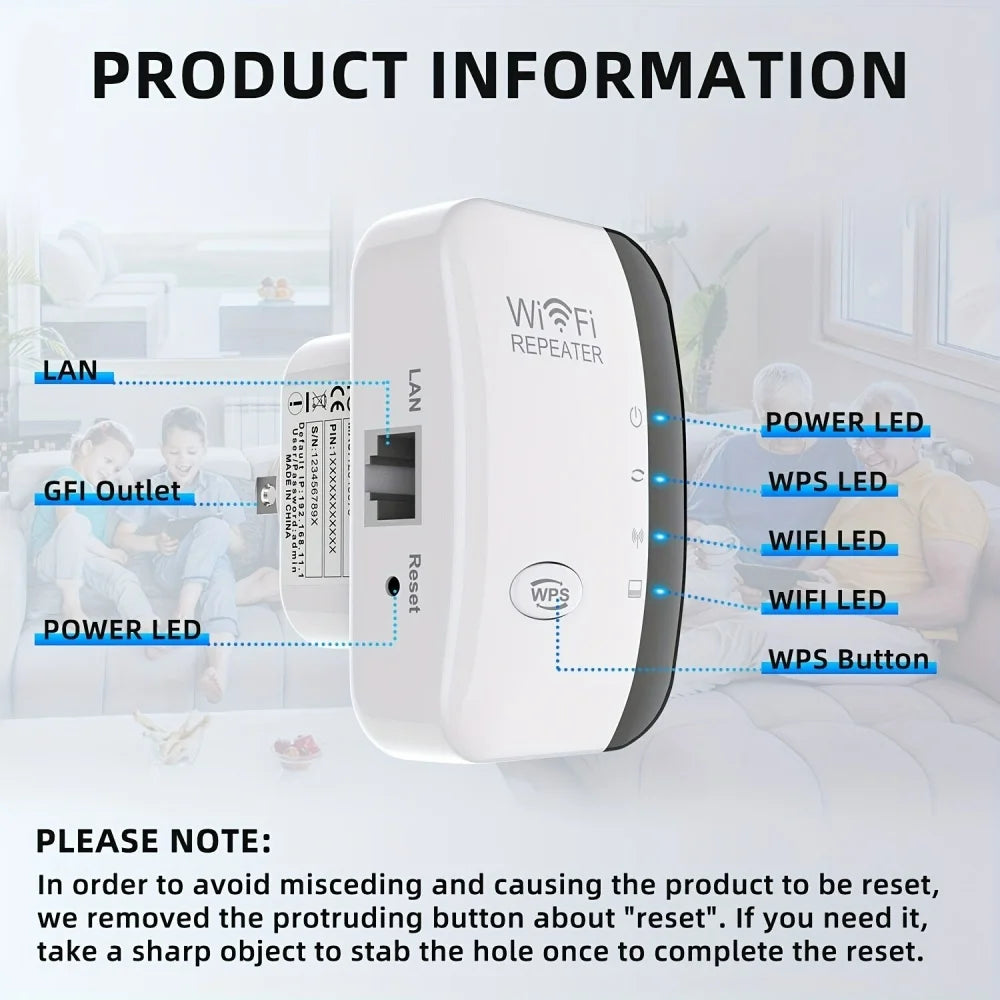

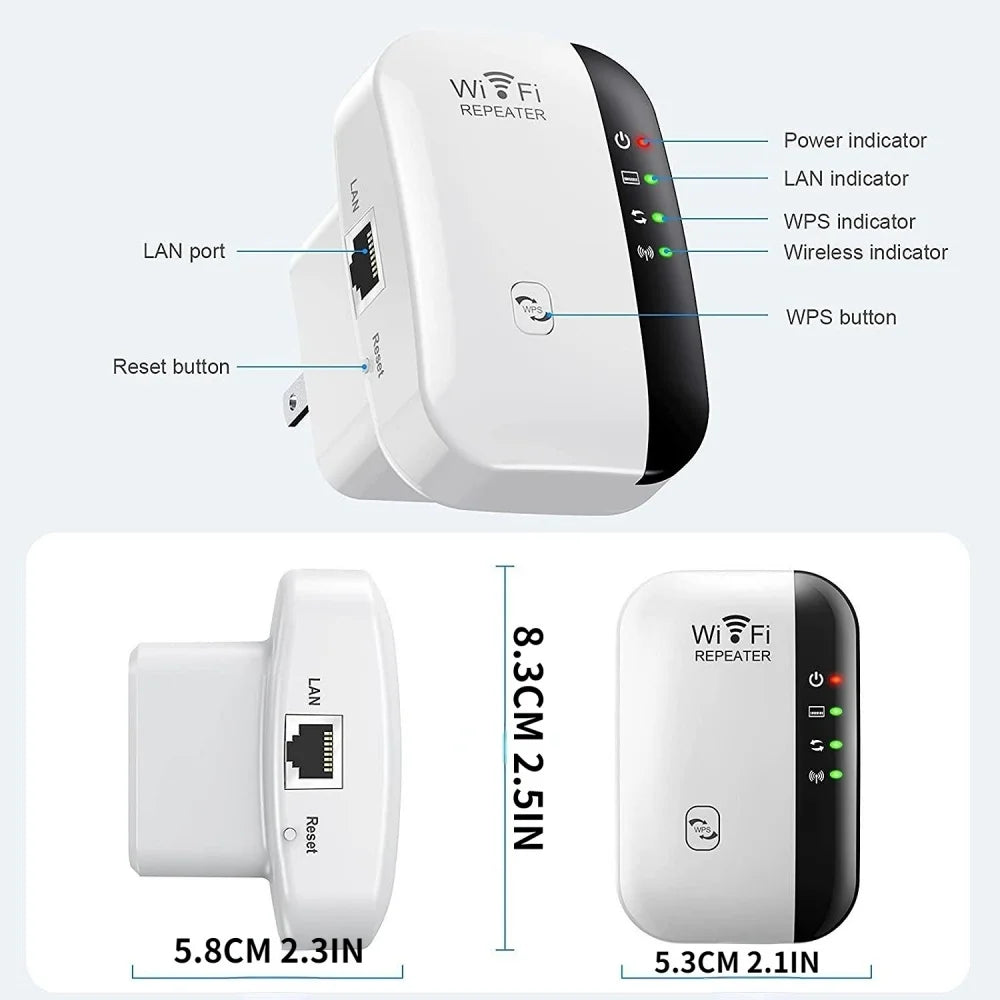

| LED Indicators | Power, LAN, WLAN, WPS |
| Flash / SDRAM | 16MB / 128MB |
Advanced Router-Mode Features
- IP Bandwidth Control
- DNS Relay
- VPN Pass-through
- DHCP Server & Static IP Allocation
- Static Routing
Made in Mainland China.
Related Products You May Like
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Does this WiFi extender work with any router brand?
A: Yes — the QXL WiFi extender is designed for broad compatibility and works with most standard home routers, including popular brands. As long as your router broadcasts a 2.4GHz WiFi signal using 802.11b/g/n standards, this extender should connect without issue.

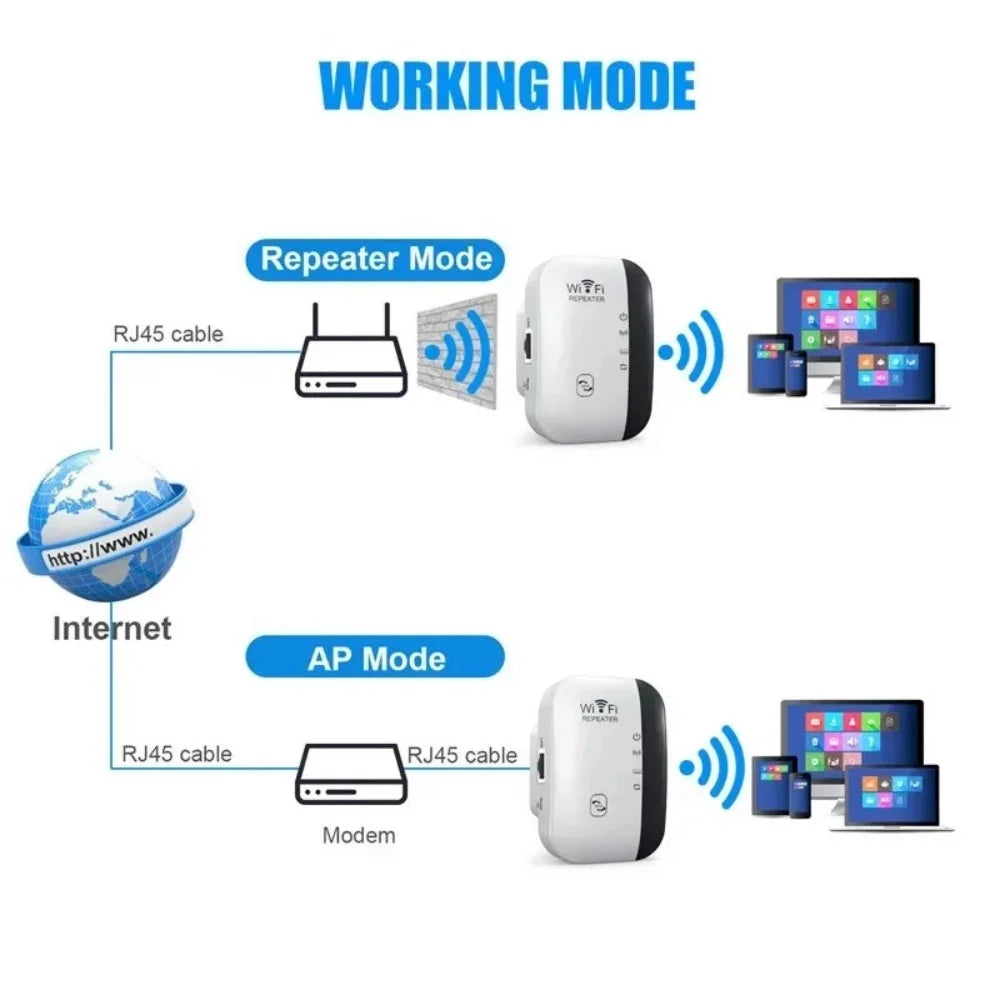

Q: What is the difference between AP Mode and Repeater Mode?
A: In Repeater Mode, the extender picks up your existing WiFi signal and rebroadcasts it further into your home, eliminating dead zones. In AP (Access Point) Mode, it connects via an Ethernet cable to your router or modem and creates a new wireless network — ideal for wired-only devices that need to provide WiFi coverage.
Q: How do I set up this WiFi signal booster?
A: Setup is straightforward. Plug the extender into a wall outlet within range of your existing router, then press the WPS button on both the extender and your router to connect automatically. Alternatively, you can configure it manually through the web-based interface using a browser. No special software is required.
Q: What is the maximum coverage range of this WiFi booster?
A: Under ideal open-air conditions, the extender can reach up to 300 metres outdoors and approximately 100 metres indoors. Real-world range will vary depending on walls, obstacles, and interference in your environment.
