DC-DC High Voltage Boost Module | 8–32V to 45–390V ZVS Step-Up Converter

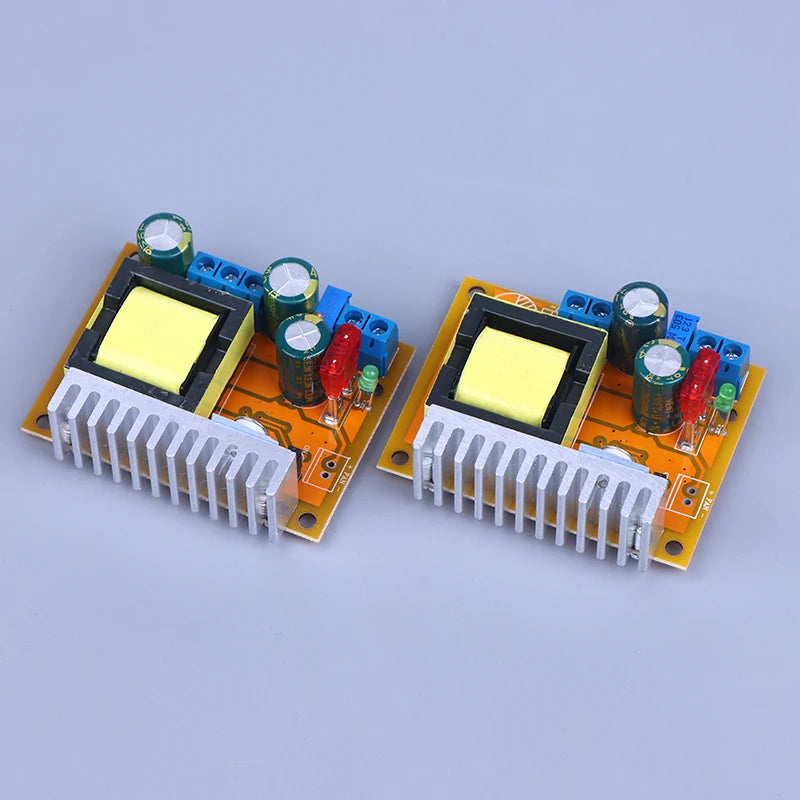

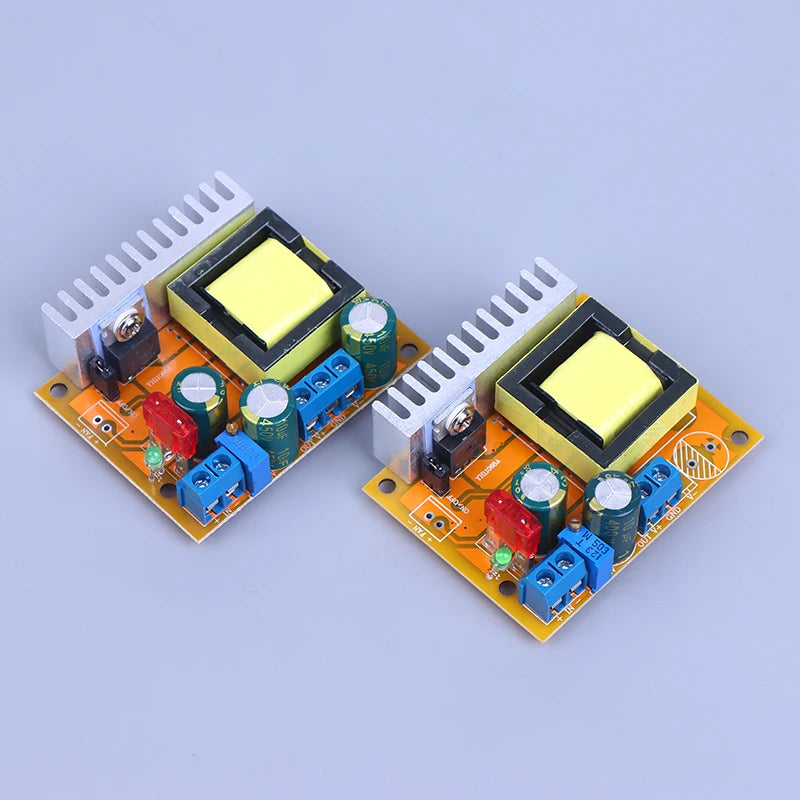

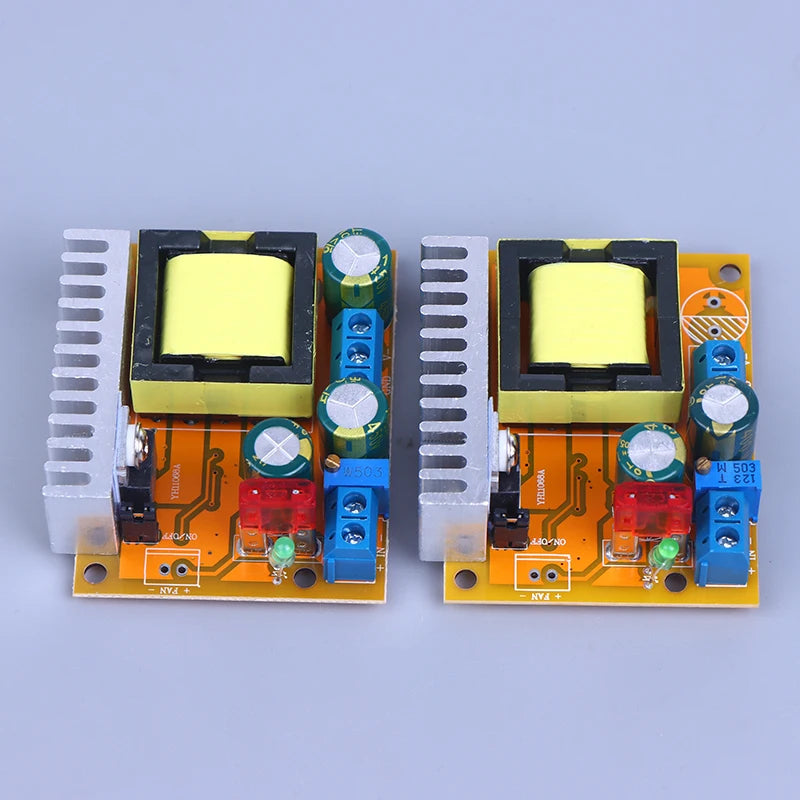

This compact, high-performance DC-DC Boost (Step-Up) Converter Module delivers a continuously adjustable output voltage from 45V to 390V — ideal for capacitor charging, electronics prototyping, lab testing, glow tube power supplies, and a wide range of high-voltage applications. Built on a ZVS (Zero Voltage Switching) topology for efficient, stable high-voltage conversion, it offers up to 88% conversion efficiency with 40W continuous output (70W peak).
Made in Mainland China.
⚠ SAFETY WARNING: This module produces HIGH VOLTAGE output. Improper handling can be dangerous. Always follow safe electronics handling procedures and keep out of reach of children and animals. The user assumes full responsibility for safe operation.
Key Features

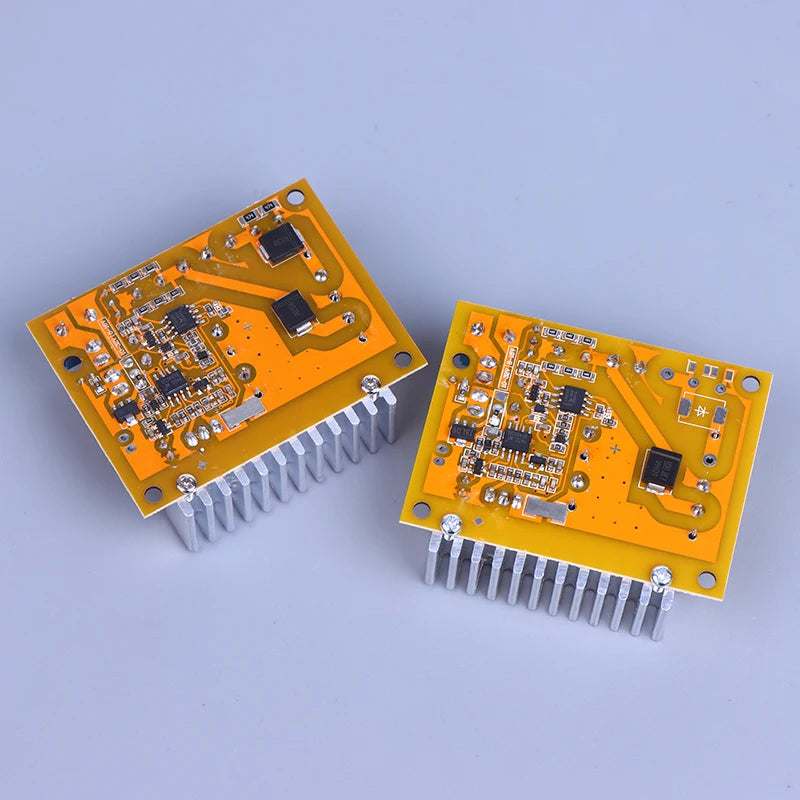

- Dual Input Voltage Range (PCB jumper selectable): 8–16V (ideal for 3S lithium packs & 12V batteries) or 10–32V (wide-range applications) — default ships set to 10–32V

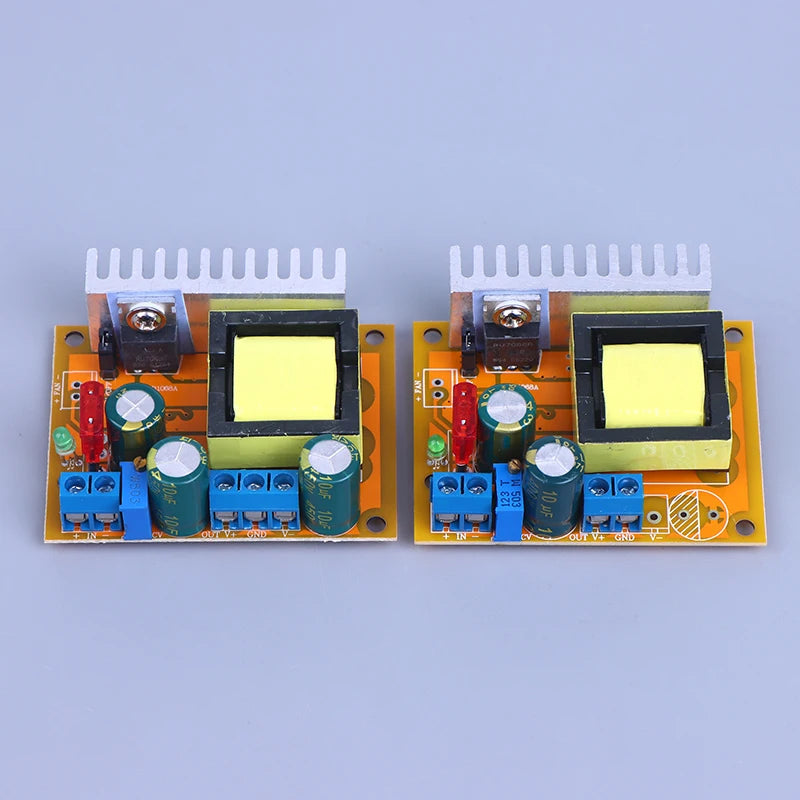

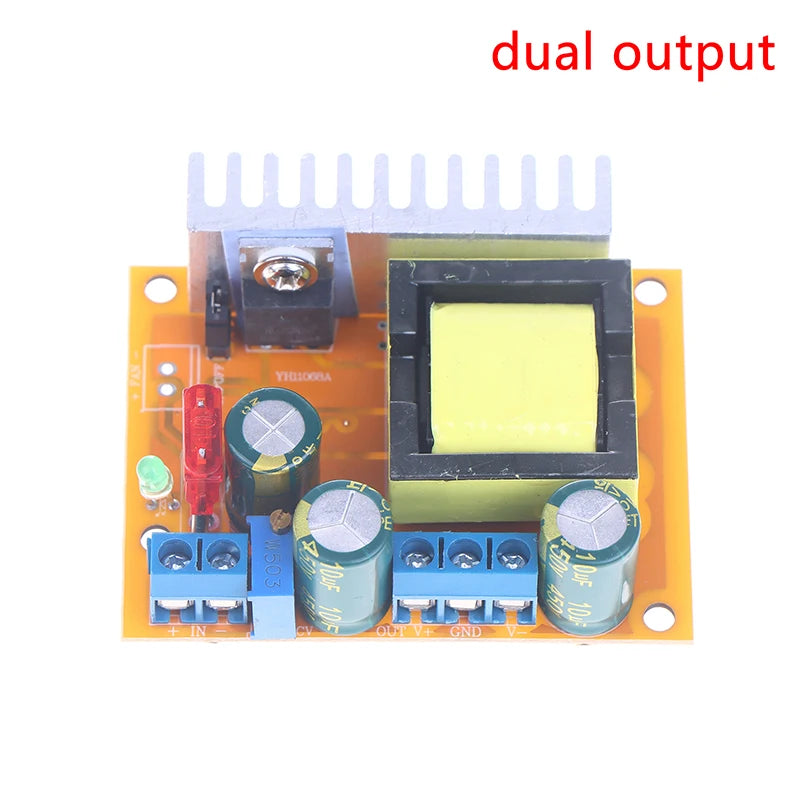

- Continuously Adjustable Output: 45–390V (single) or ±45–390V (dual, default ±50V)
- Max Input Current: 5A | Max Output Current: 0.2A
- Output Power: 40W continuous, 70W peak
- Conversion Efficiency: Up to 88%
- Operating Frequency: 75 kHz
- Operating Temperature: -40°C to +85°C
- Built-in Protections: Short-circuit (10A input fuse), over-current (triggers at 4.5A input), over-voltage (triggers above 410V output), and reverse-polarity (non-self-recovering fuse)

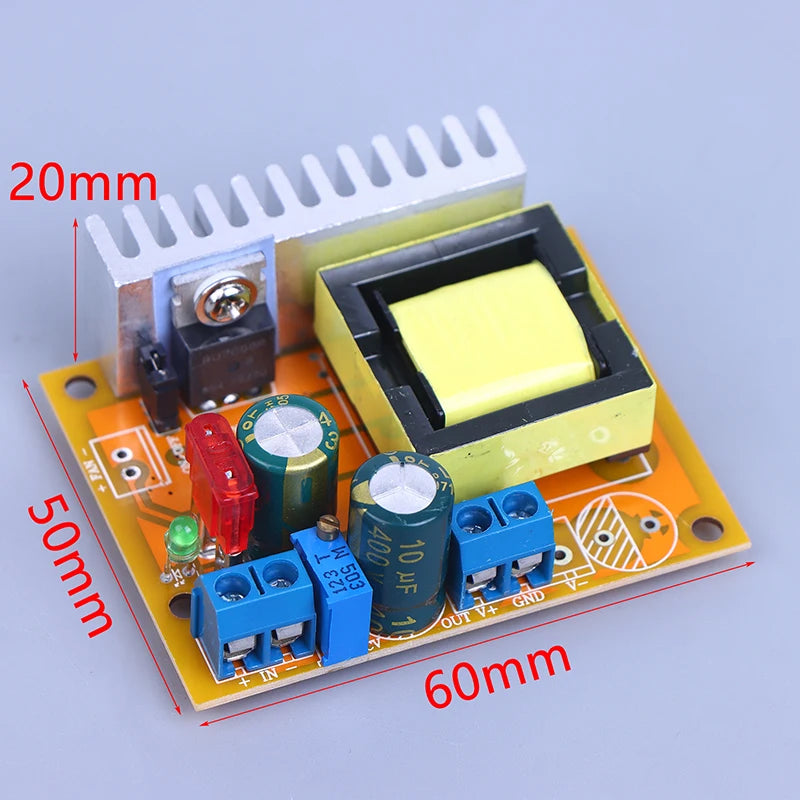

- Module Size: 60mm × 50mm × 22mm | Mounting: 4 × M3 screws
- Non-isolated boost topology — stable regulated output independent of input voltage variation
Capacitor Charging Performance
| Capacitor Size | Charge to 390V In |
|---|---|
| 470 µF | ~2 seconds |
| 1,000 µF | ~4 seconds |
| 2,200 µF | ~8 seconds |
| 4,700 µF | ~18 seconds |
Technical Specifications
- Module Type: Non-isolated DC-DC Boost Converter (ZVS)
- Input Voltage: 8–16V or 10–32V (jumper selectable)
- Output Voltage: 45–390V continuously adjustable
- Static Operating Current: 15mA (at 12V/50V output; increases at higher output voltages)
- Wiring: Free solder terminal output
- Package Contents: 1 × High Voltage Boost Module
Common Applications
- Capacitor bank charging
- Custom electronics power supply design
- High-voltage lab and pressure testing
- Glow tube / Nixie tube power supply
- DIY high-voltage projects and prototyping
Related Products You May Need
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 34-Compartment Double-Sided Hardware Storage Box & Dividers
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What input voltage range does this DC-DC boost module support?
A: The module supports two selectable input voltage ranges via a PCB jumper on the back: 8–16V (suited for 3-cell lithium battery packs and standard 12V systems) or 10–32V (wide-range input for versatile applications). The module ships with the 10–32V range set by default.
Q: Can I use this module to charge large capacitors?
A: Yes — this module is specifically designed for capacitor charging applications. It can charge a 470µF capacitor to 390V in approximately 2 seconds, and a 4,700µF capacitor to 390V in around 18 seconds. Its regulated output voltage remains stable throughout the charging cycle.
Q: What built-in protections does this boost converter have?
A: The module includes short-circuit protection (10A input fuse), over-current protection (output voltage reduces when input current exceeds 4.5A), over-voltage protection (activates above 410V output), and reverse-polarity protection (non-self-recovering fuse). Note: Do not short-circuit the output directly as this may damage the rectifier. Always use a current-limiting resistor if arc testing is required.
Q: Is the output voltage adjustable and stable?
A: Yes. The output voltage is continuously adjustable from 45V to 390V using the onboard potentiometer. Once set, the regulated output remains stable regardless of fluctuations in the input voltage, making it suitable for precision high-voltage applications.
