Door Hinge Jig Installation Template — Precision Drilling Made Easy
Get perfectly aligned hinges every single time with this Door Hinge Jig Installation Template. Whether you're hanging interior doors, fitting cabinet doors, or working on bathroom and kitchen drawer installations, this compact ABS jig keeps your drill bit on target — no measuring, no guesswork, no costly mistakes.
Why You'll Love This Hinge Jig
- Magnetic Stability: The large-area magnetic design holds the jig firmly in place on metal surfaces, preventing drill bit drift and ensuring a rock-solid setup from the very first hole.
- 2mm Precision Groove: A precision-machined 2mm guide groove delivers mechanical alignment standardization, so every hinge cutout is consistent and square — ideal for carpenters and DIY enthusiasts who demand accuracy without constant re-calibration.
- Accurate Hole Alignment: Directs drill bits with pinpoint spatial positioning, making it simple to craft sturdy door frames, custom cabinetry, and built-in furniture.
- Impact-Resistant ABS Construction: Engineered from advanced ABS plastic, the jig is built to withstand repeated use on the job site or in the workshop, reducing wear and extending service life.
- Versatile Multi-Hinge Compatibility: Flexible design adapts to multiple standard hinge types — perfect for doors, cabinets, drawers, and more throughout your home.
Specifications
- Material: ABS Plastic

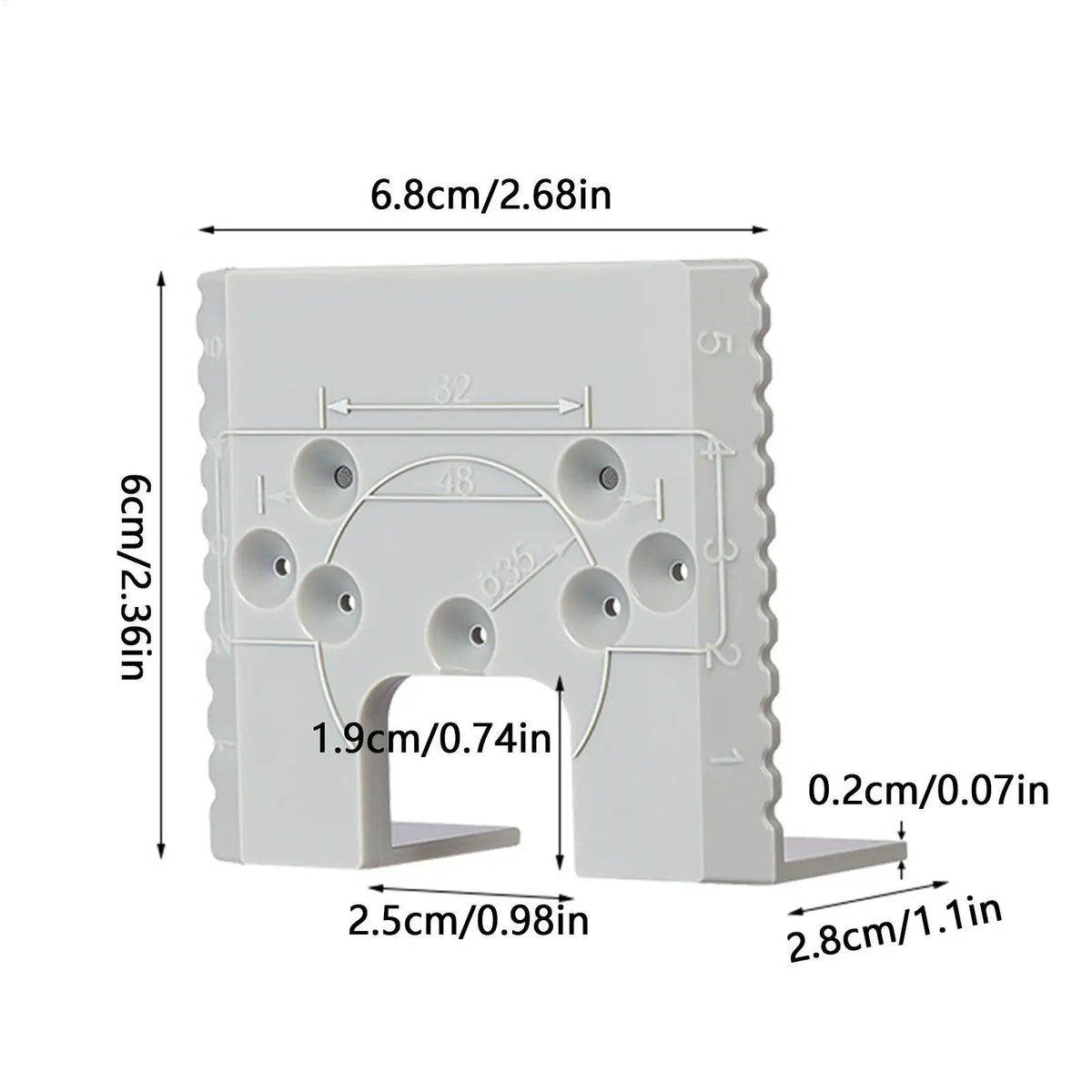

- Dimensions: approx. 6.8 × 6 × 2.8 cm (2.68 × 2.36 × 1.10 in)
- Weight: 25 g
- Package Includes: 1 × Door Hinge Jig
Made in Mainland China.
Perfect For
- Interior and exterior door hinge installation
- Kitchen and bathroom cabinet fitting
- Drawer and furniture hinge routing
- Professional carpenters and weekend DIYers alike
