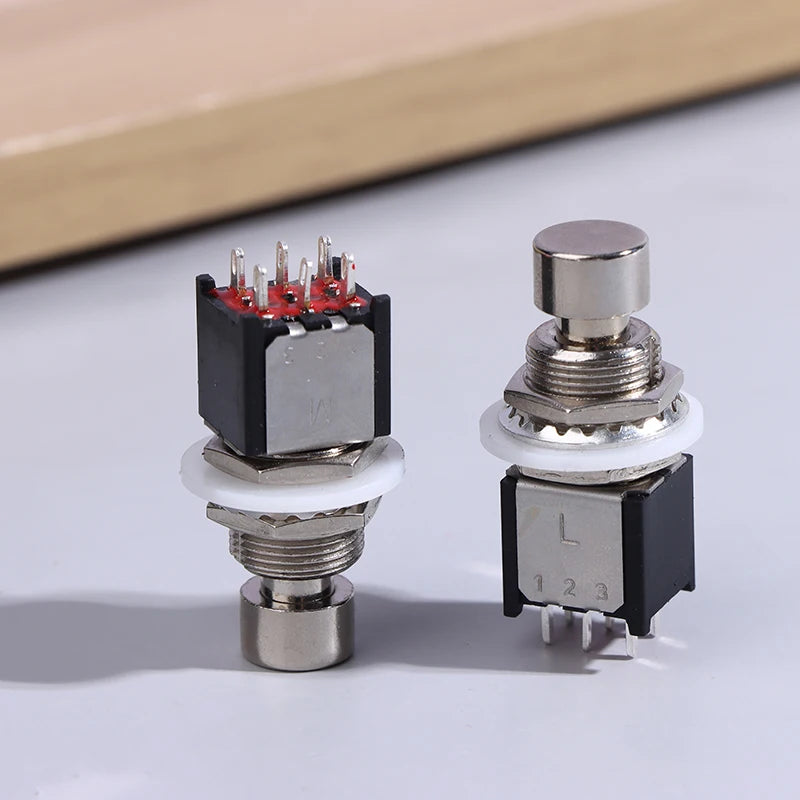

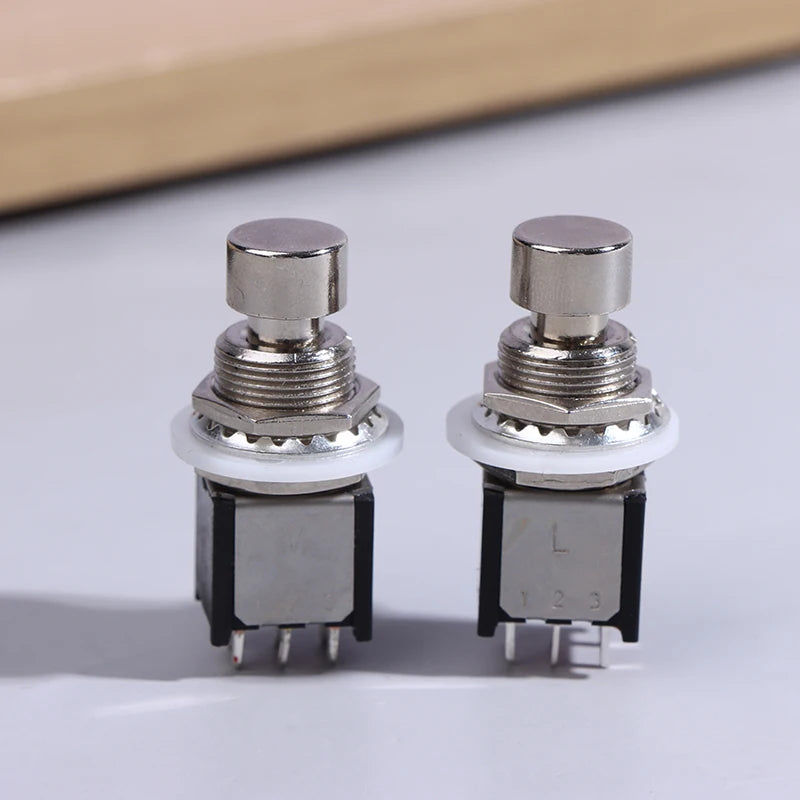

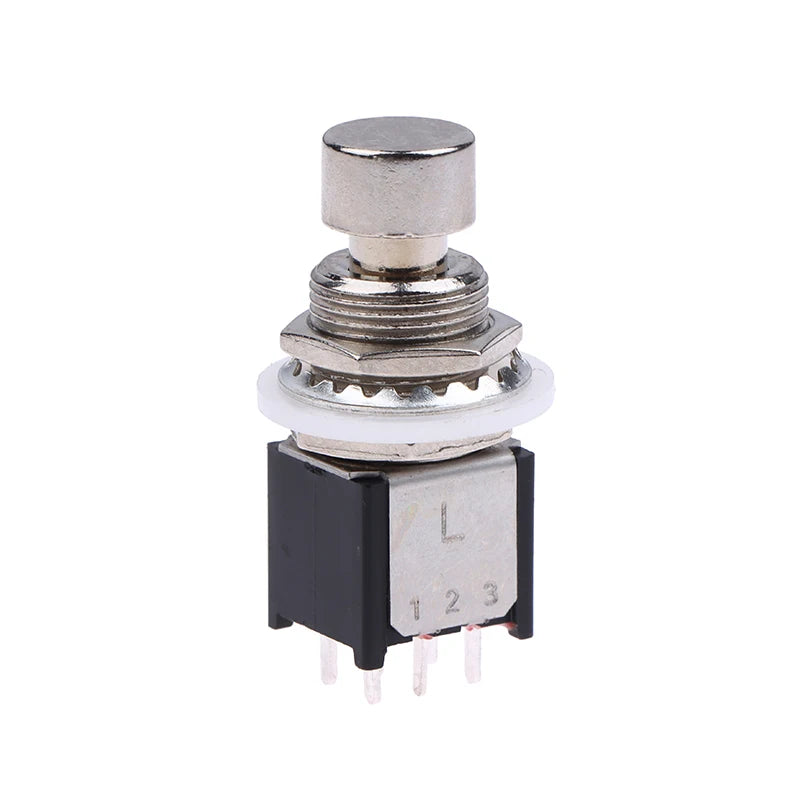

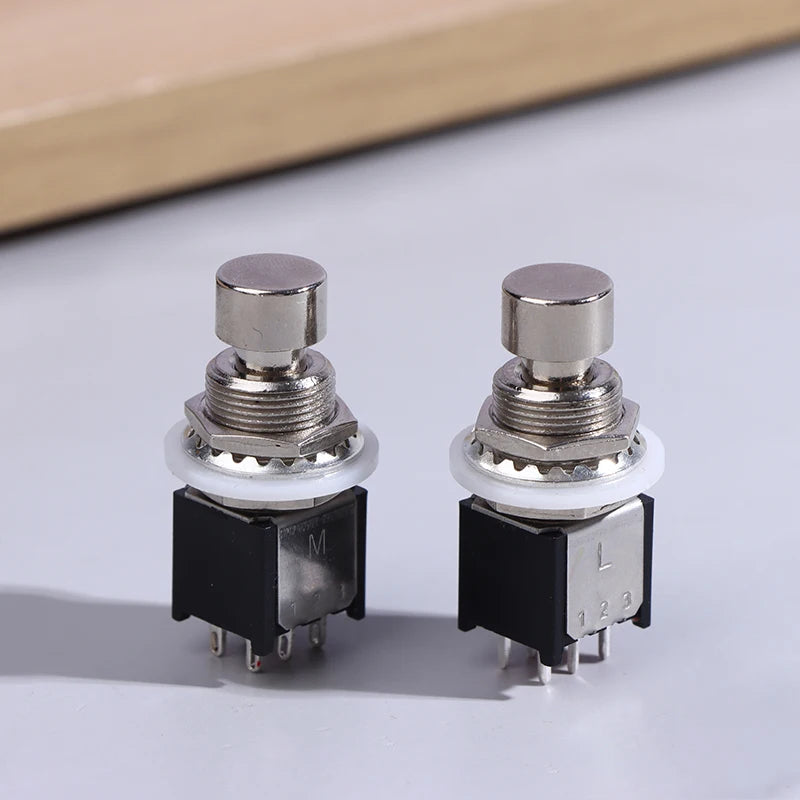

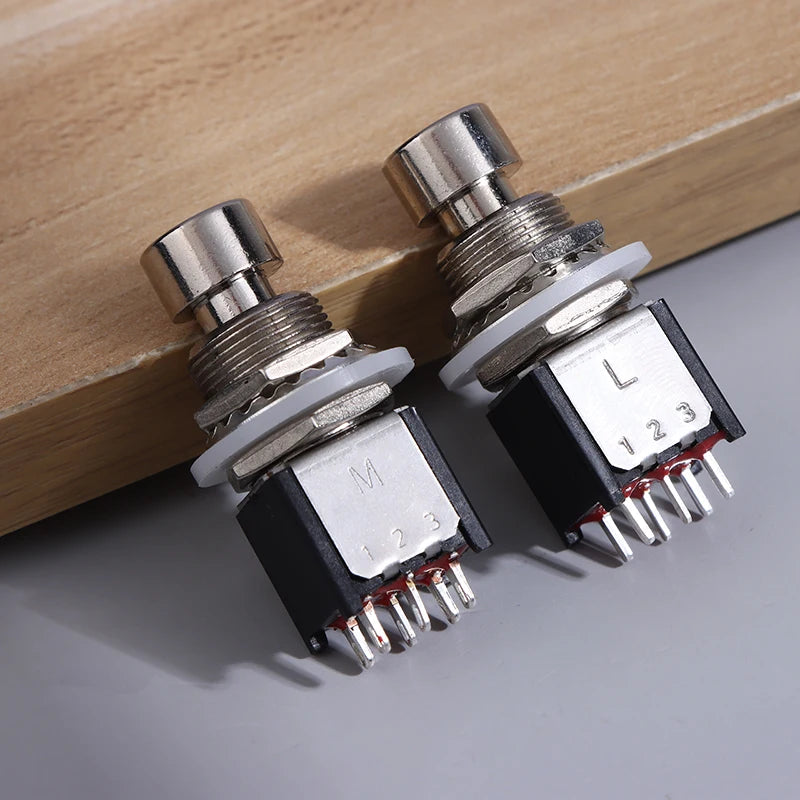

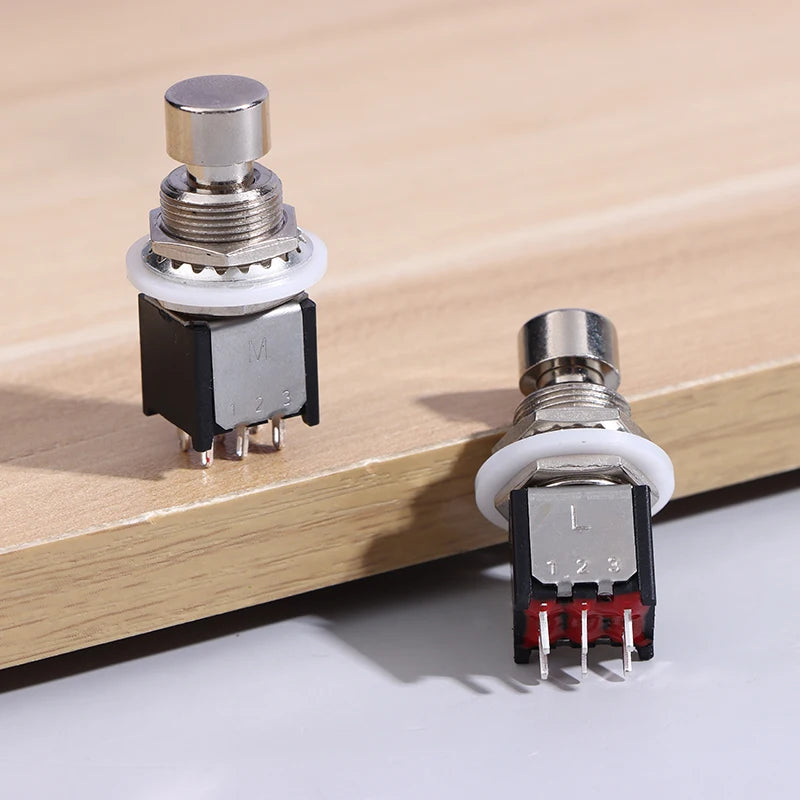

DPDT 6-Pin Foot Switch – Latching & Momentary Stomp Box Pedal
Whether you're building a custom guitar effects pedal, wiring up a stomp box, or need a reliable foot-operated control switch, this DPDT (Double Pole Double Throw) 6-Pin Foot Switch delivers solid performance in a compact form. Compatible with both latching (stays in position) and momentary (returns when released) operation modes, it's a versatile choice for musicians, electronics hobbyists, and DIY builders alike.
Key Features
- Dual Action Modes: Supports both latching (ON-ON) and momentary operation — ideal for guitar effects, stomp boxes, and control panels
- DPDT Configuration: 6 solder lug terminals for flexible circuit wiring
- High Electrical Rating: Rated at 3A/250VAC, 6A/125VAC, and 4A/30VDC — suitable for a wide range of applications
- Long Service Life: Electrical life of over 10,000 cycles for lasting reliability
- Low Contact Resistance: <50MΩ contact resistance ensures clean signal switching
- High Insulation Resistance: >100MΩ at 500VDC for safe, stable operation

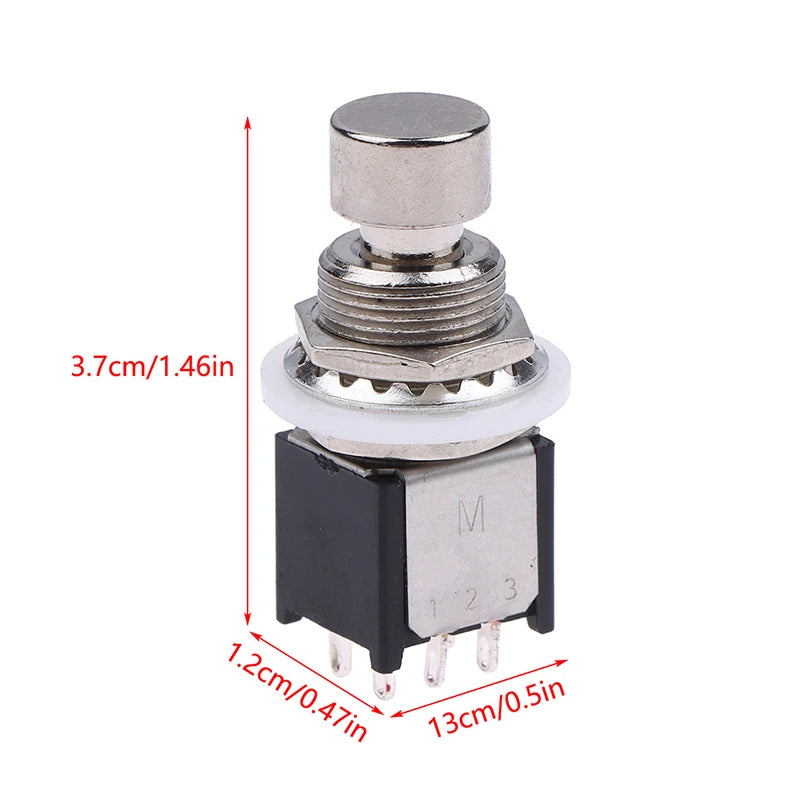

- Compact & Sturdy Build: Plastic + metal construction; dimensions: 1.3 × 1.2 × 3.7 cm (approx. 0.5 × 0.47 × 1.46 in)
Specifications
| Type | DPDT 6-Pin Foot Switch |
| Action | Latching / Momentary (ON-ON) |
| Material | Plastic + Metal |
| Dimensions | 1.3 × 1.2 × 3.7 cm (0.5 × 0.47 × 1.46 in) |
| Voltage Rating | 3A 250VAC / 6A 125VAC / 4A 30VDC |
| Contact Resistance | <50MΩ |
| Insulation Resistance | >100MΩ at 500VDC |
| Electrical Life | >10,000 cycles |
| Terminals | 6 solder lug terminals |
| Country of Origin | Made in China |
What's in the Box
- 1 × DPDT 6-Pin Guitar Effects Pedal Foot Switch
Perfect For
- Guitar effects pedal builds and stomp boxes
- DIY electronics and control panel projects
- Emergency stop circuit applications
- Hobbyist and professional audio equipment
Looking for more tools and components for your DIY projects? Check out our 25-in-1 Precision Magnetic Screwdriver Set or our 34-Compartment Double-Sided Hardware Storage Box to keep your workspace organized.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between latching and momentary mode on this DPDT foot switch?
A: In latching mode, the switch stays in the activated (ON) position after you press it and remains there until pressed again — great for toggling guitar effects on and off. In momentary mode, the circuit is only active while you keep the foot pedal pressed; it returns to its default state as soon as you release it. This DPDT 6-pin foot switch supports both modes, making it highly versatile for different stomp box and control applications.
Q: Can this foot switch be used for guitar effects pedal DIY builds?
A: Yes! This DPDT 6-pin stomp box switch is specifically designed for guitar effects pedal applications. Its 6 solder lug terminals allow for straightforward wiring into standard true-bypass or effects loop circuits. With an electrical life of over 10,000 cycles, it's built to handle regular stage and studio use reliably.
Q: What voltage and current ratings does this foot switch support?
A: This DPDT foot switch is rated for 3A at 250VAC, 6A at 125VAC, and 4A at 30VDC, making it suitable for most low-voltage audio electronics and control panel applications. Always ensure your circuit requirements fall within these rated values for safe and reliable operation.
