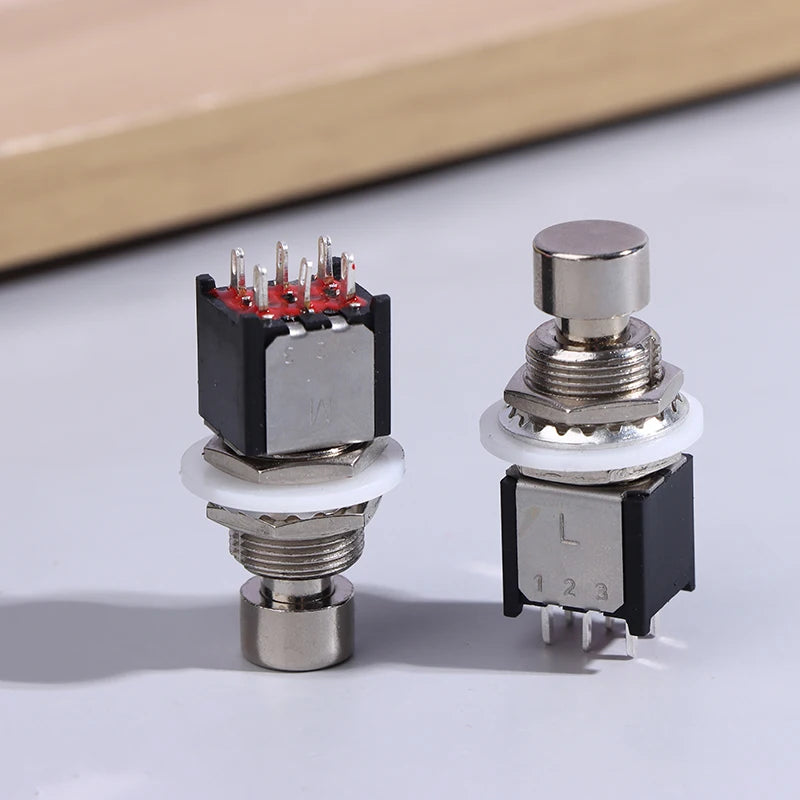

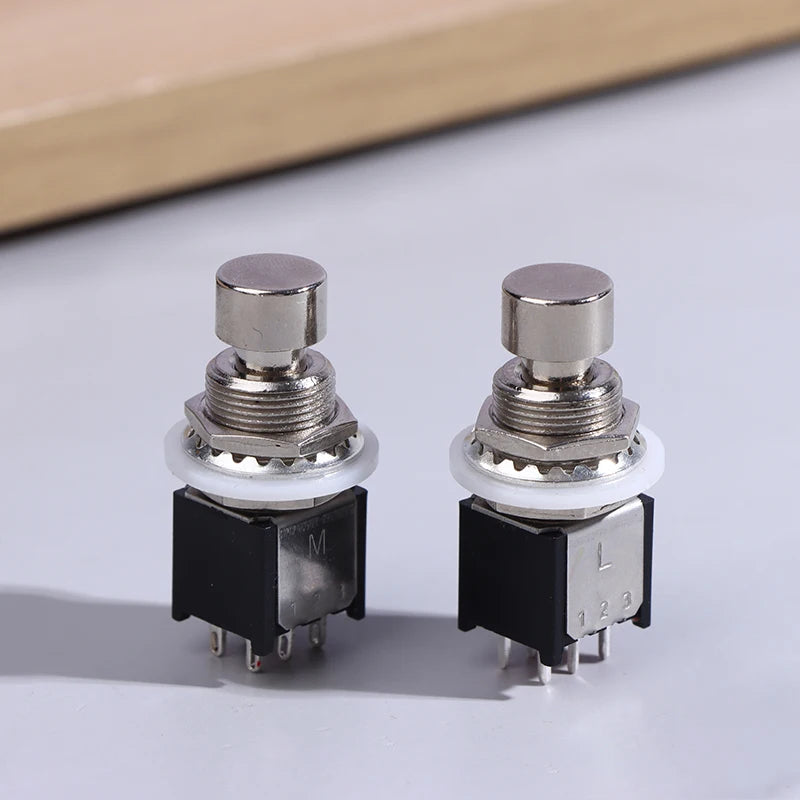

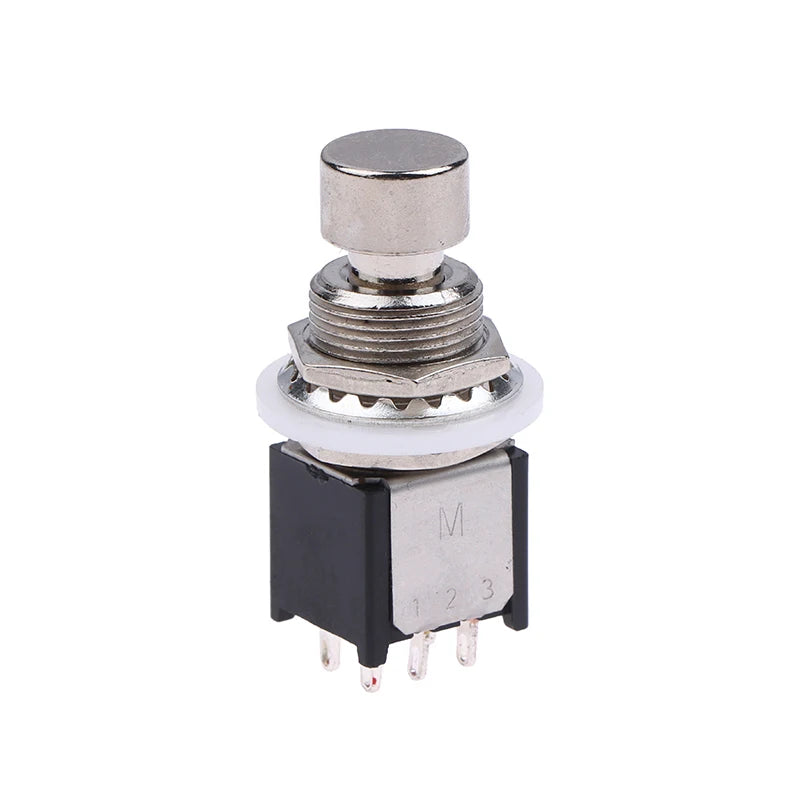

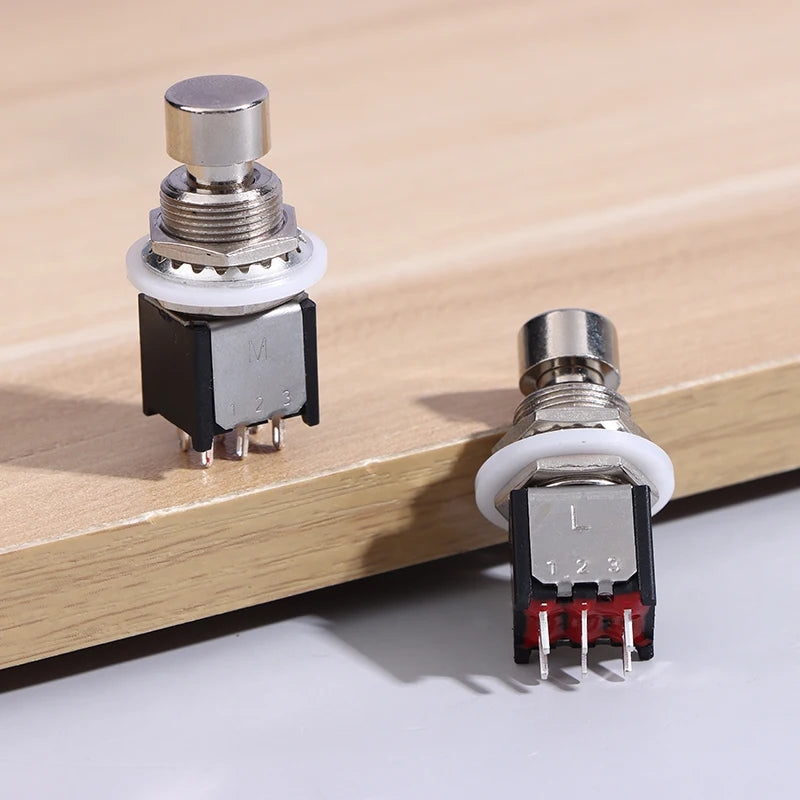

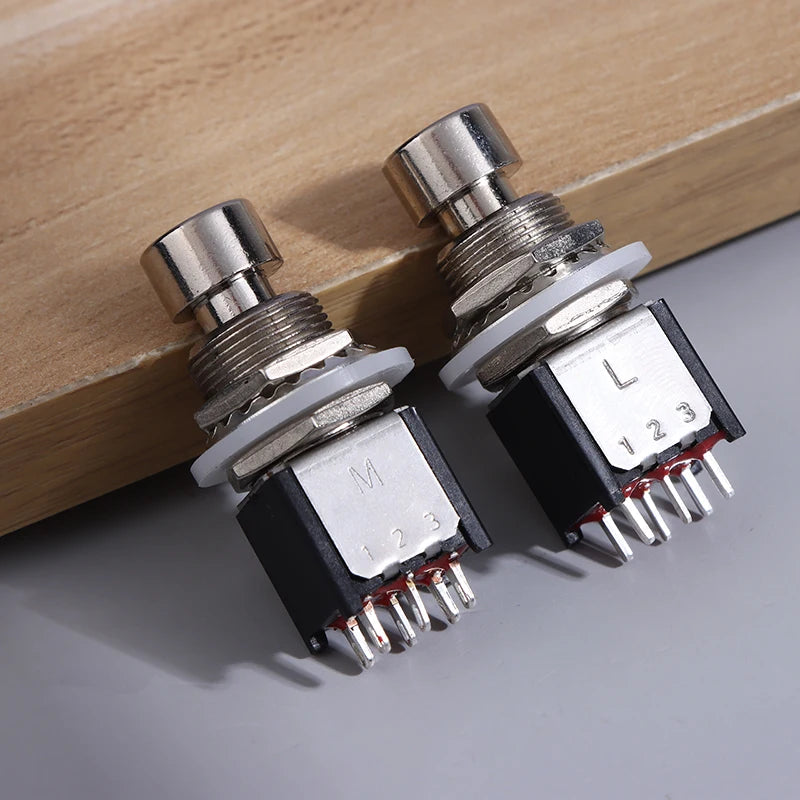

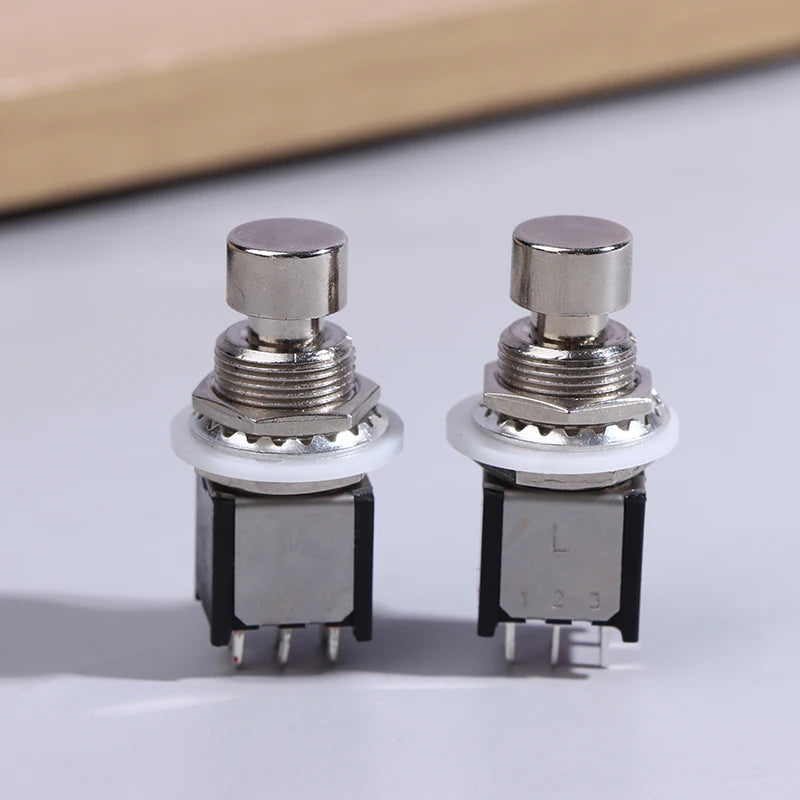

DPDT Latching / Momentary ON/ON Foot Switch for Guitar Effects Pedals
Upgrade your pedalboard with this versatile DPDT 6-Pin Foot Switch — a compact, heavy-duty stomp switch designed for guitar effects pedals, stomp boxes, and DIY electronics projects. Available in both latching (stays in position when pressed) and momentary (returns when released) action, it gives you the precise switching control you need for any musical or electronic application.
Made in Mainland China.
Key Features
- Dual Action: Choose latching or momentary mode — ideal for guitar effects, stomp boxes, and foot-operated circuits
- DPDT Configuration: 6 solder-lug terminals for flexible ON/ON wiring in complex signal routing setups
- Robust Electrical Rating: 3A @ 250VAC | 6A @ 125VAC | 4A @ 30VDC — handles both AC and DC circuits with ease
- Long Service Life: Rated for over 10,000 switching cycles for lasting reliability on stage and in the studio
- Low Contact Resistance: <50MΩ contact resistance and >100MΩ insulation resistance (>500VDC) for clean, reliable signal switching

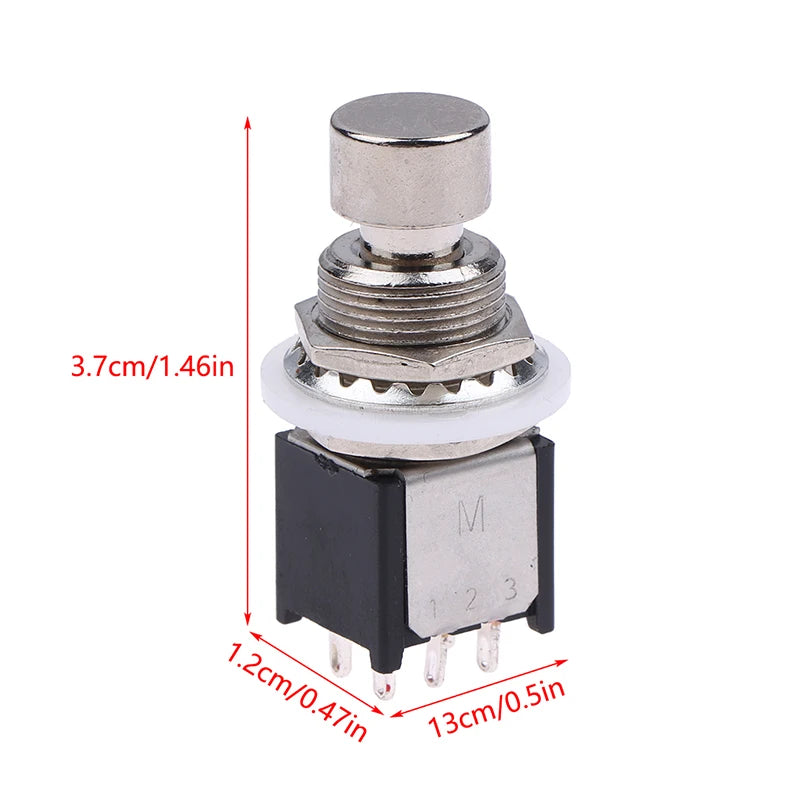

- Compact Form Factor: Measures just 1.3 × 1.2 × 3.7 cm (0.5 × 0.47 × 1.46 in) — fits neatly into pedal enclosures
- Plastic + Metal Construction: Durable hybrid build that withstands the rigours of regular foot-switch use
Specifications
| Switch Type | DPDT Latching / Momentary ON/ON |
| Number of Pins | 6 Solder Lug Terminals |
| Material | Plastic + Metal |
| Dimensions | 1.3 × 1.2 × 3.7 cm (0.5 × 0.47 × 1.46 in) |
| Voltage / Current Rating | 3A 250VAC | 6A 125VAC | 4A 30VDC |
| Contact Resistance | <50MΩ |
| Insulation Resistance | >100MΩ @ >500VDC |
| Electrical Life | >10,000 Cycles |
| Country of Origin | Mainland China |
What's in the Box
- 1 × DPDT Guitar Effects Pedal Foot Switch (Latching or Momentary)
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the latching and momentary versions of this foot switch?
A: A latching foot switch stays in its new position after you press it — ideal for toggling an effect on or off and keeping it active hands-free. A momentary foot switch only activates while your foot is pressing down and springs back when released, making it perfect for momentary effects like a sustain boost or a brief signal interrupt. Choose the version that best matches your pedal's circuit design.
Q: Can this DPDT switch be used to replace or repair an existing guitar effects pedal stomp switch?
A: Yes. This DPDT 6-pin foot switch is a standard replacement component used in many DIY and commercial guitar effects pedals and stomp boxes. Its compact dimensions (1.3 × 1.2 × 3.7 cm) and solder-lug terminals make it easy to install in most enclosures with basic soldering skills.
Q: Is this switch compatible with both AC and DC circuits?
A: Absolutely. The switch is rated for 3A @ 250VAC, 6A @ 125VAC, and 4A @ 30VDC, making it suitable for a wide range of guitar pedal power supplies and general electronics projects, whether mains-voltage or low-voltage DC applications.
