HD Reversing Camera 5-Pin Night Vision 4 LED IP67 Waterproof

See Clearly Behind You — Every Time You Reverse

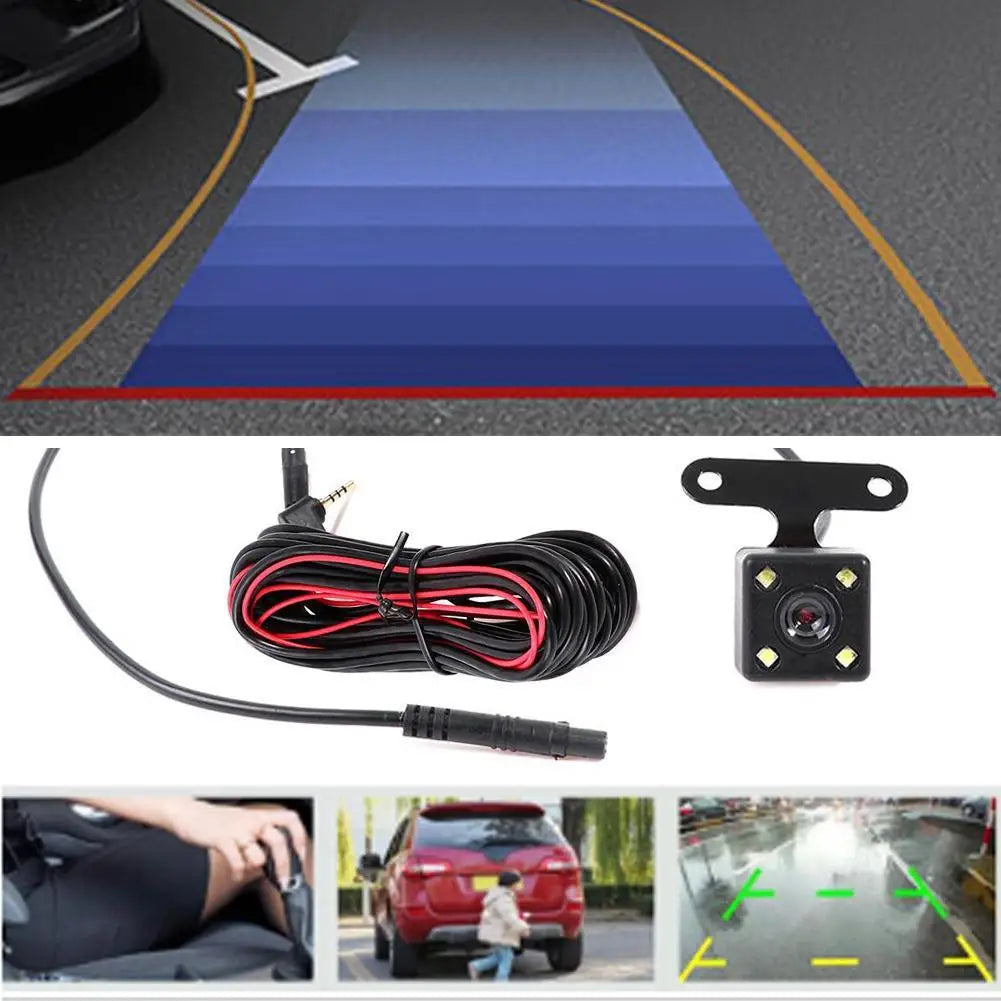

The HD Car Rear View Camera delivers a wide 170° viewing angle and 4 built-in infrared LEDs for crisp night vision, making every reverse manoeuvre safer and more confident. With an IP67 waterproof rating and a durable housing, this camera handles rain, dust, and all-weather conditions with ease.

Key Features

• Wide 170° Lens Angle — Captures a broad rear field of view to eliminate blind spots
• 4 Infrared LEDs — Clear night vision imaging even in low-light or no-light conditions

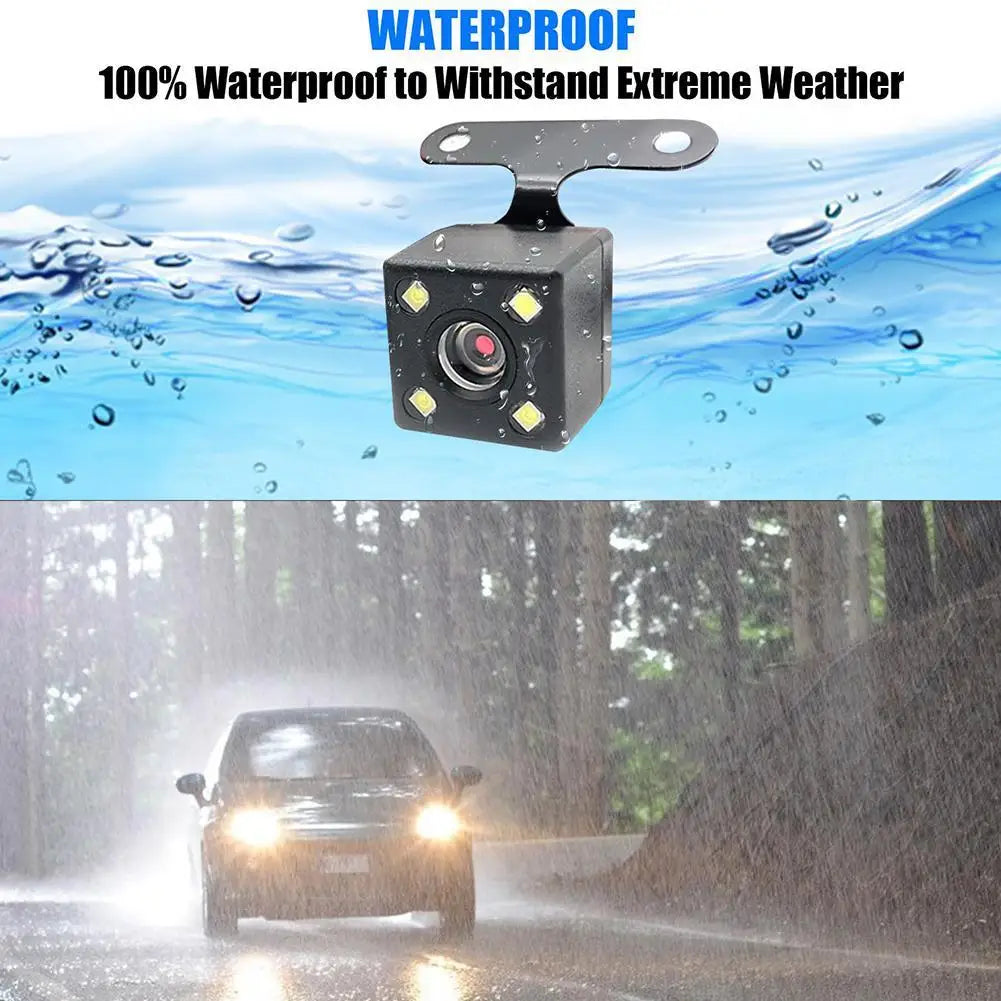

• IP67 Waterproof — Fully protected against dust and water immersion; suitable for all weather

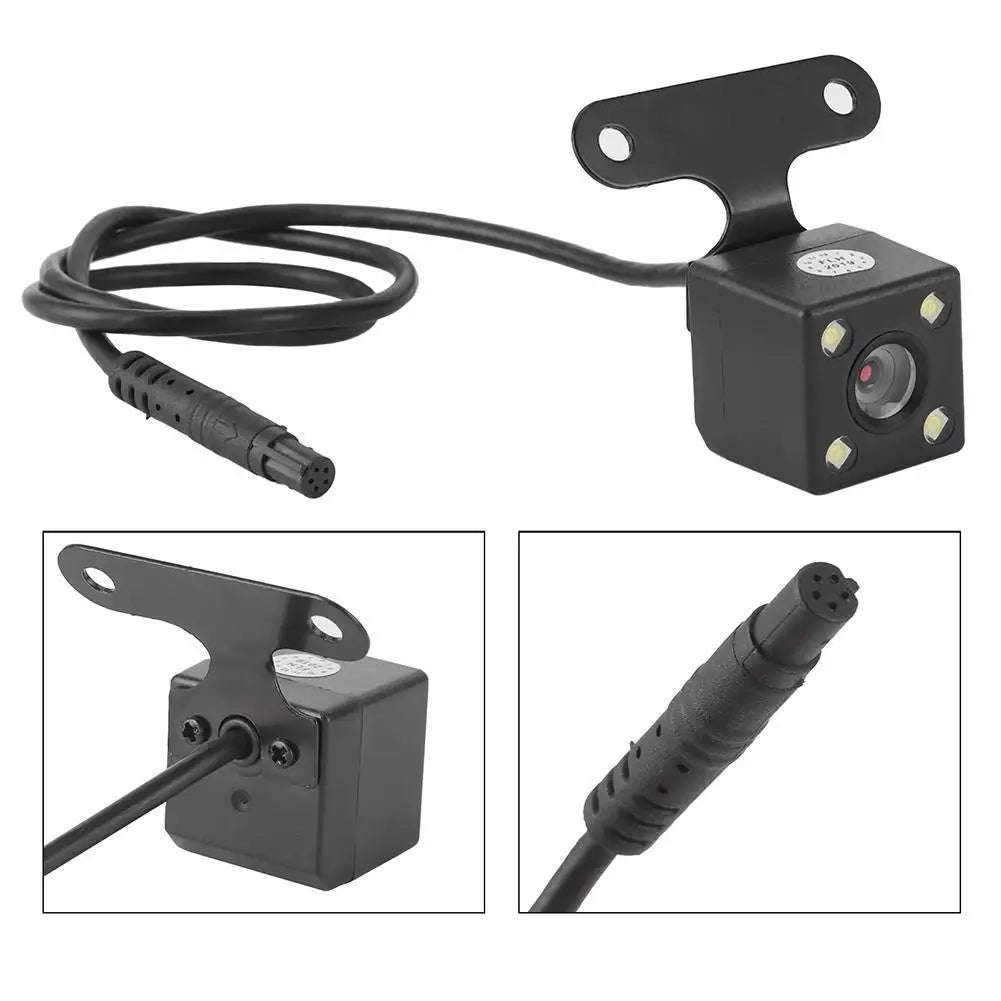

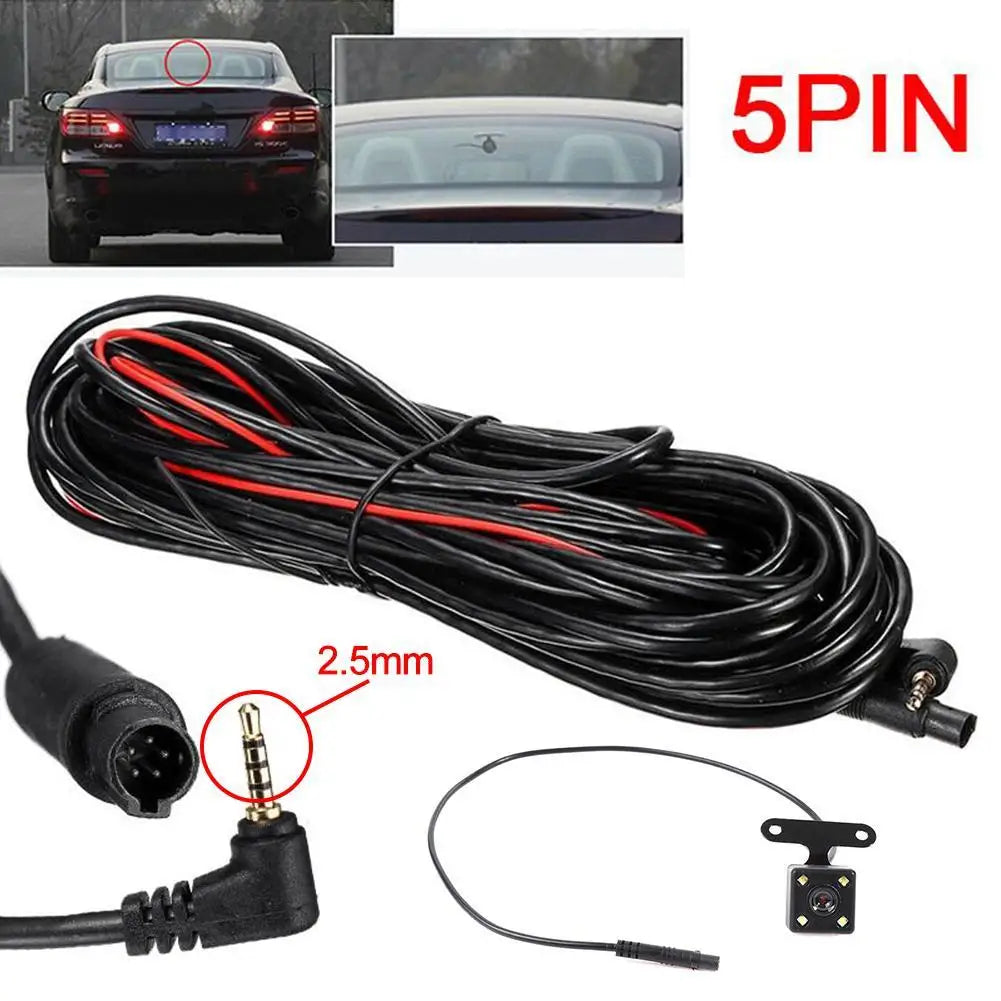

• 5-Pin Connection — Compatible with LCD monitors, DVD players, and rearview mirror displays
• 6-Metre Cable — Long cable length for easy installation on cars, vans, and SUVs
• DC 12V Power Supply — Low current draw (≤150mA), compatible with standard automotive electrics
• Easy to Install — Straightforward mounting with no specialist tools required

Technical Specifications

• Horizontal Sync Frequency: 15,625 KHz
• Vertical Sync Frequency: NTSC 60 Hz
• Scanning System: 2:1 Interlaced Scan
• Sync System: Internal
• Signal-to-Noise Ratio: ≥48 dB
• Current Consumption: ≤150 mA
• Power Supply: DC 12V ±10%
• Storage Temperature: -40°C to 85°C, RH 95% MAX
• Waterproof Rating: IP67
• Lens Angle: 170°
• Cable Length: 6 M

What's in the Box

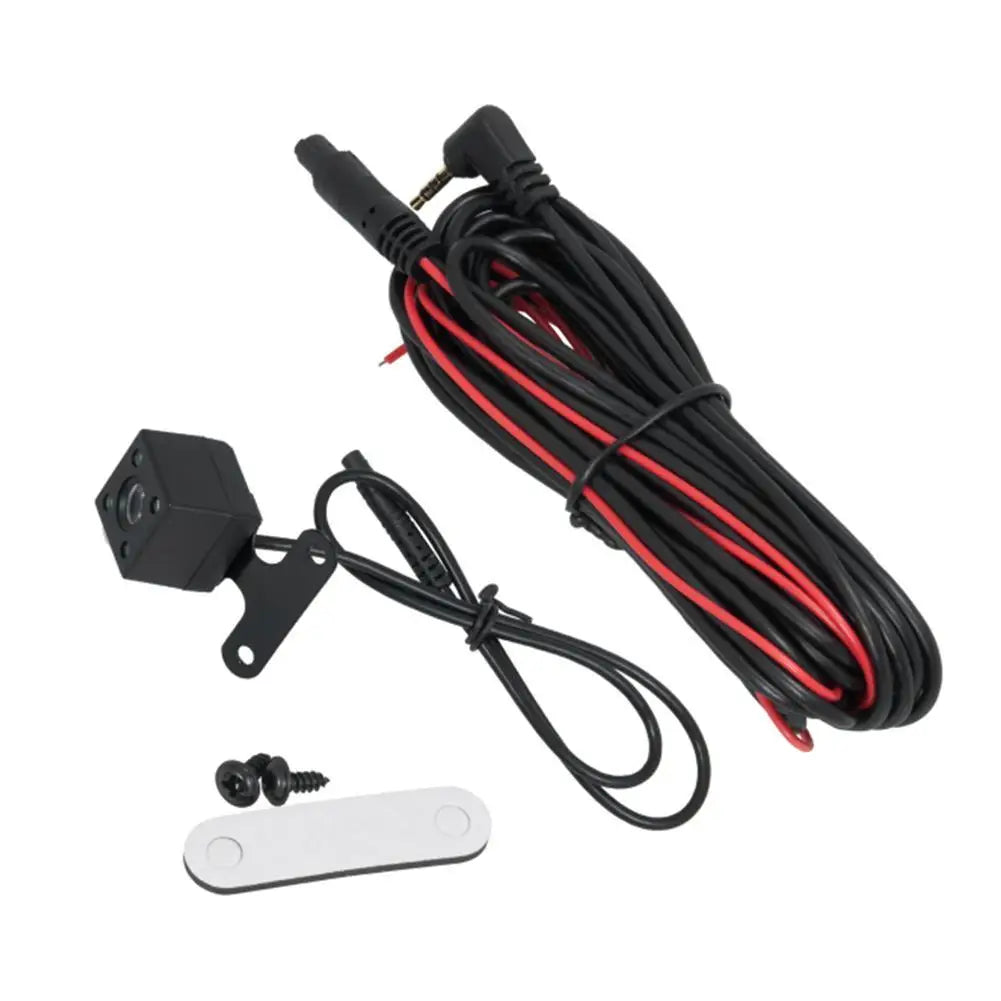

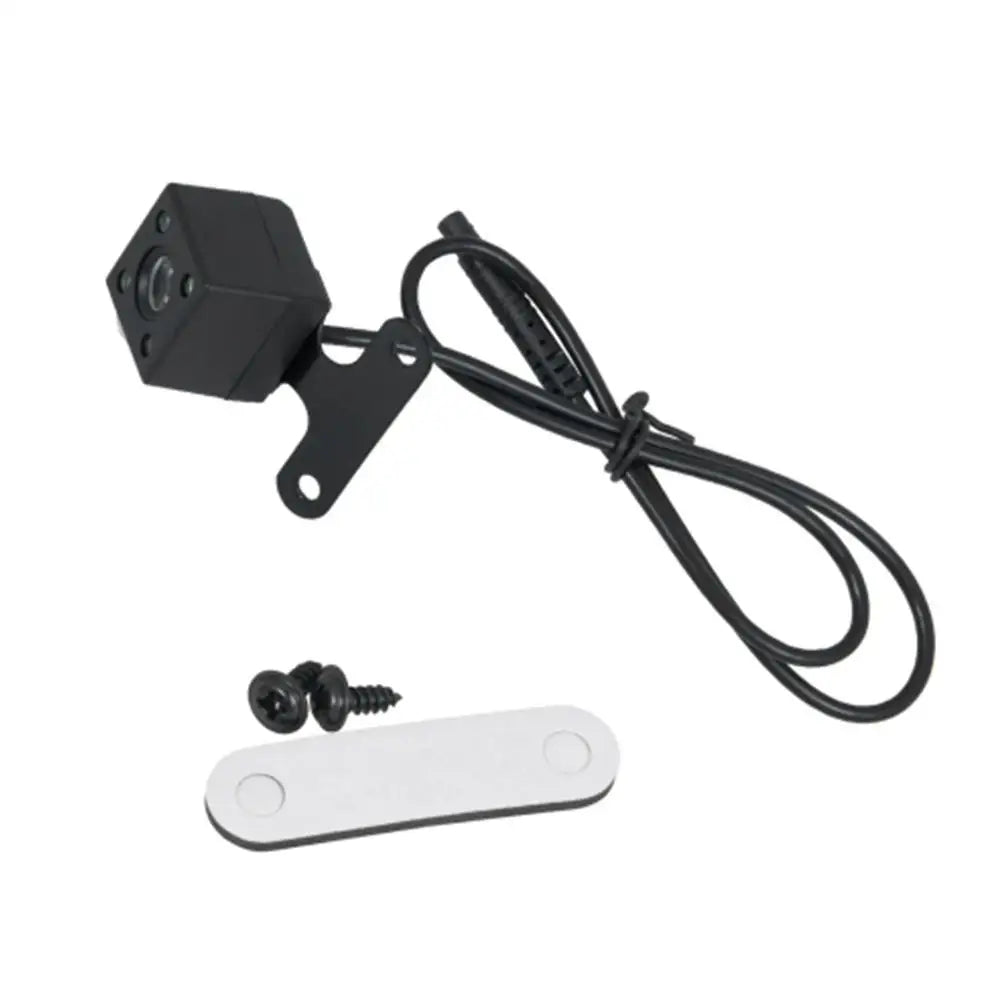

• 1 × Car Rear Camera Kit

Note: Video cable and power cable are NOT included and must be purchased separately.

Made in Mainland China.

Related Products You May Like

• 4-Pack Deer Whistle Wildlife Alert Devices for Vehicles
• 10-Pack Car Wrap Magnet Holders | Anti-Scratch Vinyl Film Tool

Learn more: FuelEconomy.gov driving efficiency guidance

Frequently Asked Questions

Q: Is this rear view camera compatible with all car LCD monitors and DVD players?

A: Yes — the 5-pin HD rear view camera is designed to connect with a wide range of LCD monitors, DVD players, and rearview mirror displays that accept a standard video input. Always check your monitor's input specifications before purchase to confirm compatibility.

Q: Can this reversing camera be used in heavy rain or when washing the car?

A: Absolutely. The camera carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand water immersion at up to 1 metre depth for 30 minutes. It is well-suited for all outdoor and wet-weather driving conditions.

Q: Does the night vision work in complete darkness?

A: The camera features 4 built-in infrared LEDs that activate automatically in low-light conditions, providing clear rear imaging at night or in dark environments such as unlit car parks. Performance may vary in extremely dark open spaces, but it is highly effective for standard reversing scenarios.

Q: Are cables included in the package?

A: The package includes the rear camera kit with a 6-metre cable. However, the video cable and power cable are not included and need to be purchased separately to complete the installation.
