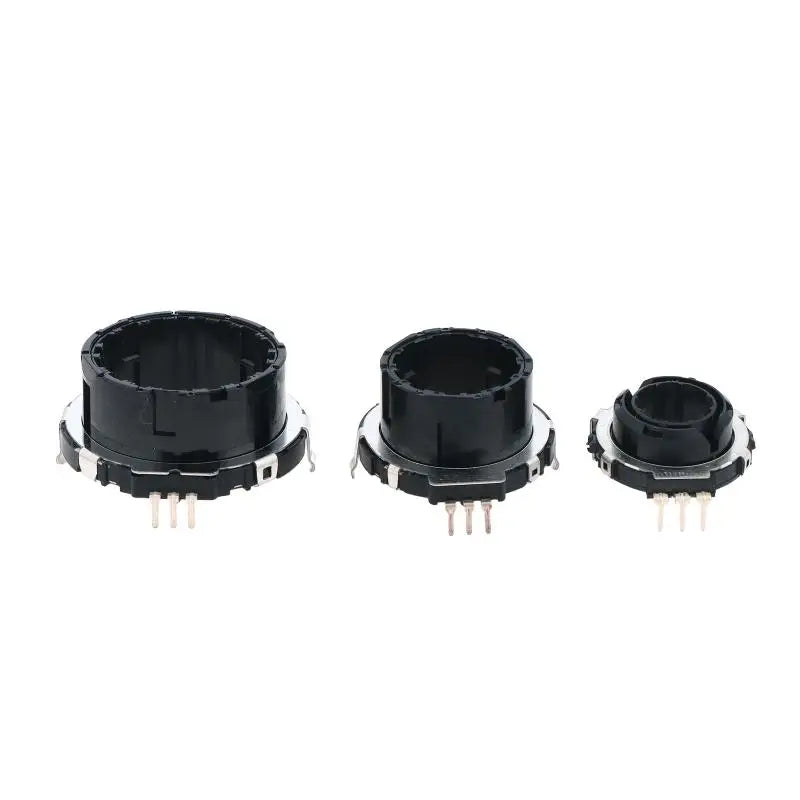

Hollow Shaft Rotary Encoder – EC25 / EC28 / EC35 Compatible
Upgrade your DIY electronics or industrial project with this precision Hollow Shaft Rotary Encoder. Designed for EC25, EC28, and EC35 form factors, it delivers accurate 15-pulse position sensing across a full 360-degree rotation — making it a reliable choice for robotics, CNC machines, custom controllers, and a wide range of maker projects.
Key Features
- 360° Full Rotation: Continuously rotatable design allows versatile mounting and operation in any orientation.
- 15-Pulse Resolution: High-precision position sensor delivers consistent, repeatable readings for accurate control applications.
- Hollow Shaft Design: Through-shaft bore enables direct shaft mounting, reducing mechanical play and simplifying assembly.
- Plastic + Metal Construction: Durable composite build balances lightweight handling with structural rigidity.
- No High-Concern Chemicals: Manufactured without hazardous substances, ensuring safe handling during installation and use.
- DIY-Friendly: Simple to install — no specialist tools or professional assistance required.
- Low Voltage Rated: Operates within safe low-voltage parameters (below 50 Vac or 75 Vdc), EU LVD compliant.
Specifications

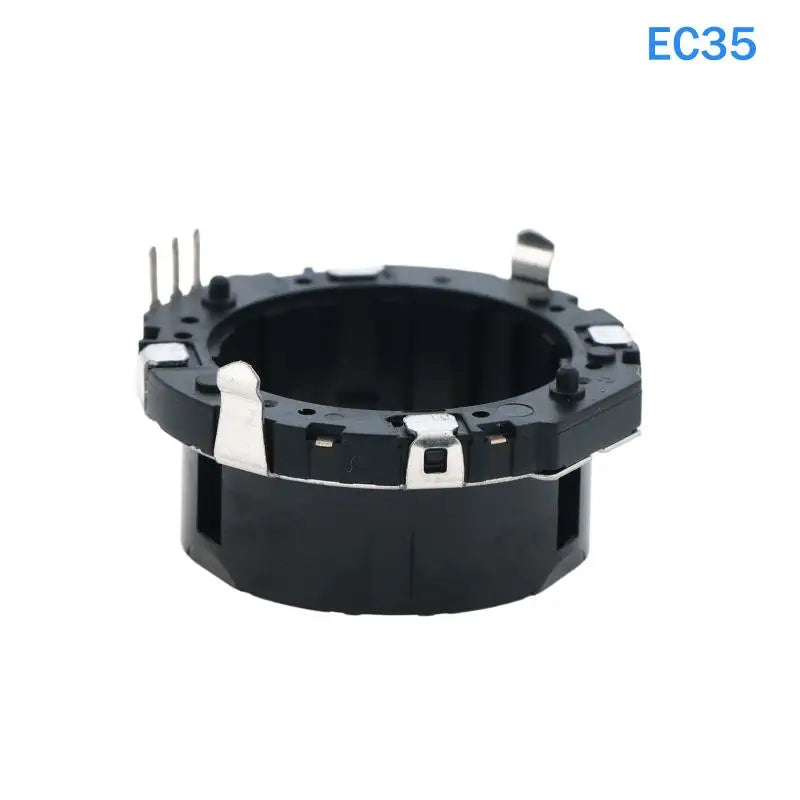

| Compatible Models | EC25, EC28, EC35 |
| Rotation | 360 degrees (continuous) |
| Pulse Count | 15 pulses per revolution |
| Material | Plastic + Metal |
| Voltage Rating | Below 50 Vac / 75 Vdc |
| High-Concern Chemicals | None |
| Country of Origin | Made in China |
Package Includes
- 1 × Hollow Shaft Encoder
Note: Please refer to product images for dimensional reference. Allow for minor tolerances due to manual measurement. Colors may vary slightly between monitors and actual product.
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 34-Compartment Double-Sided Hardware Storage Box & Dividers
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a hollow shaft encoder and how does it work?
A: A hollow shaft rotary encoder is a position-sensing device with a central bore (hollow shaft) that mounts directly onto a rotating shaft. As the shaft turns, the encoder generates electrical pulses — in this case, 15 pulses per full 360-degree revolution — which a microcontroller or control system reads to determine the exact rotational position or speed.
Q: Which encoder models is this compatible with?
A: This hollow shaft encoder is designed to be compatible with EC25, EC28, and EC35 form factors, making it suitable for a wide variety of DIY electronics, CNC, robotics, and automation projects that use these standard encoder sizes.
Q: Is this encoder suitable for beginners or DIY use?
A: Yes. This encoder is specifically designed to be DIY-friendly with a straightforward installation process. No specialist tools are required, making it a great choice for hobbyists, makers, and electronics enthusiasts working on custom builds or prototypes.
