L-Shape Acrylic Crack Monitor | Wall Crack Detection Gauge

L-Shape Acrylic Crack Monitor – Precise Wall & Structure Crack Tracking

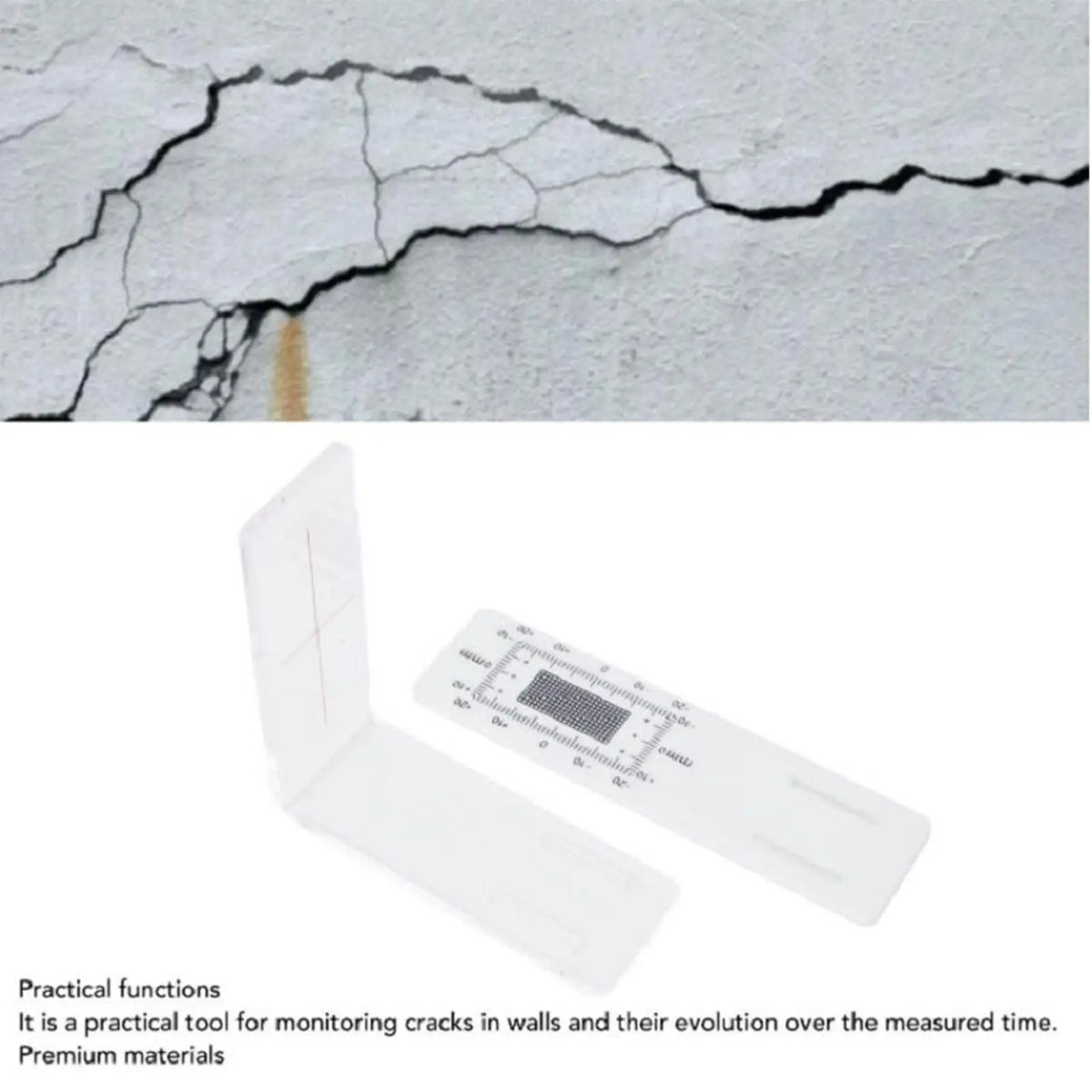

Keep a close eye on structural changes with this L-Shape Acrylic Crack Monitoring Gauge. Designed for homeowners, engineers, and construction professionals, this transparent acrylic tool lets you accurately track crack displacement on interior and exterior walls, concrete surfaces, and building corners over time — no adhesives required.

Made in Mainland China.

Key Features

• Double-Plate Overlapping Design: Two transparent acrylic plates overlap to provide real-time crack displacement readings, making it ideal for long-term structural monitoring.
• XY Axis Scale Markings: High-resolution X and Y axis measurement scales allow precise tracking of both horizontal and vertical crack movement at a glance.
• Tool-Free Easy Installation: Improved mounting columns enable secure, stable fixation at wall corners without the need for adhesives — fast setup, reliable hold.
• Durable Acrylic Construction: Crystal-clear acrylic panels resist weathering and maintain readability in varying lighting conditions, ensuring long-lasting, dependable use.

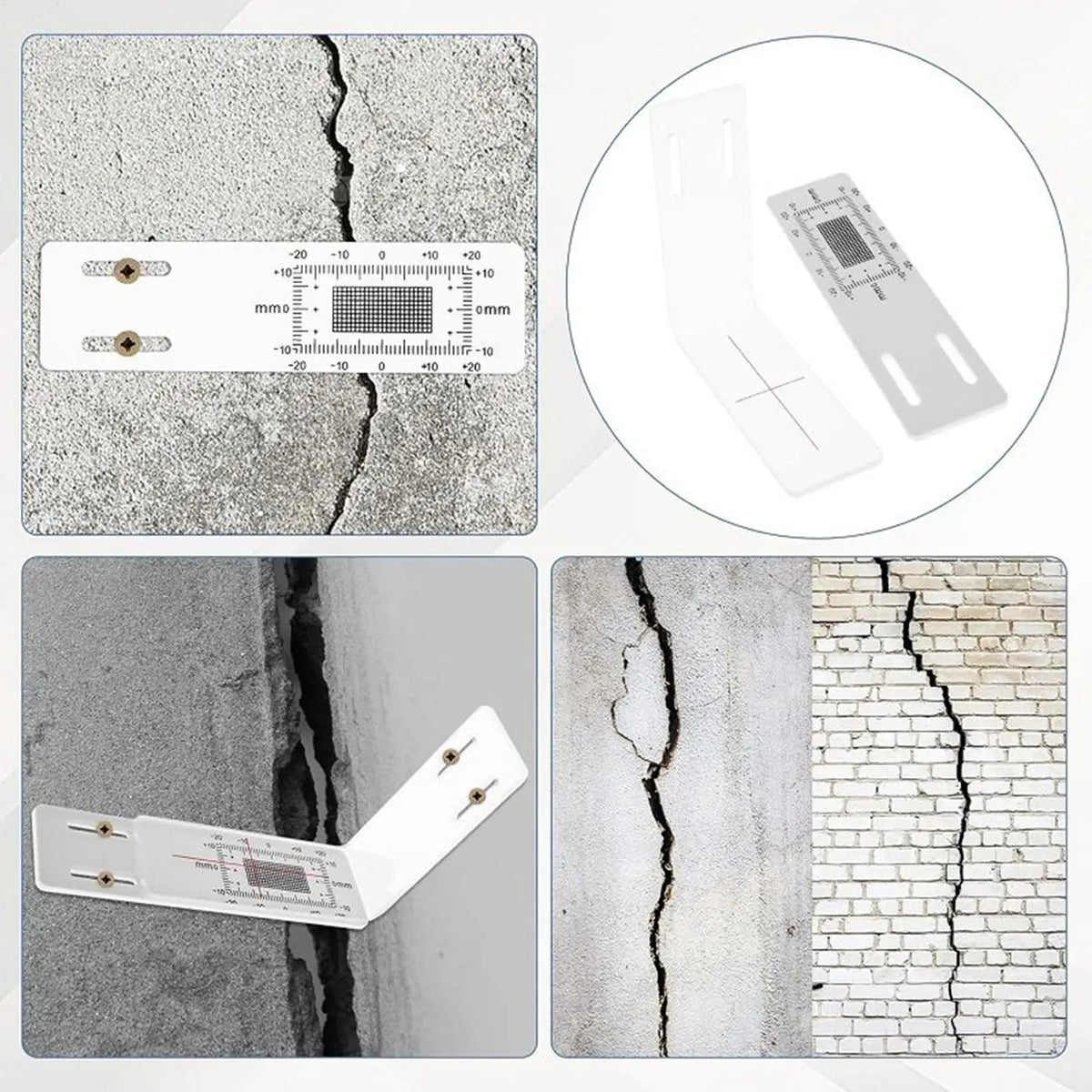

• Versatile Application: Suitable for monitoring cracks in concrete walls, brick structures, plasterboard, and building foundations — supports both residential and engineering applications.

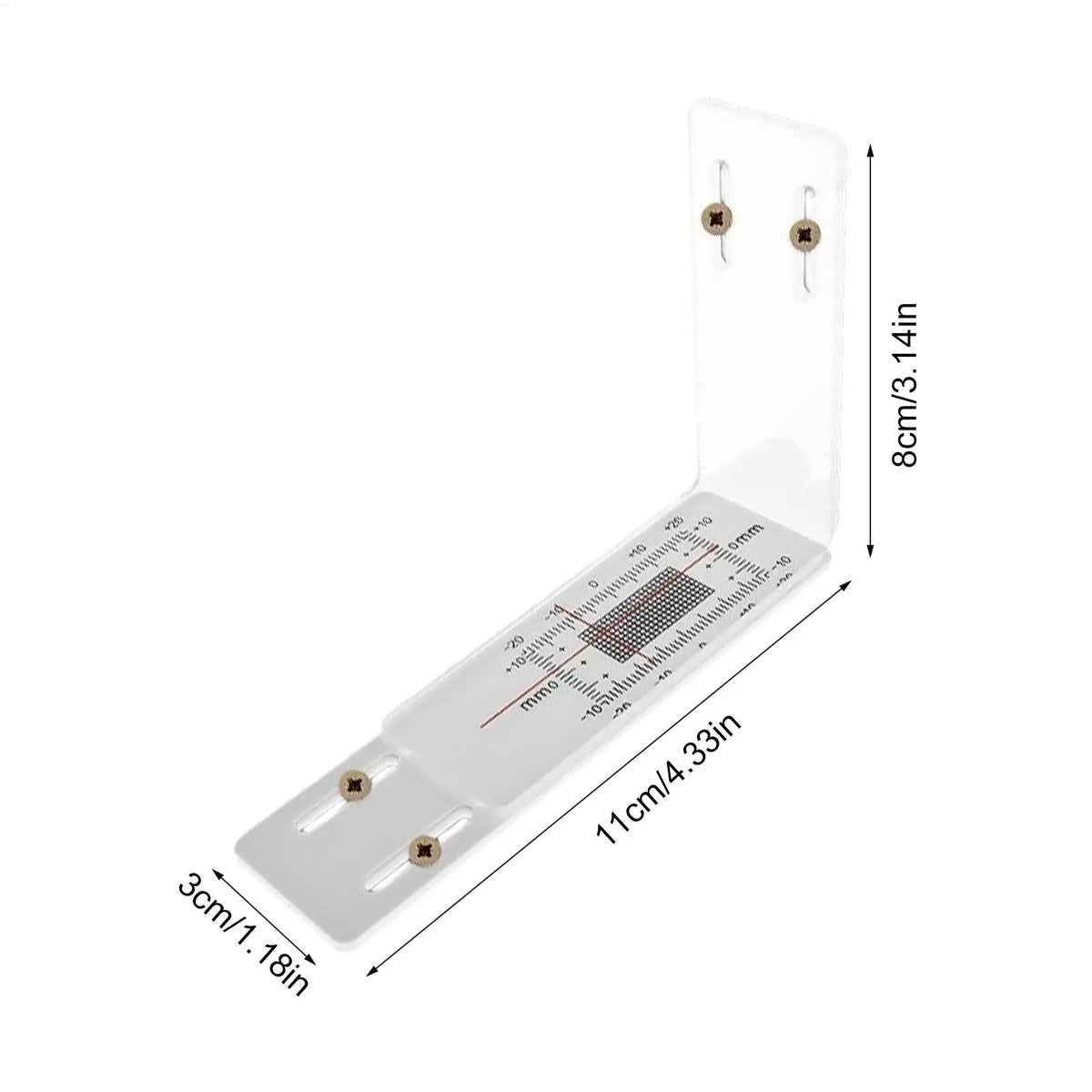

Specifications

What's in the Box

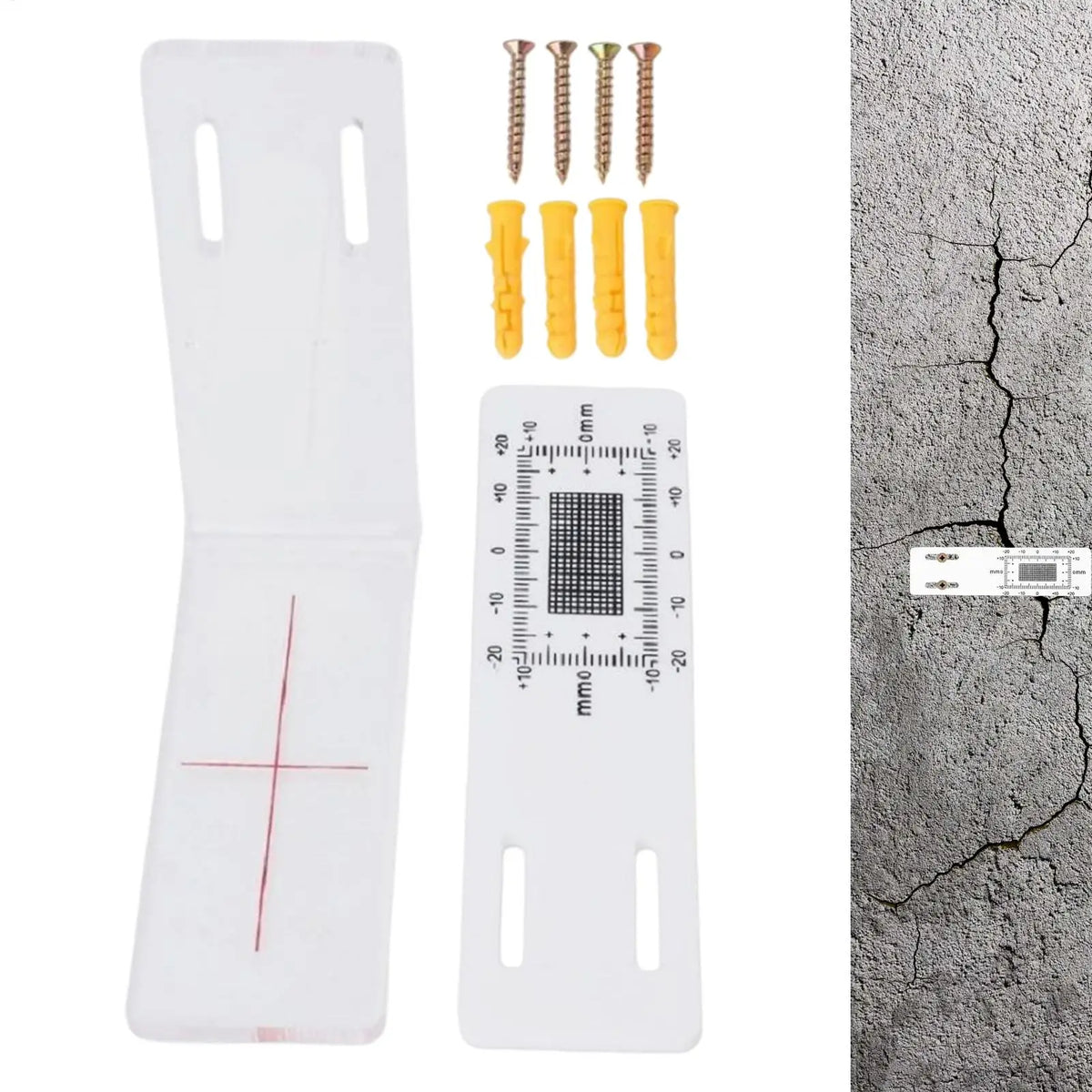

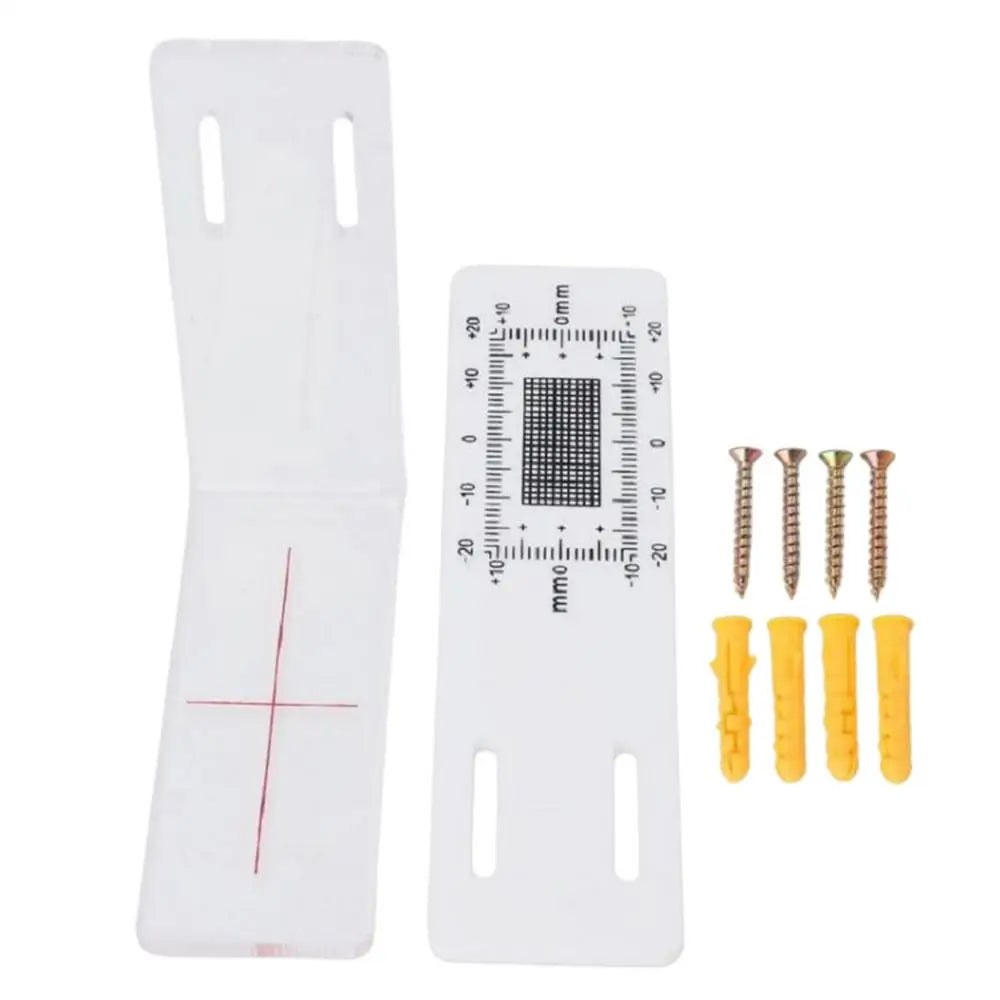

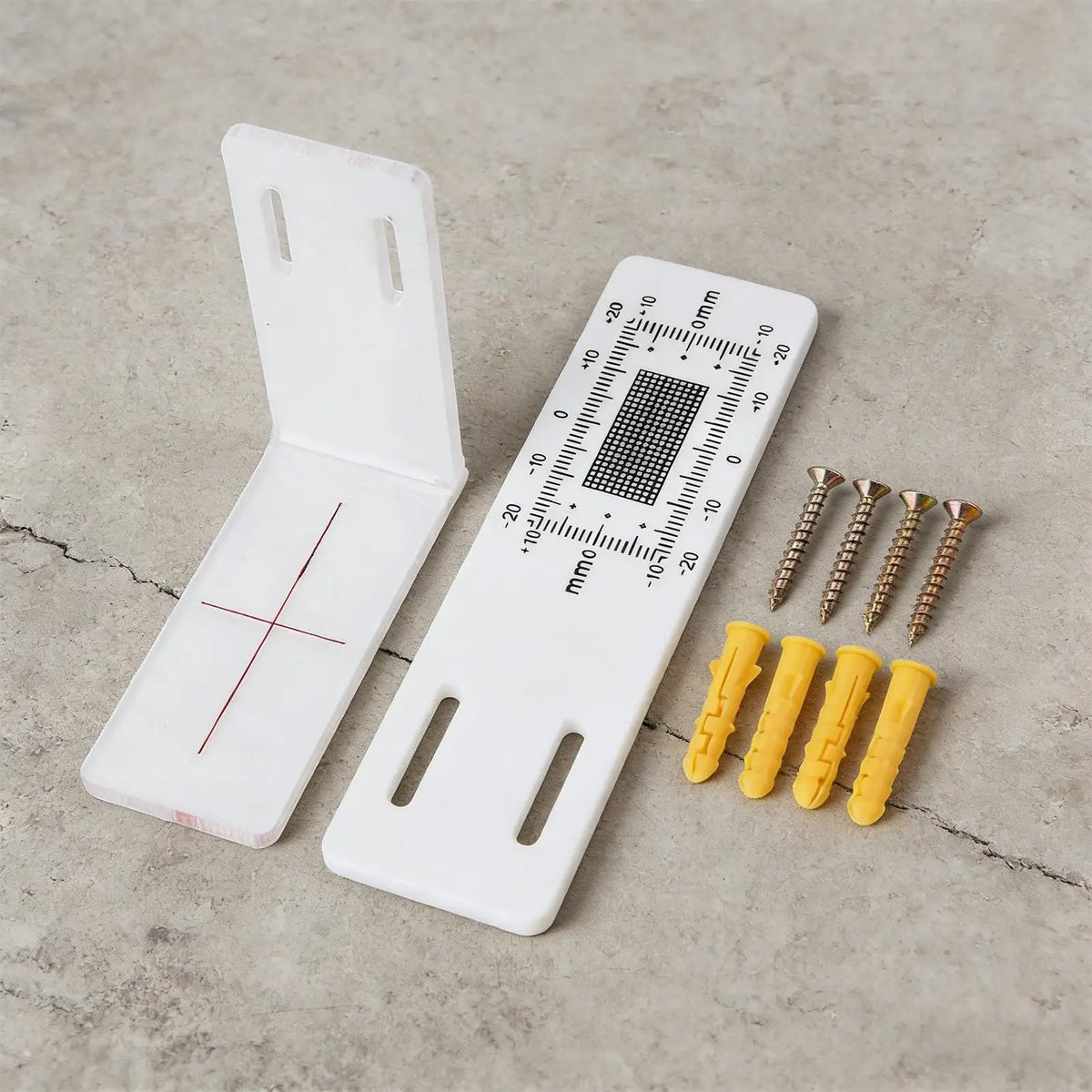

• 1 × Crack Monitor Set
• 1 × Instruction Manual

Please Note

• Due to lighting and display settings, slight colour variations may appear in product photos.
• Manual measurement may result in minor size variations (±1–3 mm).

Related Products You May Like

• 34-Compartment Double-Sided Hardware Storage Box & Dividers
• 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What surfaces can the L-Shape Acrylic Crack Monitor be used on?

A: This crack monitoring gauge is suitable for a wide range of surfaces including concrete walls, brick and masonry structures, plasterboard partitions, building foundations, and interior or exterior wall corners. It is designed for any flat or L-shaped surface where structural movement needs to be tracked over time.

Q: Does the crack monitor require adhesive or special tools to install?

A: No adhesives are needed. The gauge features improved mounting columns that provide secure, stable fixation at wall corners using mechanical fasteners. The easy-installation system means you can set it up quickly without special tools and remove or reposition it without damaging the surface.

Q: How do I read the crack displacement measurements?

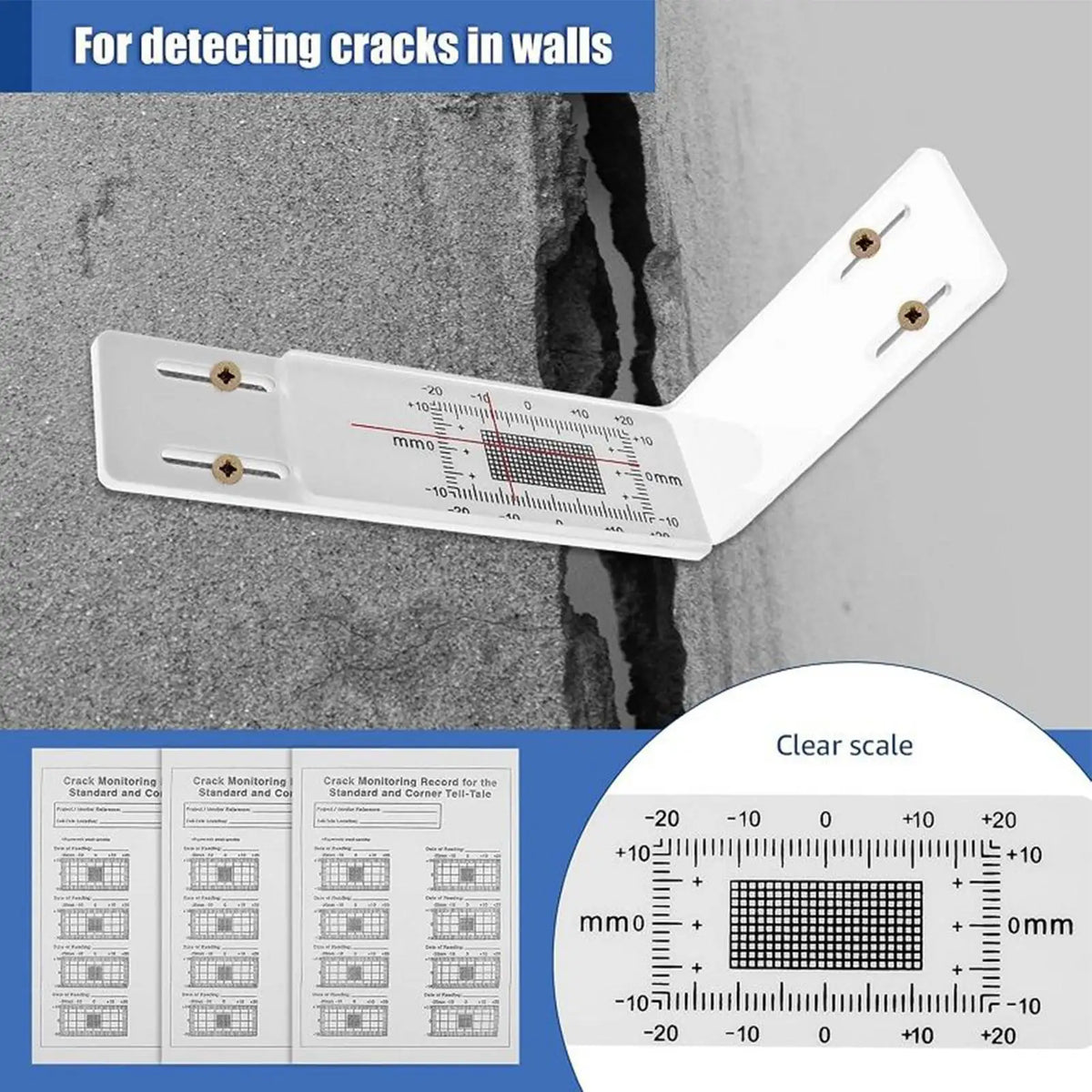

A: The two overlapping transparent acrylic plates each feature clearly printed X and Y axis scale markings. As the crack widens or shifts, the plates move relative to each other. Simply read the offset between the scale lines on each plate to determine the exact horizontal and vertical displacement of the crack in real time.

Q: Is this crack monitor suitable for outdoor use?

A: Yes. The durable acrylic material is designed to withstand varying weather and lighting conditions, maintaining panel clarity and measurement accuracy whether installed indoors or outdoors.
