L7805 / L7812 Step-Down Voltage Regulator Power Supply Module
Get rock-solid, regulated DC output for your electronics projects with this compact L7805 / L7812 Voltage Regulator Board. Available in two output options — 5V (L7805) and 12V (L7812) — this module uses a linear voltage regulator IC to deliver clean, stable power to microcontrollers, sensors, industrial control boards, and DIY electronics builds. Made in China.
Key Features
- Dual Specification Options: Choose between L7805 (5V output) or L7812 (12V output) to match your exact project requirements. Linear regulation ensures a precise, stable output voltage.
- Built-In Heat Sink: The onboard heat sink dissipates heat efficiently, allowing continuous high-current operation without thermal shutdown — extending module reliability and lifespan.
- Enhanced Filter Circuit: Large-capacity electrolytic capacitors and dedicated filter components suppress input/output noise and interference, delivering pure voltage to protect sensitive downstream components.
- Solder-Free Spring Terminals: Spring-type screw terminals make wiring fast and tool-free — no soldering required. Ideal for rapid prototyping, on-site debugging, and field maintenance.
- Compact PCB with Mounting Holes: The miniaturized 4.5 × 2 cm PCB fits easily into enclosures and panels. Pre-drilled mounting holes make permanent installation straightforward.
- TTL-Compatible Interface: Communication interface: TTL, compatible with most common microcontroller platforms.
Specifications
| Output Voltage | 5V (L7805) or 12V (L7812) |
| Interface | TTL |
| Package Type | Surface Mount |

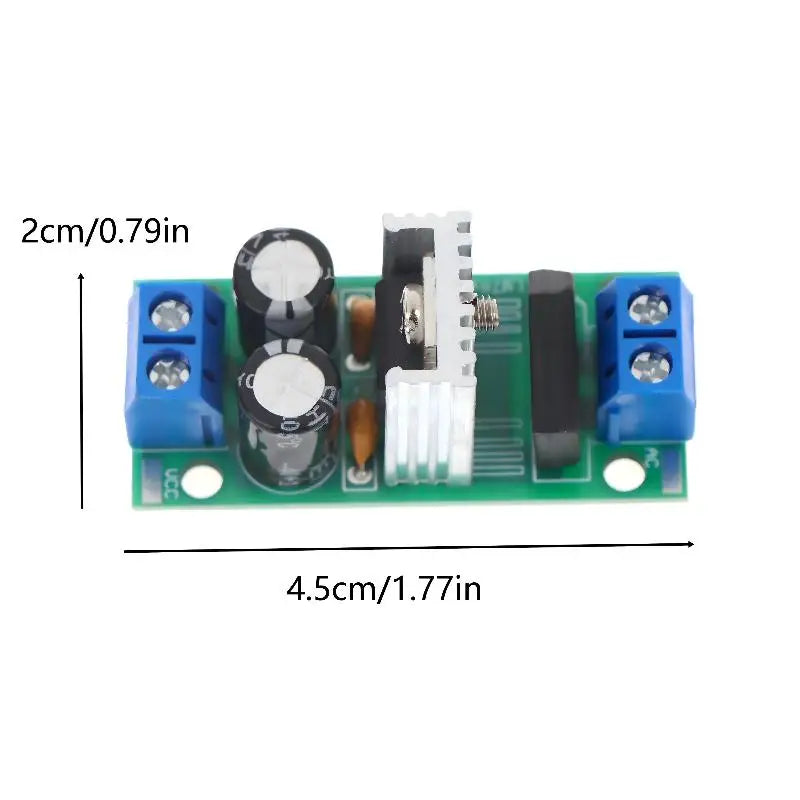

| PCB Size | Approx. 4.5 × 2 cm (1.77 × 0.79 in) |
| Package Includes | 1 × Voltage Regulator Module |
| Country of Origin | Made in China |
Who Is This For?
This module is perfect for electronics hobbyists, engineers, and makers who need a reliable, drop-in power regulation solution for single-board computers, Arduino/MCU projects, small industrial control systems, robotics, and DIY automation setups.
