Motherboard 9-Pin Front Panel Extension Cable 20/30/50cm
Motherboard 9-Pin Front Panel Extension Cable 20/30/50cm

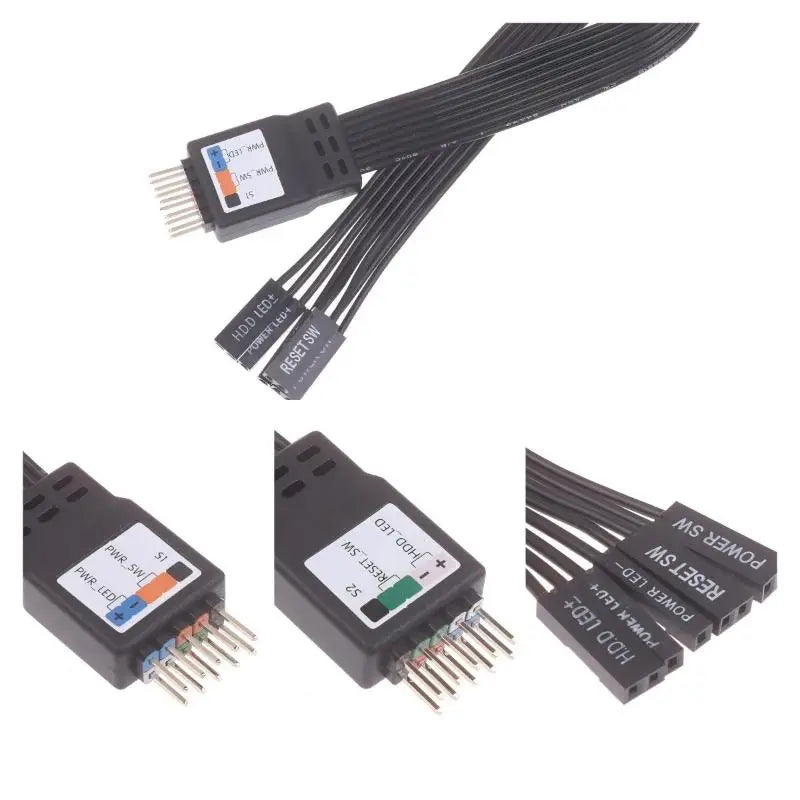

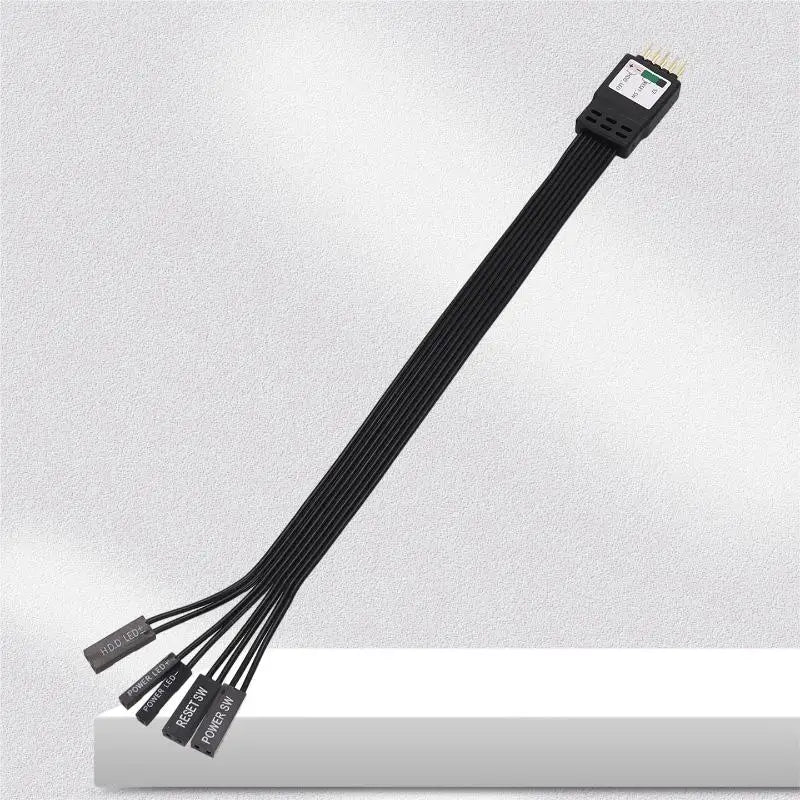

Motherboard 9-Pin Front Panel Extension Flat Cable
Simplify your desktop PC build or repair with this Motherboard 9-Pin Header Extension Flat Cable. Designed for DIY builders, system integrators, and computer repair technicians, this flat ribbon cable consolidates your front panel connections — Power SW, Reset SW, PLED, and HDD LED — into a single, clearly labelled 9-pin keyed connector. No more fumbling with individual wires or misaligned pins.
Available in three convenient lengths — 20 cm, 30 cm, and 50 cm — this extension cable gives you the flexibility to route connections neatly, even in compact or large tower cases. Clear letter markings on each pin eliminate guesswork and make installation fast and error-free every time.
Made in Mainland China.
Key Features

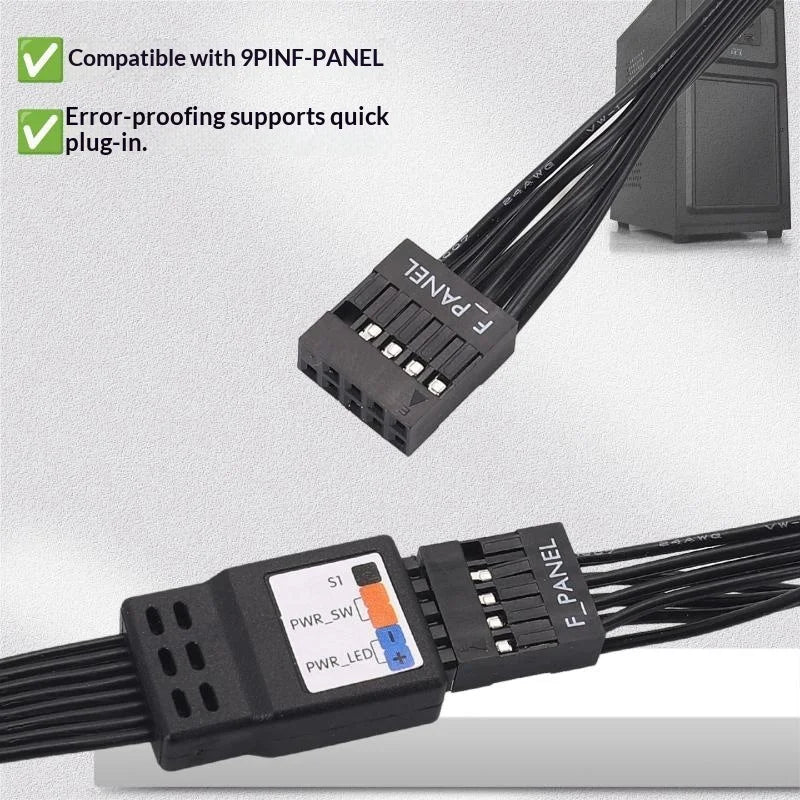

- Universal 9-Pin Keyed Connector: Compatible with standard ATX motherboard front panel headers.

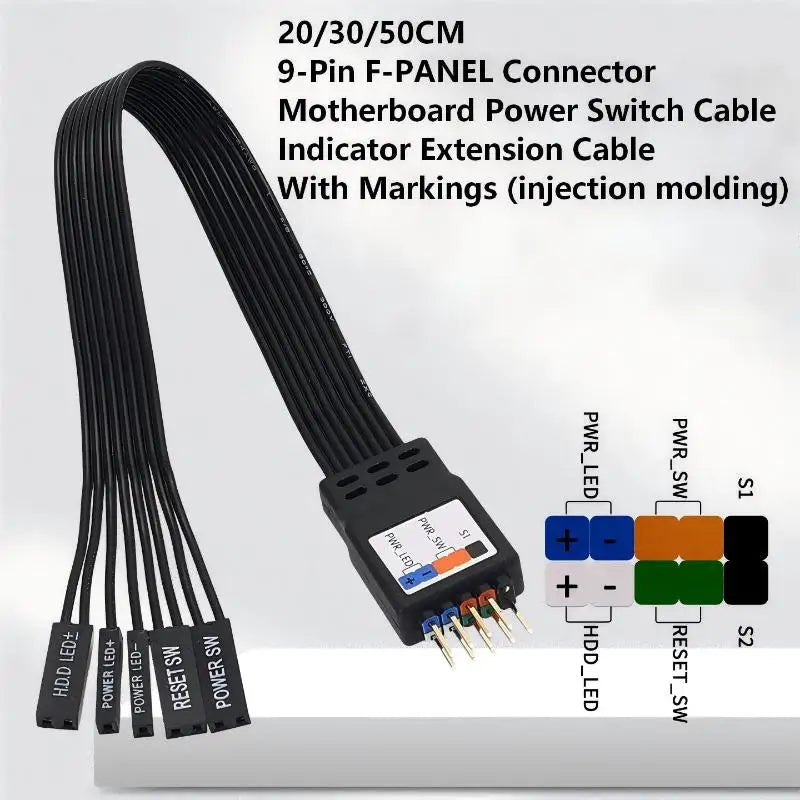

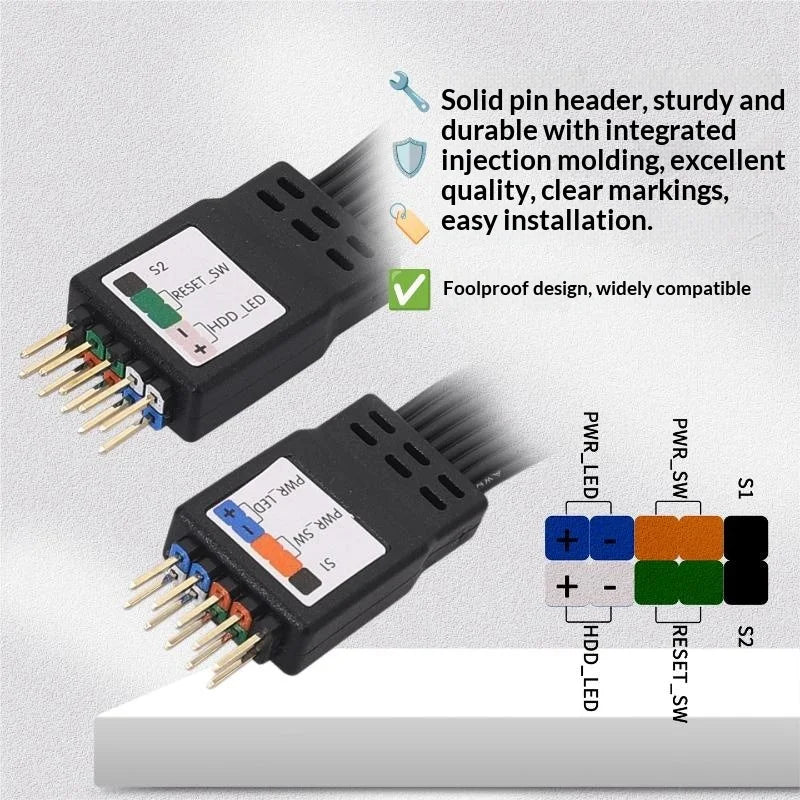

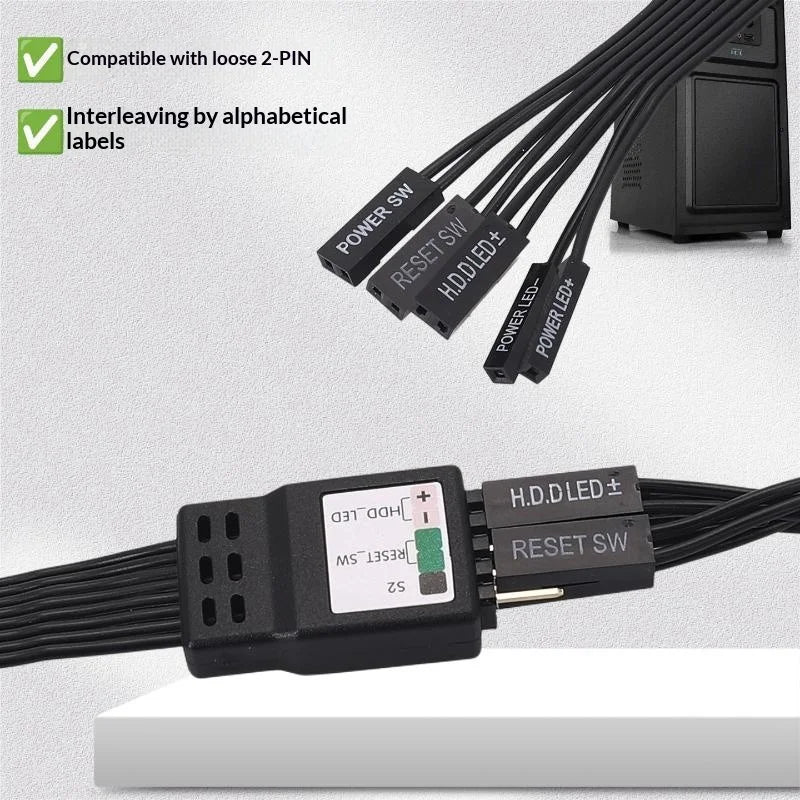

- Clear Pin Labelling: Each position is marked (Power SW, Reset SW, PLED+, PLED−, HDD LED+, HDD LED−) for quick, mistake-free installation.

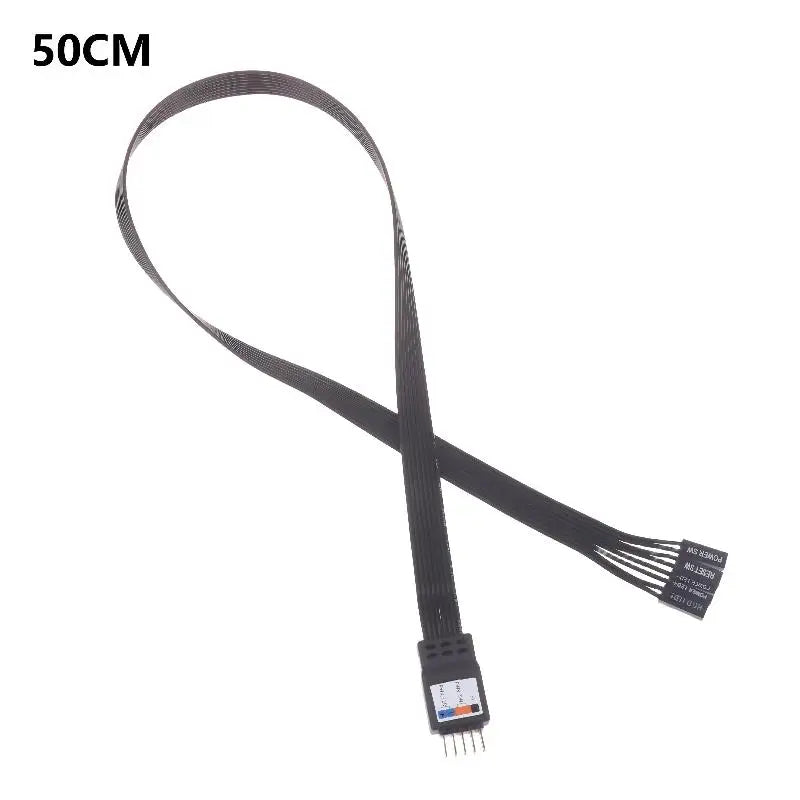

- Three Length Options: Choose from 20 cm, 30 cm, or 50 cm to suit your case size and cable routing needs.
- Flat Ribbon Design: Low-profile flat cable keeps your build tidy and improves airflow compared to loose individual wires.
- Durable Construction: High-quality materials ensure a reliable connection for everyday operation.
- Broad Use Cases: Ideal for PC assembly, front panel cable extension, hardware testing, and internal cable management upgrades.
Specifications
| Connector Type | 9-Pin Keyed Header (ATX Standard) |
| Cable Lengths | 20 cm / 30 cm / 50 cm (±5 mm tolerance) |
| Cable Style | Flat Ribbon |
| Signals Supported | Power SW, Reset SW, PLED+/−, HDD LED+/− |
| Package Contents | 1 × Extension Cable |
| Country of Origin | Mainland China |
What's in the Box
- 1 × Motherboard 9-Pin Front Panel Extension Flat Cable (your chosen length)
Related Products You May Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which motherboards is this 9-pin header extension cable compatible with?
A: This extension cable is designed to work with standard ATX motherboards that use a 9-pin front panel header. It consolidates Power SW, Reset SW, PLED, and HDD LED connections, making it compatible with the vast majority of desktop ATX, Micro-ATX, and Mini-ITX motherboards on the market.
Q: Which cable length should I choose — 20 cm, 30 cm, or 50 cm?
A: For standard mid-tower cases, the 20 cm or 30 cm cable is usually sufficient. If you have a full-tower case, a case with an unusually long front-panel-to-motherboard distance, or you simply want extra routing flexibility, the 50 cm option provides the most slack. Measure your case's internal distance from the front panel connector area to the motherboard header before ordering for the best fit.
Q: Will this cable help with cable management inside my PC case?
A: Yes. The flat ribbon design keeps your internal wiring neat and low-profile, reducing clutter around the motherboard header area. It also lets you route cables along case edges and behind panels more easily than individual loose wires, helping to improve both aesthetics and airflow.
Q: Is there a tolerance in the cable length?
A: Due to manual production processes, a deviation of up to ±5 mm from the stated length may exist. This is within normal manufacturing tolerance and will not affect the cable's functionality or fit.
