Dreamburgh MPPT Solar Charge Controller — WiFi, LCD & USB | 12/24V | 10A–60A

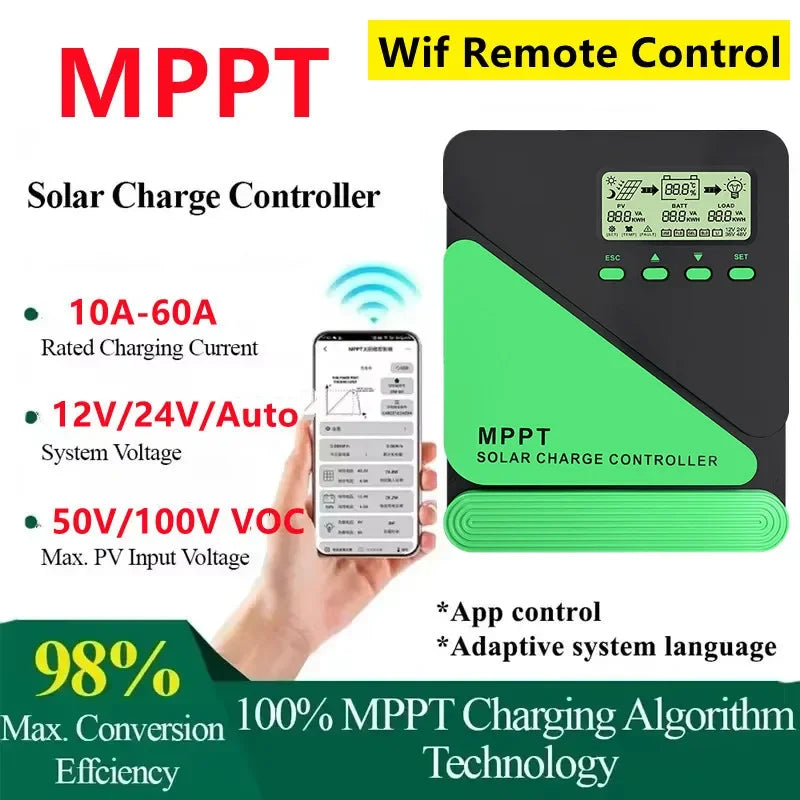

Maximize every watt from your solar panels with the Dreamburgh MPPT Solar Charge Controller. Featuring Maximum Power Point Tracking (MPPT) efficiency above 99%, a built-in LCD display, WiFi connectivity for remote monitoring, and a 5V/3A USB output for device charging, this controller is engineered for reliable off-grid solar power management. Compatible with LiFePO4, Lithium, Lead-Acid, and other common battery types, it auto-detects 12V or 24V systems — making setup simple and versatile.
Made in Mainland China.
Key Features
- MPPT Tracking Efficiency >99% — extracts maximum available solar energy in all conditions
- Conversion Efficiency ≤98% — minimizes heat loss and maximizes charge throughput
- Auto 12V/24V System Detection — self-identifies battery bank voltage on startup

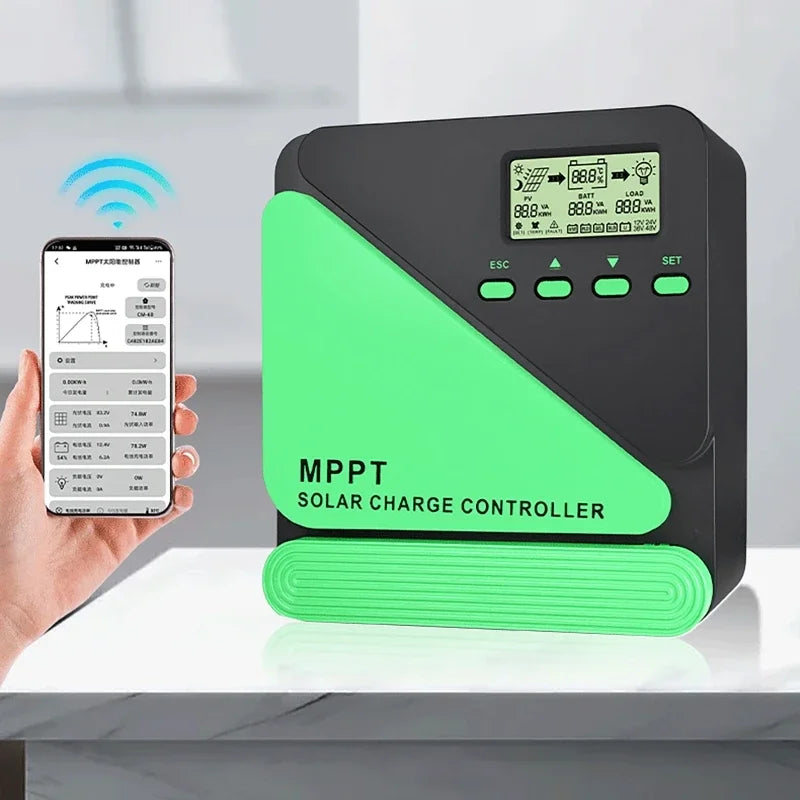

- WiFi Connectivity — monitor and configure your solar system remotely via app

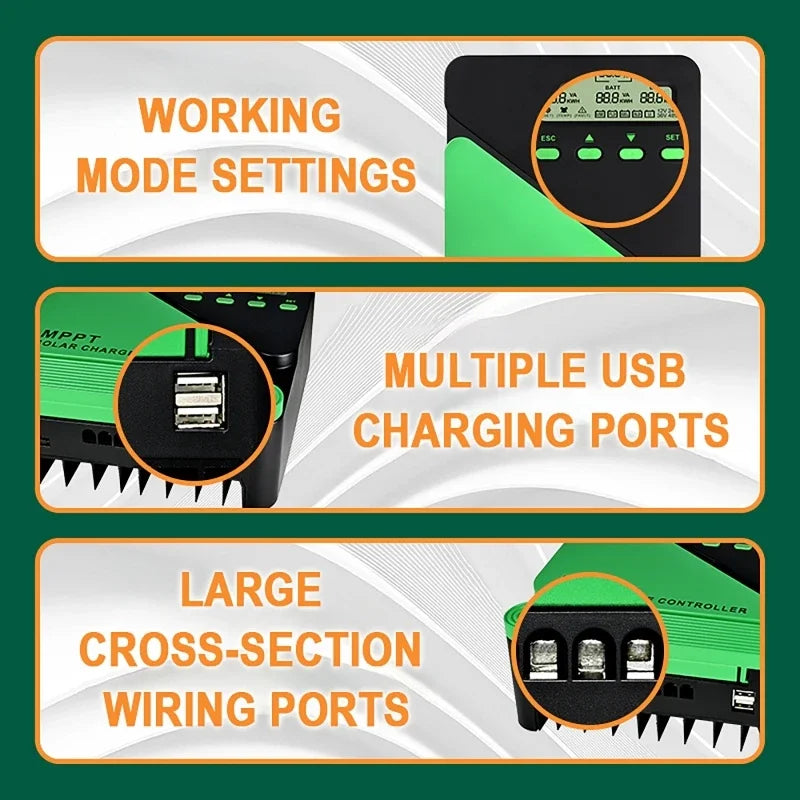

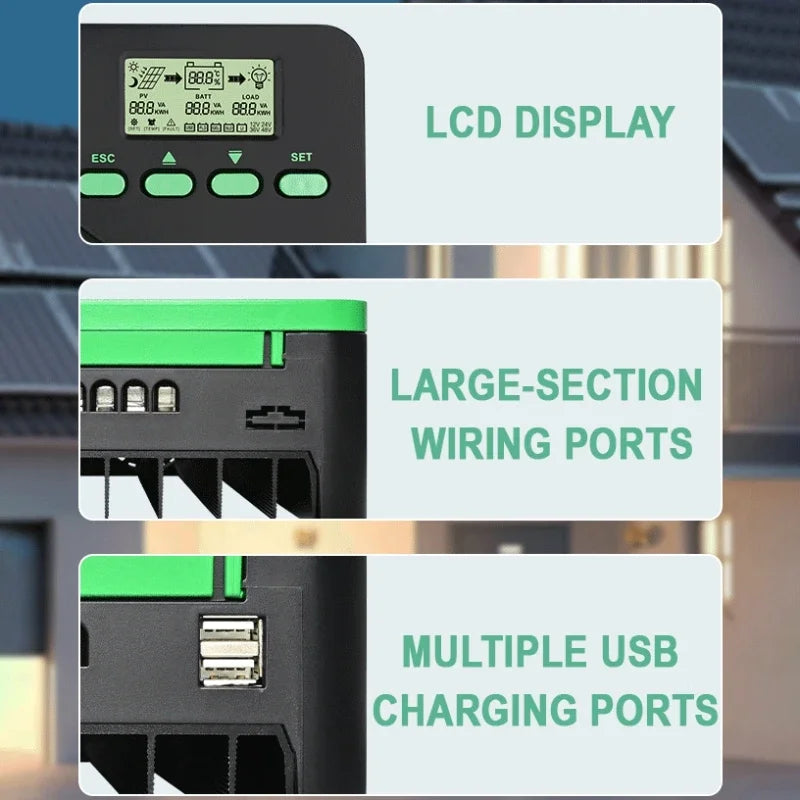

- Backlit LCD Display — real-time readout of voltage, current, battery status, and more
- Built-in USB Output: 5V/3A — charge phones, tablets, or small devices directly
- Wide Current Range: 10A, 20A, 30A, 40A, 50A, 60A — scalable for small cabins to larger off-grid systems
- Multi-Battery Compatibility: LiFePO4, Lithium-Ion, Sealed Lead-Acid, Flooded, Gel
- Temperature Compensation: -2mV/°C/2V for accurate charging in variable climates
- IP21 Protection Rating — guards against dust and dripping water
- Operating Temperature: -10°C to +65°C
- Ultra-Low Standby Draw: ≤0.4W no-load consumption
Specifications by Model
10A / 20A Models
- Rated Charge Current: 10A or 20A
- Rated Discharge Current: 20A
- System Voltage: 12V/24V Auto
- Max Solar Input Voltage: 50V VOC
- Max PV Input Power — 10A: 120W (12V) / 240W (24V) | 20A: 240W (12V) / 480W (24V)
- USB Output: 5V 3A
30A / 40A / 50A / 60A Models
- Rated Charge Current: 30A / 40A / 50A / 60A
- Rated Discharge Current: 20A
- System Voltage: 12V/24V Auto
- Max Solar Input Voltage: 100V VOC
- Max PV Input Power — 30A: 360W (12V)/720W (24V) | 40A: 480W (12V)/960W (24V) | 50A: 600W (12V)/1200W (24V) | 60A: 720W (12V)/1440W (24V)
- USB Output: 5V 3A
General Specifications
- Battery Voltage Range: 9–32V
- Max Power Voltage Range: Battery voltage +2V ~ 50V
- No-Load Consumption: ≤0.4W
- Dimensions: 135 × 135 × 55 mm
- Color: Black + Green
What's in the Box
- 1 × Dreamburgh MPPT Solar Charge Controller
Compatible Products & Accessories
Looking to build out your electrical or power setup? Check out these related products from our store:
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What battery types are compatible with this MPPT solar charge controller?
A: The Dreamburgh MPPT Solar Charge Controller supports multiple battery chemistries including LiFePO4 (lithium iron phosphate), standard lithium-ion, sealed lead-acid (AGM), flooded, and gel batteries. You can select the correct battery type via the LCD menu for optimized charging profiles.
Q: How does the WiFi feature work on this solar charge controller?
A: The built-in WiFi module allows you to connect the controller to your home or mobile network and monitor real-time solar input, battery voltage, charge current, and load status remotely through a compatible smartphone app. This makes it easy to keep an eye on your off-grid system without being on-site.
Q: What is the difference between the 10A/20A and the 30A–60A models?
A: The 10A and 20A models support a maximum solar input voltage of 50V VOC, making them ideal for smaller panel arrays (up to 480W on 24V). The 30A–60A models support up to 100V VOC solar input, enabling larger panel configurations (up to 1440W on 24V for the 60A version). Choose the model that matches your panel wattage and system capacity needs.
Q: Does this controller auto-detect whether my system is 12V or 24V?
A: Yes. The controller features automatic 12V/24V system voltage self-identification. When you connect it to your battery bank, it detects the system voltage automatically, eliminating the need for manual voltage configuration.
