PIR Motion Sensor Light Switch | Wall Mount AC110–240V
PIR Motion Sensor Light Switch | Wall Mount AC110–240V
Automatic Motion-Activated Lighting Control — Hands-Free Convenience
This wall-mounted PIR (Passive Infrared) motion sensor switch automatically turns your lights on when it detects movement and switches them off after a set delay — perfect for hallways, staircases, corridors, garages, and entryways. No more fumbling for a switch in the dark. Made in China.
Key Features
- Wide Detection Angle: Greater than 140° coverage ensures broad room awareness with minimal blind spots.
- Long Detection Range: Detects movement up to 10 metres away (at temperatures below 22°C).
- Adjustable Delay Time: Set the light-off delay anywhere from 5 seconds to 7 minutes to suit your needs.
- Adjustable Ambient Light Sensitivity: Operates in ambient light conditions from 3 to 1,000 LUX — you can configure it to activate only after dark, saving energy during daylight hours.
- Universal Voltage Compatibility: Works on AC 110–240V / 50–60Hz, suitable for use in most countries worldwide.
- High Load Capacity: Rated at 500W, compatible with a wide range of LED, CFL, and incandescent bulbs.
- Low Power Draw: Only 0.45W active (0.1W in standby) — highly energy-efficient.
- Compact Square Design: Sleek 80 × 80mm white panel blends seamlessly with standard wall fittings.
- Flame-Retardant ABS Body: Built for safety and durability in everyday home environments.
- Wide Operating Temperature Range: Functions reliably from -20°C to +40°C.
Specifications
| Material | Flame-retardant ABS plastic |
| Detection Angle | >140° |
| Detection Distance | Up to 10M (<22°C) |
| Operating Voltage | AC 110–240V, 50/60Hz |
| Rated Load | 500W |
| Power Consumption | 0.45W active / 0.1W standby |
| Delay Time | 5 seconds – 7 minutes (adjustable) |
| Ambient Light Range | 3–1,000 LUX (adjustable) |
| Installation Height | 0.4–1.8M |
| Operating Temperature | -20°C to +40°C |
| Operating Humidity | <93% RH |
| Colour | White |
| Dimensions | 80 × 80mm |
What's in the Box

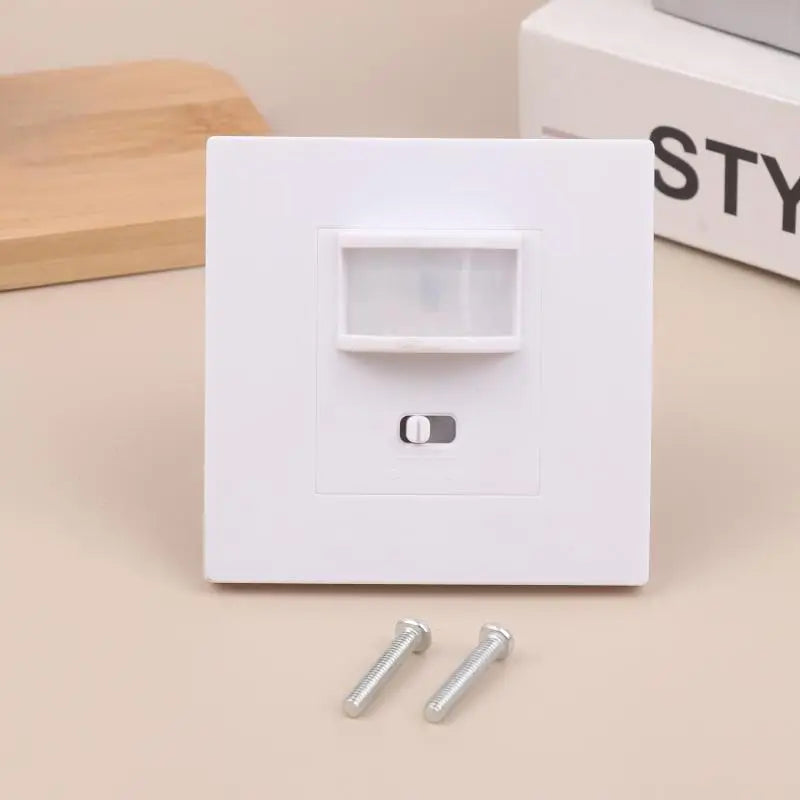

- 1 × PIR Motion Sensor Switch
Great Products to Pair With
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors — keep your wiring neat and weather-sealed.
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm — protect cables at switch entry points.
- 2-Pack Adjustable Wall-Mount Curtain Rod Brackets – Metal — another smart wall-mounting solution for your home.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of light bulbs are compatible with this PIR motion sensor switch?
A: The switch supports a rated load of up to 500W and works with most standard light fixtures including LED, CFL, and incandescent bulbs running on AC 110–240V. Always ensure your total connected load does not exceed 500W.
Q: Can I adjust how long the light stays on after motion is detected?
A: Yes! The delay time is fully adjustable between 5 seconds and 7 minutes, so you can customise it for short passages like a hallway or longer dwell times for a stairwell or garage.
Q: Will the sensor activate during the day when there is already enough natural light?
A: The built-in ambient light sensitivity is adjustable from 3 to 1,000 LUX. You can set a LUX threshold so the switch only activates the light when it gets dark enough, preventing unnecessary energy use during daylight hours.
Q: What is the maximum detection range of this motion sensor switch?
A: The sensor detects movement up to 10 metres away at ambient temperatures below 22°C. The detection angle exceeds 140°, providing broad coverage suitable for most rooms and corridors.
