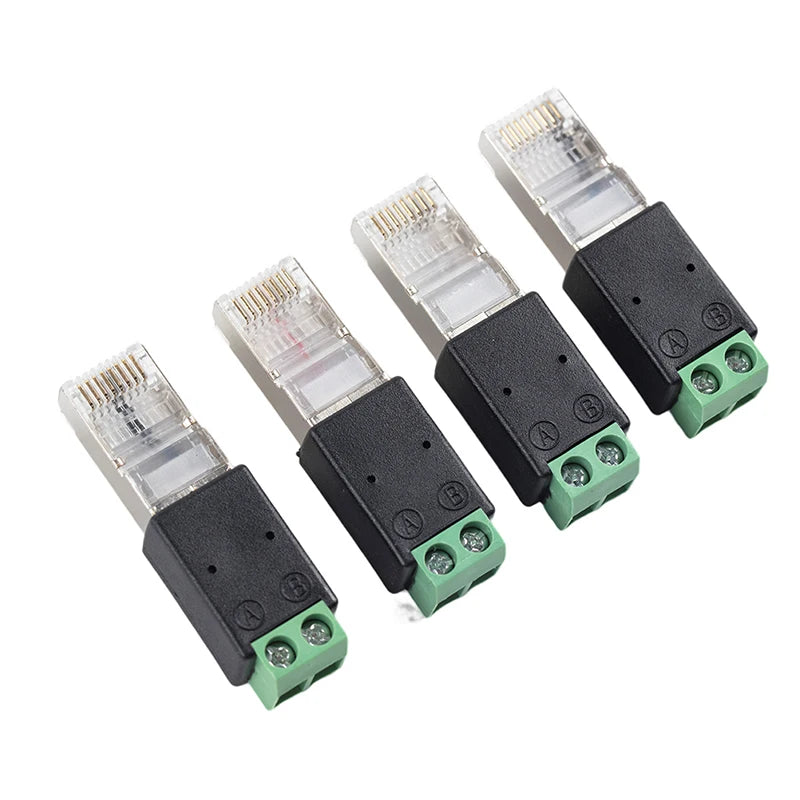

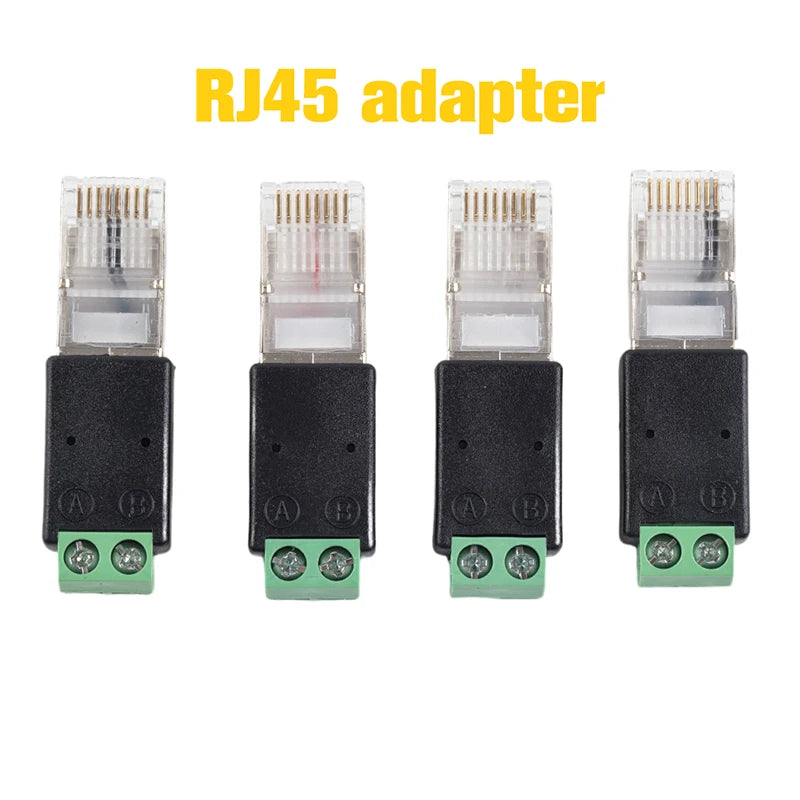

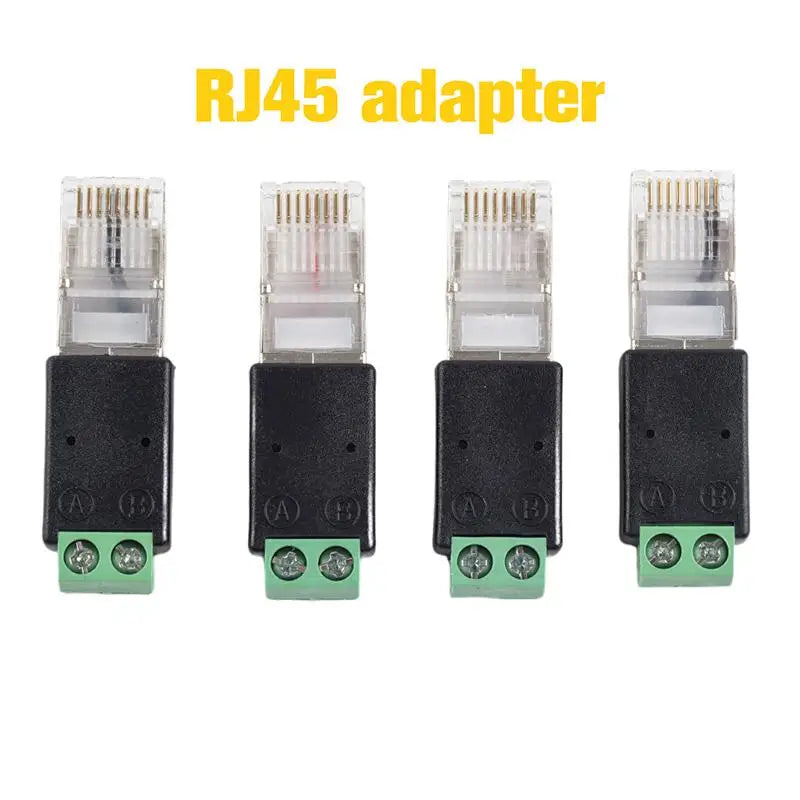

RJ45 to RS485 Converter Adapter with Terminal Block
Bridge your RS485 devices to RJ45 interfaces effortlessly with this compact, high-quality converter adapter. Designed for large-scale monitoring systems, industrial automation, and networked control setups, this adapter provides stable signal transmission between RS485 and RJ45 ports — no extra tools or complex wiring required.
Key Features
- Flexible Pin Configuration: Supports multiple connection setups — A/B signal pairs on pins 4/5, 6/7, or 7/8 — to accommodate a wide range of RS485 device pinouts.
- Stable Signal Transmission: Reliable crimp terminal block construction ensures consistent, interference-free data transfer in demanding environments.
- Wide Operating Temperature: Functions reliably from -40°C to +85°C, making it suitable for both indoor and outdoor industrial installations.
- Compact & Lightweight: Measures just 4.4 × 1.3 × 1.1 cm — easy to install even in tight cable management spaces.
- Plug-and-Play Convenience: Simply insert A and B signal wires into the correct terminal block positions and connect the RJ45 end to your device.
- Broad Compatibility: Ideal for any RS485 device that uses an RJ45 connector interface, including surveillance cameras, access control systems, and industrial sensors.
Technical Specifications
| Type | RJ45 to RS485 Terminal Adapter |
| Material | Plastic housing, electronic components |

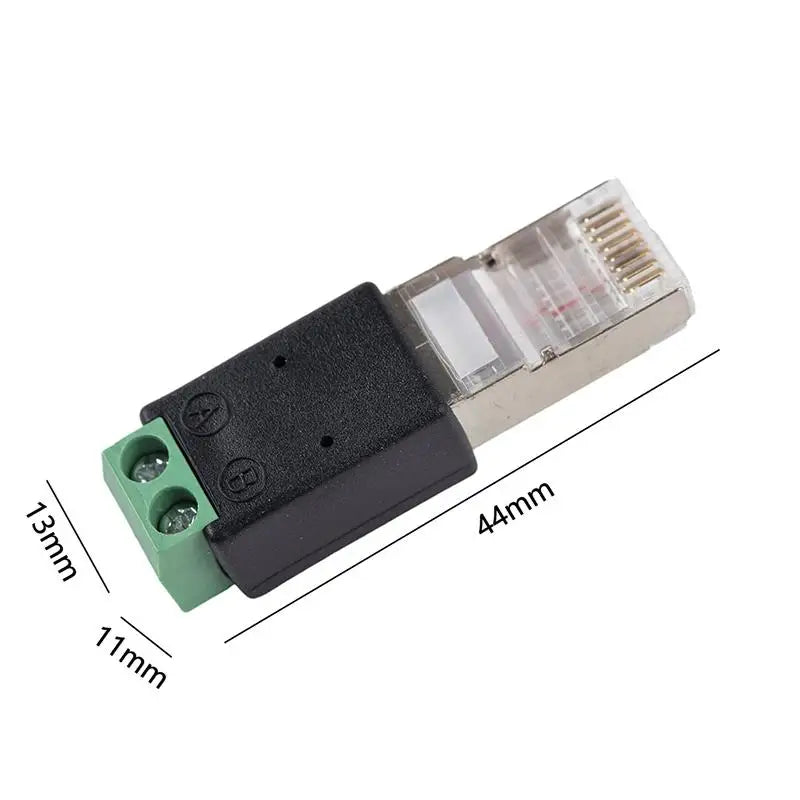

| Dimensions | 4.4 × 1.3 × 1.1 cm |
| Supported Pins | 4/5, 6/7, or 7/8 |
| Operating Temperature | -40°C to +85°C |
| EU LVD Voltage | Low voltage: Below 50V AC or 75V DC |
| Quantity | 1 piece |
| Country of Origin | Made in Mainland China |

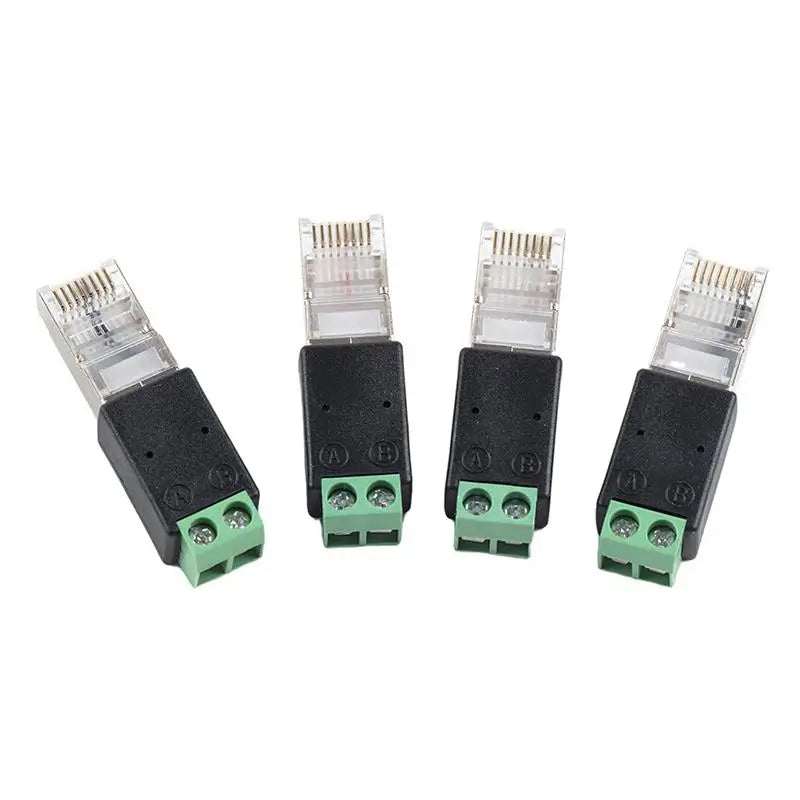

Connection Guide
This adapter supports four primary wiring configurations:

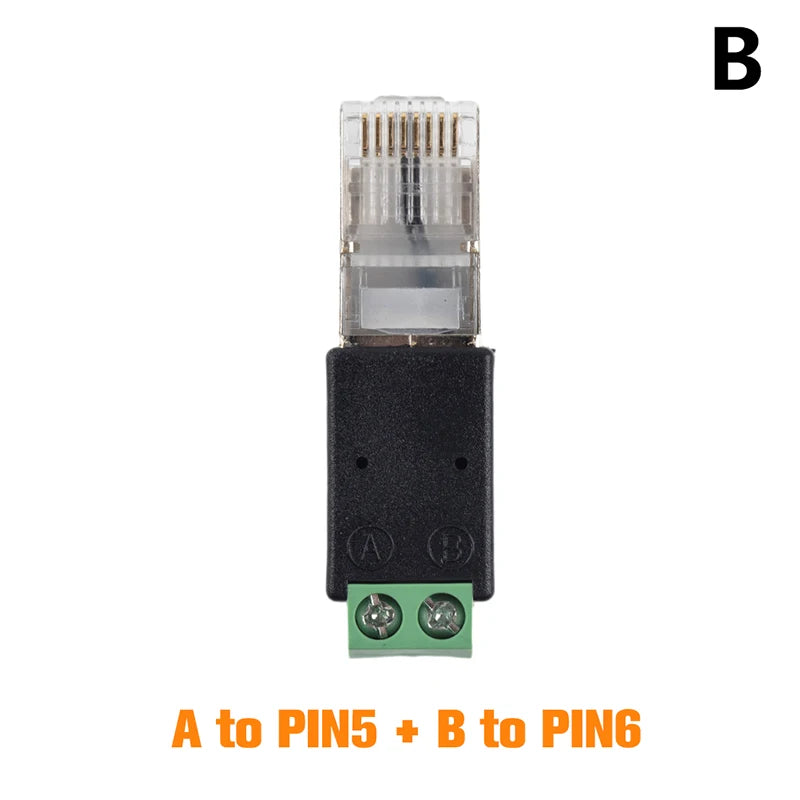

- Pins 4 & 5: Insert wire A into Pin 4 (485A) and wire B into Pin 5 (485B). If inverted, A connects to 485B and B to 485A.
- Pins 5 & 6: Insert wire A into Pin 5 (top input) and wire B into Pin 6.
- Pins 6 & 7: Insert wire A into Pin 6 (485A) and wire B into Pin 7 (485B). Swapping positions reverses the A/B assignment.
- Pins 7 & 8: Insert wire A into Pin 7 (top) and wire B into Pin 8 (top).
