RJ45 to RS485 Terminal Block Converter Adapter
RJ45 to RS485 Terminal Block Converter Adapter
RJ45 to RS485 Terminal Block Converter Adapter
Bridge the gap between RS485 devices and RJ45 interfaces with this compact, reliable converter adapter. Designed for use in large monitoring systems, security networks, and industrial control setups, this terminal block adapter ensures stable, consistent signal transmission across your RS485 infrastructure — all in a package smaller than your thumb.
Key Features

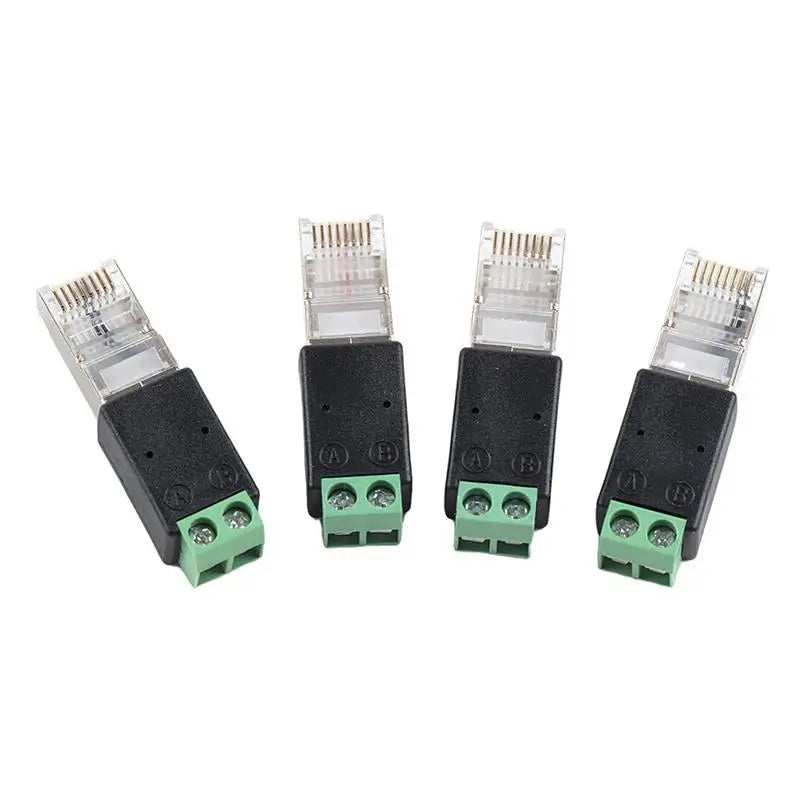

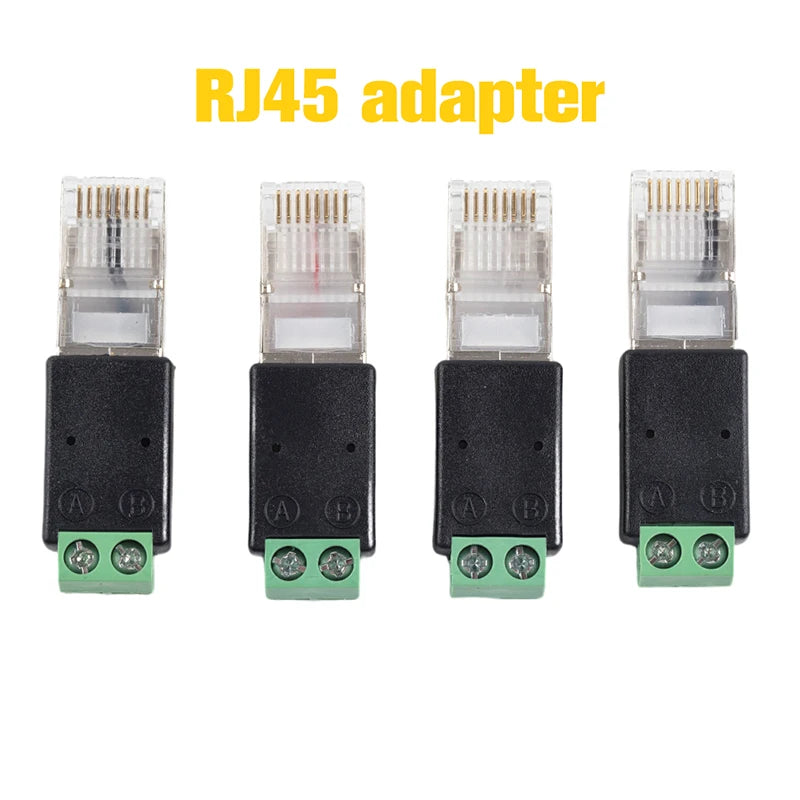

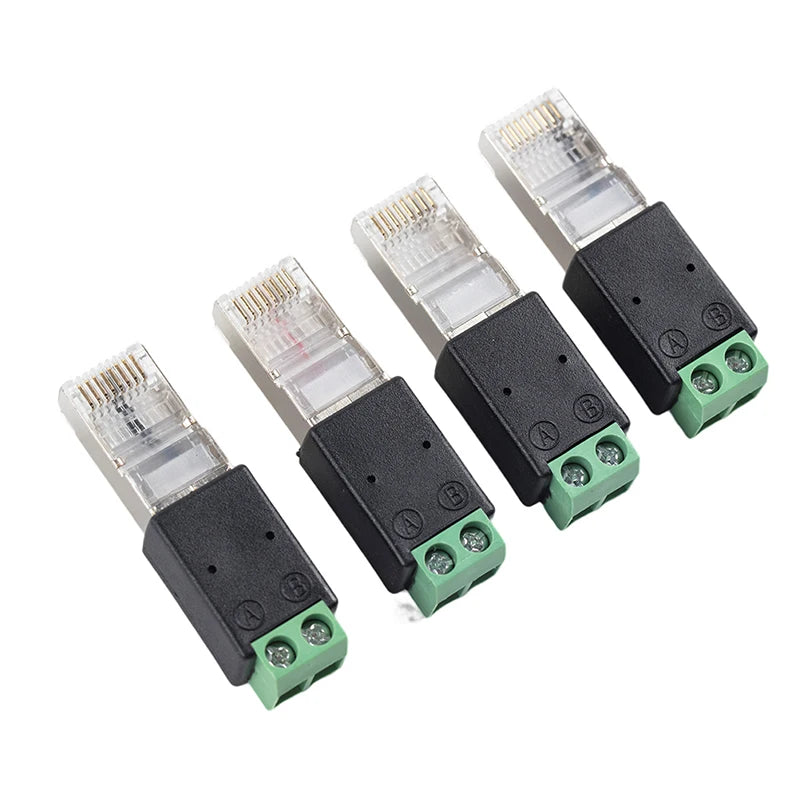

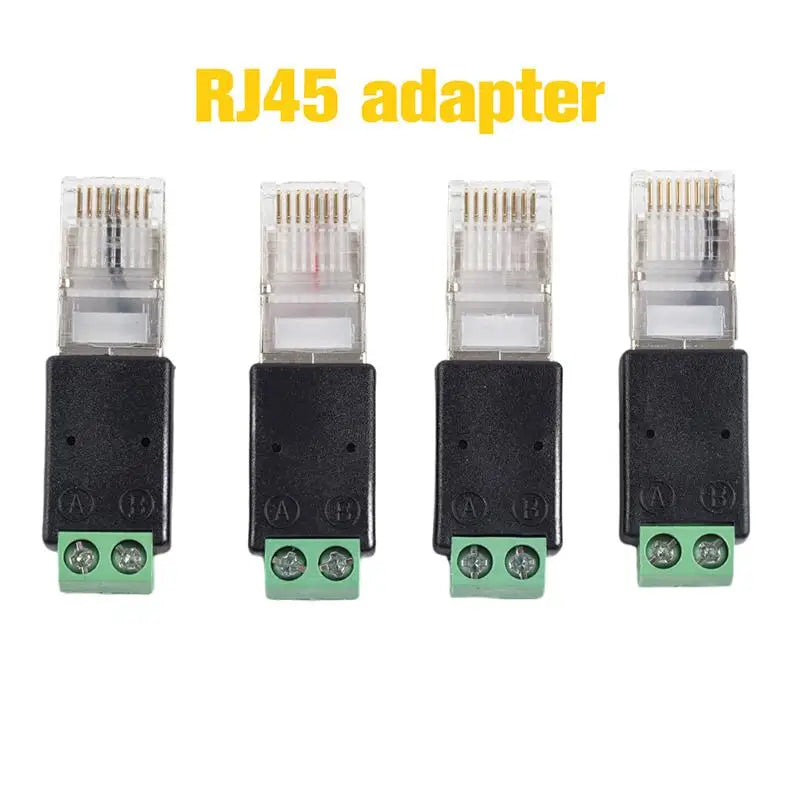

- Flexible Pin Configuration: Supports multiple wiring setups — connect A to pin 4 & B to pin 5, A to pin 5 & B to pin 6, A to pin 6 & B to pin 7, or A to pin 7 & B to pin 8 — accommodating a wide range of RS485-over-RJ45 layouts.
- Stable RS485 Signal Conversion: Converts RS485 differential signals (485A/485B) directly through a standard RJ45 port for clean, interference-resistant data transmission.
- Wide Operating Temperature Range: Rated -40°C to +85°C, making it suitable for both indoor and outdoor industrial environments.
- Compact & Lightweight: Measures just 4.4 × 1.3 × 1.1 cm — easy to fit into tight enclosures, patch panels, or junction boxes.
- Durable Construction: Made with high-quality plastic and electronic-grade components for long-term reliability in demanding monitoring or automation applications.
- Plug-and-Play Design: No drivers or external power required — simply wire A/B terminals and plug into your RJ45 port.
Technical Specifications
| Type | RJ45 to RS485 Terminal Block Adapter |
| Used Pins | 4/5, 5/6, 6/7, or 7/8 |
| Interface | RS485 (A/B) → RJ45 |
| Operating Temperature | -40°C to +85°C |

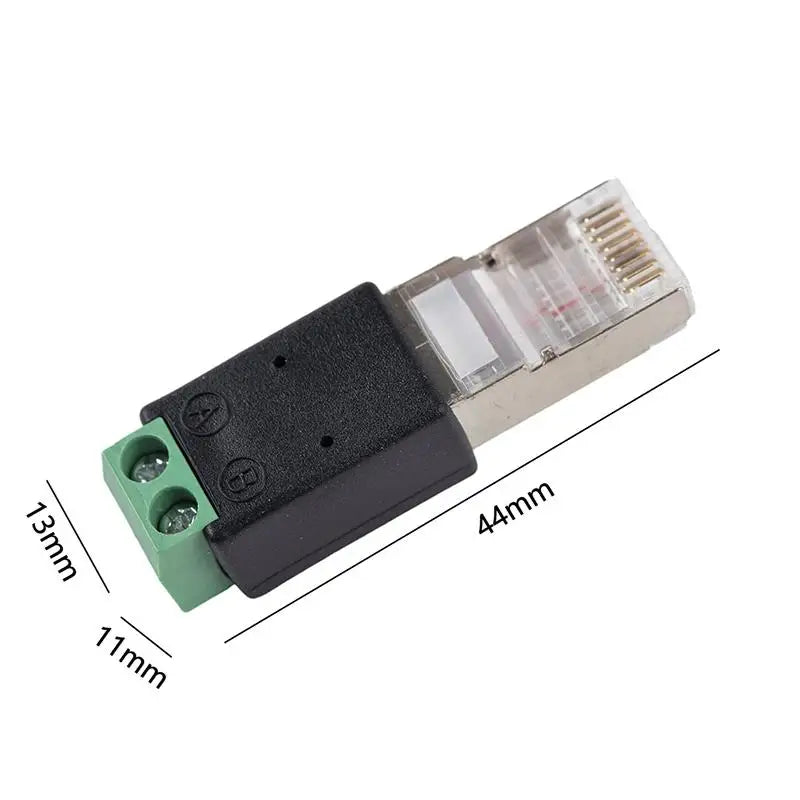

| Dimensions | 4.4 × 1.3 × 1.1 cm |
| Material | Plastic / Electronic components |
| Quantity | 1 piece |
| Country of Origin | Made in China |
Connection Setup Guide
- Option 1: Insert A into Pin 4 (485A), B into Pin 5 (485B).

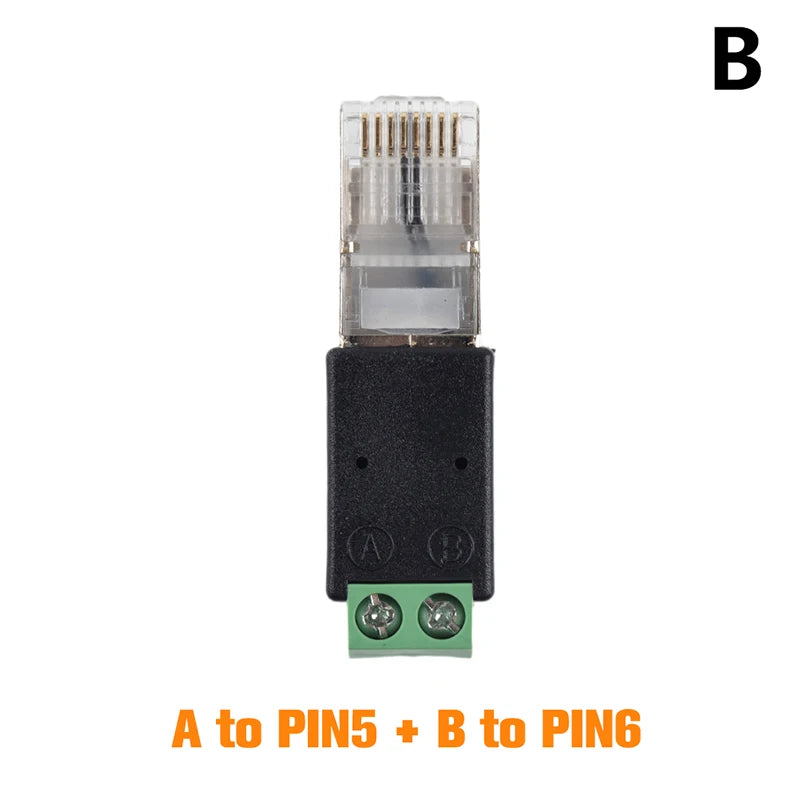

- Option 2: Insert A into Pin 5 (485A), B into Pin 6 (485B).
- Option 3: Insert A into Pin 6 (485A), B into Pin 7 (485B).
- Option 4: Insert A into Pin 7 (485A), B into Pin 8 (485B).
- Note: If your device has inverted polarity (e.g. Pin 4 = 485B, Pin 5 = 485A), simply swap A and B accordingly.
Ideal Applications
- CCTV and large-scale monitoring systems using RS485 control
- Industrial automation and PLCs with RJ45-format RS485 ports
- Building management systems (BMS)
- Serial data networks and access control systems
Related Products
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the RJ45 to RS485 terminal block adapter used for?
A: This adapter allows RS485 serial communication devices to connect through a standard RJ45 port. It is commonly used in monitoring systems, industrial automation, access control panels, and any setup where RS485 devices are wired using an RJ45 connector interface.
Q: Which RJ45 pins does this RS485 adapter support?
A: This adapter supports multiple pin pair configurations: pins 4/5, pins 5/6, pins 6/7, and pins 7/8. This flexibility makes it compatible with a wide variety of RS485-over-RJ45 equipment from different manufacturers.
Q: Does this adapter work in outdoor or extreme temperature environments?
A: Yes. The RJ45 to RS485 converter is rated for an operating temperature range of -40°C to +85°C, making it suitable for both indoor rack installations and harsher outdoor or industrial environments.
Q: Do I need any special software or drivers to use this adapter?
A: No. This is a purely passive hardware adapter — no drivers, software, or external power supply are needed. Simply connect your A and B RS485 terminals to the appropriate pins and plug the RJ45 end into your device.
