RP2040-Zero: Compact Dual-Core Microcontroller Development Board
The RP2040-Zero is a powerful, ultra-compact development board built around the Raspberry Pi RP2040 microcontroller chip. Designed for makers, students, hobbyists, and engineers, this mini PICO-style board packs a dual-core ARM Cortex-M0+ processor into a tiny footprint — making it ideal for embedded projects, IoT prototypes, robotics, and custom electronics builds.
Whether you're programming in MicroPython, CircuitPython, or C/C++, the RP2040-Zero gives you a flexible, affordable platform to bring your ideas to life.
Key Features
- Chip: Raspberry Pi RP2040 dual-core ARM Cortex-M0+ processor

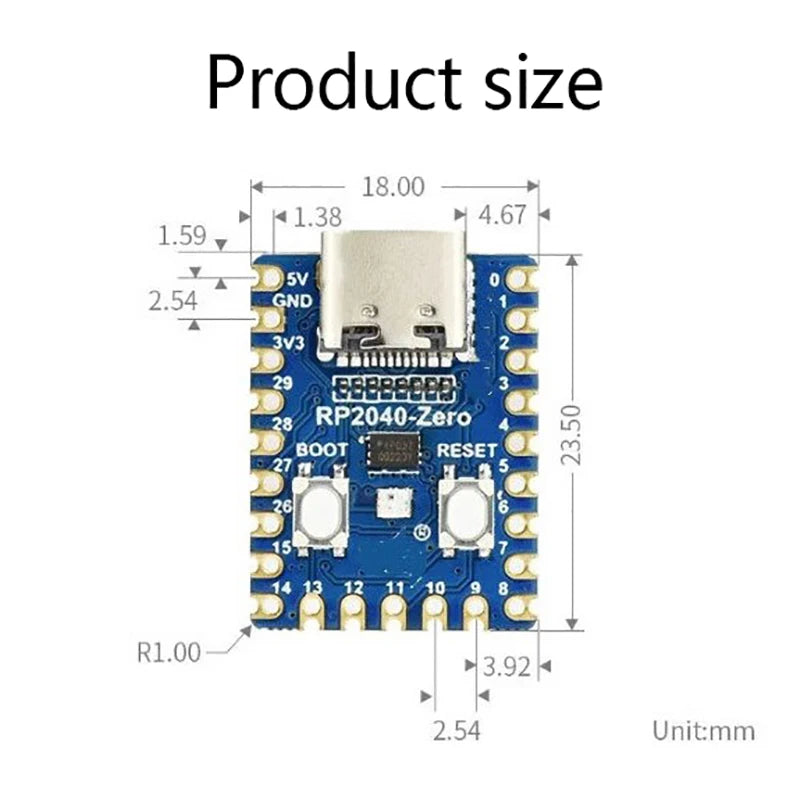

- Form Factor: Compact PICO-compatible mini development board (smaller than standard Pico)
- USB Connectivity: USB Type-C interface for power and programming
- Flash Memory: 2MB onboard flash storage
- GPIO Pins: Multiple GPIO, SPI, I2C, UART, PWM, and ADC interfaces
- Onboard RGB LED: WS2812 addressable RGB LED for status indication or visual projects
- Clock Speed: Up to 133MHz
- Programming: Supports MicroPython, CircuitPython, and C/C++ SDK
- Boot Button: Built-in BOOTSEL button for easy firmware flashing
- Condition: 100% brand new, high quality
- Made in Mainland China
What's in the Box?

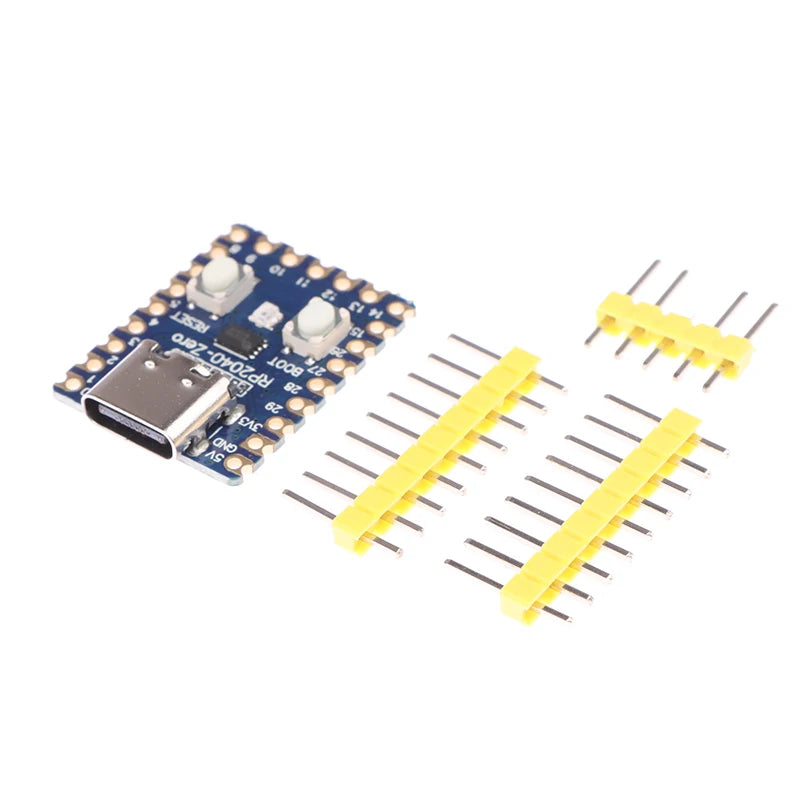

- 1 × RP2040-Zero Development Board Module
Perfect For
- Embedded systems & IoT prototyping
- Robotics and automation projects
- Wearable electronics and custom PCB builds
- Learning microcontroller programming
- Space-constrained hardware designs
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What programming languages are supported by the RP2040-Zero development board?
A: The RP2040-Zero supports MicroPython, CircuitPython, and the official C/C++ SDK provided by Raspberry Pi. This makes it accessible for beginners using Python-style scripting as well as advanced developers working closer to the hardware with C/C++.
Q: Is the RP2040-Zero compatible with standard Raspberry Pi Pico libraries and pinouts?
A: The RP2040-Zero uses the same RP2040 chip as the Raspberry Pi Pico, so it is largely software-compatible. However, its physical form factor is smaller and the pinout arrangement differs slightly, so always refer to the RP2040-Zero specific pinout diagram when designing your circuit.
Q: How do I flash new firmware or upload a program to the RP2040-Zero?
A: Hold the BOOTSEL button while connecting the board to your computer via USB Type-C. It will appear as a removable drive (RPI-RP2). Simply drag and drop your UF2 firmware file onto this drive. The board will automatically reboot and run your new program.
