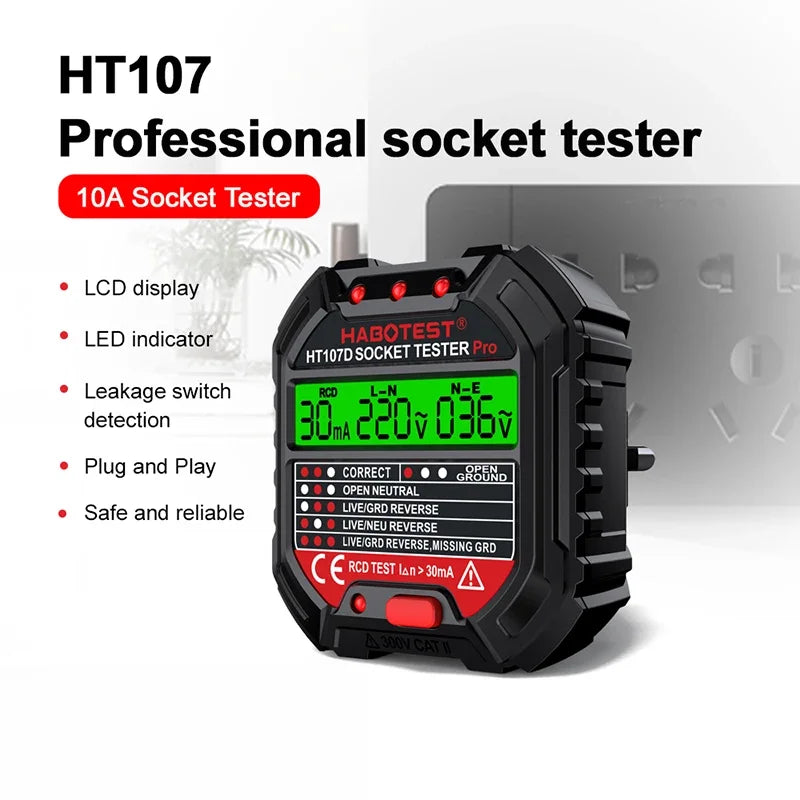

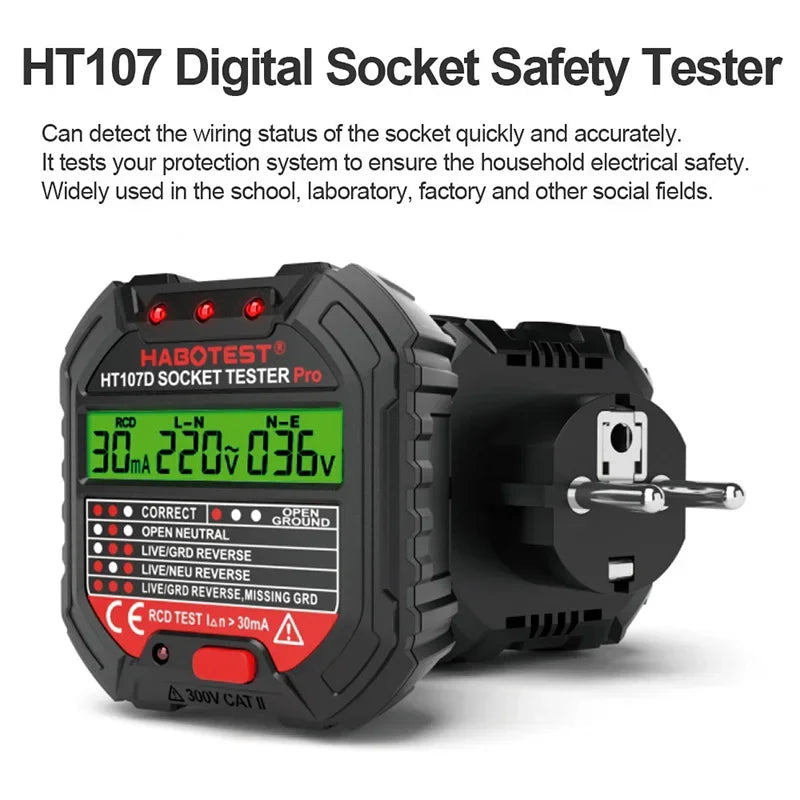

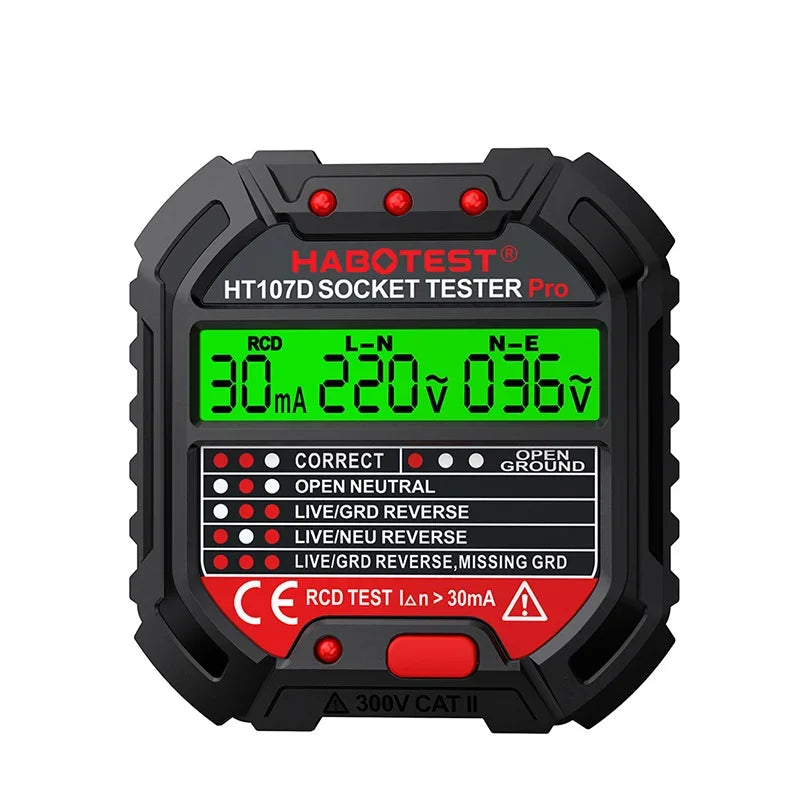

Professional Socket Tester & Outlet Voltage Detector (EU / US / UK)
Take the guesswork out of electrical safety with the QXL HT107D Socket Tester — a compact, plug-and-play outlet tester that instantly checks polarity, grounding, wiring faults, and live voltage on EU, US, and UK sockets. The built-in LCD display gives you a clear, at-a-glance readout in under one second, making it an essential tool for homeowners, electricians, and property inspectors alike.
Made in Mainland China.
Key Features
- Universal Compatibility — Works with EU, US, and UK outlet types; covers operating voltages from 48 V to 250 V / 45–65 Hz.
- LCD Voltage Display — Measures AC voltage 48–250 V with ±(2.0%+2) accuracy so you always know exactly what's coming out of the outlet.

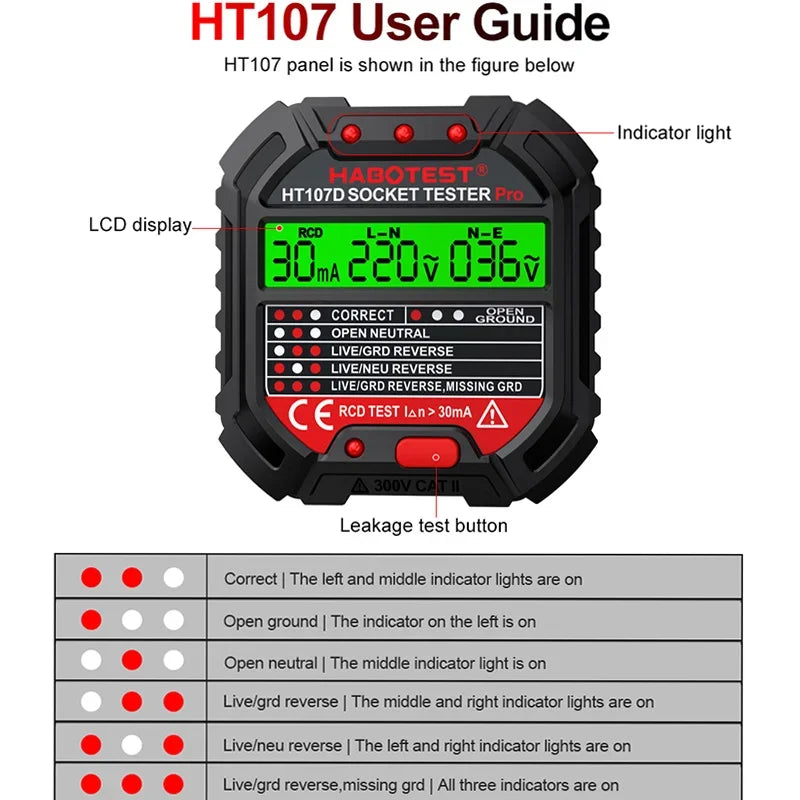

- Polarity & Ground Check — Instantly identifies open ground, open neutral, open live, live/neutral reverse, and live/ground reverse wiring faults.

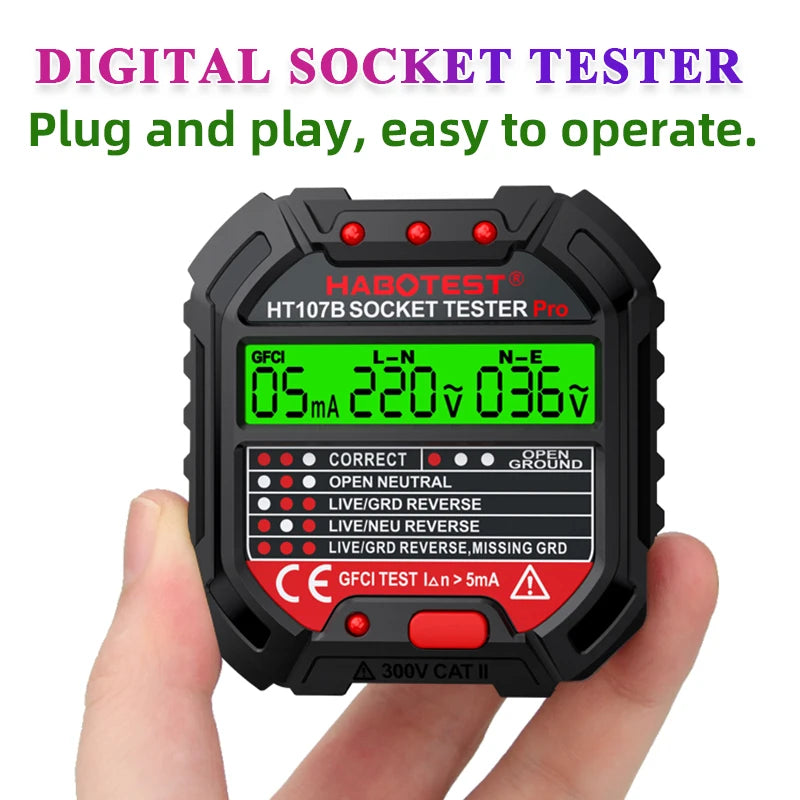

- RCD / GFCI Function Test — Tests Residual Current Devices (>30 mA, EU/UK plug, 220 V ± 20 V) and GFCI breakers (>5 mA, US plug, 110 V ± 20 V). Note: RCD and GFCI functions do not operate simultaneously.
- Leakage Voltage Measurement — Detects leakage voltage in the 0–99 V / 45–65 Hz range.
- Plug & Play — No batteries required; simply plug in and read the result in one second.
- Portable & Compact — Slim, lightweight design fits in a tool bag or pocket for on-the-go circuit checking.

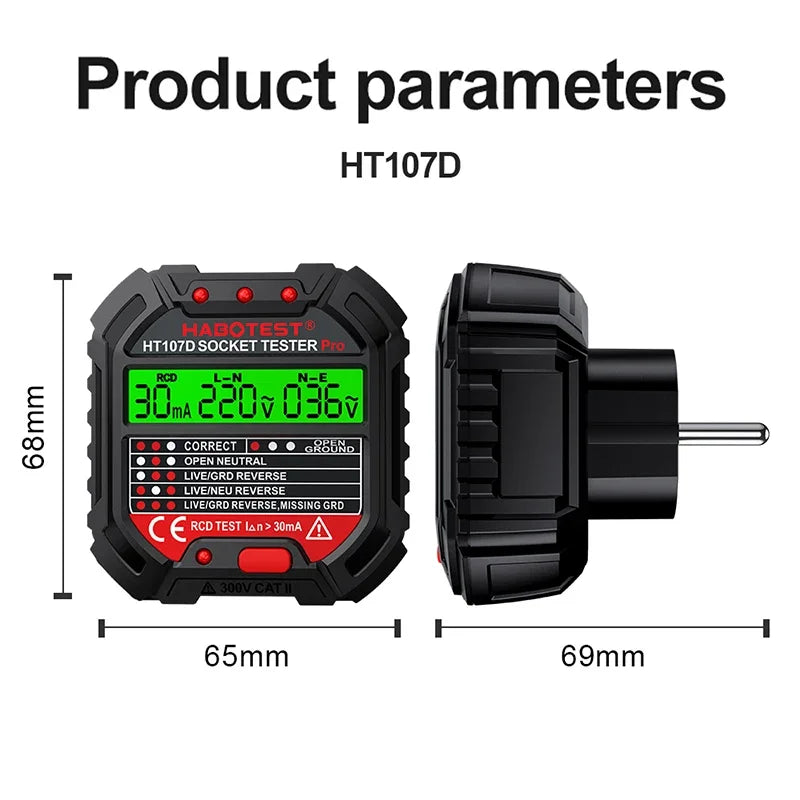

Technical Specifications
| Model | HT107D |
| Operating Voltage | 48–250 V / 45–65 Hz |
| Voltage Measurement | 48–250 V / 45–65 Hz, accuracy ±(2.0%+2) |
| Leakage Voltage | 0–99 V / 45–65 Hz |
| RCD Test | >30 mA @ 220 V ± 20 V (EU/UK) |
| GFCI Test | >5 mA @ 110 V ± 20 V (US) |
| Display | LCD |
| Battery | Not required |
| Operating Temp. | 0 °C – 40 °C |
| Operating Humidity | 20%–75% RH |
| Storage Temp. | −10 °C – 50 °C |
| Storage Humidity | 20%–80% RH |
| Max Altitude | ≤ 2000 m |
What's in the Box
- 1 × Socket Tester (HT107D)
- 1 × User Manual
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Does the socket tester work with EU, US, and UK outlets?
A: Yes. The HT107D socket tester is designed to work with EU, US, and UK outlet types. It covers an operating voltage range of 48–250 V / 45–65 Hz, making it suitable for a wide variety of international socket standards.
Q: Does the socket tester require batteries?
A: No batteries are needed. The tester draws power directly from the outlet being tested — simply plug it in and the LCD display will show the result within one second.
Q: Can I use the RCD and GFCI test functions at the same time?
A: No. The RCD function (for EU/UK plugs at 220 V ± 20 V) and the GFCI function (for US plugs at 110 V ± 20 V) cannot operate simultaneously. Use the appropriate function for your outlet type.
Q: What wiring faults can the outlet tester detect?
A: The HT107D can identify open ground, open neutral, open live, live/neutral reverse, and live/ground reverse faults, as well as measure AC voltage and leakage voltage — giving you a comprehensive picture of your outlet's wiring integrity.
