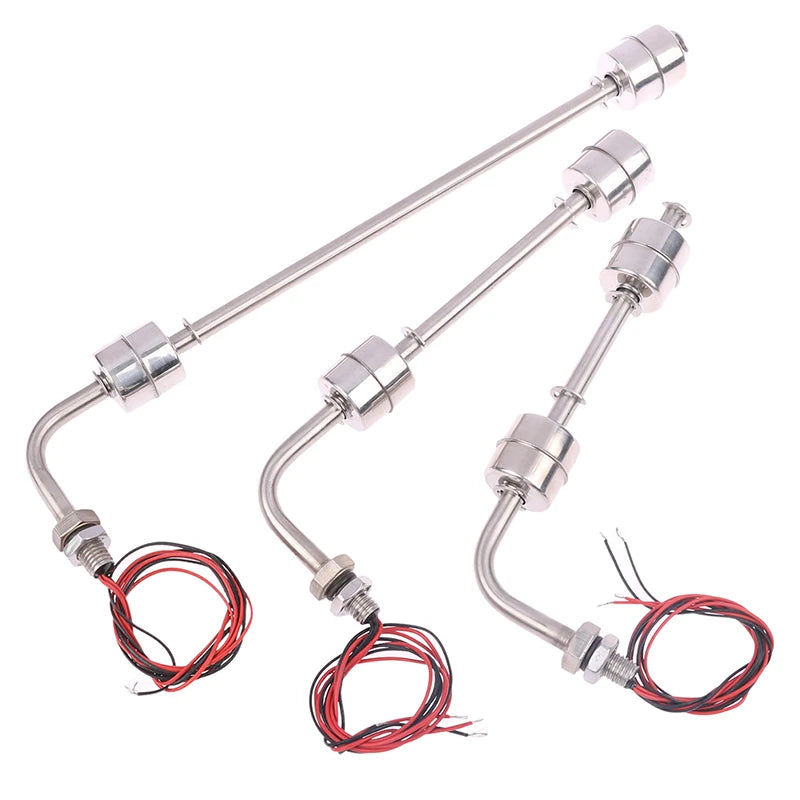

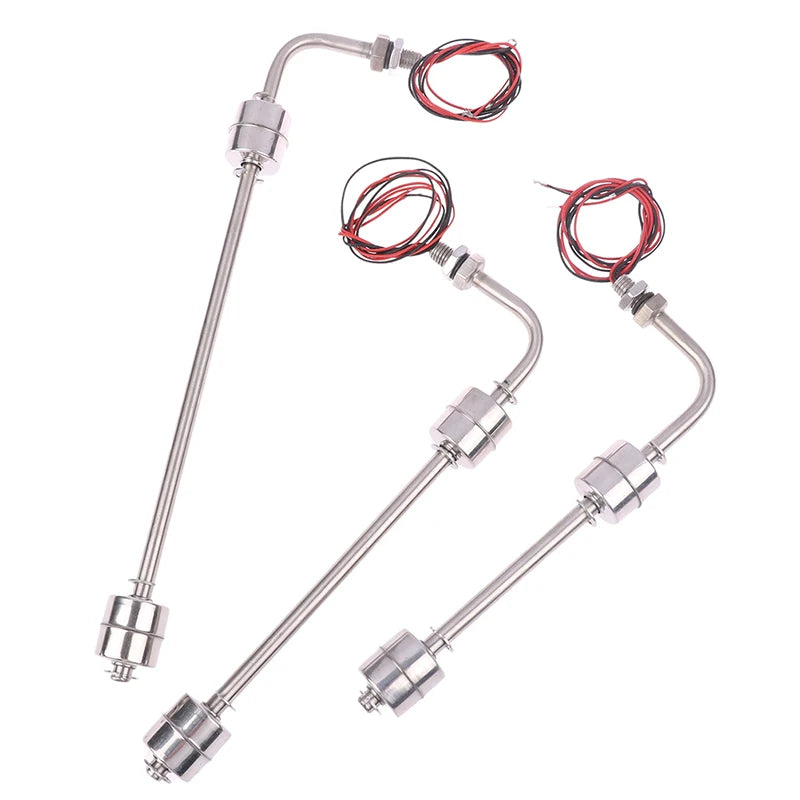

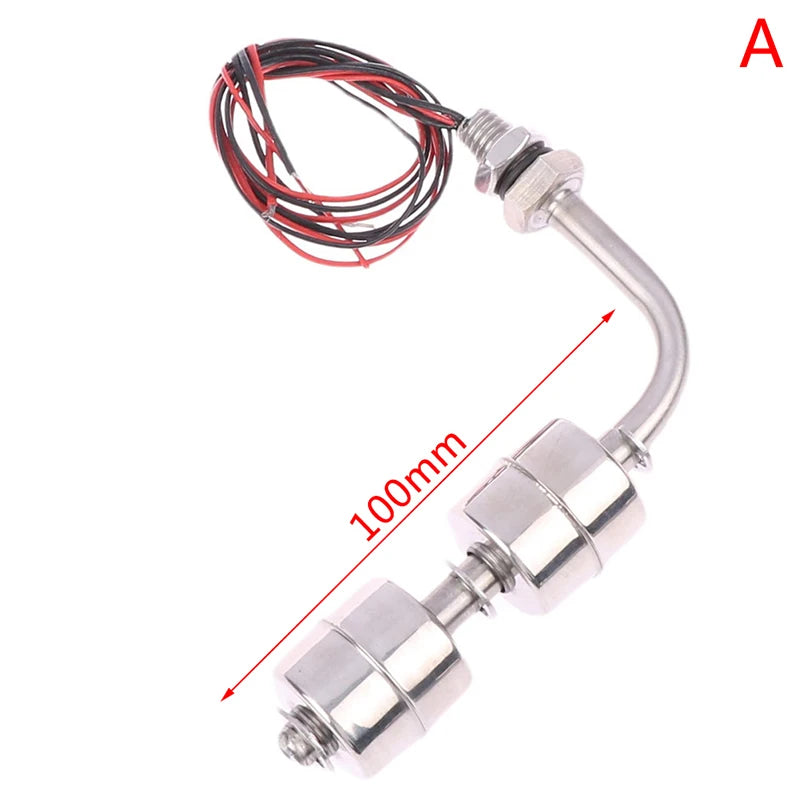

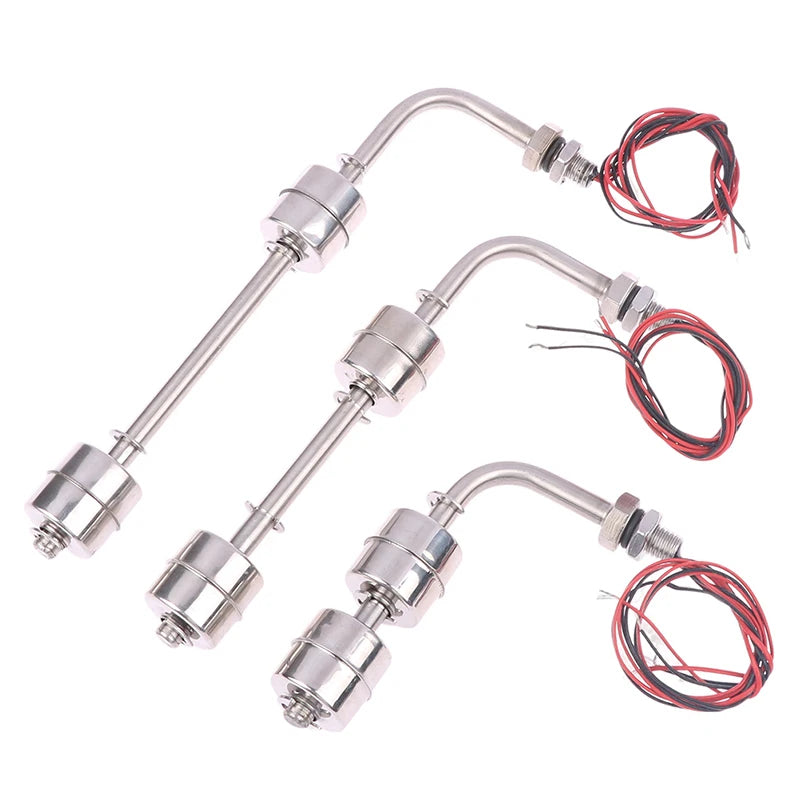

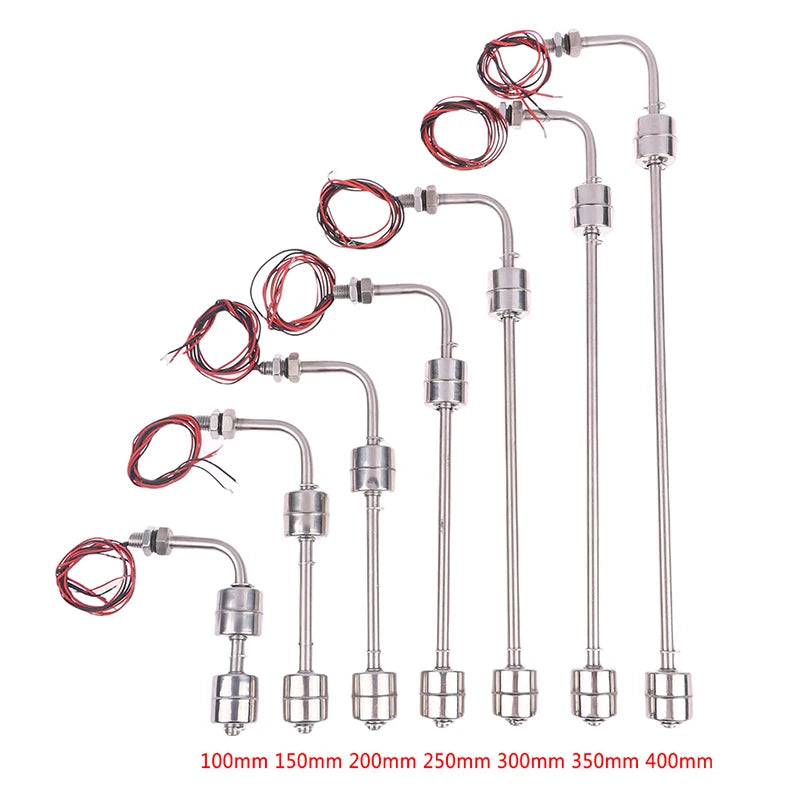

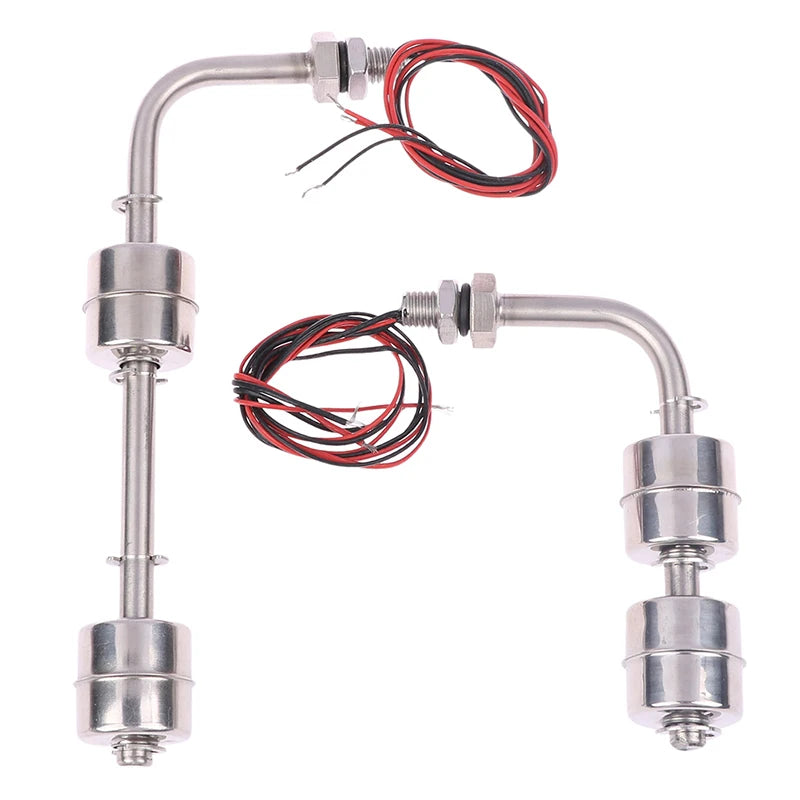

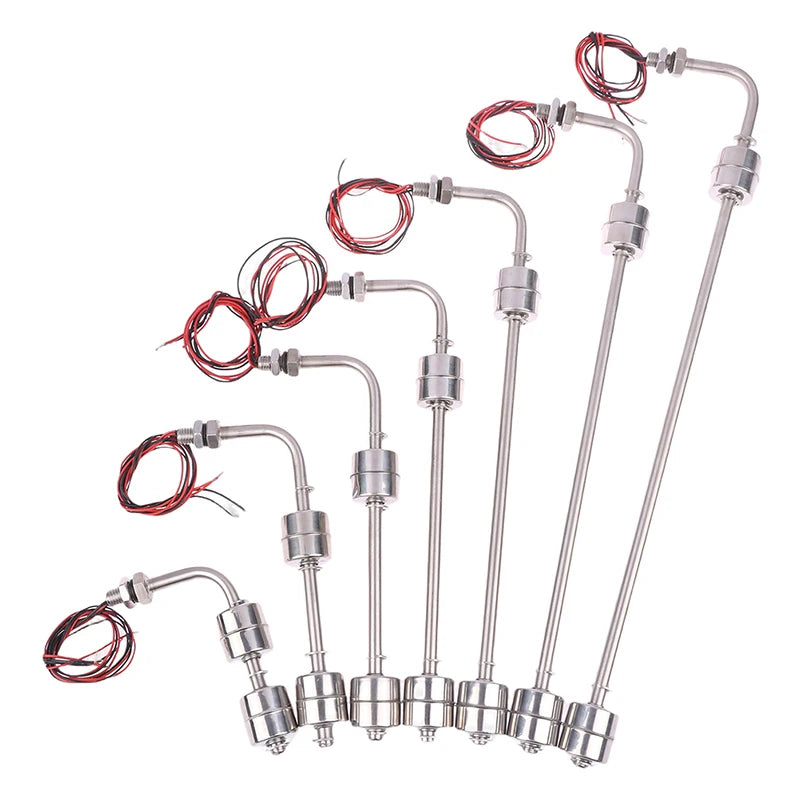

Stainless Steel Double Ball Float Switch – Reliable Liquid Level Control
Keep your tanks, pools, and reservoirs operating safely and efficiently with this 304 stainless steel double ball float switch. Designed for accurate liquid level detection, this CE-certified sensor automatically triggers when water or other liquids rise or fall to a set point — making it ideal for water tanks, sump pits, swimming pools, industrial reservoirs, and irrigation systems.
With a wide working temperature range of 40–125°C and a working pressure of up to 1.0 MPa, this float switch is built to handle demanding environments. The corrosion-resistant 304 stainless steel construction ensures long-lasting durability, even in harsh or wet conditions.
Key Features
- Material: 304 Stainless Steel – corrosion-resistant and highly durable
- Double Ball Design: Provides two switching points for greater control flexibility
- CE Certified: Meets European safety and performance standards
- Switching Voltage: 220V
- Breakdown Voltage: 450VDC min
- Breakdown Current: 1.5ADC min
- Electric Shock Capacity: 200W (100–265VAC)
- Working Temperature: 40–125°C
- Working Pressure: <1.0 MPa
- Medium Specific Gravity: 0.7 g/cm³
- No battery required – direct wired connection
Typical Applications
- Water storage tanks and cisterns
- Swimming pools and aquatic systems
- Sump pits and drainage systems
- Industrial liquid reservoirs
- Irrigation and agricultural water management
Made in Mainland China.
Related Products You May Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is a double ball float switch used for?
A: A double ball float switch is used to monitor and control liquid levels in tanks, pools, and reservoirs. It has two switching points — one for a high-level trigger and one for a low-level trigger — allowing for automatic pump activation or shutoff based on water level changes.
Q: Is this float switch compatible with swimming pools?
A: Yes, the stainless steel double ball float switch is suitable for swimming pools and other aquatic systems. Its 304 stainless steel body resists corrosion from water exposure, and the wide voltage range (100–265VAC) ensures compatibility with most standard pool pump setups.
Q: Does this float switch require any special installation tools?
A: No special tools are required beyond standard electrical wiring equipment. The switch connects via direct wiring (no battery needed). Always ensure power is off before installation and follow local electrical safety codes. The CE certification confirms this unit meets established safety standards.
