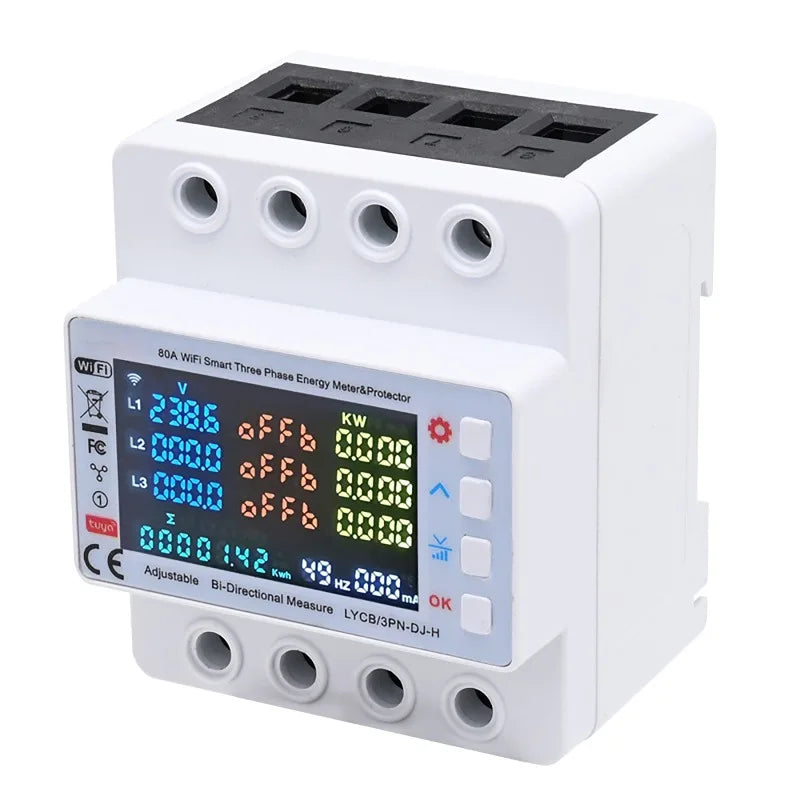

Tuya WiFi 80A Smart 3-Phase Energy Meter & Protector
Tuya WiFi 80A Smart 3-Phase Energy Meter & Protector
Tuya WiFi 80A Smart Three-Phase Energy Meter & Protector
Take full control of your three-phase electrical system with this intelligent WiFi-enabled energy meter and protector. Featuring a vibrant color LCD screen, real-time monitoring, comprehensive multi-function protection, and seamless Tuya / Smart Life App integration, this DIN rail device is the smart upgrade for workshops, commercial panels, and industrial distribution boards.
Made in Mainland China.
Key Features
- Real-Time Three-Phase Monitoring: Continuously tracks voltage, current, power, energy consumption (kWh), frequency, and power factor across all three phases. Data is displayed clearly on a color LCD screen for at-a-glance readings.
- Comprehensive Electrical Protection: Built-in overvoltage, undervoltage, overcurrent, undercurrent, leakage current, voltage imbalance, current imbalance, phase loss, phase sequence, high-temperature, and time-delay protection — all fully adjustable to suit your specific installation requirements.
- WiFi App Remote Control: Connects via WiFi to the Tuya or Smart Life App, enabling remote monitoring of power status, viewing of operating data, and adjustment of protection settings from anywhere — ideal for smarter, more flexible energy management.
- Fault Logging & Timed Switch: Automatically logs faults including overvoltage/undervoltage, overcurrent/undercurrent, leakage current, imbalance, phase loss, and phase sequence events. The built-in timed switch function enables scheduled power control for efficient energy use.
- Auto-Reclosing Function: After a protective trip, the device supports auto-reclosing to restore power automatically once conditions return to normal — reducing downtime without manual intervention.

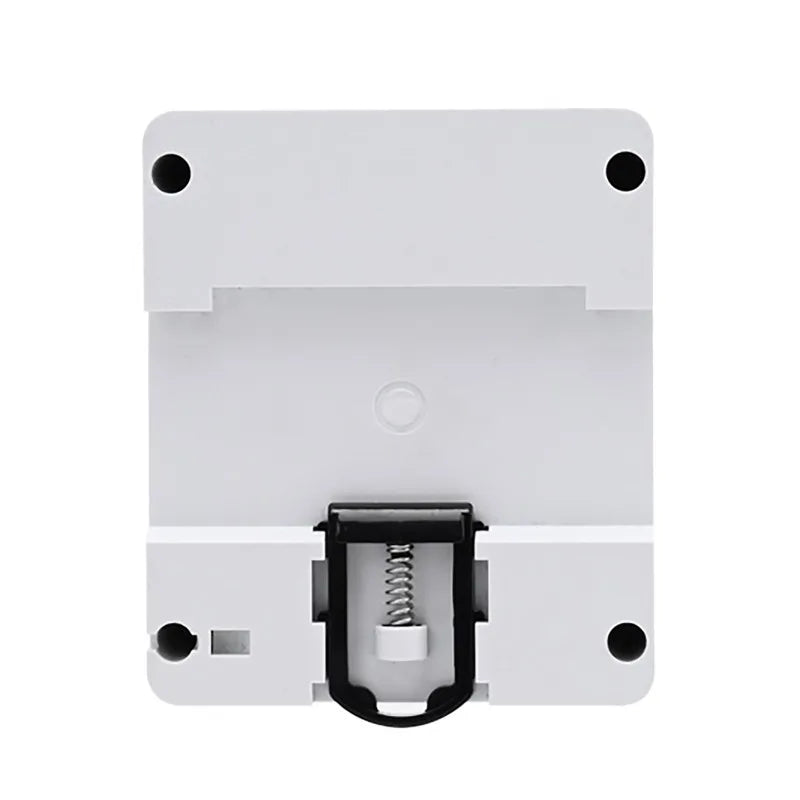

- Easy DIN Rail Installation: Mounts directly onto standard 35mm DIN rails. Compact form factor (approx. 86.5 × 74 × 50 mm) fits neatly into distribution boxes and electrical panels. Installation must be performed by a qualified electrician.
Specifications
| Material | ABS + Metal |
| Rated Current | 1–80A |
| Rated Supply Voltage | AC 380V |
| Power Display Range | Up to 99,999.9 kWh |
| Frequency | 50/60 Hz |
| Operating Temperature | -30°C to 70°C |
| Operating Humidity | 45%–85% RH |
| Mounting Method | 35mm DIN Rail |
| Overvoltage Setting Range | 60–300V |
| Undervoltage Setting Range | 60–300V |
| Overcurrent Setting Range | 1–80A |
| Leakage Current Setting Range | 0–100mA |
| Current Imbalance Setting Range | 1–99.99% |
| Communication | WiFi (Tuya Smart / Smart Life App) |

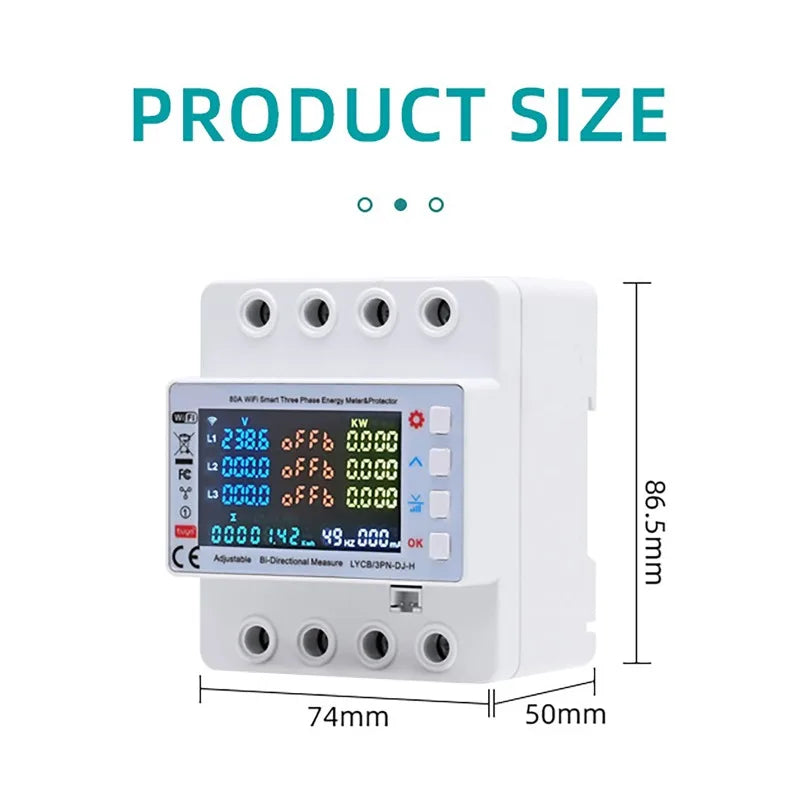

| Size (approx.) | 86.5 × 74 × 50 mm |
| Color | White |
What's in the Box
- 1 × Smart Three-Phase Energy Meter Protector
Notes
- Please allow 1–3 cm tolerance due to manual measurements.
- Actual color may vary slightly from product images due to display settings.
- Must be installed by a qualified electrician.
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Does the Tuya WiFi Smart Three-Phase Energy Meter work with both Tuya and Smart Life apps?
A: Yes. This smart energy meter is fully compatible with both the Tuya Smart app and the Smart Life app. Simply connect it to your WiFi network and pair it through either app to start monitoring energy consumption, viewing real-time electrical data, and adjusting protection settings remotely from your smartphone or tablet.
Q: What protection functions does this three-phase meter protector support?
A: The device includes a comprehensive suite of built-in protection functions: overvoltage, undervoltage, overcurrent, undercurrent, leakage current, voltage imbalance, current imbalance, phase loss, phase sequence, high-temperature, and time-delay protection. Each parameter is fully adjustable to match your specific installation needs. It also supports auto-reclosing after a protective trip event.
Q: Can this smart energy meter be installed in a standard distribution board?
A: Yes. The meter uses standard 35mm DIN rail mounting, making it compatible with most distribution boxes, electrical panels, workshops, and commercial power systems. Its compact dimensions (approx. 86.5 × 74 × 50 mm) ensure a neat fit in most enclosures. Installation should always be carried out by a qualified electrician.
