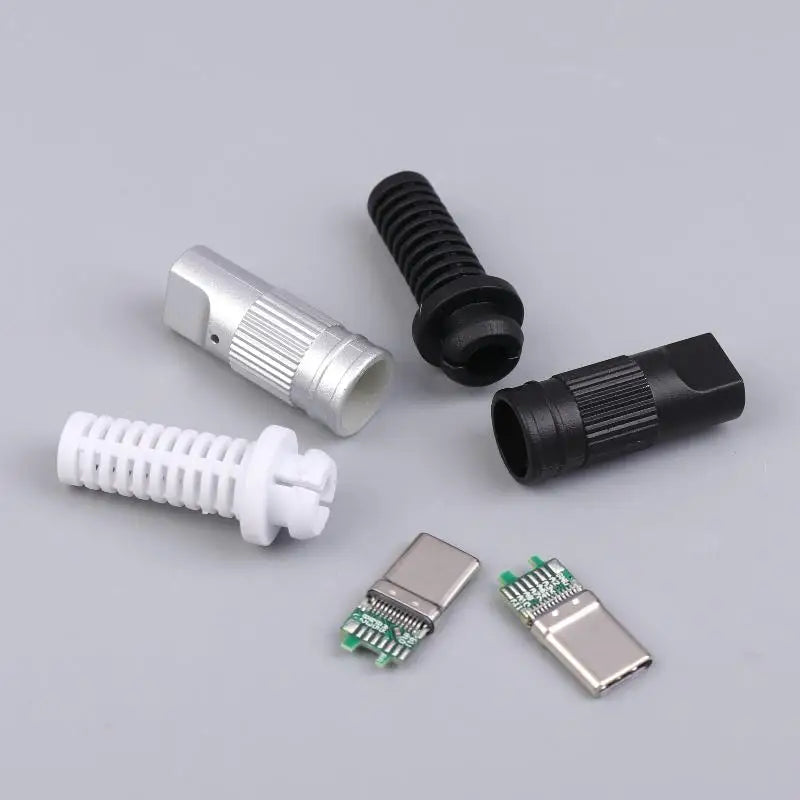

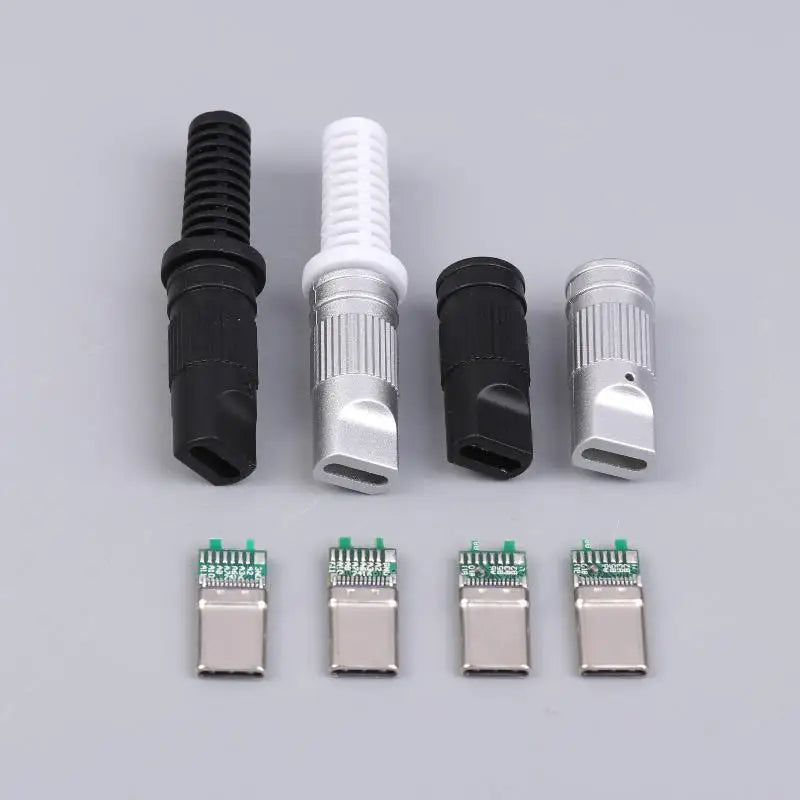

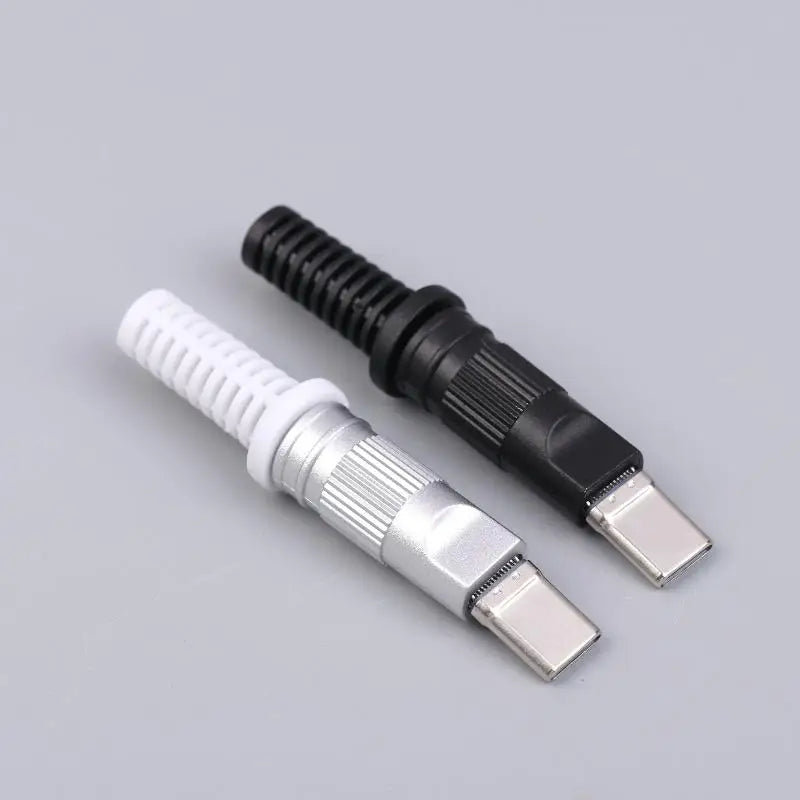

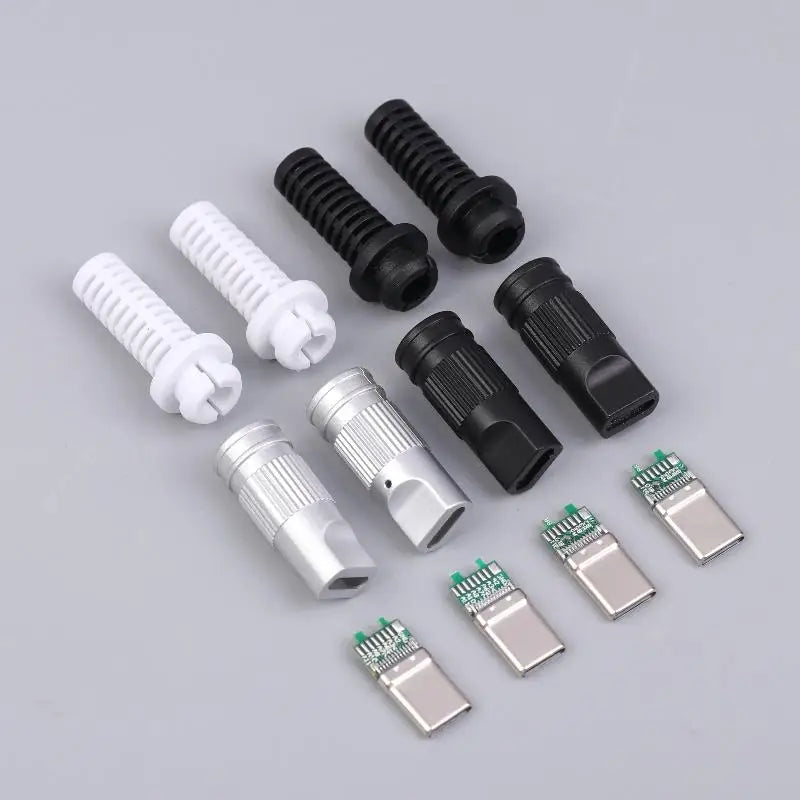

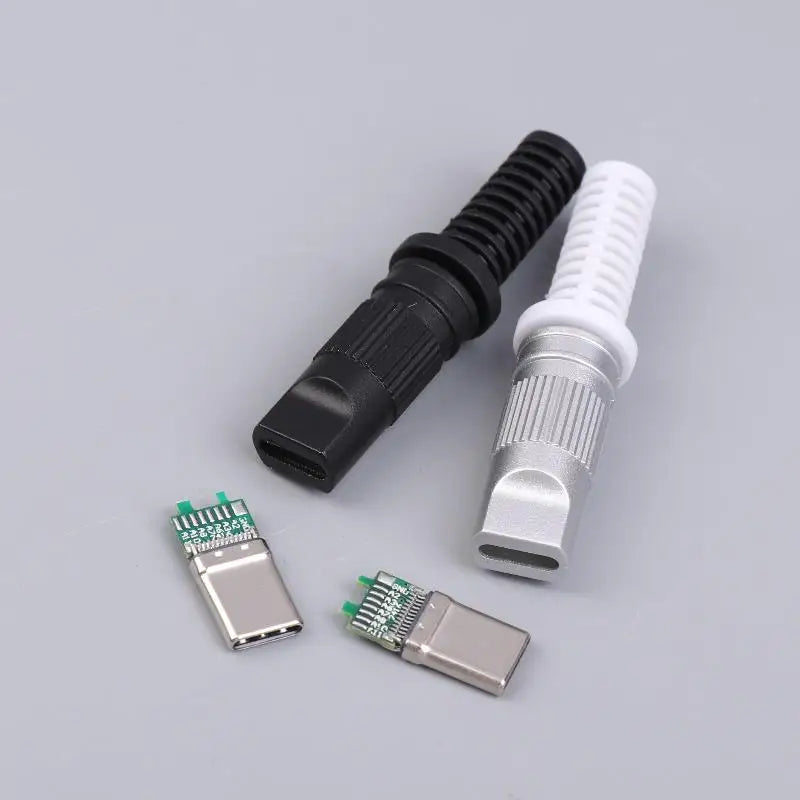

USB 3.1 Type-C 24-Pin Male Solder Connector – 2/5 Pack
Whether you're repairing a damaged charging port or building a custom cable, these USB 3.1 Type-C 24-Pin Male Solder Connectors are the perfect DIY solution. Featuring 5 solder joints and a dedicated CC solder pad, these plugs support 3A fast charging and high-speed data transfer — making them ideal for electronics enthusiasts, repair technicians, and hobbyists alike.
Key Features
- USB 3.1 Standard: Full 24-pin Type-C male connector for reliable, high-speed data and power delivery
- Fast Charging Ready: Supports up to 3A current for efficient C-to-C fast charging applications
- CC Solder Pad: Built-in CC solder pad ensures proper cable orientation and charge negotiation
- 5 Solder Joints: Simplified solder point layout makes DIY assembly and repair straightforward
- Available in 2-Pack or 5-Pack: Stock up for multiple projects or repairs
- Color Options: Available in White and Black to suit your build
- High Quality Construction: Durable materials built to withstand repeated use in custom cables and repair projects
Specifications
- Connector Type: USB 3.1 Type-C Male, 24 Pin
- Solder Joints: 5
- Max Current: 3A
- CC Solder Pad: Yes
- Colors: White / Black
- Package: 2 Sets or 5 Sets
- Made in Mainland China
What's in the Box

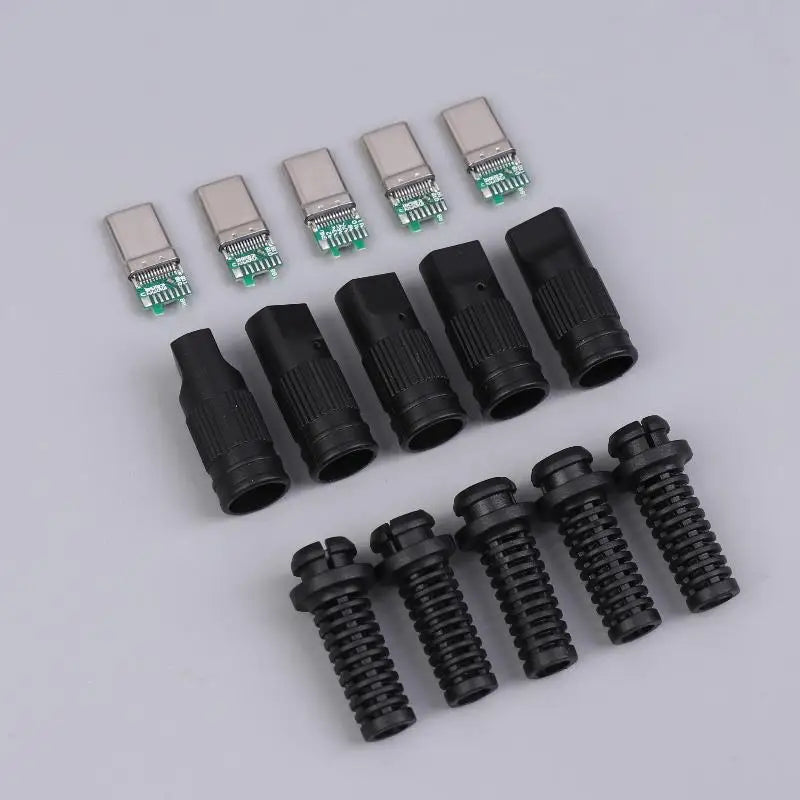

- 2 or 5 x USB 3.1 Type-C 24-Pin Male Solder Connectors (as selected)

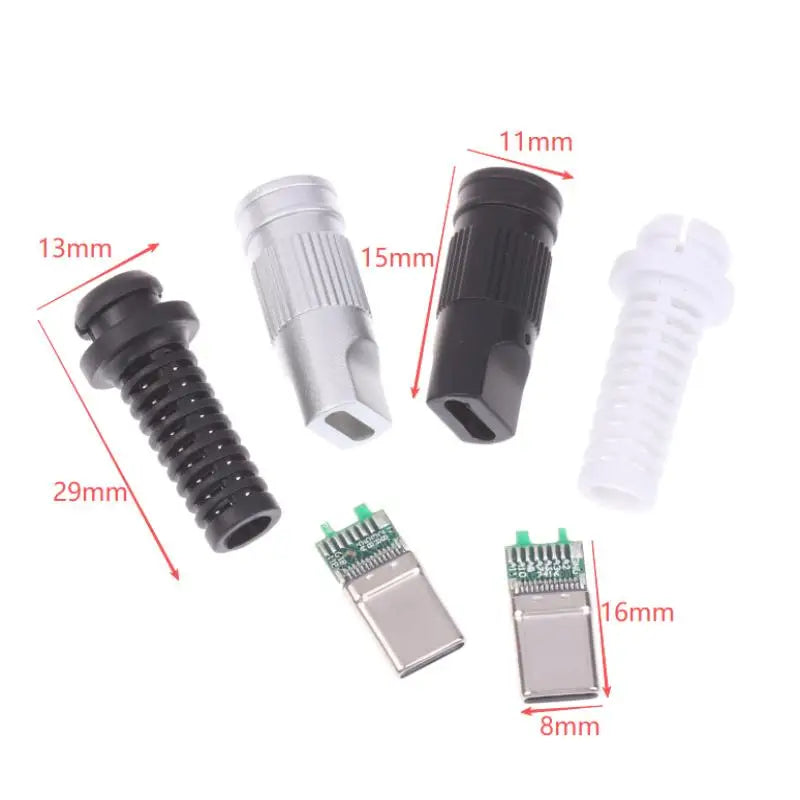

Note: Please allow 2–3% dimensional variation due to manual measurement. Colors may vary slightly from images depending on your display settings.
Related Products You May Like
- 10-Pack Waterproof Cable Glands PG7 PG9 Nylon Connectors
- 10-Pack Rubber Strain Relief Cord Boot Protectors 4.6–6mm
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Are these USB-C solder connectors compatible with all Type-C devices?
A: These 24-pin USB 3.1 Type-C male connectors follow the standard USB-C specification, making them broadly compatible with smartphones, tablets, laptops, and other devices that use the USB-C standard. Always verify your device's pinout requirements before soldering.
Q: Do I need special equipment to solder these Type-C connectors?
A: A fine-tip soldering iron and flux are recommended for best results. The 5-solder-joint design simplifies the assembly process compared to full 24-pin soldering, making these accessible for intermediate DIY builders and repair technicians.
Q: What is the CC solder pad used for on these connectors?
A: The CC (Configuration Channel) solder pad is a key part of the USB-C specification. It allows connected devices to identify each other, negotiate power delivery direction, and enable fast charging — ensuring your cable works correctly for C-to-C charging applications.
