UWB-1P Ultra Wideband RF Antenna Module 2.4–7GHz SMA-K
UWB-1P Ultra Wideband RF Antenna Module 2.4–7GHz SMA-K
UWB-1P Ultra Wideband RF Antenna Module | 2.4GHz to 7GHz | SMA-K Interface
The UWB-1P Ultra Wideband Antenna Module delivers rock-solid RF signal performance across an impressive 2.4GHz to 7GHz frequency range, making it one of the most versatile PCB-integrated antennas available for engineers, hobbyists, and developers alike. Whether you're building a UWB positioning system, testing wireless communication hardware, or integrating broadband signal reception into a compact device, this module is engineered to perform.
Key Features
- Ultra-Wide 2.4GHz–7GHz Frequency Coverage: Supports multiple communication protocols across a broad spectrum — ideal for UWB positioning, RF testing, and multi-band wireless applications.
- Standard SMA-K (SMA Female) Interface: Compatible with the vast majority of communication equipment. The interface provides a firm, secure connection that resists loosening over repeated plug/unplug cycles.

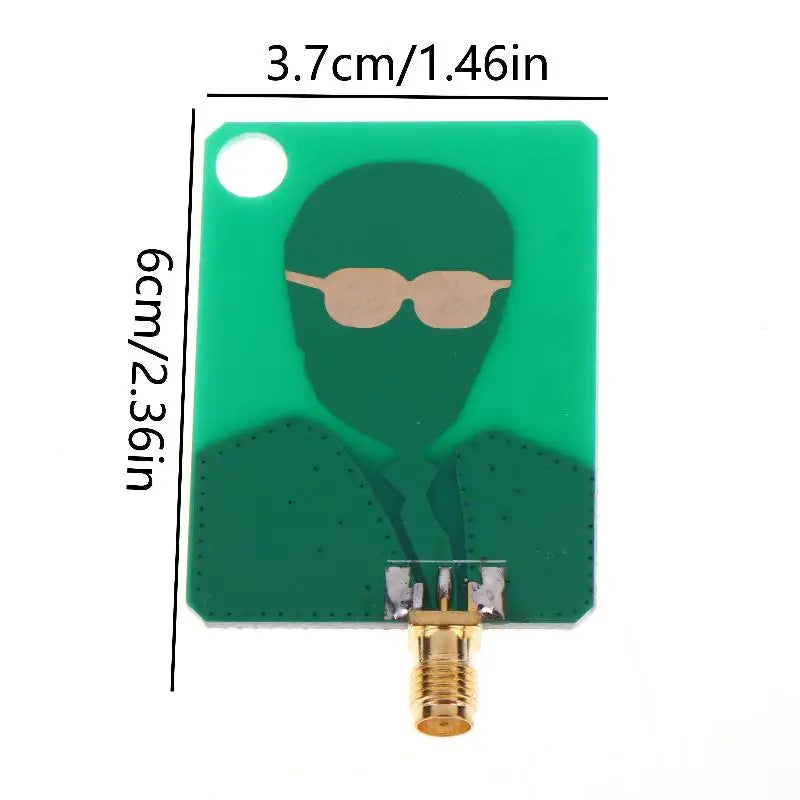

- Compact PCB-Integrated Design: Measuring approximately 6 × 3.7 cm (2.36 × 1.46 in), this lightweight module fits easily into space-constrained enclosures and device layouts without sacrificing performance.
- Optimised RF Circuit Design: Features a carefully tuned RF layout that ensures stable signal transmission and strong anti-interference performance — even in complex electromagnetic environments.
- Broad Application Compatibility: Suitable for UWB indoor positioning, wireless communication modules, radio frequency testing setups, and any broadband electronic equipment requiring reliable signal reception.
Specifications
| Model | UWB-1P |
| Frequency Range | 2.4GHz – 7GHz |
| Interface | SMA-K (SMA Female) |
| Dimensions | ~6 × 3.7 cm / 2.36 × 1.46 in |
| Design | PCB Integrated |
| Package Contents | 1 × UWB-1P Antenna Module |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × UWB-1P Ultra Wideband RF Antenna Module (SMA-K)
