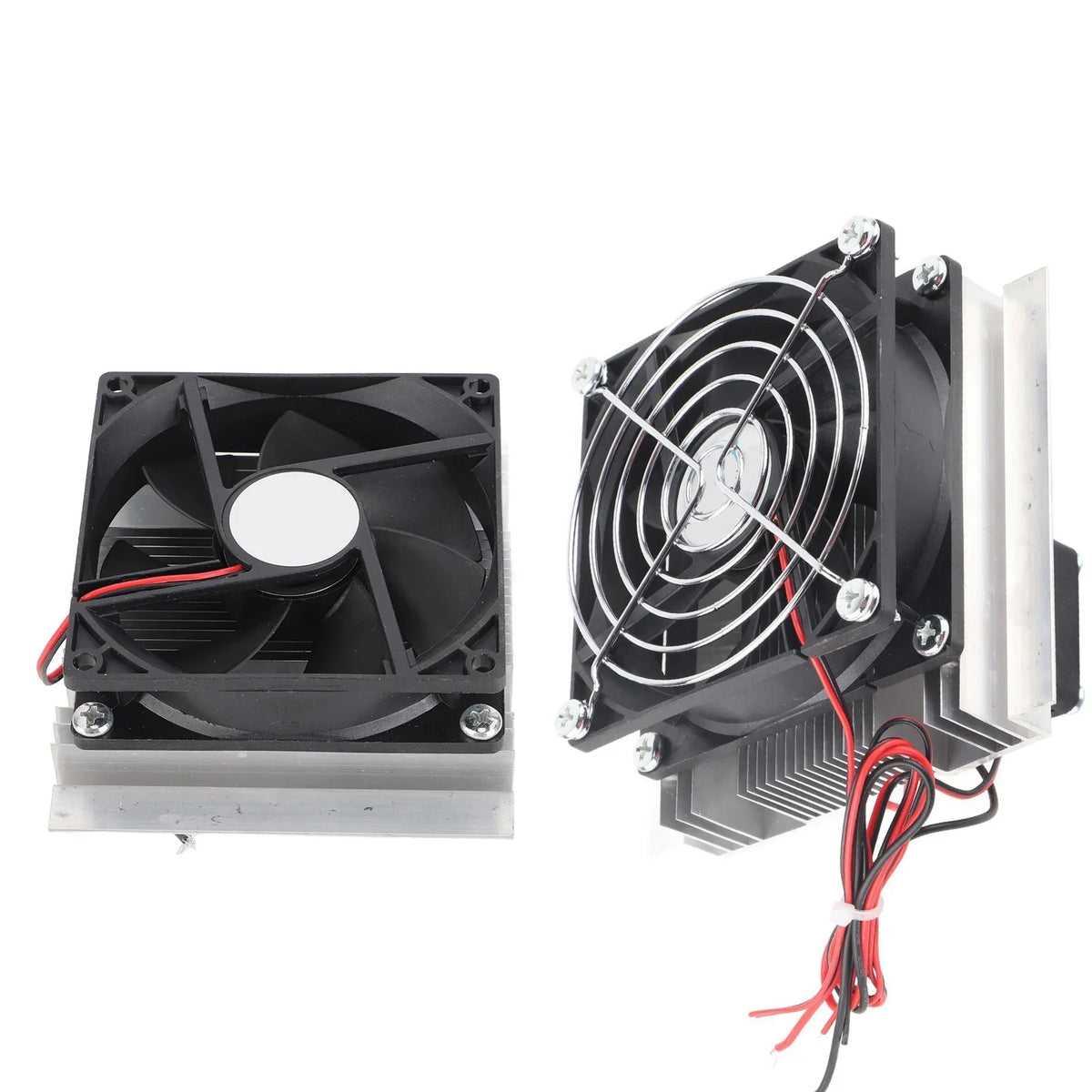

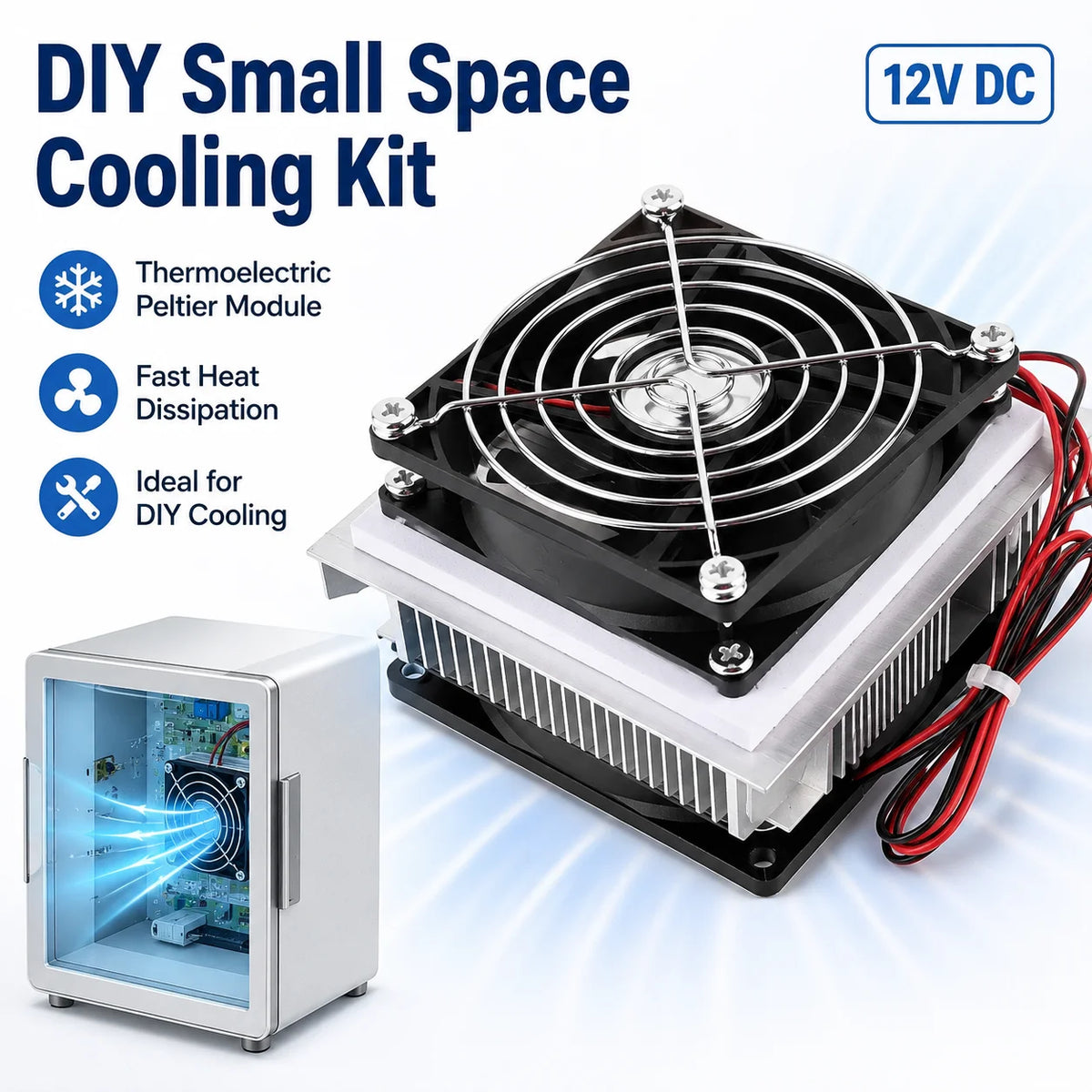

XD-35 Thermoelectric Peltier Cooling Kit

Compact DIY Semiconductor Cooling Module for Small Spaces

The XD-35 Thermoelectric Peltier Cooling Kit is a ready-to-integrate cooling module designed for hobbyists, engineers, and makers working on custom small-space cooling projects. Powered by semiconductor thermoelectric technology, this module transfers heat from a cold side to a hot side — no refrigerants, no compressors, no moving parts in the Peltier plate itself.

Whether you're building a DIY mini cooler box, an electronics enclosure, or a laboratory demonstration setup, the XD-35 delivers reliable, compact cooling performance right out of the box.

Made in Mainland China.

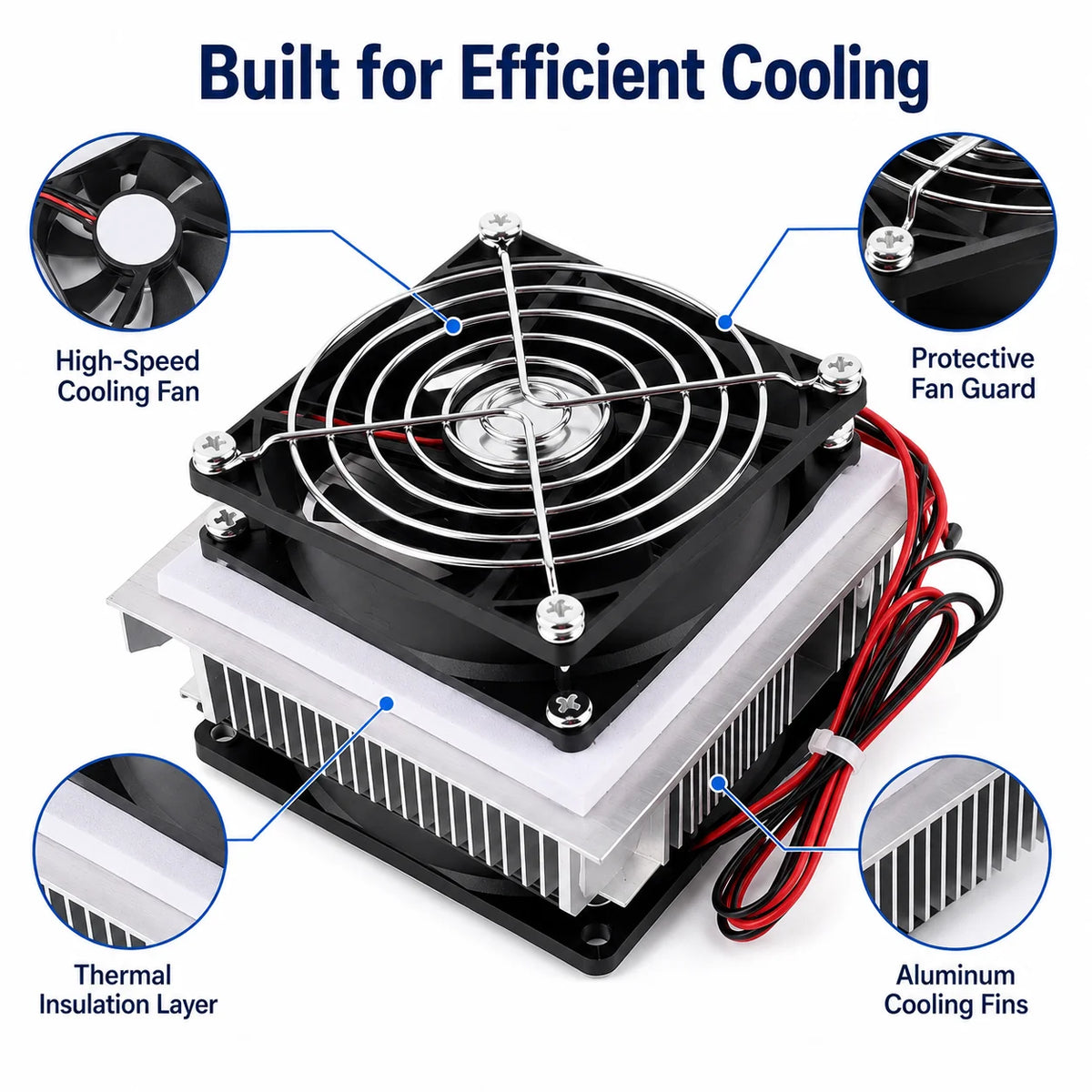

What's Inside the Kit

The XD-35 is a pre-assembled cooling structure that includes everything needed to get started:

Thermoelectric Peltier plate
Aluminum heat sinks (hot side & cold side)
Dual cooling fans for active airflow
Protective metal fan guard
Red (positive) and black (negative) power wires
Thermal insulation layer

Key Features

🔵 Integrated, Pre-Assembled Structure

The module arrives pre-assembled, making it easy to drop into your custom build without needing to source and align individual components. Simply mount, wire, and power up.

🔵 Aluminum Heat Sinks for Efficient Heat Transfer

Large aluminum cooling fins maximize the heat-dissipation surface area, drawing heat away from the Peltier plate efficiently. Ensure the hot-side heat sink has sufficient ventilation at all times for optimal performance.

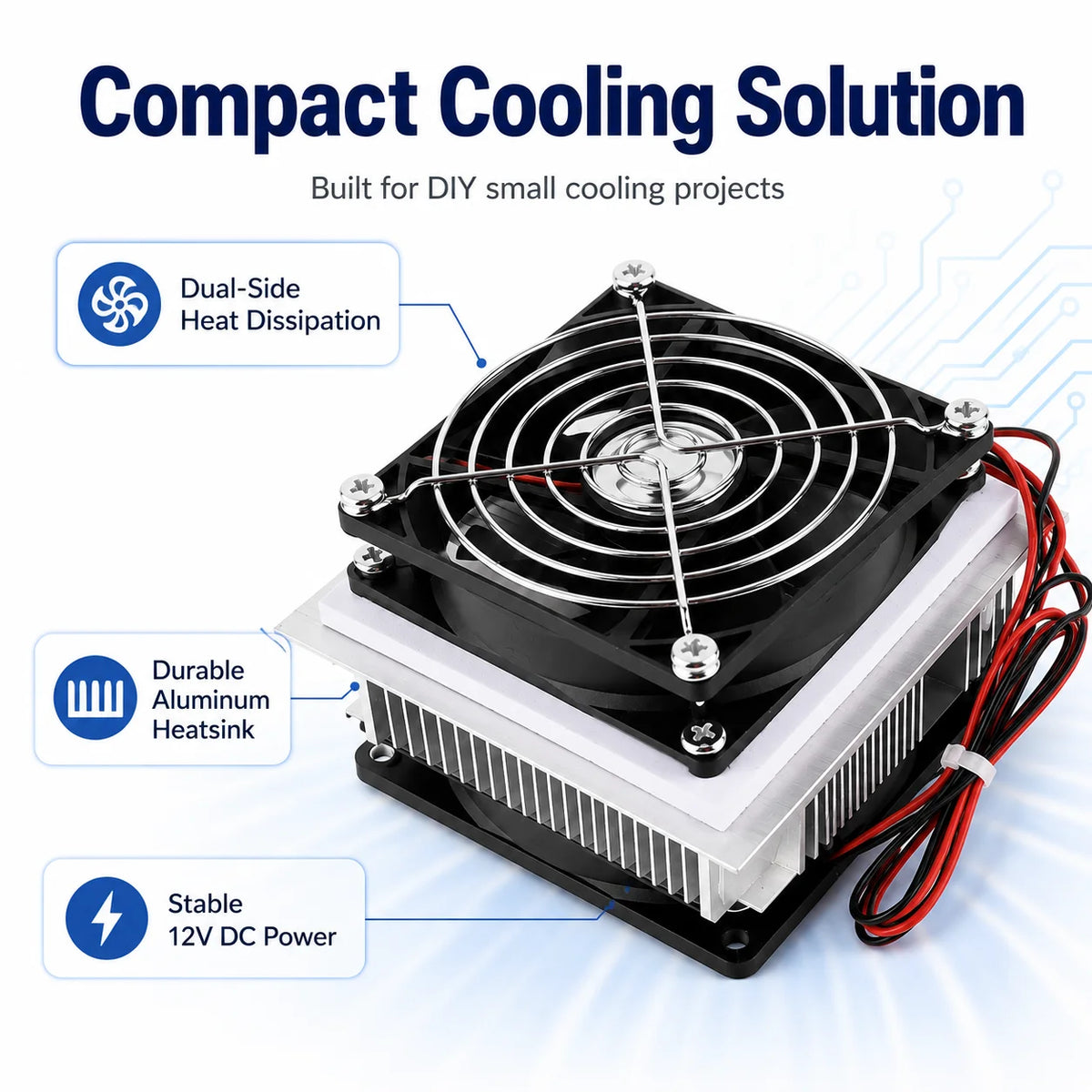

🔵 Dual-Fan Active Cooling

Fans are mounted on both sides of the module to promote consistent airflow through the heat sinks. The metal fan guard protects the blades from accidental contact during operation and installation.

🔵 Compact & Space-Saving Design

The slim, space-conscious form factor fits neatly into insulated boxes, small cabinets, instrument enclosures, and other tight installations where every millimeter counts.

🔵 Simple Power Connection

Pre-wired with color-coded red (+) and black (−) leads for straightforward DC power supply connection. Always confirm voltage, current rating, and polarity before powering on.

How Thermoelectric Cooling Works

The Peltier module uses the Peltier effect — when direct current flows through two dissimilar semiconductor materials, one side absorbs heat (cold side) while the other side releases it (hot side).

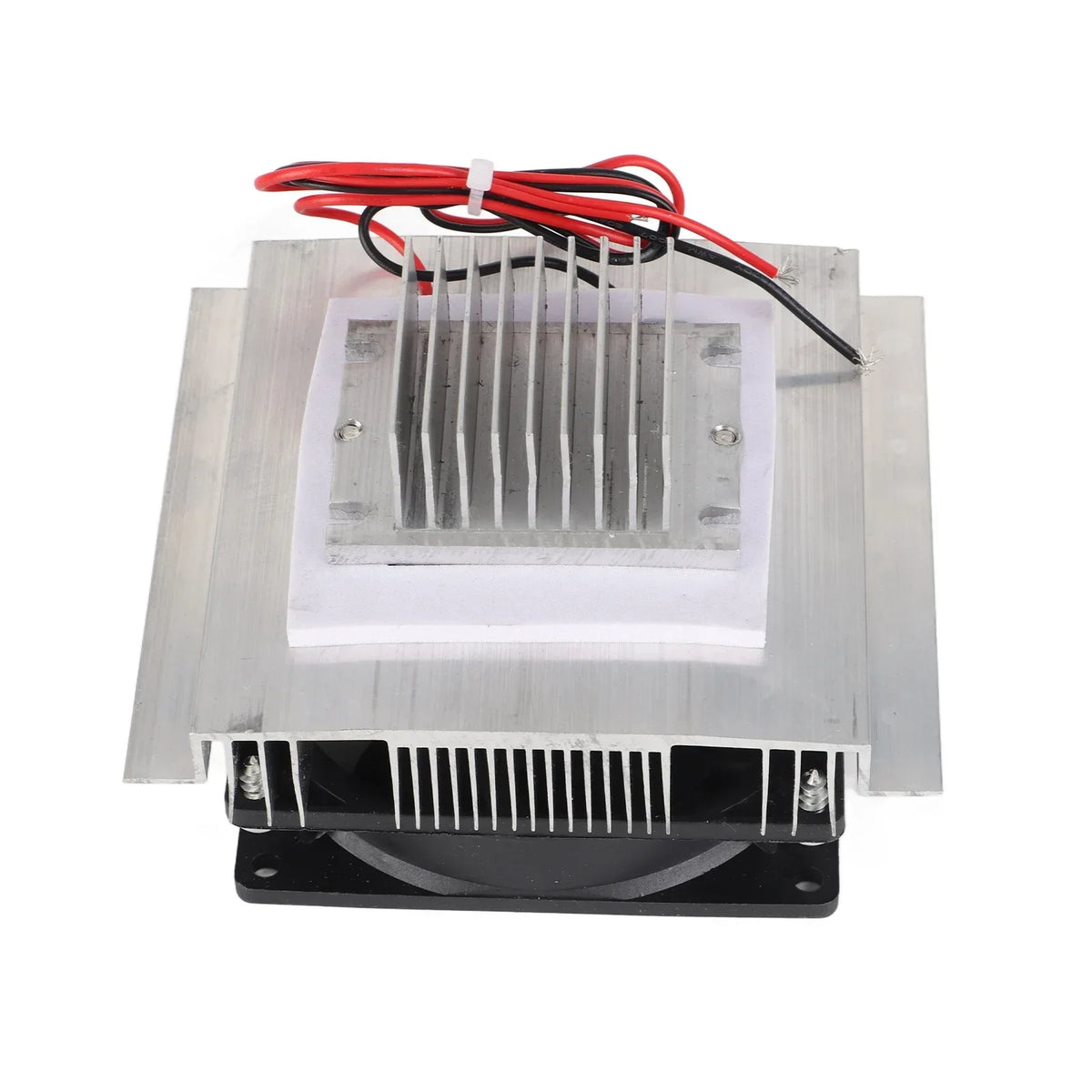

Cold Side: Absorbs heat from the enclosed space or object you want to cool.
Hot Side: Expels absorbed heat through the aluminum heat sink and fan to the outside environment.

For best results, mount the cold side inside the insulated space and keep the hot side outside with unobstructed airflow.

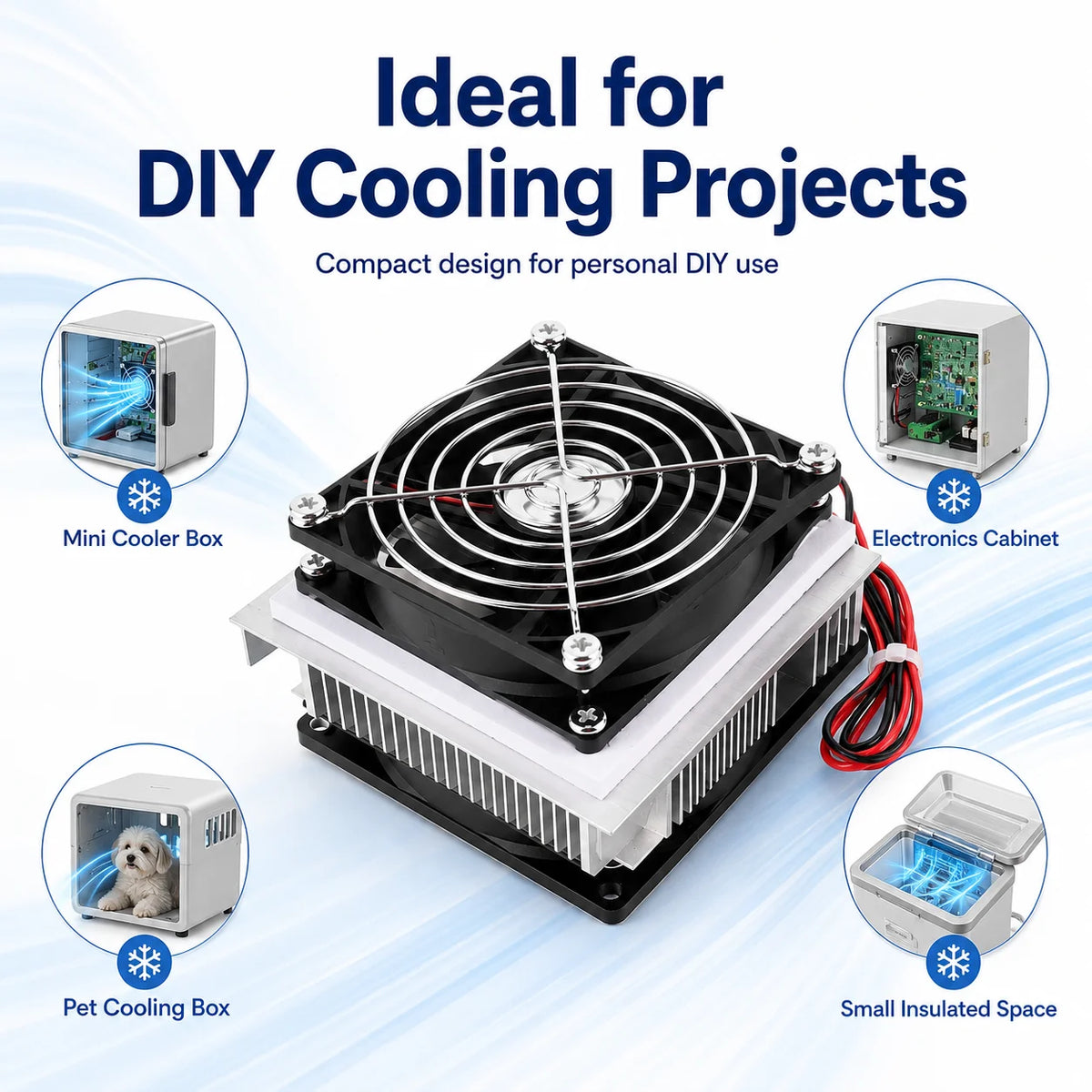

Recommended Applications

DIY mini cooler boxes and insulated containers
Electronic equipment cabinets and enclosures
Semiconductor cooling experiments
Laboratory and classroom demonstration projects
Custom temperature-control systems
Small instrument enclosures

Note: This module is designed for small-space cooling projects only — it is not intended to cool an entire room.

Installation Guide

Identify the cold side and hot side before beginning installation.
Orient the cold side toward the area requiring cooling.
Position the hot-side heat sink outside the insulated space.
Ensure both fans have adequate ventilation clearance.
Connect the red (+) and black (−) wires with correct polarity.
Use a compatible DC power supply with sufficient current output.
Seal insulation around the installation opening to minimize cold-air loss.
Test the module before completing the final build.

Tips for Better Cooling Performance

Use a well-insulated enclosure to retain cold air.
Reduce air gaps around the module installation area.
Keep the hot-side fan completely unobstructed at all times.
Never mount the hot-side heat sink inside the cooled space.
Use a stable, regulated DC power supply.
Minimize unnecessary heat sources inside the enclosure.
Consider pairing with a thermostat for automatic temperature regulation.

Actual cooling results depend on ambient temperature, enclosure size and insulation quality, heat load, airflow conditions, and power supply performance.

Product Specifications

Model	XD-35
Cooling Method	Semiconductor thermoelectric (Peltier effect)
Main Material	Aluminum alloy & electronic components
Cooling Structure	Peltier plate + aluminum heat sinks + dual cooling fans
Wire Type	Red (positive) & black (negative) power leads
Application	DIY small-space cooling projects
Installation	Custom installation required
Origin	Made in Mainland China

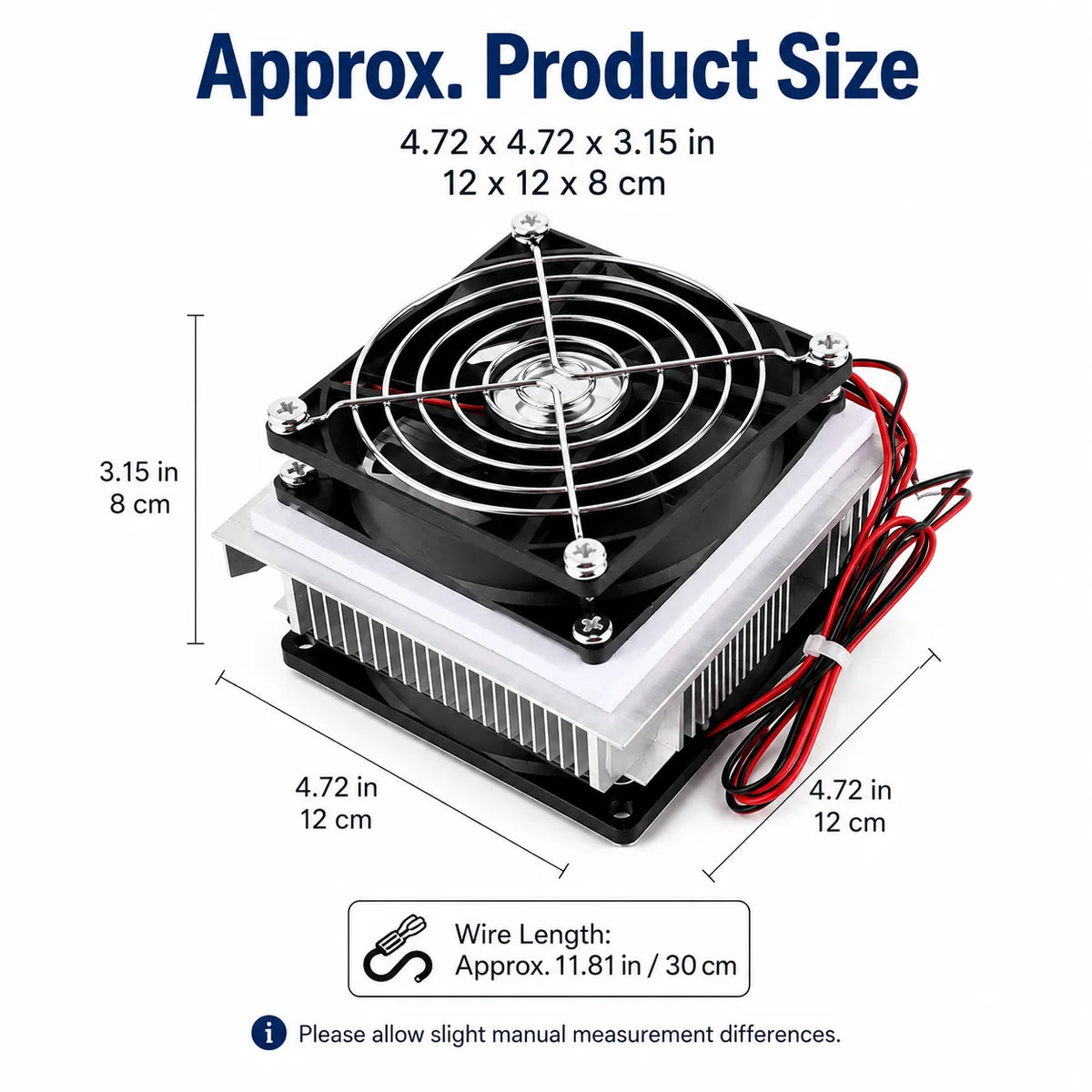

Please refer to product images for detailed dimensional information.

Package Contents

1 × XD-35 Thermoelectric Peltier Cooling Module

Power supply, temperature controller, insulation box, and installation tools are not included unless stated in the selected package option.

Important Notes

This is a DIY cooling component — not a finished refrigerator or air conditioner.
Basic electrical knowledge and installation experience are recommended.
Always verify voltage, current, and polarity before powering on.
Never run the Peltier plate without proper hot-side heat dissipation.
Condensation may form on the cold side during operation — protect nearby electronics from moisture.
Disconnect power before making any installation adjustments.
Product appearance may vary slightly between production batches.
Minor measurement differences due to manual measuring are normal.
