1.5" OLED Display 128x128 SSD1327 I2C Module for Raspberry Pi

$39.48 $48.14

1.5" OLED Display Module – 128×128 Resolution, SSD1327 Driver, I2C Interface

Upgrade your electronics projects with this compact yet powerful 1.5-inch OLED display module. Featuring a crisp 128×128 pixel resolution and a 16-level grayscale output, this module delivers sharp, high-contrast visuals that are perfect for microcontroller and single-board computer builds — including Raspberry Pi, Arduino, and STM32 platforms.

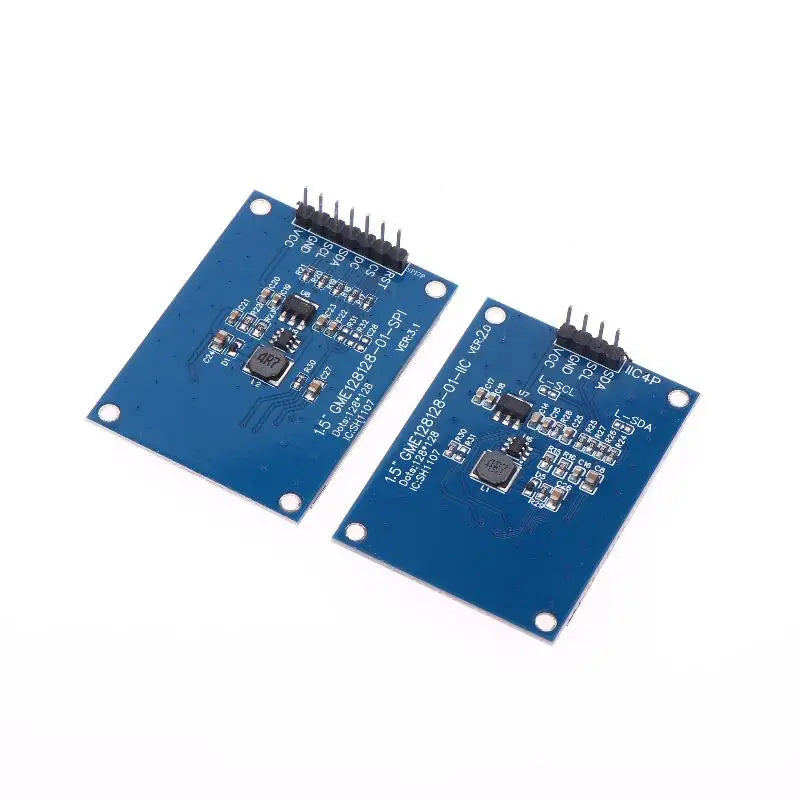

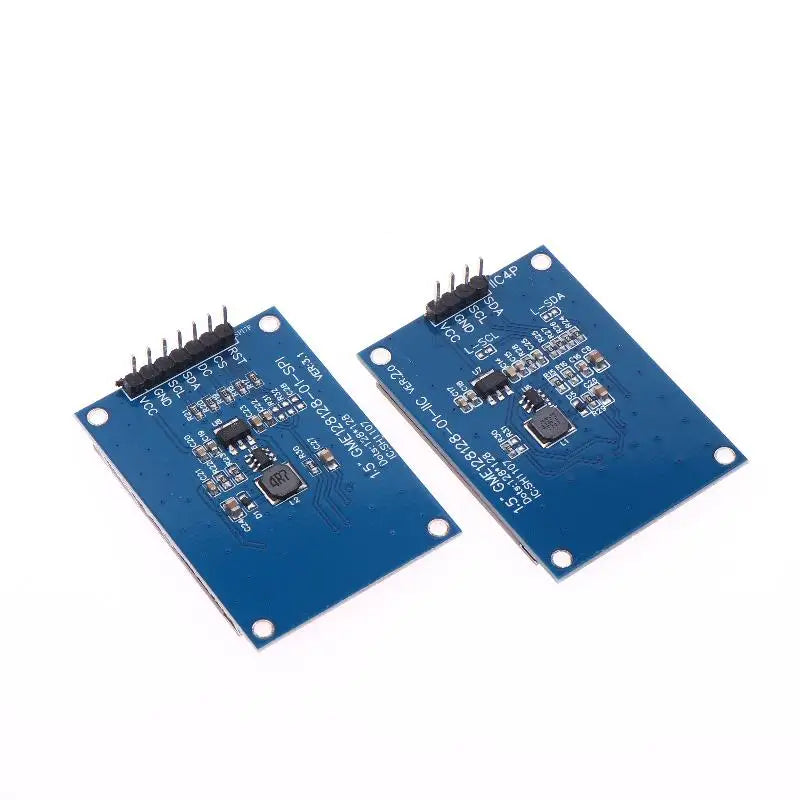

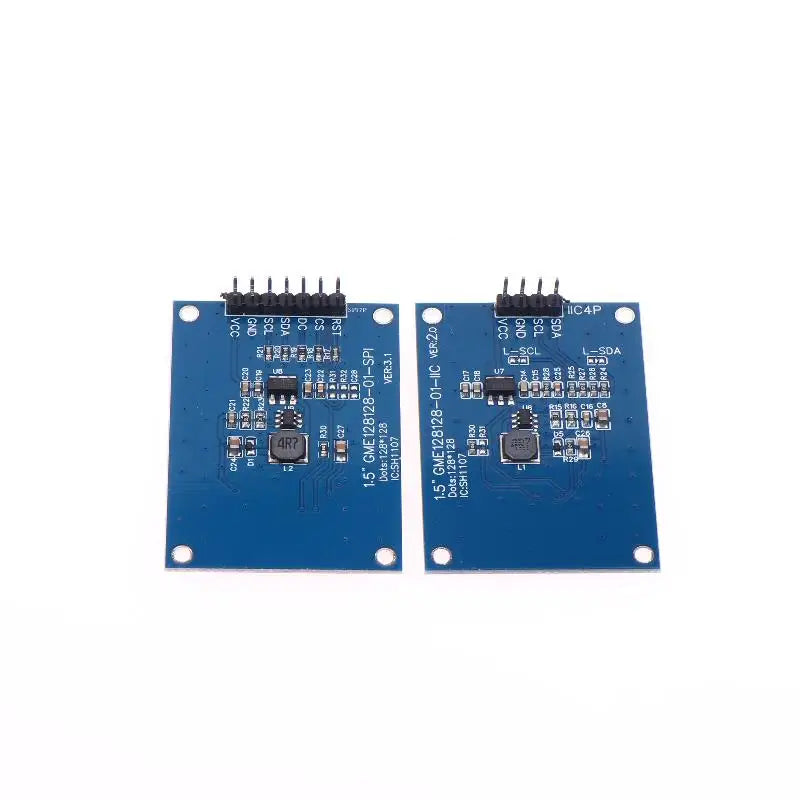

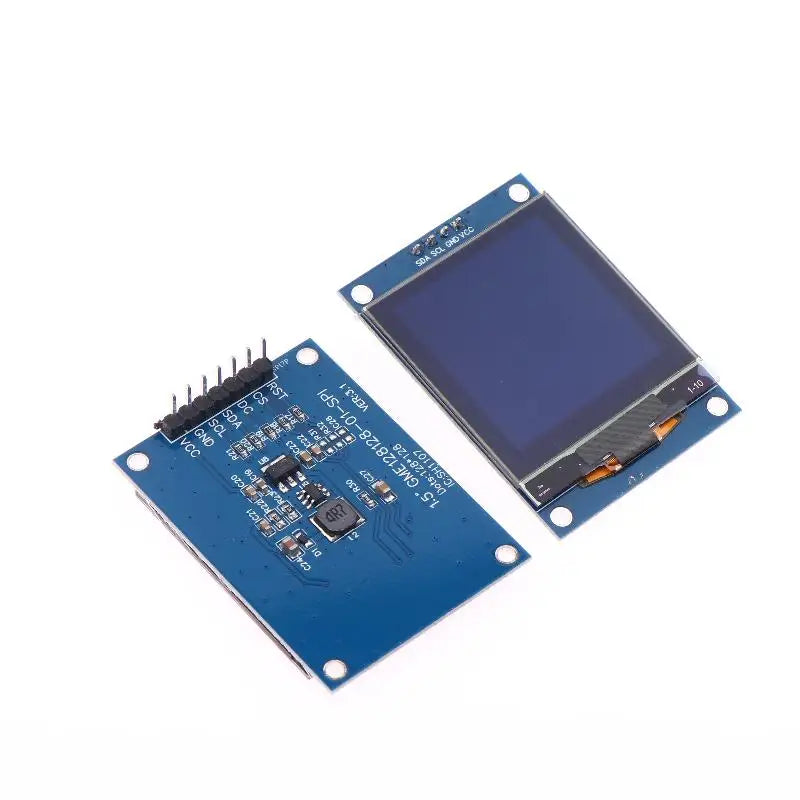

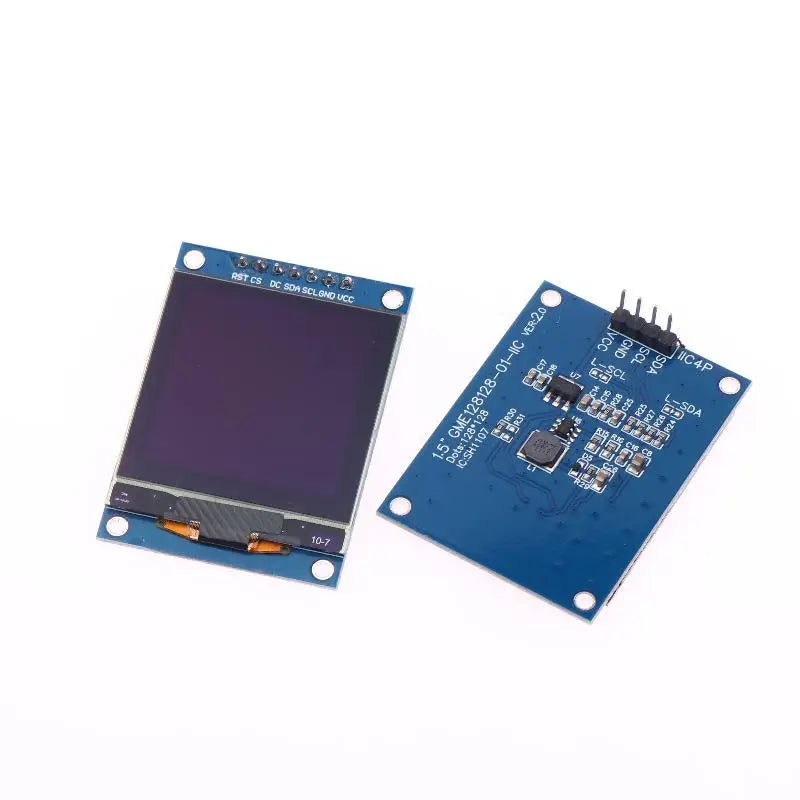

Driven by the capable SSD1327 driver chip and communicating over the standard I²C (IIC) interface, wiring is simple and pin-efficient. The module supports both 4-PIN and 7-PIN configurations, giving you flexible connection options for a wide range of project layouts.

Key Features

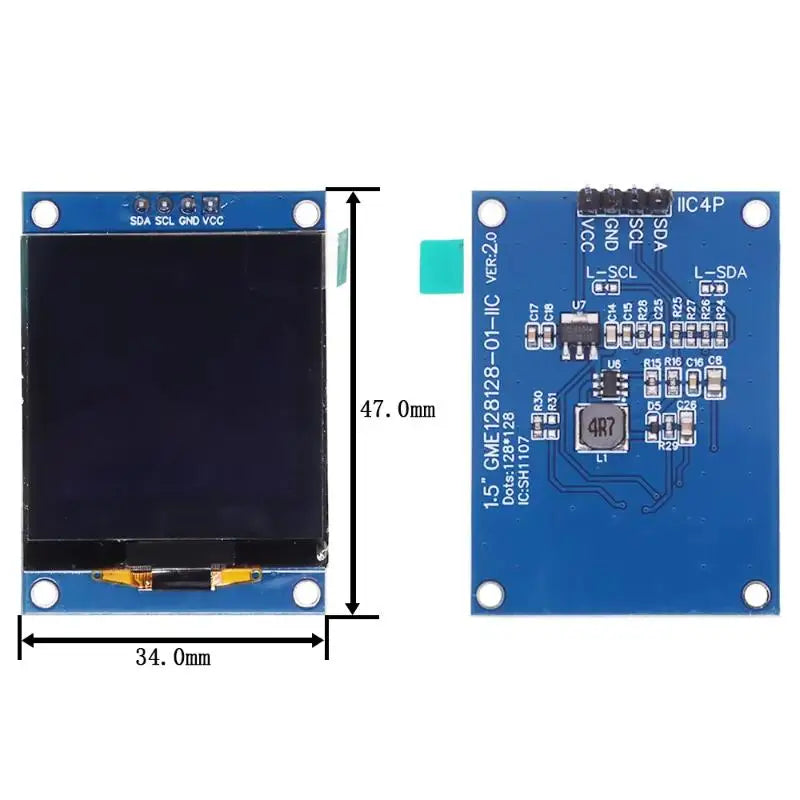

Display Size: 1.5 inches diagonal
Resolution: 128 × 128 pixels
Driver Chip: SSD1327
Interface: I²C (IIC) — 4-PIN & 7-PIN supported
Grayscale Depth: 16-level grayscale
Viewing Angle: Greater than 160°
Operating Voltage: 3.3V / 5V compatible
Display Color: White on Black
Package Contents: 1 × OLED Display Module

Why Choose This OLED Module?

OLED technology produces self-illuminating pixels, meaning each pixel generates its own light — resulting in deep blacks, excellent contrast, and low power consumption compared to traditional LCD screens. With a wide viewing angle exceeding 160°, the display remains clearly legible from almost any angle, making it ideal for compact enclosures, wearables, and instrumentation dashboards.

Broad Compatibility

Whether you're running Raspberry Pi, Arduino, STM32, ESP32, or similar platforms, this module integrates easily using widely available I²C libraries. The dual-voltage support (3.3V/5V) means no additional level-shifting circuitry is required for most common microcontrollers.

Ideal Applications

Raspberry Pi status displays & dashboards
Arduino sensor readout panels
DIY smart home monitoring
Portable instruments & data loggers
Wearable electronics projects
Retro-style gaming or UI projects

Made in Mainland China.

Explore More Electronics Components

Looking for more tools for your builds? Check out these related products:

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Is this OLED display module compatible with Raspberry Pi?

A: Yes! This 1.5-inch OLED module is fully compatible with Raspberry Pi via the I²C interface. It operates at both 3.3V and 5V, so it connects directly to the Raspberry Pi GPIO header without any additional level-shifter. Popular Python libraries such as Luma.OLED support the SSD1327 driver out of the box.

Q: What is the difference between the 4-PIN and 7-PIN configurations?

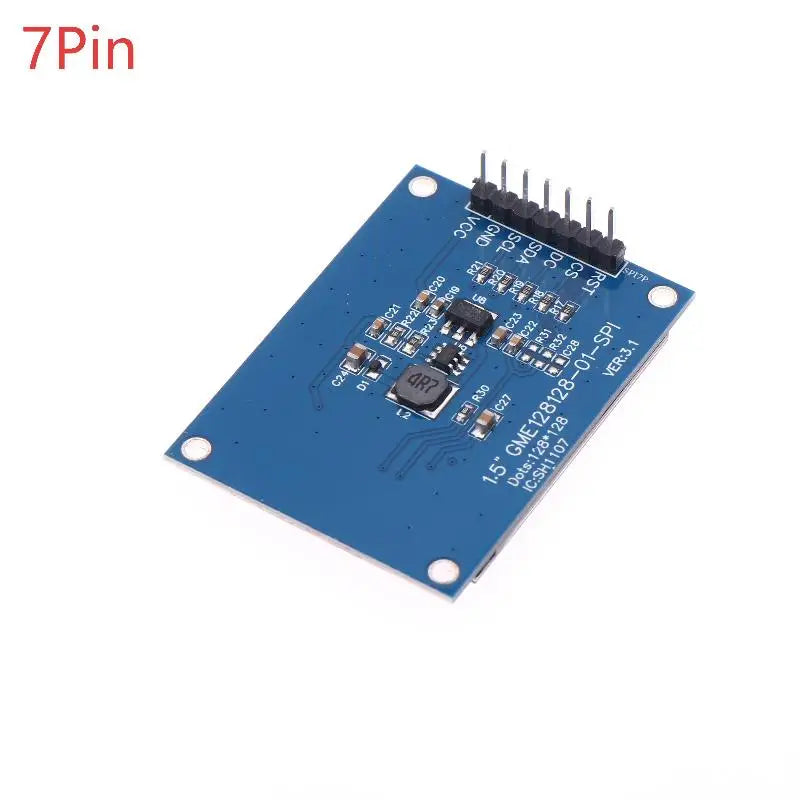

A: The 4-PIN configuration uses the I²C (IIC) interface with VCC, GND, SDA, and SCL — ideal for Raspberry Pi and Arduino where you want to keep wiring minimal. The 7-PIN configuration provides additional SPI-compatible pins for platforms that benefit from faster SPI data transfer. Both configurations are supported on this module.

Q: Does this module support color display?

A: This particular module displays white pixels on a black background. However, thanks to the SSD1327 driver's 16-level grayscale support, you can render images and text with varying brightness levels for rich, detailed visuals even without full color.

Q: What is included in the package?

A: Each package includes one (1) OLED display module. No additional accessories, cables, or development boards are included. Standard 2.54mm-pitch header pins are typically pre-soldered, but please confirm with the listing images before ordering.
