POROMETISTO DMT01 Digital Manometer – 12-Unit Dual Port Air Pressure Gauge
The POROMETISTO DMT01 Digital Manometer is a professional-grade differential pressure measuring instrument designed for HVAC technicians, engineers, and industrial professionals. With one-click switching across 12 pressure units and a fast 0.5-second response time, this dual-port gauge delivers accurate, reliable readings for natural gas pipelines, ventilation ducts, airtightness inspections, and laboratory environments. Made in China.

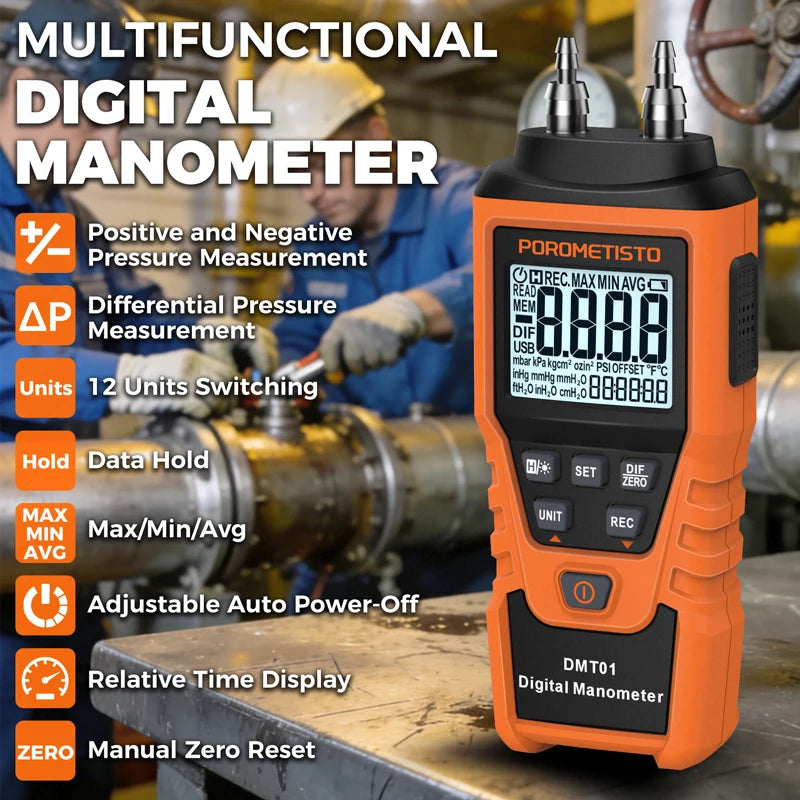

Key Features

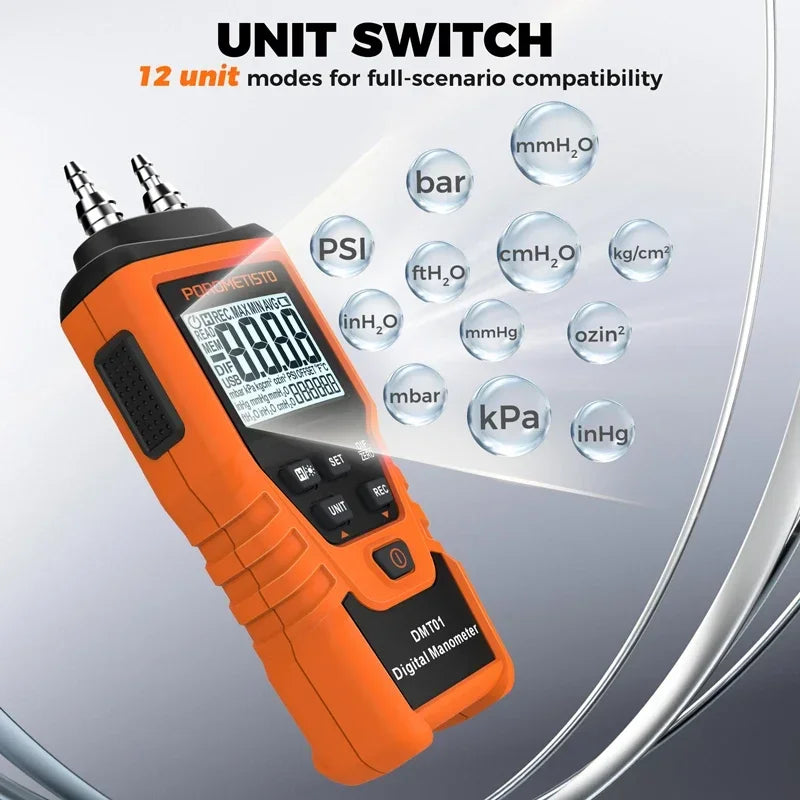

- 12 Pressure Unit Switching: Instantly toggle between inH₂O, PSI, mbar, kPa, inHg, mmHg, oz/in², ftH₂O, mmH₂O, cmH₂O, kg/cm², and bar — all at the press of a button.

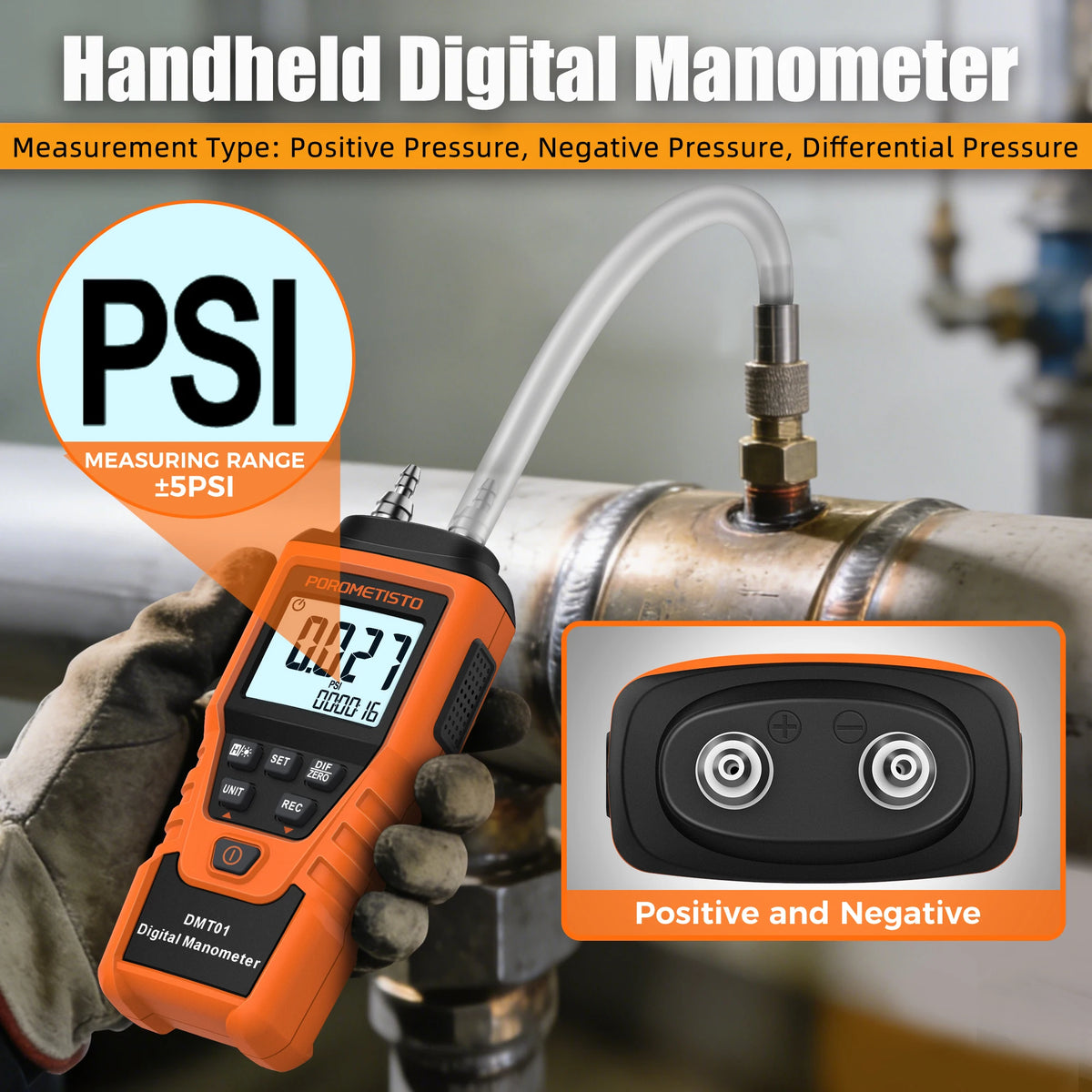

- Triple Measurement Modes: Measures positive pressure, negative pressure, and differential pressure; one-touch differential mode captures pressure changes instantly.
- High Accuracy: ±0.3% FS accuracy with a ±5 PSI measuring range and maximum overpressure rating of 10 PSI.

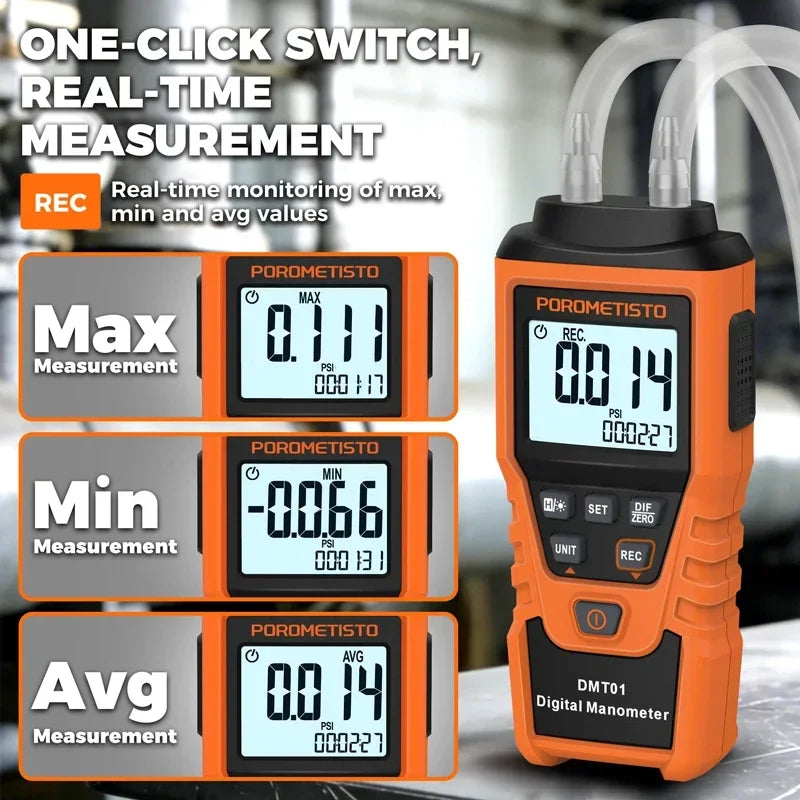

- Max / Min / Avg Recording: Real-time logging of maximum, minimum, and average values for comprehensive data analysis.
- Data Hold Function: Lock the current reading on-screen with a single press.

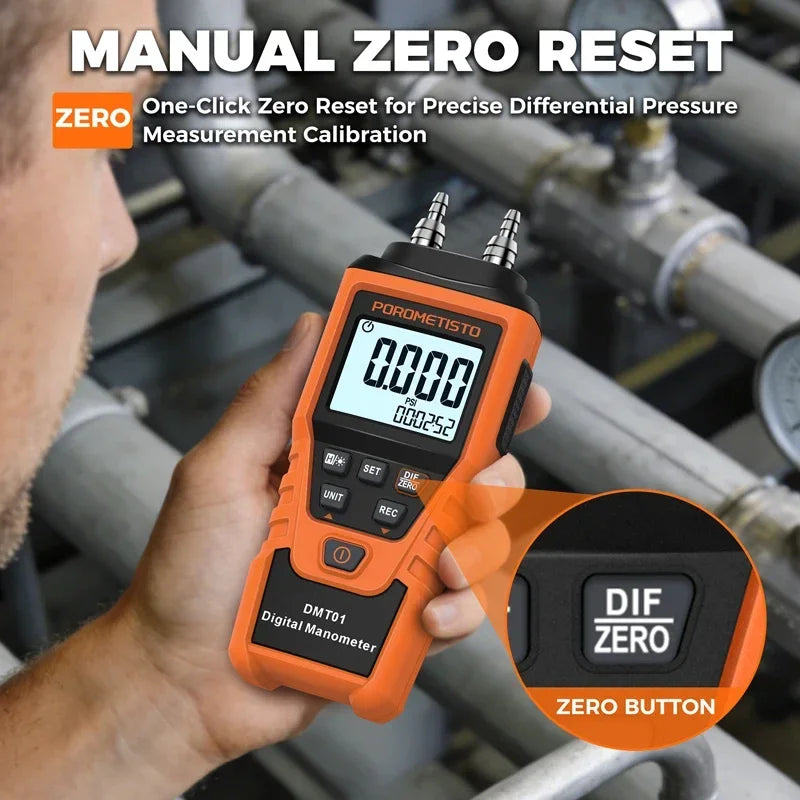

- Manual Zero Reset: One-click zero calibration ensures precise differential pressure readings every time.
- Adjustable Auto Power-Off: User-configurable shutdown (set ON/OFF for under or over 5 minutes) to preserve battery life.
- Backlit LCD Display: One-touch backlight activation for clear readings in low-light or nighttime working conditions.
- Relative Time Display: Tracks measurement duration in real-time.
- Under-Voltage Indicator: Alerts you when battery replacement is needed.
- CE & RoHS Certified: Meets international safety and environmental compliance standards.
Technical Specifications
| Model | DMT01 |
| Display | LCD with backlight |
| Measurement Range | ±5 PSI |
| Max Overpressure Rating | 10 PSI |
| Accuracy | ±0.3% FS |
| Repeatability | ±0.2% (max ±0.5% FS) |
| Linearity | ±0.29% FS |
| Response Time | 0.5 seconds |
| Operating Temperature | 0–50°C / 32–122°F |
| Storage Temperature | –10–60°C / 14–144°F |
| Power Supply | 3 × 1.5V AAA batteries (not included) |
| Certifications | CE, RoHS |
Applications
- HVAC system commissioning and debugging
- Ventilation duct flow and pressure testing
- Natural gas pipeline pressure monitoring
- Equipment airtightness inspection
- Industrial equipment maintenance
- Laboratory gas pressure monitoring
- Automotive pressure diagnostics

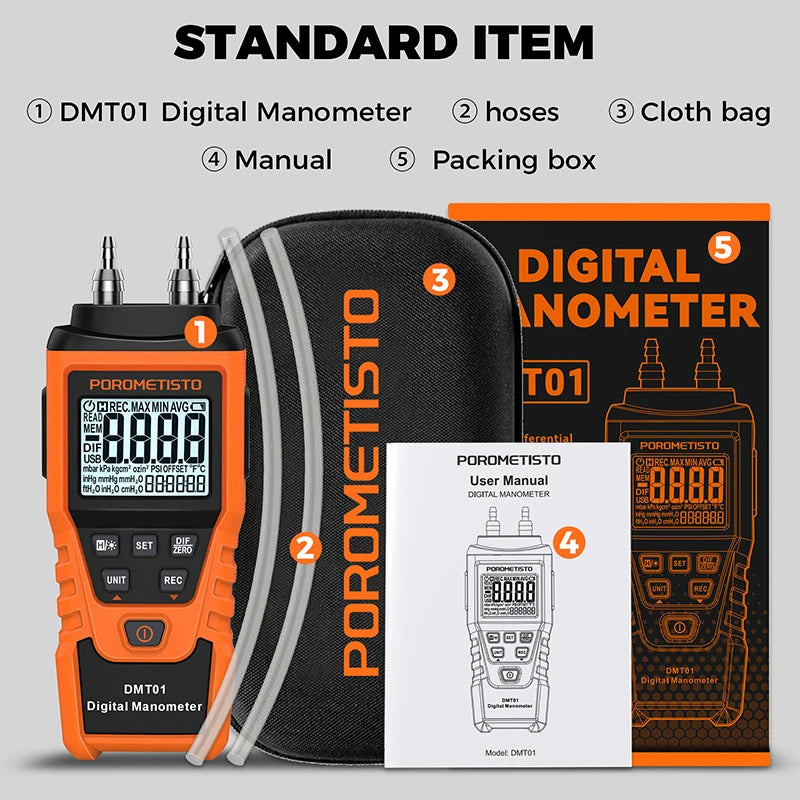

What's in the Box
- 1× DMT01 Digital Manometer
- 2× Differential Pressure Connection Hoses
- 1× User Manual
- 1× Cloth Storage Bag
Related Products You May Like
- 25-in-1 Precision Magnetic Screwdriver Set | Pro Repair Kit
- 34-Compartment Double-Sided Hardware Storage Box & Dividers
- 5-in-1 Diamond Knife Sharpener | Kitchen & Scissor Sharpener
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What pressure units does the POROMETISTO DMT01 Digital Manometer support?
A: The DMT01 supports 12 selectable pressure units: inH₂O, PSI, mbar, kPa, inHg, mmHg, oz/in², ftH₂O, mmH₂O, cmH₂O, kg/cm², and bar. Switching between units is done with a single button press, making it fast and convenient on the job.
Q: Does the digital manometer require batteries, and are they included?
A: The DMT01 Digital Manometer is powered by 3 × 1.5V AAA batteries. Batteries are not included in the package. The device features an under-voltage indicator to let you know when it's time for a fresh set.
Q: Can the DMT01 measure both positive and negative pressure?
A: Yes. The DMT01 measures positive pressure, negative pressure, and differential pressure across a ±5 PSI range. One-touch zero calibration (manual zero reset) allows you to quickly set a baseline for accurate differential pressure readings.
Q: Is the POROMETISTO DMT01 suitable for HVAC and ventilation work?
A: Absolutely. The DMT01 is purpose-built for HVAC system commissioning, ventilation duct testing, airtightness inspections, and natural gas pipeline monitoring. Its fast 0.5-second response time, ±0.3% FS accuracy, and backlit LCD display make it a dependable tool for both field professionals and lab technicians.
